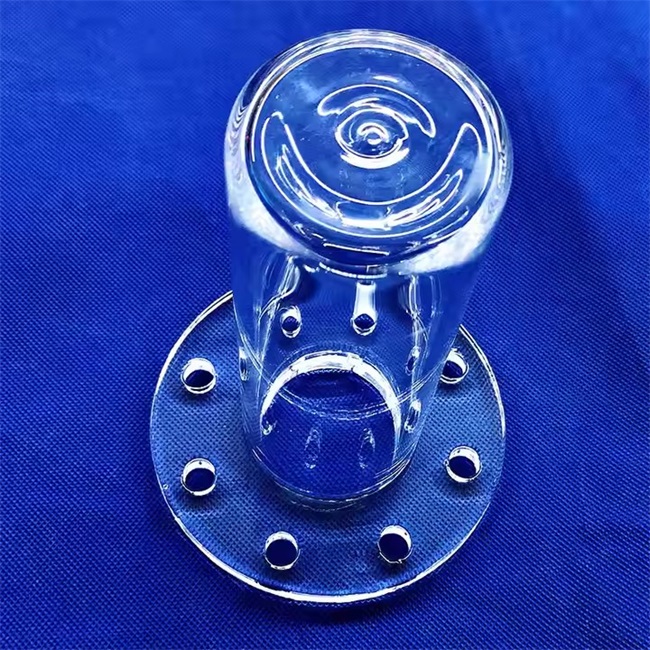

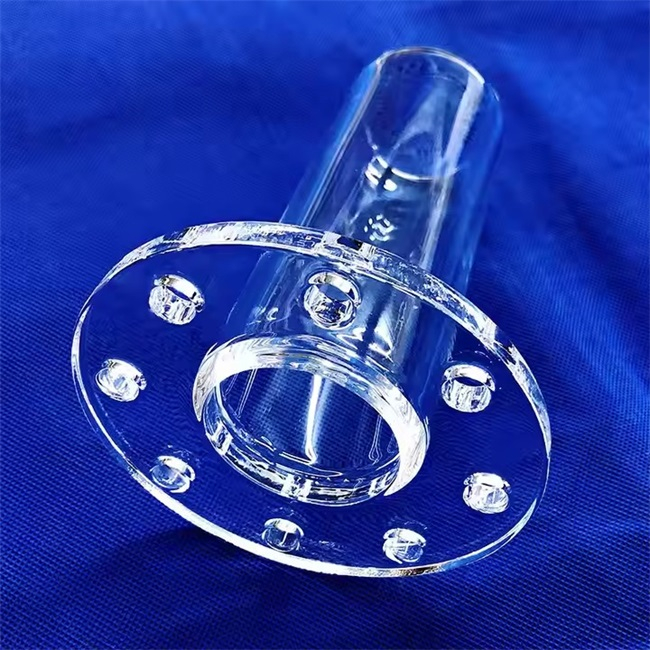

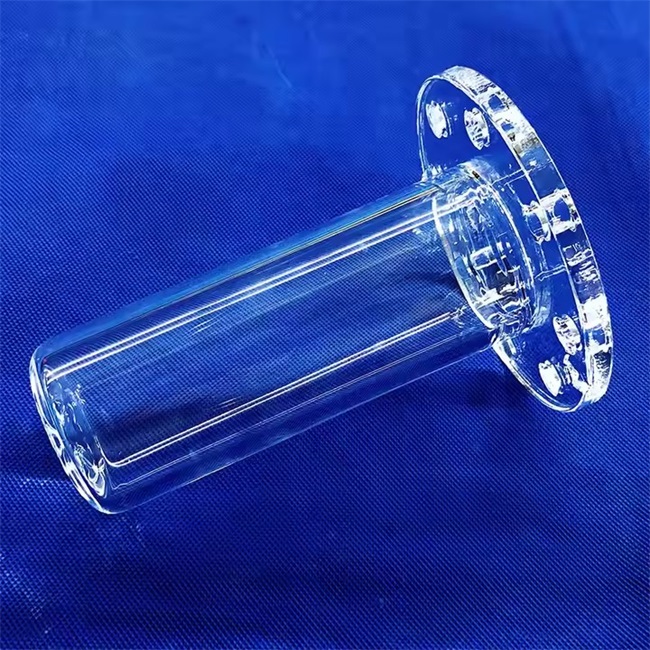

Transparent fused optical quartz glass flange
Transparent fused silica glass flange is a high-precision component designed specifically to meet special optical, industrial, and scientific research needs.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Transparent fused silica glass flange is a high-precision component designed specifically to meet special optical, industrial, and scientific research needs. This flange is made of high-quality fused silica material, which has excellent optical transparency, chemical stability, mechanical strength and high temperature resistance, ensuring its stability in extreme environments. It is not only suitable for various optical applications in the ultraviolet to infrared spectral range, but also serves as a reliable interface for connecting different systems or components.
Material characteristics
-Extremely high purity: fused silica glass flange is composed of almost pure silicon dioxide (SiO2), usually containing more than 99.9% SiO2, which ensures extremely low metal impurity content and reduces the risk of pollution to the sensitive optical system.
-Low thermal expansion coefficient: compared with other types of glass, fused silica has a very low linear thermal expansion coefficient (about 0.55 x 10 ^ -6/° C), which enables it to maintain dimensional stability when the temperature changes, which is crucial to maintain the accuracy of the optical system.
-Excellent light transmittance: fused silica glass flange shows excellent light transmittance in the whole visible light and near ultraviolet to mid infrared bands, especially in the ultraviolet region, its transmittance is far higher than that of ordinary optical glass.
-Chemical corrosion resistance: except hydrofluoric acid, fused silica shows good corrosion resistance for most acid and alkali solutions, and is suitable for use as a chemical reaction vessel or other application scenarios contacting corrosive media.
Design and Manufacturing
-Precision machining: In order to achieve the best optical and flatness requirements, we use advanced CNC machine tools for fine grinding and polishing, ensuring that each flange surface reaches mirror level smoothness and can control flatness errors within micrometer level.
-Customized service: Based on the specific specifications and technical parameters of the customer, we can provide a one-stop customized solution from design consultation to finished product delivery, including but not limited to different external dimensions, installation hole layout, sealing method selection, etc.
-Strict quality control: All products before leaving the factory must undergo strict inspection processes, such as appearance inspection, thickness uniformity testing, parallelism measurement, optical quality assessment, etc., to ensure that each product meets international standards or specific industry specifications.
Application area
-Optical instruments: key components used to produce high-performance microscopes, telescopes, interferometers, and other scientific instruments, ensuring imaging clarity and data accuracy.
-Semiconductor manufacturing: In the process of chip production and detection, fused silica glass flange can be used as a bearing platform or isolation barrier to protect sensitive elements from external interference.
-Laser technology: As one of the important components in laser transmission systems, it can effectively reduce energy loss and improve beam quality, and is suitable for multiple fields such as medical beauty and material processing.
-Aerospace: With its lightweight and sturdy advantages, this type of flange is widely used in satellite communication antenna covers, aircraft observation windows, and other areas to ensure signal transmission efficiency and visual clarity.
-Energy conversion equipment: for example, solar photovoltaic panel packaging materials or fusion reactor internals, fused silica glass flange has become an ideal choice due to its excellent physical and chemical properties.
Technical parameter
-Size range: The diameter ranges from a few millimeters to tens of centimeters, and can be customized according to customer needs.
-Thickness options: Generally, multiple standard thicknesses are available for selection, and both ultra-thin and thick walled designs are supported.
-Tolerance accuracy: ± 0.01mm or less, depending on application requirements.
-Surface smoothness: Ra < 0.01μm， Achieve almost perfect mirror effect.
-Working temperature: It can work stably for a long time within the range of -50 ° C to+1000 ° C, and can withstand higher temperature shocks in a short period of time.
-Transmitting wavelength range: covering the wavelength range of 185nm to 2.5 μ m, especially suitable for applications of ultraviolet and visible light.
Transparent fused silica glass flanges have become the preferred material in many high-tech fields due to their unique material properties and excellent manufacturing processes. Whether pursuing ultimate optical performance or requiring reliable mechanical connections, this product can provide satisfactory solutions. If you are looking for a flange that can handle complex working conditions and has stable performance, please consider our transparent fused optical quartz glass flange. We will wholeheartedly provide you with the highest quality service and support.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
