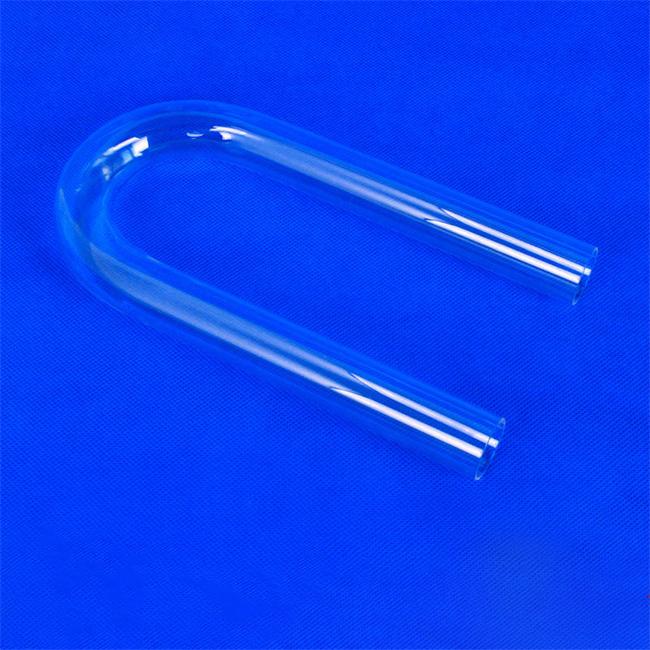

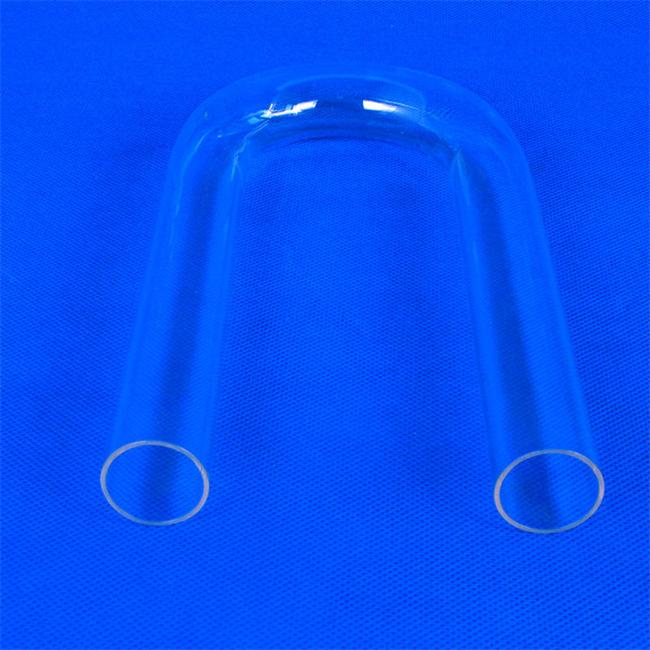

Transparent polished U-shaped fused silica tube is an optical grade quartz glass product with high purity and high temperature resistance. It is made of high-purity fused silica material (SiO ₂ content ≥ 99.99%). After precision processing and optical polishing, it has excellent transmittance, thermal stability and chemical inertness. The U-shaped design provides higher flexibility and adaptability in fluid transport, optical experiments, and special industrial applications.

FAQ: Frequently Asked Questions About Clear, Polished U-Shaped Fused Quartz Tubes

Can clear, polished U-shaped fused quartz tubes be customized according to drawings?

Yes. We offer custom manufacturing based on customer drawings or specifications. We can confirm the U-shape structure, bend radius, straight section length, outer diameter, inner diameter, wall thickness, total length, quantity, and surface finish requirements according to your application needs.

In which industries are quartz tubes suitable for use?

They are suitable for semiconductor equipment, optoelectronic equipment, laboratory apparatus, high-temperature heating systems, industrial viewing windows, specialized light sources, testing equipment, scientific research apparatus, and other applications requiring quartz tubes with high-temperature resistance, corrosion resistance, and high light transmittance.

Can you provide different sizes and specifications?

Yes. We can provide customized solutions with various outer diameters, inner diameters, wall thicknesses, lengths, and U-bend radii based on customer requirements. Specific parameters are subject to actual drawings or the results of technical discussions.

What is the purpose of transparent polishing?

Transparent polishing helps improve the surface finish of quartz tubes, enhances their appearance, and facilitates observation and inspection applications. It also helps meet the requirements of certain equipment regarding surface cleanliness, light transmittance, and structural precision.

What information is needed before placing a custom order?

We recommend providing product drawings, outer diameter, inner diameter, wall thickness, total length, U-bend radius, operating temperature range, application scenario, quantity, and surface requirements. If complete drawings are not yet available, you may provide basic dimensions and an application description, and our technical team will assist in confirming the solution.

Can the product be used in high-temperature or corrosive environments?

Fused quartz typically exhibits excellent high-temperature resistance and chemical stability; however, specific suitability requires a comprehensive evaluation based on actual temperature, medium, pressure, duration of use, and equipment structure. We recommend that customers provide detailed operating conditions to facilitate suitability verification.

Do you support small-batch prototyping and bulk purchasing?

Yes. We offer prototyping for confirmation and bulk production services tailored to customer needs, suitable for R&D testing, equipment integration, project procurement, and long-term, stable supply requirements.

Quartz Tube Features

-High transmittance: It has excellent transmittance (>90%) in the ultraviolet (UV), visible light, and near-infrared (NIR) bands.

-High temperature resistance: It can work for a long time below 1200 ℃ and withstand high temperatures up to 1450 ℃ in the short term.

-Chemical stability: resistant to strong acids (excluding hydrofluoric acid), strong alkalis, and organic solvent corrosion, suitable for high-purity chemical experiments.

-Low thermal expansion coefficient: The thermal expansion coefficient is extremely low (5.5 × 10 ⁻⁷/℃), with excellent thermal shock resistance, suitable for rapid temperature rise and fall environments.

-High surface finish: After precision polishing, the inner wall is smooth, reducing fluid residue and suitable for high-purity transmission needs.

Main application areas

Transparent polished U-shaped fused silica tube is widely used in the following fields due to its excellent performance:

1. Semiconductor and Photovoltaic Industry

-Wafer processing: used for gas transport in high-temperature diffusion, oxidation, and CVD (chemical vapor deposition) processes.

-Solar cell manufacturing: used as a reaction chamber component in PECVD (plasma enhanced chemical vapor deposition) equipment.

2. Optics and laser technology

-Laser resonant cavity: As an optical cavity of high-power lasers, it reduces energy loss.

-UV optical system: used for optical components in UV curing, spectral analysis, and lithography equipment.

3. Chemical and pharmaceutical industries

-High purity fluid transportation: suitable for fluid tubelines in corrosive chemicals, high-purity reagents, and pharmaceutical industries.

-Reactor observation window: high temperature resistant, corrosion-resistant, and can be used as an observation window for high-pressure reactors.

4. Research and Laboratory

-Vacuum system: Used for sample chambers or connecting components in high or ultra-high vacuum environments.

-Spectral analysis: As a sample cell or optical path component, it ensures high transparency and low background interference.

Customized service

We can provide personalized customization according to customer needs to ensure that the product is perfectly adapted to your application scenario:

1. Size customization

-tube diameter range: 2mm~200mm (supports non-standard sizes).

-U-shaped bending radius: adjustable according to requirements (minimum bending radius ≥ 3 times the tube diameter).

2. Surface treatment

-High precision polishing: The inner and outer walls can be provided with optical grade, matte or matte treatment.

-Coating service: Optional anti reflective film (AR), reflective film, or corrosion-resistant coating.

3. Connection method

-Standard flange, sleeve joint or welding interface (supporting vacuum sealing requirements).

4. Special requirements

-Ultra high purity (low metal ion content).

-High pressure resistant design (applicable to high-pressure reaction systems).

Why choose our U-shaped fused silica tube?

1. Solve the problem of material failure under high temperature environment: traditional glass or metal tubes are prone to deformation and oxidation under high temperature, while fused silica tubes can work stably for a long time.

2. Improve the efficiency of optical systems: High transparency and low scattering characteristics reduce light energy loss and enhance the performance of laser or spectroscopic equipment.

3. Avoid chemical pollution: Ultra high purity and chemical inertness ensure pollution-free fluid transmission, suitable for the semiconductor and pharmaceutical industries.

4. Customized support: From size to surface treatment, fully meet special application needs.

Transparent polished U-shaped fused silica tube is an ideal choice for high-end industrial, optical and scientific research fields. It has excellent temperature resistance, optical performance and chemical stability. We can provide professional solutions for both standard products and customized needs.

If you need further information or order, please contact us!

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
