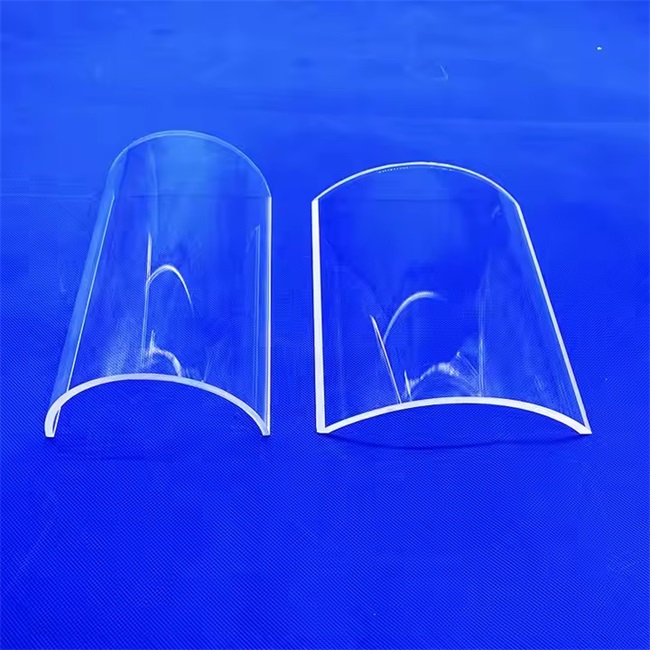

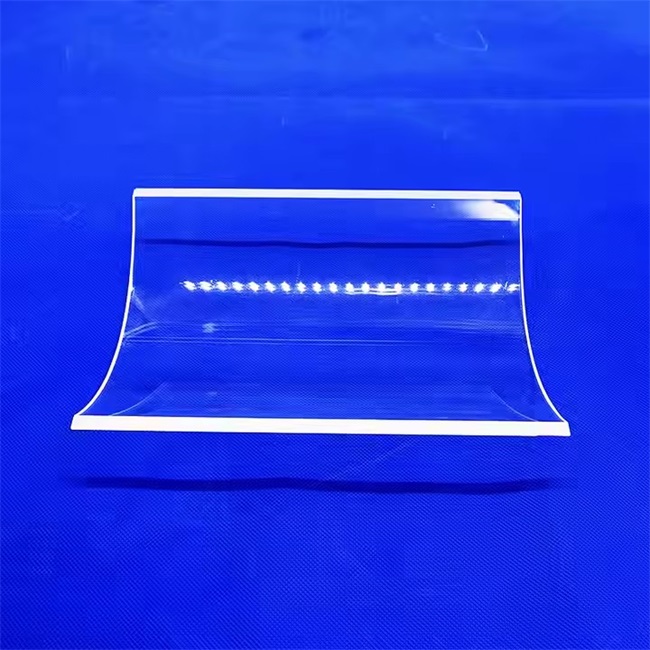

Transparent semicircular arc quartz sheet
The transparent semi-circular arc-shaped quartz plate, with its unique geometric shape and excellent quartz material properties
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement

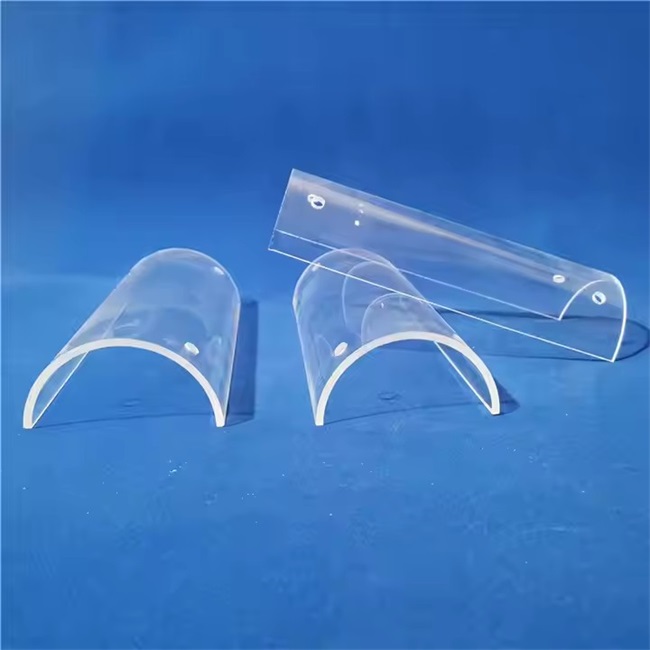

Transparent semi-circular arc-shaped quartz plate
In the pursuit of precision and high-performance technology, specially shaped quartz glass sheets are playing an increasingly important role. The transparent semi-circular arc-shaped quartz plate, with its unique geometric shape and excellent quartz material properties, provides an ideal solution for many cutting-edge applications. It not only inherits the excellent tradition of quartz glass, but also meets the optical, mechanical, and environmental resistance requirements in specific scenarios with its unique curved surface design.
Transparent semi-circular arc-shaped quartz sheet, as the name suggests, is a glass sheet with a semi-circular curved surface made of high-purity quartz material and precision processed. Its "transparent" characteristic means that it has excellent optical transmittance, especially in the ultraviolet to mid infrared band, which can efficiently transmit light with minimal loss. Its "semi-circular arc" design endows it with unique physical and optical properties that differ from flat glass.
Main features:
High purity and optical performance: Using high-purity quartz raw materials (usually with silicon dioxide content>99.99%), it ensures extremely low impurity content, thus having excellent UV visible infrared full band transmittance, low dispersion when light passes through, no selective absorption, and stable optical path.
Excellent temperature resistance: It has extremely high operating temperatures and can withstand temperatures of thousands of degrees Celsius in the short term without softening or deformation. Its coefficient of thermal expansion is extremely low (about 5.5 × 10 ⁻⁷/° C), and it can maintain dimensional stability even under severe temperature changes, making it less prone to thermal stress cracking.
Excellent chemical stability: It has strong resistance to chemicals such as acids, bases, and salts, especially to all acid corrosion except hydrofluoric acid, and can maintain stable performance in harsh chemical environments.
Mechanical strength and hardness: Compared to ordinary glass, quartz glass has higher hardness and mechanical strength, scratch resistance, wear resistance, and is not easily damaged.
Unique semi-circular curved surface: The curved surface can change the propagation path of light (such as focusing, diverging, and changing the incident angle), and its semi-circular contour is also easy to install and fix in certain specific structures, providing certain mechanical protection or specific optical effects.
The surface of this product is usually precision polished to ensure uniform curvature, high flatness, smooth edge treatment, and no obvious burrs, meeting the requirements of high-precision applications.
Application
Transparent semi-circular arc-shaped quartz plates have wide and critical applications in multiple high-tech fields due to their unique combination characteristics
In the field of optics and optoelectronics:
Optical lenses/mirrors: Curved surfaces can be directly used as simple focusing or diverging lenses, or as substrates for mirrors, used in laser systems, spectrometers, microscopes, and other equipment.
Laser components: In some laser resonant cavity designs, semi-circular arc plates can be used as end mirrors or cavity components, utilizing their high temperature resistance and laser damage resistance characteristics.
Fiber optic communication and sensing: It can be used in fiber optic connectors, couplers, optical switches and other devices as a collimation, focusing or protection element, and its curved surface helps to adjust the specific angle of the beam.
Semiconductor and Microelectronics Manufacturing:
Mask template/substrate: In photolithography, etching and other processes, it can be used as a high-temperature and chemically resistant mask template or carrier substrate, and its curved surface may be used for specific exposure or plasma distribution.
Wafer processing accessories: specific positioning or protective components used during wafer heating, cooling, or transportation processes.
Analysis instrument:
Spectral analysis: In instruments such as atomic absorption spectroscopy and plasma emission spectroscopy, it may be used as an observation window or specific optical element in the optical path of a sample cell.
Column packing support/detector window: Its corrosion resistance and high temperature resistance make it suitable as an observation window or support structure in high temperature and corrosive environments.
Aerospace and Defense:
Windows and observation windows: used as observation windows for aircraft, engines, or special equipment in high temperature, high pressure, or highly corrosive environments. The curved design can enhance structural strength or change the viewing angle.
Sensor protective cover: protects sensitive optical or environmental sensors from adverse environmental effects.
Research experiment:
Reaction vessel/observation window: used as a corrosion-resistant and high-temperature resistant observation window or part of a reaction chamber in high-temperature and high-pressure reaction vessels or special chemical experiments.
Physical experimental setup: As a key optical or structural component in physical experiments involving extreme temperature or vacuum environments.
Customized service
We are well aware that the demand for quartz wafers varies greatly in different application scenarios, so we provide comprehensive customization services to ensure that our products perfectly meet your specific needs:
Customization of size and thickness:
Diameter/Chord Length: Customize the diameter or corresponding chord length of the semicircle according to your device space and optical design requirements.
Thickness: Provides a variety of thickness options ranging from thin to tens of micrometers to thick to several millimeters or even thicker, meeting the needs of strength, weight, or specific optical thickness.
We have advanced production equipment and an experienced technical team, which can provide you with one-stop services from design consultation, sample production to mass production. If you have specific application requirements or design drawings, please feel free to contact us at any time. We will wholeheartedly customize the most suitable transparent semi-circular arc-shaped quartz plate solution for you.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
