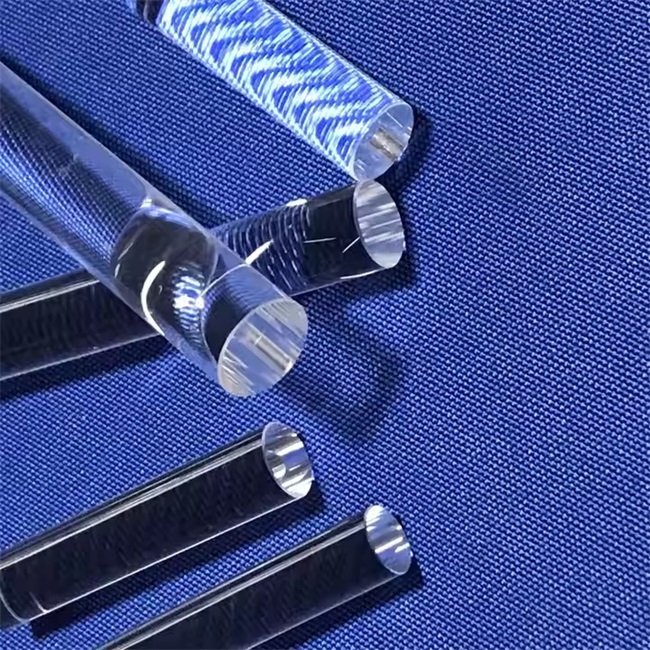

UV transparent fused silica glass rod
UV transparent fused silica glass rod is a high purity silica material with excellent optical, mechanical, thermal and chemical properties.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
UV transparent fused silica glass rod
UV transparent fused silica glass rod is a high purity silica material with excellent optical, mechanical, thermal and chemical properties.
Performance parameter
High purity: mainly composed of silica, with a purity of 99.95%.
Optical characteristics:
High transmittance: It has an extremely high transmittance in the ultraviolet region and is suitable for manufacturing lenses and optics for the ultraviolet spectrum.
Wide spectral transmission range: The entire spectral band from ultraviolet light to infrared light has good light transmission performance, especially in the ultraviolet spectral region, the transmittance can reach more than 80%.
Mechanical properties:
High strength: with high hardness and high strength, it can withstand external forces without cracking easily.
Thermal properties:
High temperature resistance: The softening point temperature is about 1730 ° C, which can be used for a long time at 1100 ° C, and the short-term use temperature can reach 1450 ° C.
Low coefficient of thermal expansion: the coefficient of thermal expansion is extremely low, only 1/10-1/20 of glass, with high resistance to heat and cold.
Chemical properties:
Corrosion resistance: Except for hydrofluoric acid and hot phosphoric acid, it hardly reacts chemically with other acids, especially at high temperatures.
Application field
Optical instruments: Due to their excellent optical properties, they are widely used in the manufacture of spectrometers, microscopes, and other optical instruments.
Scientific research and experimentation: Due to its excellent resistance to high temperature and corrosion, it is often used as a container or transmission pipeline for chemical reactions.
Semiconductor industry: used in semiconductor wafer processing and fiber optic lighting.
High temperature environment: suitable for environments that require high temperature and corrosion resistance, such as semiconductor equipment, laboratory utensils, etc.
UV transparent fused silica glass rod plays an important role in many high-tech fields due to its excellent performance.
For more information, please feel free to contact us.
