10-100ml transparent quartz crucible

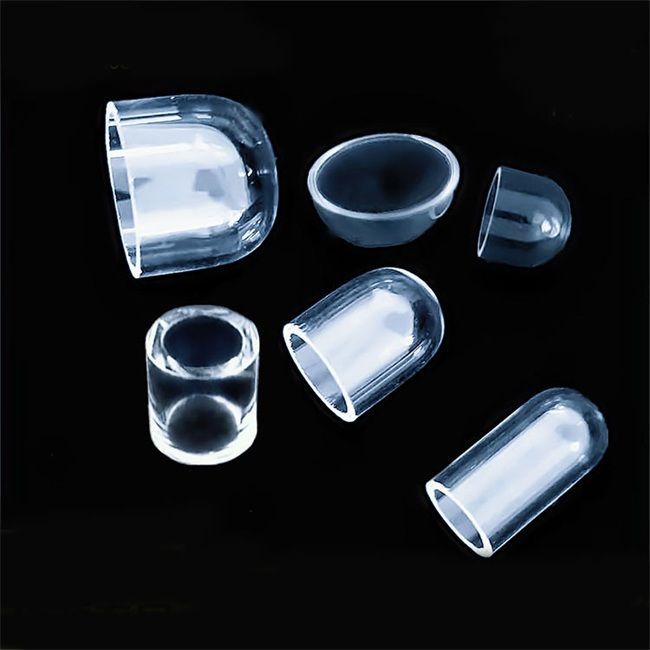

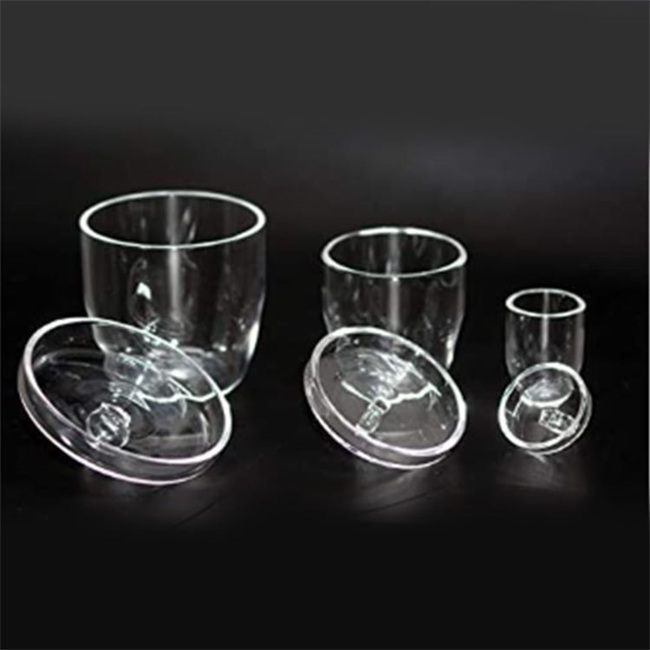

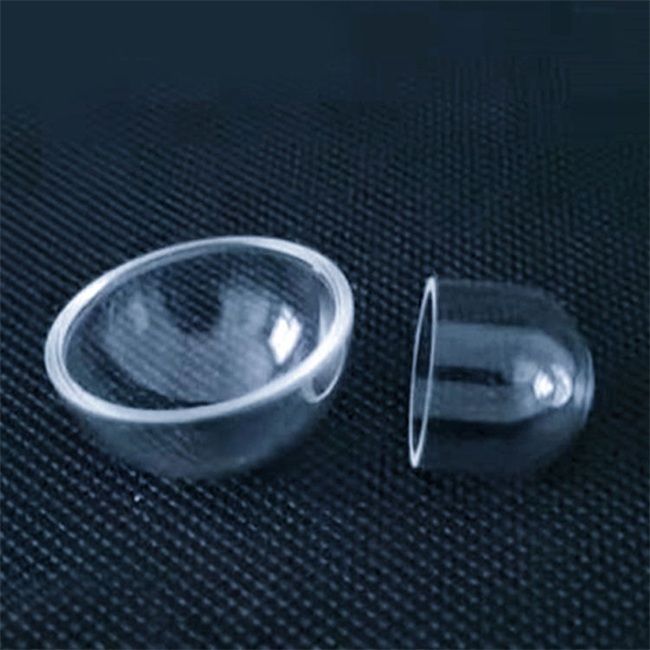

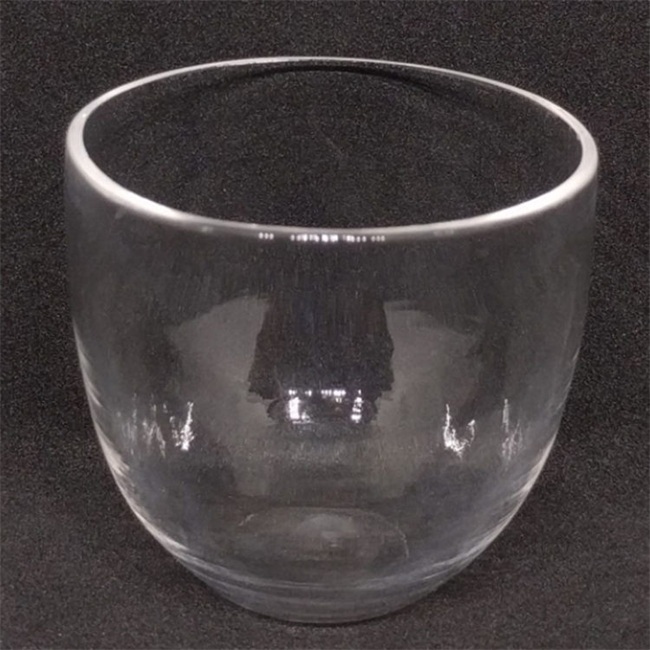

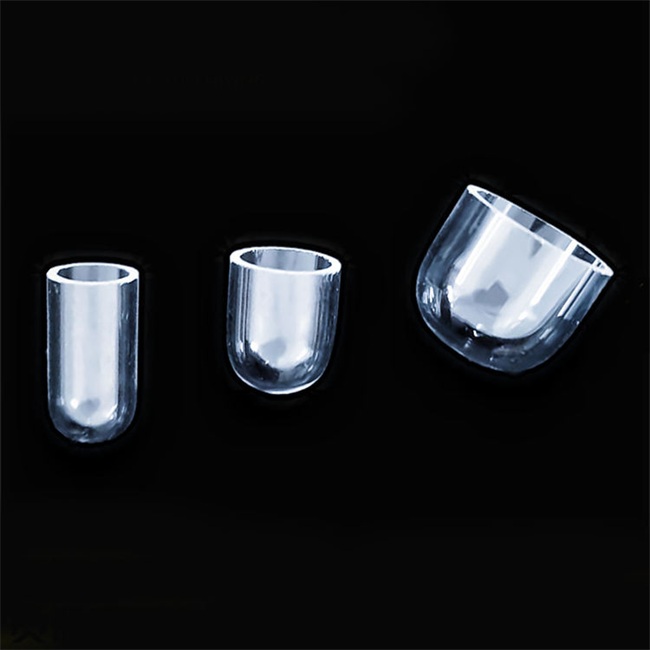

10-100ml transparent quartz crucible is a high-purity, high-temperature resistant container designed specifically for laboratory and industrial scenarios.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
10-100ml transparent quartz crucible
10-100ml transparent quartz crucible is a high-purity, high-temperature resistant container designed specifically for laboratory and industrial scenarios. It is made of high-quality transparent quartz glass (high-purity SiO ₂) and has excellent chemical stability, thermal stability, and transparency. Its capacity range covers 10ml to 100ml, which can meet the needs of experiments and production at different scales. The product is processed with precision technology to ensure high dimensional accuracy and uniform wall thickness, suitable for harsh environments such as high-temperature melting, chemical analysis, and material synthesis.
Core features:
High temperature resistance: It can withstand an instantaneous temperature difference of up to 1200 ℃ (short-term use) or a continuous working temperature of 1100 ℃ (long-term use), avoiding rupture caused by thermal stress.
Chemical inertness: resistant to strong acids, strong bases, and organic solvents (except hydrofluoric acid), ensuring no pollution during the experimental process.
High transmittance: Transparent quartz material facilitates real-time observation of sample reaction status and reduces operational interference.
Low thermal expansion coefficient: Excellent thermal stability, reducing the risk of deformation at high temperatures.
Easy to clean: Smooth surface, easy removal of residues, reducing the probability of cross contamination.
Application scenarios
Transparent quartz crucibles are widely used in the following fields to solve the limitations of traditional containers in high-temperature and corrosive environments:
1. Laboratory research
Chemical analysis: used for pre-treatment of molten samples (such as X-ray fluorescence spectroscopy analysis, atomic absorption spectroscopy analysis) to avoid introducing impurities into metal crucibles.
Material synthesis: High temperature synthesis of inorganic materials such as ceramics, glass, crystals, etc. The transparent design facilitates monitoring of the reaction process.
Heat treatment experiment: Provide a stable container environment in processes such as high-temperature annealing and sintering.
2. Industrial production
Semiconductor manufacturing: As a carrier in high-temperature diffusion and oxidation processes, it ensures high-purity material processing.
Photovoltaic industry: used in processes such as silicon material purification and polycrystalline silicon melting, with high temperature resistance and no pollution to raw materials.
Metal smelting: Melting precious metals (such as gold, silver) or rare metals to avoid interference from metal container reactions.
3. Special Scenarios
Nuclear industry: When handling radioactive samples, the chemical stability of quartz can reduce radiation damage to containers.
Jewelry processing: High temperature melting of gemstone raw materials, transparent design for easy control of heat.
Key issues addressed:
Traditional metal/ceramic crucibles are prone to react with samples at high temperatures, leading to the introduction of impurities;
Ordinary glass containers have insufficient temperature resistance and are prone to breakage;
Non transparent containers cannot observe the reaction status in real time, increasing operational risks.
Customized service
To meet diverse needs, we offer the following customization options:
1. Customization of size and shape
Capacity expansion: Supports customization of any specification within the range of 10ml-100ml, suitable for different experimental equipment.
Special shape: Design irregular crucibles (such as conical, cylindrical with lids, etc.) according to customer needs to optimize the experimental process.
Wall thickness adjustment: Provide thickened or thin-walled designs for different temperature requirements, balancing durability and heating efficiency.
2. Material upgrade
High purity quartz: 99.99% purity quartz glass can be selected, suitable for ultra clean environments such as semiconductors.
Doped quartz: Add elements such as aluminum and titanium as needed to enhance temperature resistance or thermal shock resistance.
3. Surface treatment
Polishing process: Inner wall mirror polishing reduces sample adhesion and improves cleaning efficiency.
Scale marking: Laser engraved capacity scale on the outer wall of the crucible for precise sampling.
The 10-100ml transparent quartz crucible, with its high temperature resistance, corrosion resistance, and high transparency, has become an ideal tool for laboratories and industrial fields. Through customized services, we can accurately match user needs and solve the performance bottleneck of traditional containers in extreme environments. Whether it is precision experiments or large-scale production, this product can provide reliable support and help improve research and manufacturing efficiency.
Luverre Quartz manufactures and sells a wide range of high quality fused silica glass, including fused silica tubes, fused silica plates, fused silica rods, fused silica windows, fused silica crucibles, fused silica boats, fused silica flanges, fused silica beakers, fused silica glass instruments, and more. We can meet all kinds of customized requirements for fused silica glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused silica items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused silica lumps to fused silica sand and then fused silica products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused silica products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused silica plates, tubes and high size precision fused silica items.
