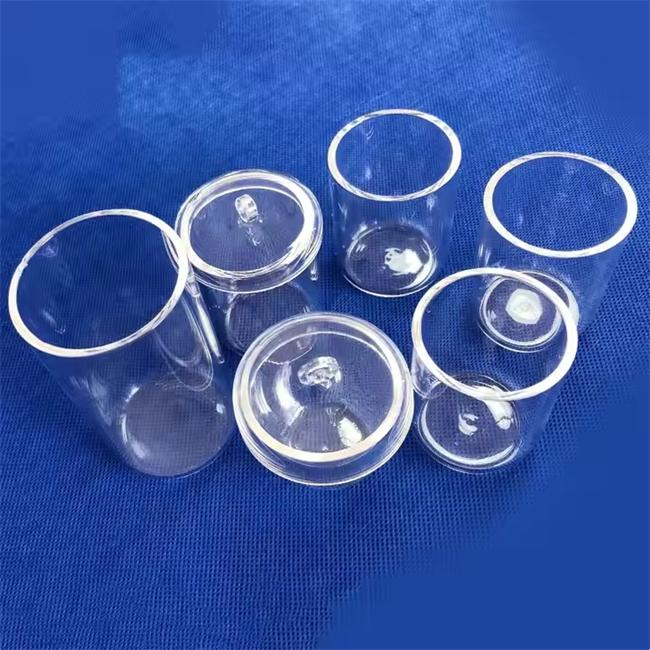

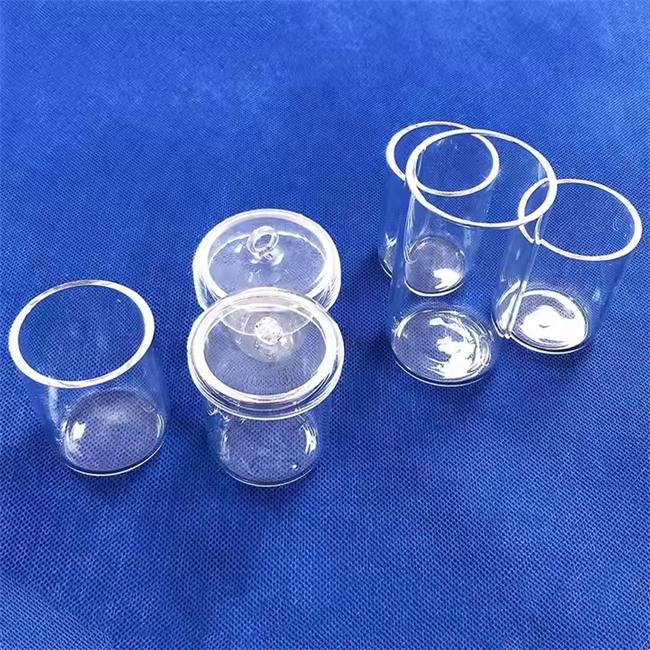

6-24 inch small-diameter quartz crucible

6-24 inch small-diameter quartz crucible is a high-purity consumable core container designed specifically for semiconductor and special material crystal pulling processes. The product is made of high-purity quartz sand melted at high temperature by arc method, and has excellent high temperature resistance, thermal shock resistance, and low impurity precipitation characteristics. We provide full specification customization services from 6 inches to 24 inches, accurately matching various single crystal furnace equipment to ensure structural stability and high crystallization rate in harsh high-temperature pulling environments.

FAQ

Q1: Which fields are your 6-24 inch quartz crucibles mainly suitable for?

A: Our products are widely used in semiconductor grade monocrystalline silicon growth, special optical glass preparation, high-temperature solid-state reactions, and crystal growth research in scientific research laboratories, meeting different purity requirements for electronic and solar grades.

Q2: What specific dimensions and structural customization can you provide?

A: We support depth customization for full-size ranges from 6 inches to 24 inches. In addition to non-standard dimensions such as outer diameter, height, and wall thickness, multi-layer composite structures (such as transparent layer and bubble layer ratio adjustment) and inner surface crystallization treatment can also be customized according to customer needs.

Q3: How long is the service life of small-diameter quartz crucibles generally?

A: The service life depends on the pulling temperature, silicon liquid chemical activity, and process control. In general, the single furnace crystal pulling cycle can reach several hundred hours. Our optimized process effectively delayed the propagation of microcracks and chemical erosion, significantly improving the durability of single use.

Q4: How to ensure the purity of the inner wall of the crucible and avoid contaminating the silicon material?

A: We strictly control the environmental cleanliness during the ingredient and melting process, and can improve the inner surface purity through synthetic quartz or high-purity natural quartz sand technology. Some models also add a dense crystalline layer on the inner surface, effectively isolating the chemical reaction between the crucible and the molten material to prevent impurities from falling off.

Addressing core user needs and challenges

In actual high-temperature crystal pulling production, users often face difficulties such as crucible deformation leading to crystal breakage and impurity precipitation affecting yield. Our 6-24 inch quartz crucibles ensure extremely high dimensional accuracy and wall thickness uniformity through precise mold forming and arc melting processes, solving the challenge of uneven thermal stress distribution. At the same time, the optimized multi-layer structure design not only ensures the structural strength under long-term high temperature, but also significantly reduces the risk of introducing impurities such as oxygen and carbon, thereby effectively helping users improve the crystallization rate and overall quality of monocrystalline silicon rods.

Application and Core Values

As a key auxiliary material in the single crystal drawing system, quartz crucible directly determines the yield and production cost of the final product. We are well aware of the stringent requirements for containers in different application scenarios, and therefore provide you with comprehensive application value:

Full scene coverage: Whether it is the manufacturing of small-sized semiconductor silicon wafers of 8 inches and below, or the purification of specific scientific research materials, any specification within the 6-24 inch range can be produced as needed.

Excellent thermal performance: The softening point can reach up to 1730 ℃, and the short-term temperature resistance can exceed 1450 ℃, perfectly adapting to extreme working conditions above 1400 ℃ in the direct drawing method (CZ).

Customized solution: For special crystal pulling processes, we can adjust the thickness of the transparent layer and bubble density, and even coat the inner wall with alkali metal ion solution to optimize melt convection and thermal field distribution.

Strict quality control: from raw material screening, arc melting, sandblasting and cutting to acid cleaning and purification, the entire process is automatically monitored to ensure that every crucible leaving the factory meets high industry standards.

Dealing with complex working conditions and application cases

During the high-temperature crystal pulling process, frequent thermal expansion and contraction can easily cause micro cracks, and the severe chemical erosion of molten silicon is the core challenge leading to premature failure of the crucible. We have enhanced the resistance to phase transformation and corrosion of the crucible by improving the quartz sand formula and melting discharge parameters, fundamentally extending its service life.

Customer application case: A chemical material research and development institution

A certain enterprise encountered a process bottleneck during the large-scale preparation of a new generation of lithium iron phosphate (LiFePO4) cathode material. During high-temperature solid-state reactions, ordinary containers are prone to side reactions with precursors such as lithium salts, leading to a decrease in material purity; At the same time, due to the inability to observe the reaction process in real time, it is difficult to accurately control the color changes and phase transition nodes of materials, and the yield rate has been difficult to break through.

To address this challenge, we have customized a 12 inch high-purity transparent quartz crucible for it. Thanks to the excellent chemical inertness and high-temperature stability of quartz material, the introduction of impurities during the reaction process is perfectly avoided. More importantly, utilizing the excellent transparency of quartz crucibles, the R&D team has successfully constructed a visualized high-temperature reaction chamber, achieving real-time monitoring and spectroscopic analysis of internal material reactions. In the end, the company not only successfully overcame the formulation difficulties, but also achieved industry-leading levels in the cycling stability and capacity retention of the prepared positive electrode materials.

If you are looking for a reliable supplier of quartz crucibles or have special requirements for size and process customization, please feel free to contact us at any time for exclusive quotes and technical solutions!
