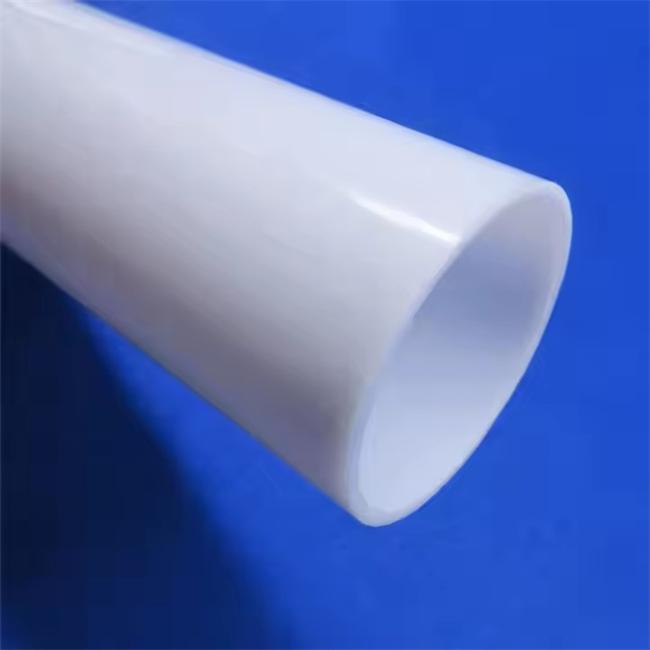

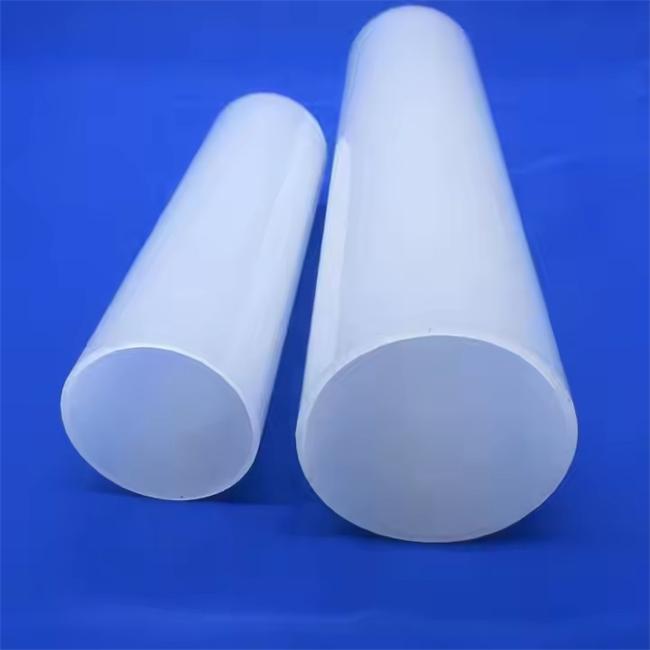

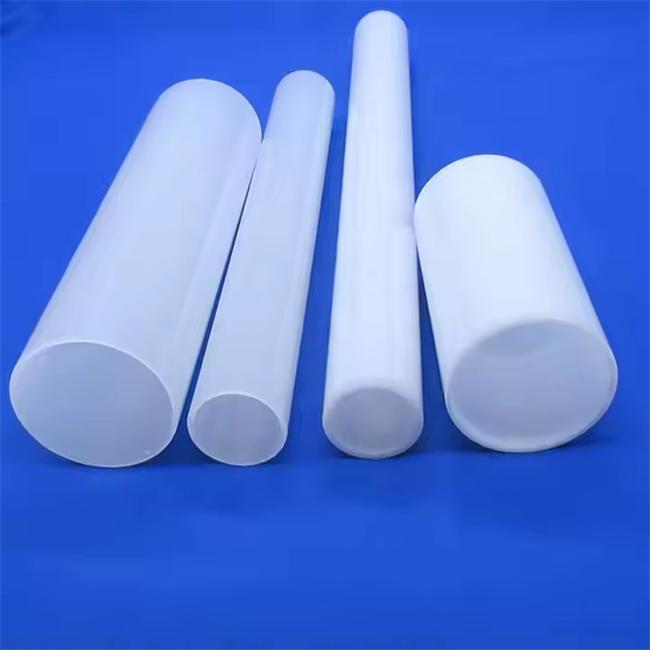

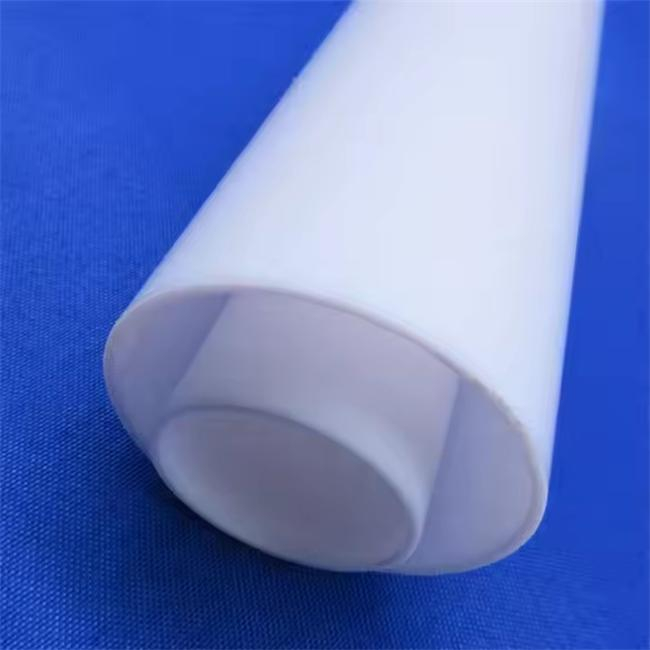

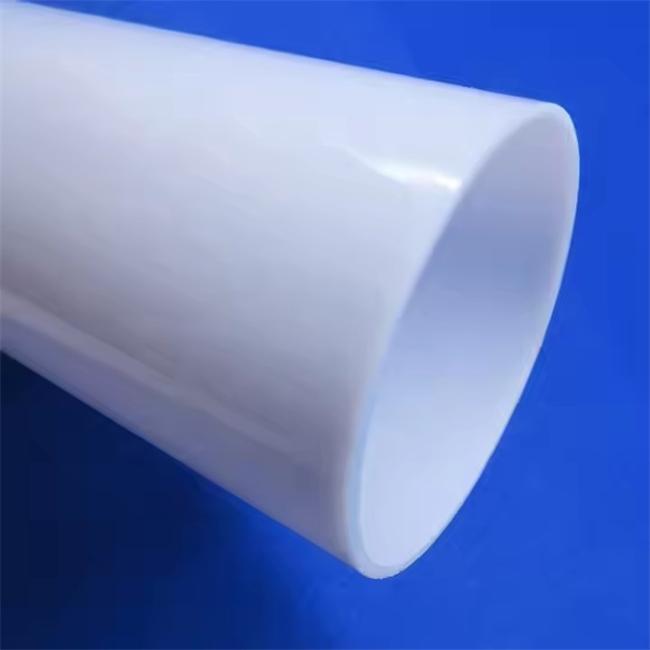

Large caliber milky white quartz tube

As a professional quartz product source factory, Luverre Quartz focuses on providing high-quality customized services for large-diameter milky white quartz tubes to global customers. Relying on advanced rotary molding technology, we can produce special wall thickness milky white quartz tubes with an outer diameter of up to 1000mm. This product has excellent high temperature resistance, corrosion resistance, and excellent insulation performance, and is widely used in industrial roasting furnace tubes, high-temperature insulation materials, and various far-infrared heating devices. We support processing based on drawings and samples, and are committed to providing cost-effective quartz solutions for global scientific research and industrial customers.

FAQ

Q1: What are the unique advantages of large-diameter milky white quartz tubes compared to transparent quartz tubes?

A: The milky white quartz tube (also known as opaque quartz tube) retains the characteristics of high-purity quartz, such as high temperature resistance, corrosion resistance, and good thermal stability, and has a strong shading effect. It can effectively absorb visible light and near-infrared light, and convert them into far-infrared radiation, making it very suitable for use in electric heating, baking furnace tubes, and insulation scenarios.

Q2: What is the maximum caliber of milky white quartz tube you can produce? Does it support non-standard customization?

A: We adopt advanced rotary technology and can currently produce milky white quartz tubes with a maximum outer diameter of 1000mm. At the same time, we have mature deep processing capabilities, and can accurately customize non-standard shaped parts of conventional sizes, special wall thicknesses, and special lengths according to your drawings and needs.

Q3: What is the service life of milky white quartz tube in high temperature environment?

A: Our milky white quartz tube has a silicon dioxide (SiO2) content of over 99.5%, a softening point temperature of about 1730 ℃, and can work stably for a long time in an environment of 1100 ℃. The maximum temperature for short-term use can reach 1450 ℃. Compared to ordinary materials, it has better resistance to crystallization and severe temperature differences, which can significantly extend the service life of consumables.

Demand and Product Value

In industrial heating, semiconductor manufacturing, and scientific research experiments, customers often face challenges such as difficulty in matching large-sized high-temperature resistant materials, and easy crystallization or explosion of materials in high-temperature environments. Our large-diameter milky white quartz tube is designed to address these core issues. By providing customized production with ultra large diameters and special wall thicknesses, we have helped customers solve the core component adaptation problems of large roasting furnaces and heating equipment; Thanks to the excellent insulation and far-infrared radiation properties of milky white quartz, the heating efficiency has been effectively improved and energy consumption has been reduced; Its excellent chemical stability provides a solid safety guarantee for experiments and production in strong acid, strong alkali, and high temperature environments.

Advantages and customized specifications

1. Advanced production technology and material properties

Our large-diameter milky white quartz tube adopts a unique rotation fusion process to ensure the uniformity of wall thickness and structural stability of the tube under ultra large diameters. The product has a SiO2 content of over 99.5%, extremely low metal impurities, and excellent electrical insulation performance and thermal stability. Heating it to around 1100 ℃ and placing it in room temperature water will not explode, perfectly adapting to various extreme temperature difference environments.

2. Flexible customization services for specifications and sizes

In order to meet the needs of different industrial scenarios, we provide comprehensive size customization services:

Large caliber support: Regular outer diameter covers 100mm to 1000mm, special requirements can be further negotiated and customized.

Special wall thickness control: For large-diameter tubes, we can provide special wall thickness processing ranging from 12mm to 60mm or even thicker to meet high-pressure or heavy-duty insulation needs.

Length and Tolerance: Supports customized lengths up to 3000mm, with an outer diameter tolerance that can be precisely controlled between ± 4mm and ± 8mm (depending on the specific diameter) to ensure a seamless installation.

3. Wide range of application scenarios adaptation

This product is not only widely used as furnace tubes and high-temperature insulation materials for various roasting furnaces, but also extensively applied in the electric heating industry, far-infrared heating devices, and environmentally friendly light source products. Its light shielding and heat conversion characteristics make it an ideal choice to replace traditional metal heating tubes and improve heating uniformity.

Customer application case sharing

Case 1: A large industrial roasting furnace manufacturing enterprise

The company urgently needs a batch of ultra large diameter high-temperature resistant furnace tubes with an outer diameter of 800mm and a wall thickness of 45mm when upgrading a large industrial roasting furnace. Due to the special size, standard products on the market cannot be matched, and other materials of furnace tubes previously used are prone to deformation in high temperature environments above 1000 ℃, seriously affecting production progress. After our intervention, we customized exclusive milky white quartz furnace tubes for it using rotational molding technology. This product not only perfectly fits its equipment size, but also exhibits strong resistance to thermal denaturation and crystallization during long-term high-temperature roasting operations, helping customers significantly reduce the frequency of equipment downtime maintenance and significantly improve the overall operational efficiency of the production line.

Case 2: A supporting manufacturer in the new energy photovoltaic industry

In the diffusion process of the photovoltaic cell production line, the customer requires a heating protection tube that can uniformly radiate far-infrared radiation and withstand high voltage. Faced with its complex irregular interfaces and high purity requirements, we rely on the deep processing advantages of the source factory to provide high-precision milky white quartz heating tubes. By optimizing the shading and radiation ratio of milky white quartz, this product successfully converts the visible light emitted by the heating wire into far-infrared radiation, which not only improves heating uniformity, but also effectively reduces the contamination rate of experimental samples due to its excellent insulation performance and corrosion resistance, thereby reducing long-term comprehensive usage costs for customers.

Why choose us?

Choosing us as your supplier of large-diameter milky white quartz tubes means choosing professionalism, efficiency, and high cost-effectiveness. As a source factory located in a high-quality quartz production area, we have a complete production system throughout the entire industry chain, eliminating intermediate links and providing you with highly competitive ex factory prices. Whether it's large-scale industrial projects or scientific research procurement, we can rely on a mature logistics system and strict quality traceability mechanism to ensure that every quartz tube is of reliable quality and delivered on time.

If you are looking for a reliable supplier of large-diameter milky white quartz tubes, please feel free to contact us at any time. Whether it's regular specification consultation or complex drawing customization, our technical team will provide you with one-on-one professional answers and sampling services. We look forward to working together with you to create value!

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
