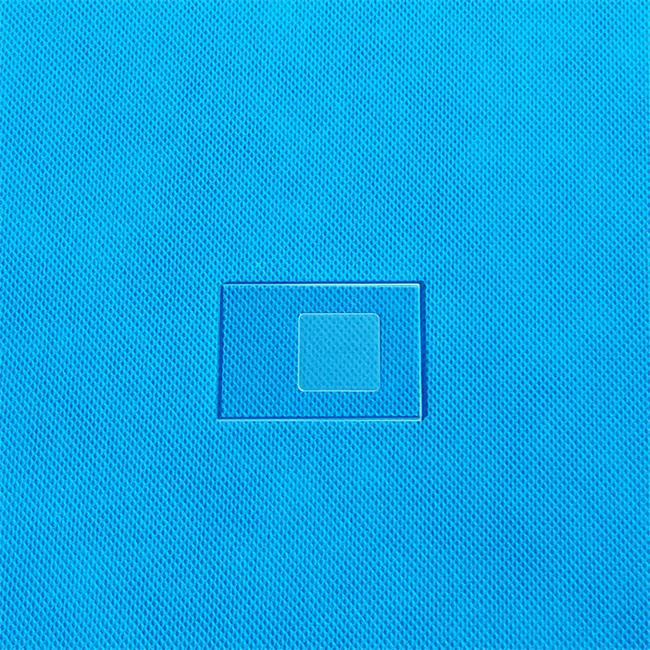

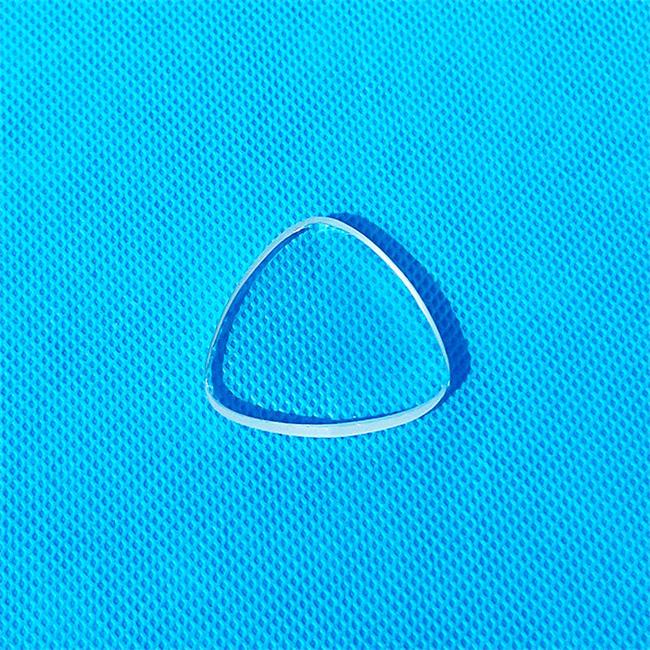

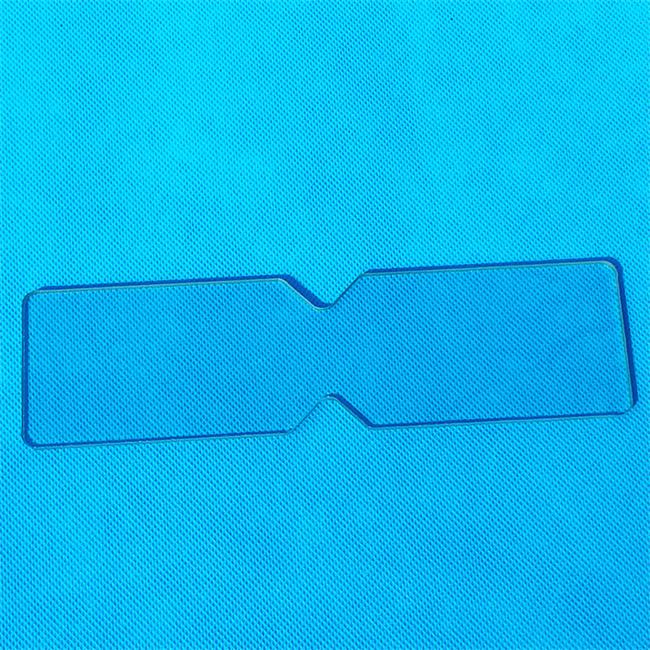

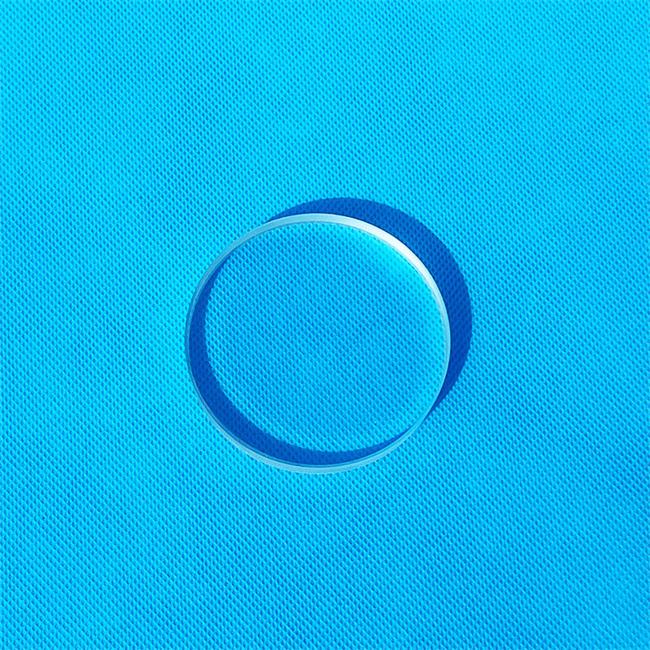

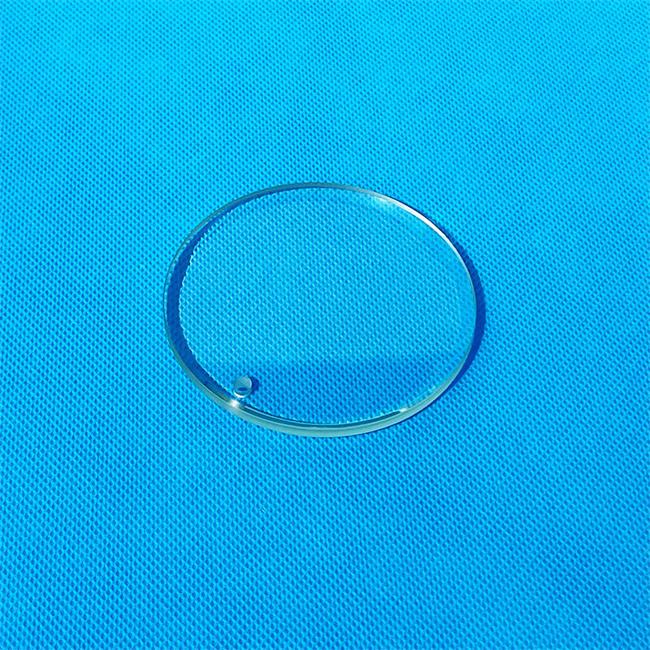

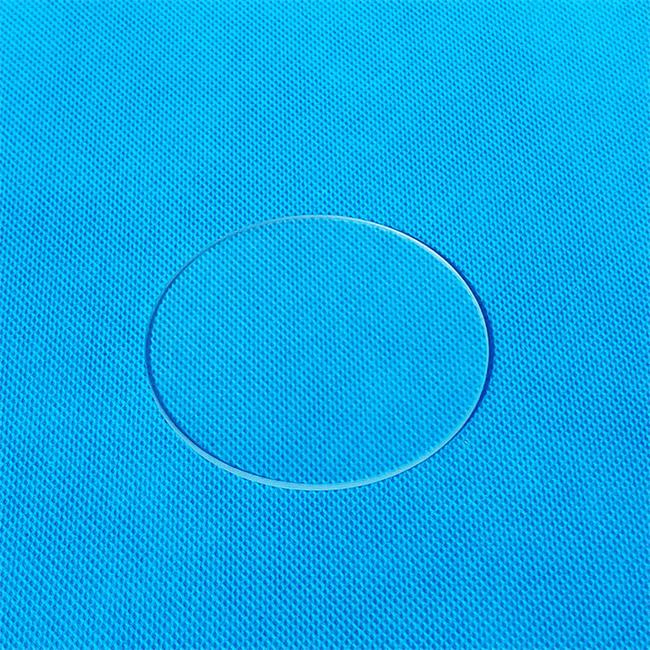

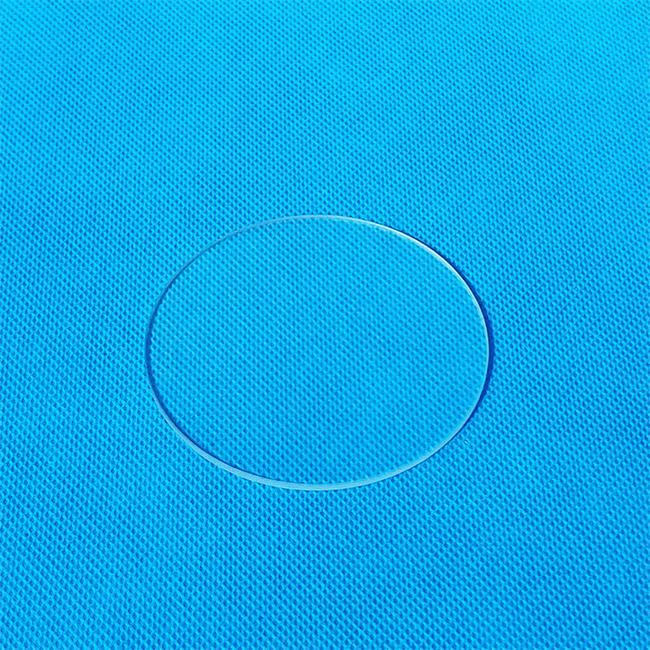

Customized quartz observation window

Quartz observation window is our core window solution launched for high-end industrial fields worldwide. This product is made from high-purity quartz as raw material, processed through precision cold processing and high-temperature annealing technology, and has extremely high transmittance, excellent high-temperature resistance, and outstanding chemical corrosion resistance. Whether facing extreme vacuum environments or harsh acid-base conditions, we can provide you with high-precision customized services ranging from flat windows to irregular and complex structures.

FAQ

Q: How high can your quartz observation window withstand high temperatures?

A: Our quartz observation window can work stably in a high temperature environment of 1100 ℃ for a long time, and can even withstand instantaneous high temperatures up to 1450 ℃ in a short period of time without deformation or crystallization.

Q: Can we perform irregular cutting or drilling on the flange of our equipment?

A: Absolutely possible. We have advanced CNC engraving machines and waterjet cutting equipment, and support customization based on drawings. We can achieve high-precision machining for circular, square, stepped, blind hole, and complex irregular structures.

Q: What is the transmittance of a quartz observation window? What spectral ranges are applicable?

A: The high-quality quartz observation window has a transmittance of over 93% in the visible light band and excellent transmission performance for ultraviolet and infrared rays, making it very suitable for optical detection and high-temperature observation.

Requirements and Problem Solving

In actual industrial production, many customers face thorny problems such as ordinary glass windows exploding at high temperatures, being corroded and turning white in strong acid and alkali environments, or vacuum leaks due to insufficient processing accuracy. Our customized quartz observation window is designed to address these core challenges:

Visualization requirements in extreme environments: solving the problem that ordinary materials cannot balance "visibility" and "durability" in high temperature, high pressure, or high vacuum environments.

Sealing and adaptation of precision equipment: solving the dilemma of standard parts being unable to match special equipment interfaces, ensuring perfect sealing and easy assembly through high-precision dimensional control.

Long lifespan and low maintenance cost: Solving the downtime maintenance cost caused by frequent window replacement, quartz's super corrosion resistance greatly extends the product's service life.

Application and core advantages

As a professional manufacturer of quartz products, we are well aware that different industries have vastly different performance requirements for observation windows. Our products are widely used in semiconductor manufacturing, photovoltaic industry, vacuum furnace heat treatment, chemical reaction vessels, and high-end optical instruments.

Core advantages and values of the product:

Excellent optical performance: Our quartz material has extremely high purity (SiO ₂ content ≥ 99.99%), with very few bubbles and impurities. This means that during the operation of the equipment, operators can obtain a distortion free, high-definition view, which facilitates precise monitoring of internal reactions or material status.

Extremely strong chemical stability: except for hydrofluoric acid and hot phosphoric acid, quartz hardly reacts with any chemical substances. This allows our observation window to maintain a smooth surface even in strong acid and alkali chemical environments, without fogging or corrosion spots like ordinary glass.

Comprehensive customization processing capability: We provide customized specifications ranging from a few millimeters in diameter to over one meter in diameter.

Size customization: The thickness tolerance can be controlled within ± 0.05mm, and the flatness can reach 3 apertures.

Process customization: Supports various post-processing techniques such as polishing, sanding, punching, slotting, chamfering, etc.

Shape customization: Whether it is a simple circular piece or a shaped part with complex flange interfaces, it can be processed according to the drawing.

Why choose us

We not only provide products, but also offer one-stop solutions from material selection, structural design to precision machining. Based on years of industry experience, we have helped numerous clients worldwide solve observation difficulties under harsh working conditions.

Customer application case sharing:

Case 1: Vacuum chamber window of a European semiconductor equipment manufacturer

Background and Challenges: The new etching machine developed by the client needs to operate in ultra-high vacuum and plasma environments, with extremely high requirements for the sealing and ion bombardment resistance of the observation window. The original borosilicate glass window developed microcracks after a period of use, posing a safety hazard.

Solution: We have recommended high-purity synthetic quartz material to our customers and customized a square observation window with precision steps and sealing grooves based on its cavity structure. Through precise grinding, we control the flatness within λ/4, ensuring perfect vacuum sealing.

Result: The new window successfully passed the continuous plasma test for up to 2000 hours without any damage or decrease in transmittance, helping the customer successfully complete the equipment acceptance.

Case 2: Observation and Renovation of a Reactor in a Large Chemical Enterprise

Background and Challenges: The customer's production line involves concentrated sulfuric acid and high-temperature and high-pressure reactions. Traditional tempered glass mirrors often become blurry due to corrosion and need to be replaced every two weeks, seriously affecting production capacity.

Solution: We have customized a thickened quartz observation window for it and applied special polishing treatment to the edges to enhance compressive strength.

Result: After replacing the quartz window, the reactor achieved a year of continuous trouble free operation, and the window remained as bright as new. Customers not only save huge maintenance costs, but also eliminate safety risks caused by frequent downtime.

If you are looking for a high reliability, high-precision quartz observation window solution, or have any special size and process requirements, please feel free to contact us at any time! Please send us your drawings or specific parameters, and our engineering team will provide you with an evaluation and quotation.
