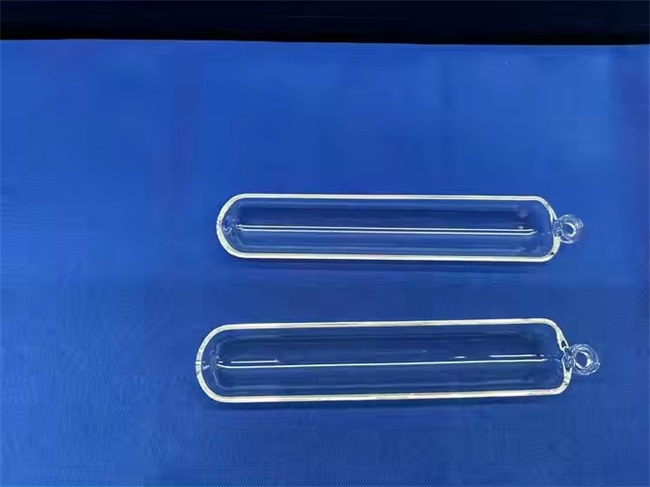

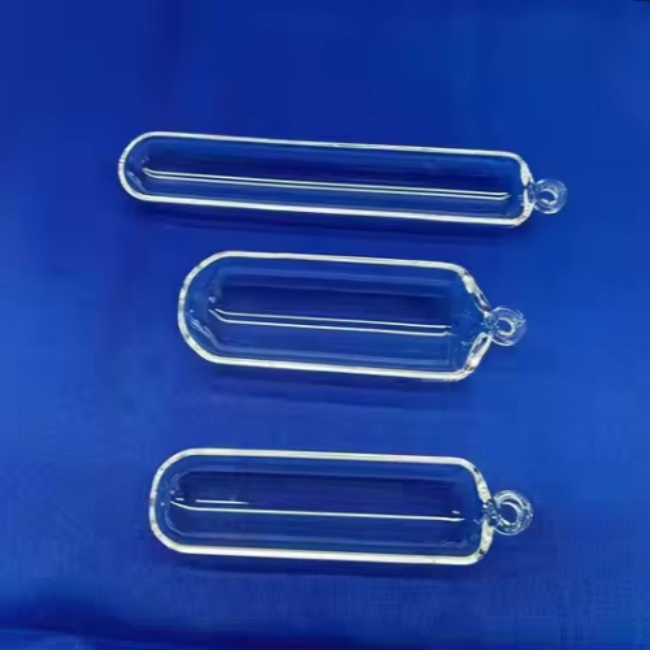

Diameter 5-200mm high purity chemical quartz boat
The high-purity chemical quartz boat with a diameter of 5-200mm is a high-purity quartz glass product, which is mainly used for experimental and industrial applications in high temperature and corrosive environments.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Diameter 5-200mm high purity chemical quartz boat
The high-purity chemical quartz boat with a diameter of 5-200mm is a high-purity quartz glass product, which is mainly used for experimental and industrial applications in high temperature and corrosive environments.
The high-purity chemical quartz boat is made of high-purity silica (SiO2) as the main raw material and melted at high temperature. Its silica content is usually above 99.999%, and it has excellent physical and chemical properties.
Material: High-purity quartz glass with an extremely high silica content, ensuring its stability in high temperatures and corrosive environments.
Size: The diameter range is 5-200mm, which can be customized according to specific requirements.
High temperature resistance: The softening point temperature is about 1730 ° C, which can be used for a long time at 1100 ° C, and the maximum temperature for short-term use can reach 1450 ° C.
Corrosion resistance: Except for hydrofluoric acid and hot phosphoric acid above 300 degrees, it hardly reacts chemically with other acids, and its acid resistance is 30 times that of ceramics and 150 times that of stainless steel.
Good thermal stability: The coefficient of thermal expansion is extremely small, capable of withstanding severe temperature changes. If the quartz boat is heated to around 1100 ° C, it will not burst when placed in room temperature water.
Good light transmission performance: It has good light transmission performance in the entire spectral band from ultraviolet to infrared, with a visible light transmittance of over 93%, especially in the ultraviolet region, where the transmittance can reach over 80%.
Electric light source: used to make high-pressure mercury lamps, long-arc xenon lamps, tungsten iodide lamps, thallium iodide lamps, infrared lamps and sterilization lamps.
Semiconductor: As a key material in the production process of semiconductor materials and devices, such as crucibles for growing germanium, silicon single crystals, boat dishes, furnace core tubes and bell jars, etc.
New optical technology: used in radar ultrasonic delay line, infrared tracking direction finding, infrared photography, communications, spectrographs, spectrophotometer prisms, lenses, reflection windows of large astronomical telescopes, high temperature operation windows, reactors, radioactive devices, etc.
Chemical industry: used for combustion, cooling and ventilation devices for high-temperature acid-resistant gases, evaporation and cooling absorption devices for acidic solutions, preparation of distilled water, hydrochloric acid, nitric acid, sulfuric acid, etc., and other physical and chemical experimental supplies.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
Diameter 5-200mm high purity chemical quartz boat
The high-purity chemical quartz boat with a diameter of 5-200mm is a high-purity quartz glass product, which is mainly used for experimental and industrial applications in high temperature and corrosive environments.
The high-purity chemical quartz boat is made of high-purity silica (SiO2) as the main raw material and melted at high temperature. Its silica content is usually above 99.999%, and it has excellent physical and chemical properties.
Material: High-purity quartz glass with an extremely high silica content, ensuring its stability in high temperatures and corrosive environments.
Size: The diameter range is 5-200mm, which can be customized according to specific requirements.
High temperature resistance: The softening point temperature is about 1730 ° C, which can be used for a long time at 1100 ° C, and the maximum temperature for short-term use can reach 1450 ° C.
Corrosion resistance: Except for hydrofluoric acid and hot phosphoric acid above 300 degrees, it hardly reacts chemically with other acids, and its acid resistance is 30 times that of ceramics and 150 times that of stainless steel.
Good thermal stability: The coefficient of thermal expansion is extremely small, capable of withstanding severe temperature changes. If the quartz boat is heated to around 1100 ° C, it will not burst when placed in room temperature water.
Good light transmission performance: It has good light transmission performance in the entire spectral band from ultraviolet to infrared, with a visible light transmittance of over 93%, especially in the ultraviolet region, where the transmittance can reach over 80%.
Electric light source: used to make high-pressure mercury lamps, long-arc xenon lamps, tungsten iodide lamps, thallium iodide lamps, infrared lamps and sterilization lamps.
Semiconductor: As a key material in the production process of semiconductor materials and devices, such as crucibles for growing germanium, silicon single crystals, boat dishes, furnace core tubes and bell jars, etc.
New optical technology: used in radar ultrasonic delay line, infrared tracking direction finding, infrared photography, communications, spectrographs, spectrophotometer prisms, lenses, reflection windows of large astronomical telescopes, high temperature operation windows, reactors, radioactive devices, etc.
Chemical industry: used for combustion, cooling and ventilation devices for high-temperature acid-resistant gases, evaporation and cooling absorption devices for acidic solutions, preparation of distilled water, hydrochloric acid, nitric acid, sulfuric acid, etc., and other physical and chemical experimental supplies.
For more information, please feel free to contact us.
