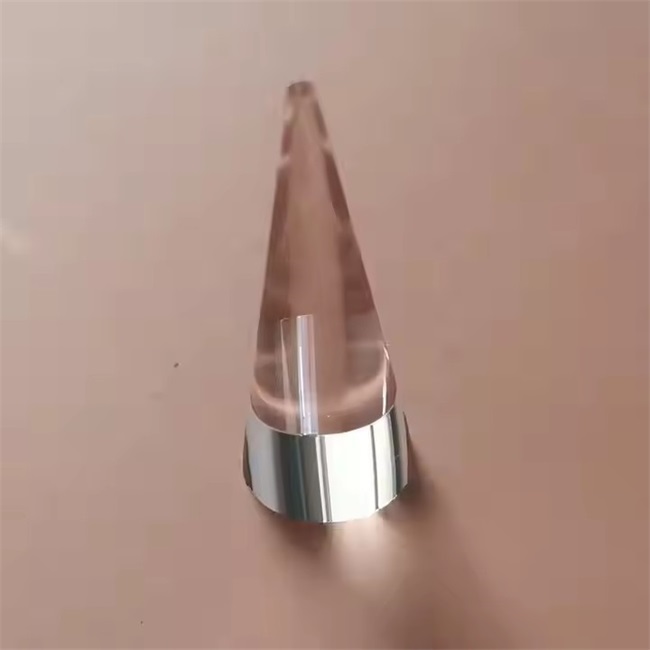

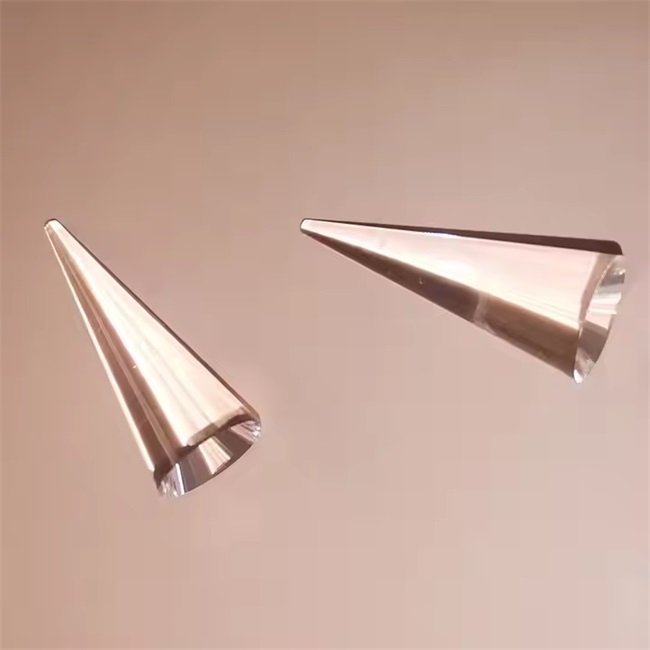

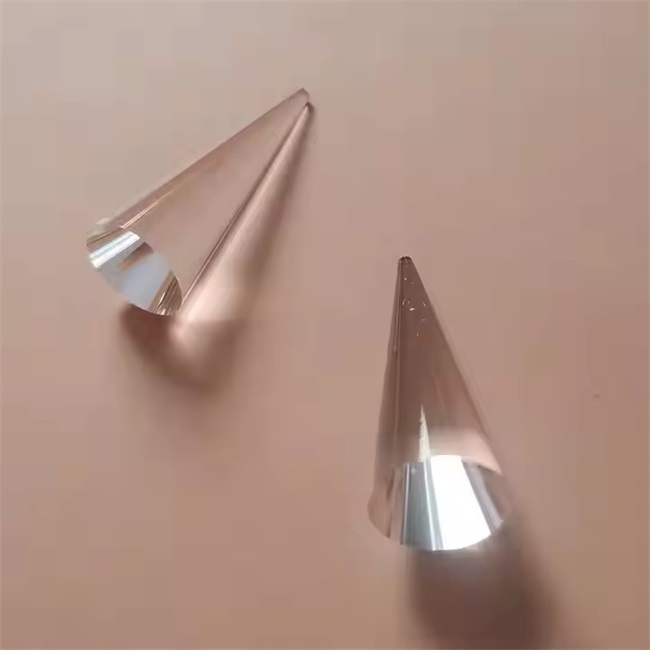

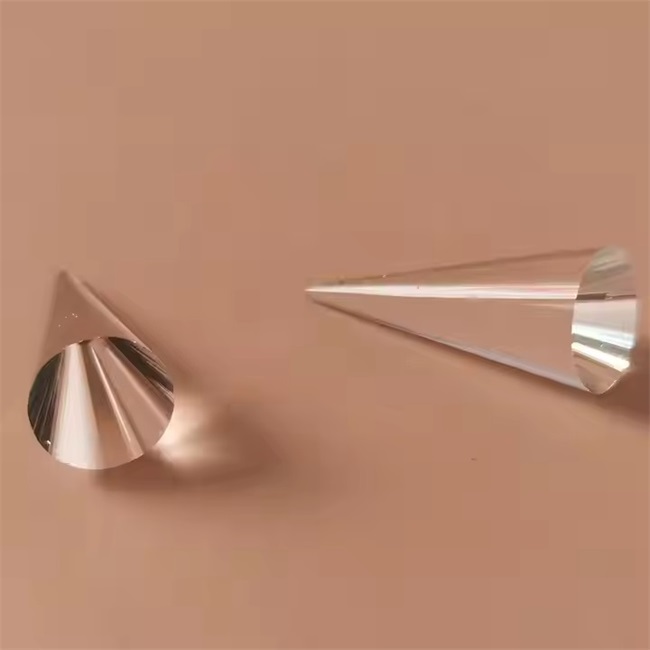

Fused silica coated light guide cone prism
Fused silica coated light guide cone prism is a high-performance optical element, designed to meet the needs of specific optical applications.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Availability: | |
---|---|
Fused silica coated light guide cone prism is a high-performance optical element, designed to meet the needs of specific optical applications. The prism is made of high-purity fused silica, and has excellent optical performance, thermal stability and chemical stability after precision processing and special coating treatment. It can efficiently guide light from one medium to another while maintaining the directionality and intensity of the light, and is widely used in fields such as laser systems, optical instruments, medical equipment, etc.
Product Features
High purity fused silica material: High purity fused silica (SiO2) is used as the base material to ensure the product has excellent optical transparency and low dispersion characteristics. Fused silica has high thermal stability and chemical stability, and can maintain the stability of optical properties in extreme environments.
Precision machining technology: Utilizing advanced precision machining techniques to ensure that the geometric shape and surface smoothness of the prism meet high standards. Strictly control errors during the processing to ensure that the optical performance of the prism meets the design requirements.
Special coating treatment: Apply a special coating on the surface of the prism to enhance its reflective, transmissive, or anti reflective properties.
The coating materials have been carefully selected to ensure good matching with fused silica substrate and long-term stability.
Excellent light guiding performance: The conical prism design can effectively guide light from the incident end to the exit end while maintaining the directionality and intensity of the light. Suitable for various wavelengths and beam shapes of light, meeting diverse optical application needs.
Customization service: Provides comprehensive customization services, including customization of size, shape, coating type, and optical performance. Provide personalized solutions and quick responses based on specific customer needs.
Application area
Laser system: used for shaping, focusing, and guiding laser beams to improve the performance and stability of laser systems.
Suitable for various applications such as laser cutting, welding, marking, and measurement.
Optical instrument: As a key component in optical instruments, it is used to improve the measurement accuracy and imaging quality of the instrument.
Suitable for high-precision optical instruments such as microscopes, spectrometers, interferometers, etc.
Medical equipment: Imaging and lighting systems used in medical devices to improve the accuracy of medical diagnosis and treatment effectiveness.
Suitable for medical equipment such as endoscopes and laser therapy devices.
Product specifications
Material: high-purity fused silica (SiO2)
Shape: Conical prism
Size: Customizable according to customer needs
Surface smoothness: ≤ λ/10 (at 632.8nm wavelength)
Coating type: reflective, transmissive, or anti reflective coating (can be customized according to customer needs)
Working temperature range: -200 ℃ to+800 ℃ (depending on coating type and working environment)
Customized services
We understand that each project has its unique requirements, so we provide comprehensive customized solutions. From preliminary consultation to final delivery, our professional team will assist you to complete a series of processes such as design, model selection, manufacturing, etc., to ensure that the fused silica coated light guide pyramid prism provided fully meets your expectations and technical specifications.
With its excellent optical performance, high stability and customized service, fused silica coated light guide pyramid prism has become an ideal choice in many optical applications. We are committed to providing customers with high-quality products and professional services to meet their diverse needs. If you have any questions or needs, please feel free to contact us and we will be happy to answer and provide assistance to you.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
