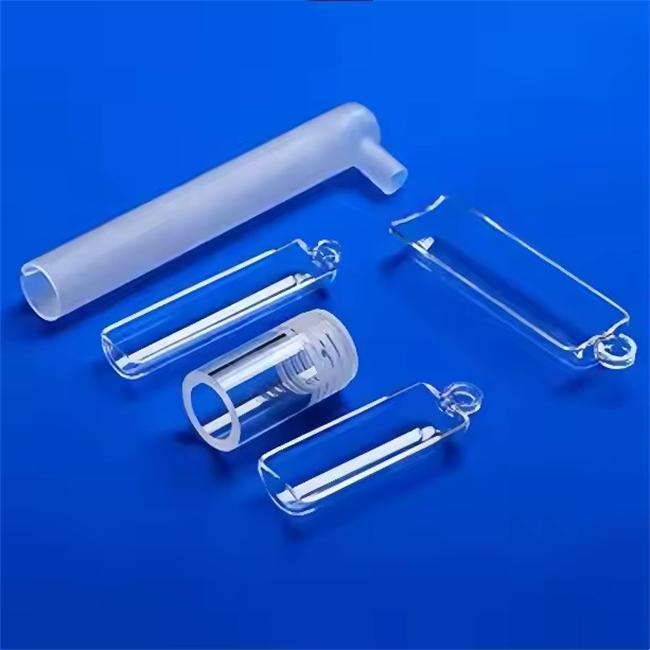

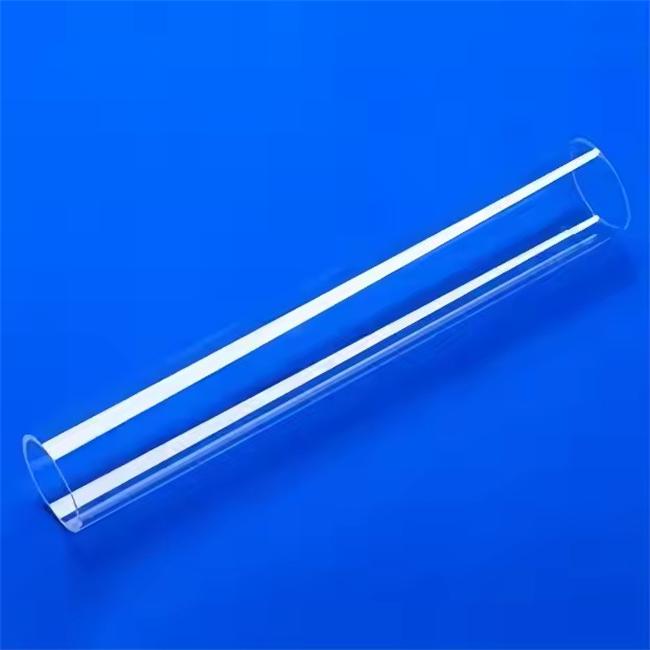

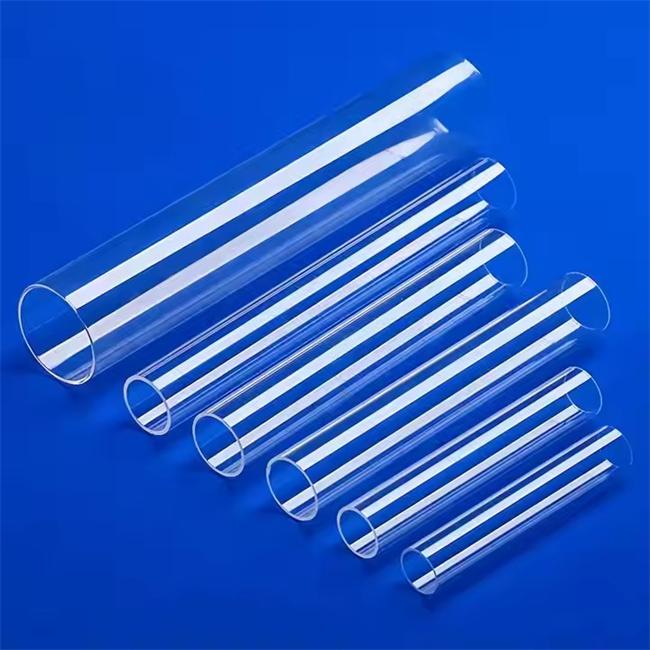

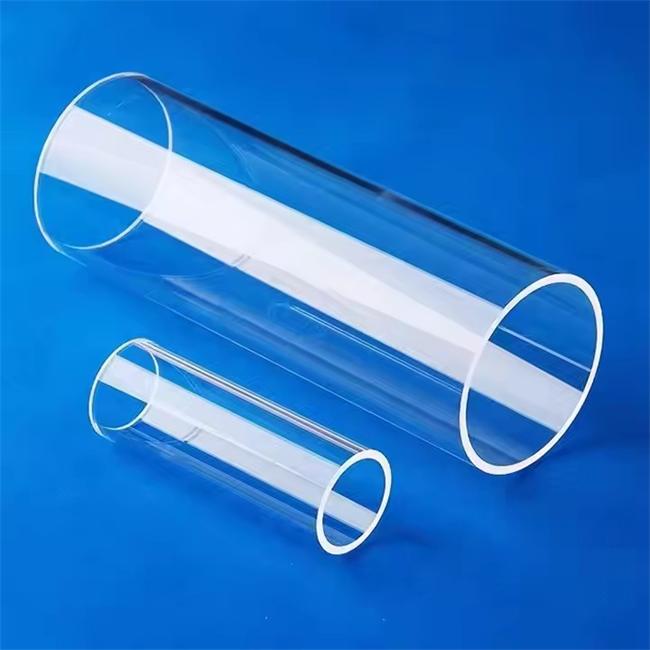

High frequency furnace quartz heating tube is a high-performance heating element made of high-purity quartz glass material, designed specifically for high-frequency induction heating equipment. This product has excellent high temperature resistance, high thermal stability, good insulation performance, and rapid thermal response ability, and is widely used in industrial heating, semiconductor manufacturing, laboratory research, and other fields.

FAQ

Q1: What are the core advantages of high-frequency furnace quartz heating tubes compared to ordinary metal heating tubes?

A: The core advantage lies in its extremely high thermal efficiency and chemical inertness. Quartz glass has extremely high transmittance for infrared radiation, which can efficiently convert electrical energy into infrared radiation heat. It heats up very quickly and has low thermal inertia. At the same time, quartz material does not precipitate impurities at high temperatures and is resistant to most acid-base corrosion, ensuring extremely high purity of the heated material.

Q2: Does your company support customization of non-standard sizes and special structures?

A: Fully supported. We provide customized services for various tube diameters ranging from 1mm to 450mm and above. Whether it's CNC precision drilling, sanding, threading, or complex fire processing blowing, sealing, or flange interfaces, we can customize integrated molding according to customer drawings, with tolerances controlled within ± 0.05mm.

Q3: What is the service life of high-frequency furnace quartz heating tubes? What should be paid attention to in daily life?

A: Under standardized operation, its service life far exceeds that of traditional heating elements. In daily use, it is necessary to avoid severe collisions and keep the surface of the tube wall clean to prevent affecting the infrared radiation efficiency; At the same time, it is strictly prohibited to splash water directly under high temperature when powered on, in order to avoid rupture caused by sudden changes in temperature.

Main features

1. High temperature resistance: high purity fused silica material is used, which can withstand the high temperature of 1000 ° C~1600 ° C for a long time, and 1800 ° C for a short time.

2. High thermal stability: low thermal expansion coefficient, resistance to rapid cooling and heating, excellent thermal shock resistance, avoiding rupture caused by sudden temperature changes.

3. Excellent insulation performance: Quartz glass has extremely high electrical resistivity and is suitable for high-frequency electric field environments, reducing energy loss.

4. High transmittance (optional): Some models can provide high infrared transmittance, suitable for special processes such as optical heating and ultraviolet curing.

5. Corrosion resistance: It has excellent corrosion resistance to acids, alkalis, and most chemical gases, and is suitable for harsh industrial environments.

Product specifications

-Material: High purity quartz glass (SiO ₂ ≥ 99.99%)

-Diameter range: 10mm~200mm (customizable)

-Length range: 100mm~2000mm (customizable)

-Maximum operating temperature: 1600 ° C (regular model)

-Surface treatment: transparent, frosted, gold-plated, platinum plated (optional)

-Electrode configuration: Molybdenum sheet, tungsten rod, nickel chromium alloy, etc. (customized according to requirements)

Application Fields

High frequency furnace quartz heating tubes are widely used in the following industries due to their excellent performance:

1. Industrial heating

-Metal heat treatment: used in high-frequency induction heating furnaces for quenching, annealing, brazing and other processes.

-Glass processing: used for high-temperature forming processes such as glass melting, drawing, and hot bending.

-Ceramic sintering: suitable for high-temperature sintering of precision ceramics and electronic ceramics.

2. Semiconductor and Electronics Industry

-Wafer processing: used for heating elements in diffusion furnaces and CVD (chemical vapor deposition) equipment.

-Vacuum coating: Provides uniform heating in PVD (Physical Vapor Deposition) equipment.

-LED manufacturing: used for processes such as sapphire substrate annealing and epitaxial growth.

3. Laboratory and Research

-Material research: High temperature reaction tube, vacuum furnace heating element.

-Optical experiments: optical applications such as infrared heating and ultraviolet curing.

4. Other special applications

-Medical equipment: high temperature sterilization, dental ceramic sintering.

-Environmental protection industry: waste gas treatment, catalytic combustion reactors.

Customized service

We can provide comprehensive customized solutions according to customer needs to ensure that our products are perfectly adapted to different application scenarios.

1. Size customization

-Support non-standard diameter and length design to meet special equipment requirements.

-We can provide quartz tubes with irregular structures such as U-shaped, W-shaped, and spiral shaped.

2. Material optimization

-High purity quartz (low hydroxyl content): suitable for UV applications.

-Doping quartz (such as titanium doping): enhances infrared absorption and improves heating efficiency.

-Coating treatment (such as gold or platinum coating): Optimize infrared reflection or conductivity performance.

3. Customization of electrodes and interfaces

-Provide a variety of electrode materials (molybdenum, tungsten, nickel chromium alloy, etc.) for selection.

-Support customization of connection methods such as flanges, threads, and quick release interfaces.

4. Special processing techniques

-Vacuum sealing: used in semiconductor or high vacuum environments.

-Anti pollution coating: suitable for applications requiring high cleanliness.

-Double layer/multi-layer structure: enhances mechanical strength or achieves gradient heating.

Typical application cases and customer value

Case: Diffusion Furnace Tube Upgrade Project of a Large New Energy Photovoltaic Cell Manufacturing Enterprise

Application challenge: During the production process of solar cells, the company's existing ordinary quartz furnace tubes frequently experienced crystallization and cracking problems in a long-term high-temperature environment, resulting in the production line needing to be shut down 2-3 times a month for replacement. This not only seriously affected the production schedule, but also increased the high cost of consumables and maintenance.

Solution: To address this challenge, we have customized high-purity bubble free quartz heating tubes and furnace tube components for it. By using fully automated cleaning equipment to remove impurities from raw materials, and employing high-speed molding machines to ensure absolute uniformity of tube wall thickness. At the same time, we optimized the annealing process, significantly reducing the residual stress inside the material and keeping its sagging at an extremely low level during long-term use at 1200 ℃.

Customer value: After replacing the customized quartz heating tube, the production line downtime rate of the enterprise decreased by 45%, and the equipment maintenance cycle was significantly extended from 1 month to 6 months. With excellent anti crystallization performance and dimensional stability, the average annual procurement and comprehensive use cost has been reduced by 25%, bringing significant economic benefits to the enterprise.

The high-frequency furnace quartz heating tube has become an indispensable and important equipment in the industrial heating field due to its excellent performance and flexible customized services. We are committed to providing customers with high-quality products and services to meet their various needs. If you have any quartz product related needs, please feel free to contact us at any time.

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
