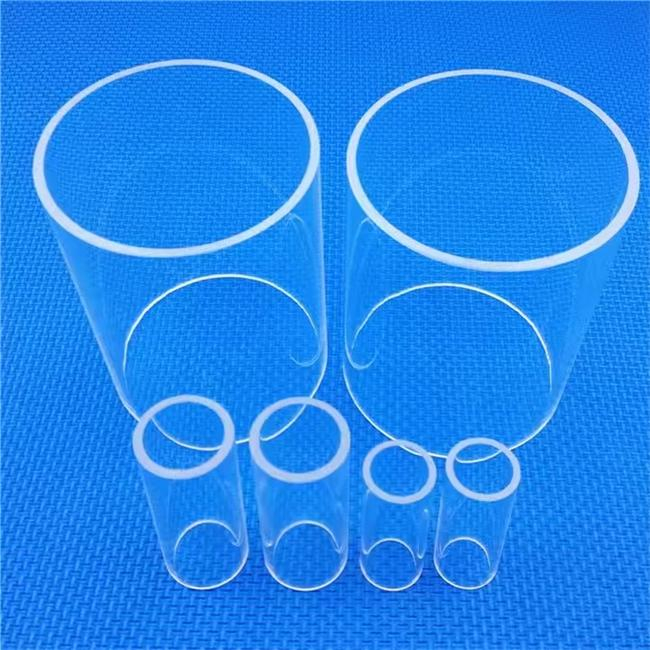

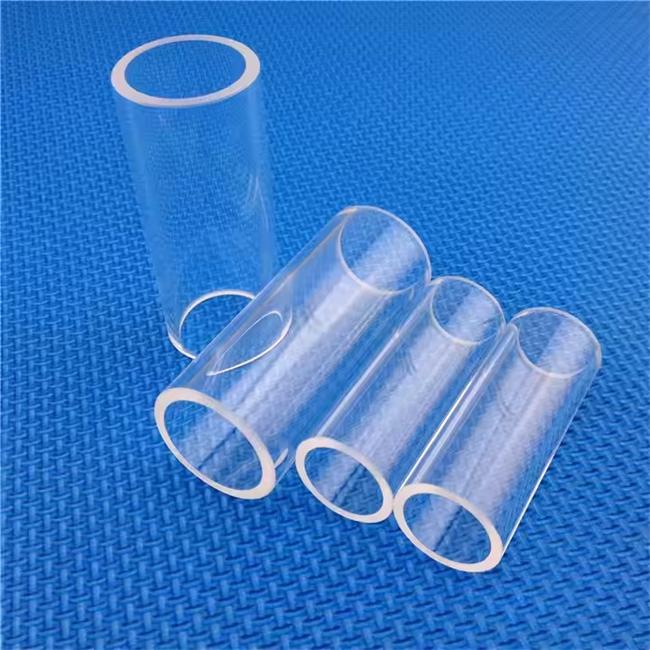

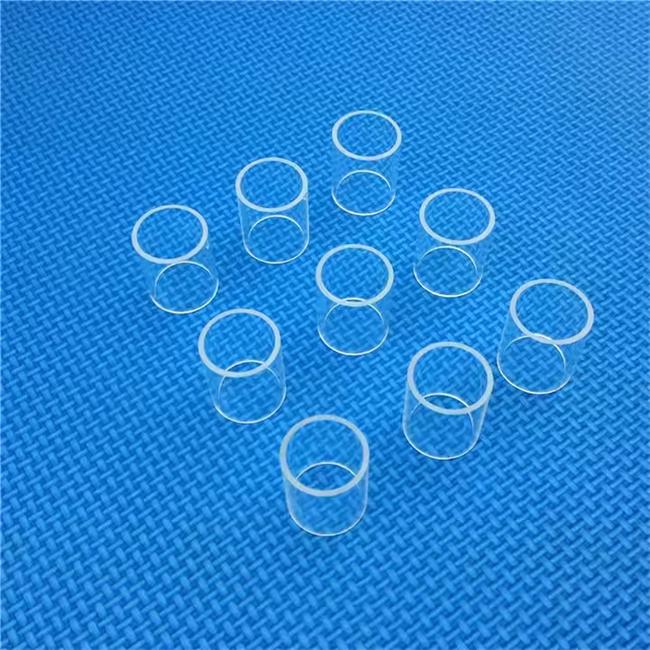

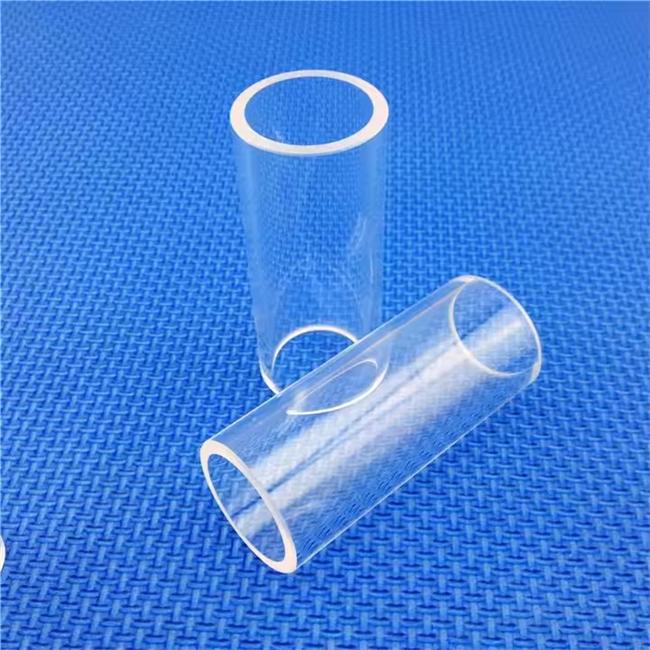

High purity large-diameter quartz heating tube is a core heating element made of high-quality quartz glass with a purity of over 99.99% as the substrate, combined with precision hot and cold processing technology. This product not only has excellent high temperature resistance, thermal shock resistance, and chemical inertness, but also achieves efficient directional transmission of infrared radiation. We provide full-size non-standard customized services, specializing in providing stable and reliable thermal energy solutions for extreme working conditions such as semiconductors, photovoltaics, and high-end industrial drying.

Frequently Asked Questions (FAQ)

Q1: What is the maximum operating temperature of high-purity large-diameter quartz heating tubes?

A: Our quartz heating tube is made of high-purity quartz glass with a softening point of approximately 1730 ℃. In conventional applications, it can work stably below 1200 ℃ for a long time, and its short-term extreme operating temperature can even exceed 1400 ℃, fully meeting the needs of most high-temperature industries and scientific research.

Q2: What caliber and size customization services can you provide?

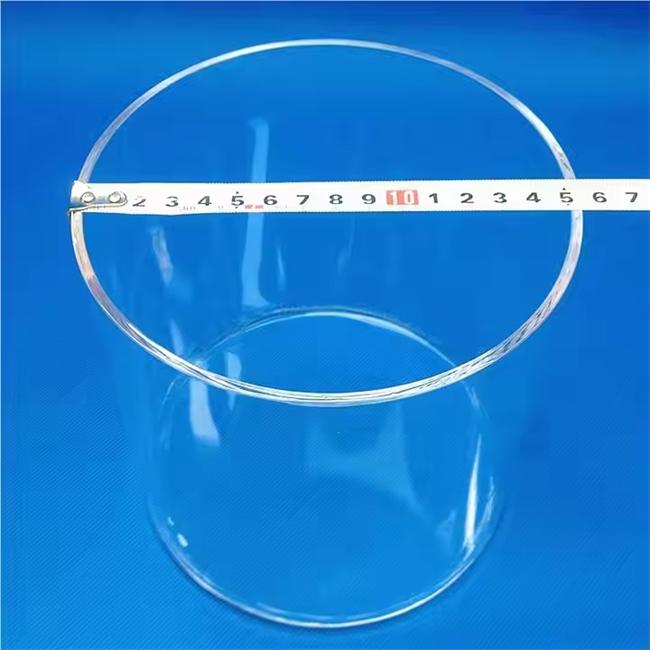

A: We have complete large-diameter expansion equipment and precision cold processing centers, supporting customization of large-diameter quartz tubes with outer diameters ranging from tens of millimeters to hundreds of millimeters (such as 200mm-600mm and above). At the same time, wall thickness, length, and nozzle shape (such as expansion, contraction, flanging, sealing, etc.) can be customized according to your specific drawings for depth.

Q3: What are the core advantages of quartz heating tubes compared to traditional metal heating tubes?

A: Quartz heating tube is essentially an infrared radiation heater. Its thermal inertia is extremely low, and it reaches the working temperature almost instantly after being powered on; And quartz glass has a very high transmittance for infrared radiation (up to 90% or more), with good energy concentration and directionality. Compared with traditional convection heating methods, it can save about 30% energy and has a longer service life.

Q4: What are the practical effects of high purity on the performance of heating tubes?

A: High purity (such as 99.99% or higher) means extremely low metal impurity content (such as Na, K, Fe, etc.<1ppm). This not only ensures that the heating tube does not crystallize or deform at high temperatures, but also avoids impurity ions from evaporating and contaminating the heated material in high-temperature environments, which is crucial for clean processes such as semiconductor wafer processing and high-purity material sintering.

Core Value: What key problems can we solve for you?

In complex high-temperature industrial environments, traditional heating elements often face many challenges. Our high-purity large-diameter quartz heating tubes are designed to help you overcome these challenges:

Overcoming the problem of high-temperature deformation: solving the challenge of traditional materials being prone to softening and deformation during long-term operation above 1000 ℃, ensuring the stability of equipment continuous operation.

Breaking through the bottleneck of cleanliness: solving the problem of high-purity materials being easily contaminated by metal ions during heating, ensuring the yield of precision manufacturing such as semiconductors and photovoltaics.

Resolve the challenge of low thermal efficiency: solve the problems of slow heating and high energy consumption in traditional heating, achieve directional rapid heating through efficient infrared radiation, and significantly reduce enterprise operating costs.

Dealing with corrosion in complex working conditions: solving the problem of heating element wear and tear in strong acidic or corrosive gas environments, and extending equipment maintenance cycles with the chemical inertness of quartz.

Advantages and Application Value

As a professional source manufacturer of quartz products, Luverre Quartz is committed to providing high-quality and structured thermal energy solutions to global customers.

1. Ultimate physical and chemical properties

High temperature resistance and thermal shock resistance: Its extremely low coefficient of thermal expansion allows it to withstand drastic temperature changes without breaking, and its thermal response speed is extremely fast.

Strong chemical stability: except for hydrofluoric acid and hot phosphoric acid, it hardly reacts with any acids, bases, or organic solvents, and remains stable in corrosive gases such as POCl ∝.

Excellent optical properties: Transparent, milky white, or gold-plated quartz tubes can be provided according to demand. Transparent tubes have high light transmittance; Milk white tube can convert 95% of near-infrared and visible light into far-infrared radiation, with soft light; Gold plated tubes can achieve a unidirectional infrared reflection efficiency of up to 95%.

2. Comprehensive non-standard customization services

We are well aware of the matching requirements of different equipment and provide independent control of the entire process from melt drawing to precision cold processing. Whether it is the secondary forming expansion of large-diameter quartz tubes, or the precision machining of flange interfaces and irregular structures, we can ensure that the products are perfectly adapted to your equipment with a wall thickness uniformity tolerance of ± 0.1mm and strict size control.

3. Wide industry application empowerment

Semiconductors and Microelectronics: Used in wafer oxidation furnaces, diffusion furnaces, and PECVD equipment to provide a clean and pollution-free thermal field.

Photovoltaic industry: applied to single crystal furnace observation windows and silicon wafer diffusion bonding to improve battery conversion efficiency.

Industrial drying and curing: suitable for printing, painting, plastic thermal shrinkage, wood and textile drying, achieving high efficiency and energy saving.

Research and Laboratory: Provide reliable reaction vessels and heating carriers for high-temperature synthesis, sample purification, and tube furnaces.

Customer application case:

Case 1: Optimization of Diffusion Furnace Process in Photovoltaic Industry

A certain photovoltaic cell manufacturer used ordinary metal heating tubes in the diffusion furnace process, but the uniformity of the square resistance was poor due to the release of high-temperature impurities. We customize large-diameter quartz heating tubes with a purity of 99.99%, with wall thickness uniformity controlled within ± 0.1mm. After replacement, the stability of the furnace temperature zone increased by 40%, the average conversion efficiency of battery cells increased by 0.15%, and the annual maintenance cost decreased by about 25% due to the extended service life of the tubes.

Case 2: Heating of Highly Corrosive Liquids in the Chemical Industry

A fine chemical enterprise needs to perform tubeline instantaneous heating on chlorine containing organic solvents, and the conventional stainless steel heating tube is severely corroded and perforated within two weeks. The large-diameter thick walled quartz heating tube we provide, combined with an external sleeve design, has been continuously operated in an acidic medium at 120 ℃ for over 6 months without corrosion or leakage, reducing the overall downtime of the equipment by more than 90%.

Whether you need standard specifications in stock or face non-standard customization challenges in complex working conditions, we have the strength to provide you with one-stop quartz product solutions. Welcome to contact us anytime for your exclusive customized quotation and technical solution!

Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.

Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
