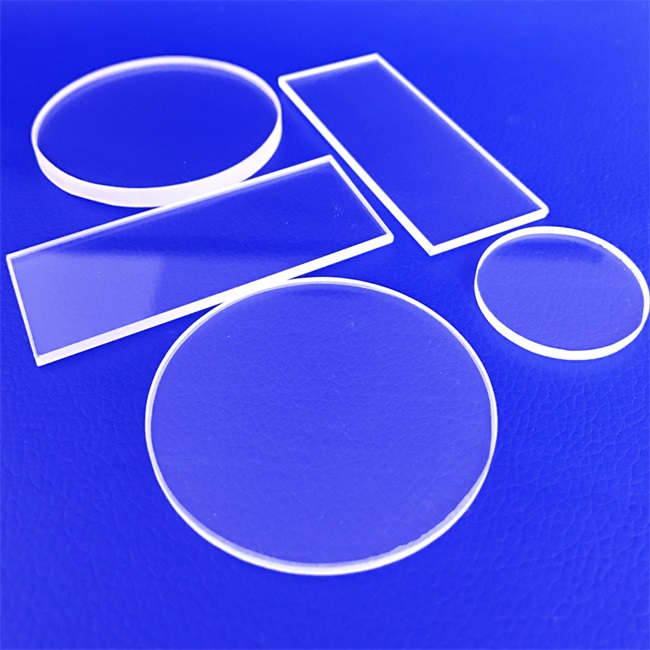

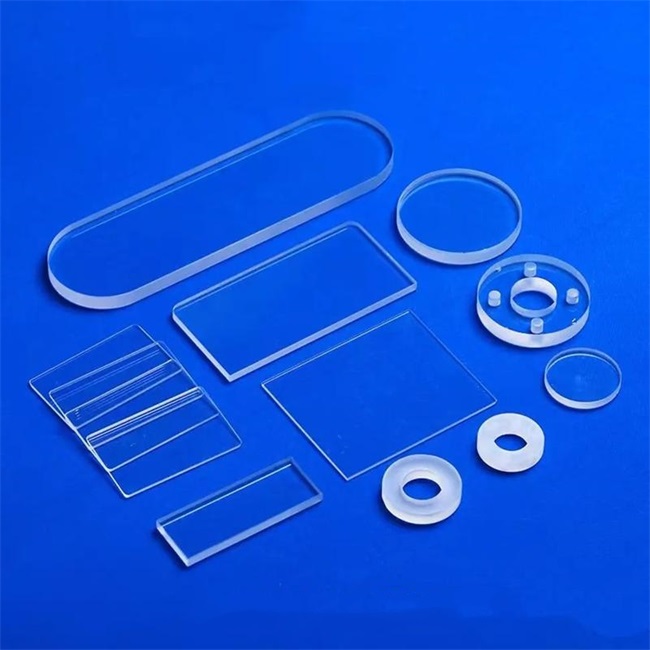

High temperature reaction vessel quartz plate
High temperature reaction vessel quartz plate is a type of plate made of high-purity quartz material.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
High temperature reaction vessel quartz plate
High temperature reaction vessel quartz plate is a type of plate made of high-purity quartz material.
Main features:
-High temperature resistance: Quartz plates can withstand temperatures up to 1500 ℃, with a melting point of approximately 1700 ℃, and maintain structural stability in high-temperature environments.
-High chemical inertness: Quartz plates have extremely high corrosion resistance to most chemical substances, and can withstand strong acids (except hydrofluoric acid) and weak bases, making them suitable for high-purity chemical reactions.
-Low thermal expansion coefficient: The thermal expansion coefficient of quartz plate is extremely low (about 5.5 × 10 ⁻⁷/℃), and it is not easily deformed when the temperature changes.
-Optical Transparency: Quartz plates have good transparency in the ultraviolet to infrared wavelength range, making them suitable for reactions that require optical monitoring.
Application
High temperature reaction vessel quartz plates are widely used in the following fields:
-Chemical industry: used as a lining material for reaction vessels or directly made into reaction vessels, for chemical reactions under high temperature, high pressure, and strong corrosion conditions. For example, in the production of high-purity chemicals, quartz plates can effectively prevent chemical reactions between reactants and container walls.
-Semiconductor manufacturing: used for high-temperature diffusion, oxidation and other processes of semiconductor materials to ensure process stability and material purity. Quartz plates are used to manufacture photomask substrates and integrated circuits due to their high purity and stability.
-Photocatalysis and photochemical reactions: The optical transparency of quartz plates makes them suitable for the preparation of photocatalytic materials such as TiO ₂, ZnO, etc.
-Materials Science: Used for high-temperature and high-pressure reactions such as hydrothermal synthesis and crystal growth of nanomaterials.
-In the medical field, quartz plates can be used to manufacture medical devices that come into contact with the human body, such as syringes, infusion sets, etc. Their biocompatibility and high temperature resistance can reduce the harm to human health.
Customized description
High temperature reaction vessel quartz plates can be customized according to specific needs:
-Customization of size and shape: The size and shape of the quartz plate can be customized according to the design requirements of the reaction vessel to meet different process requirements.
-Purity requirement: For high-purity chemical reactions, the purity of quartz plates can reach over 99.999% to prevent impurity contamination.
-Surface treatment: Quartz plates can be polished to improve surface smoothness and reduce stress defects.
-Special performance customization: According to application requirements, quartz plates can undergo special processing or treatment, such as enhancing their optical performance or mechanical strength.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
