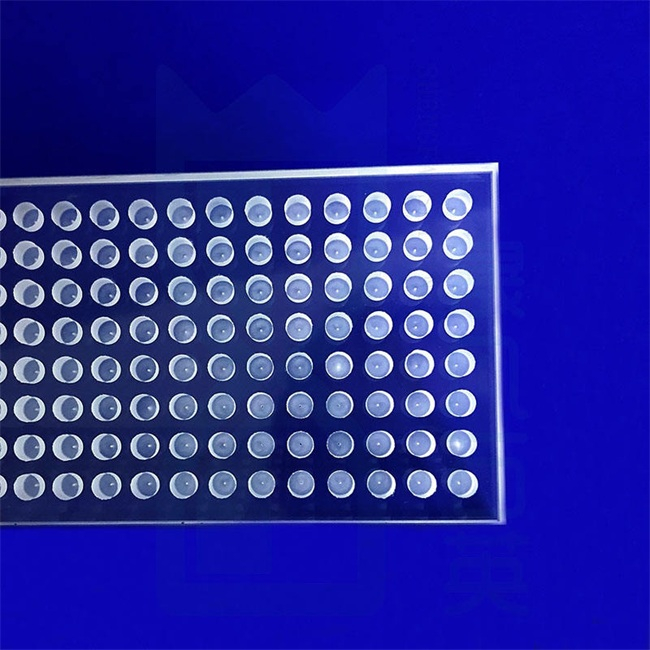

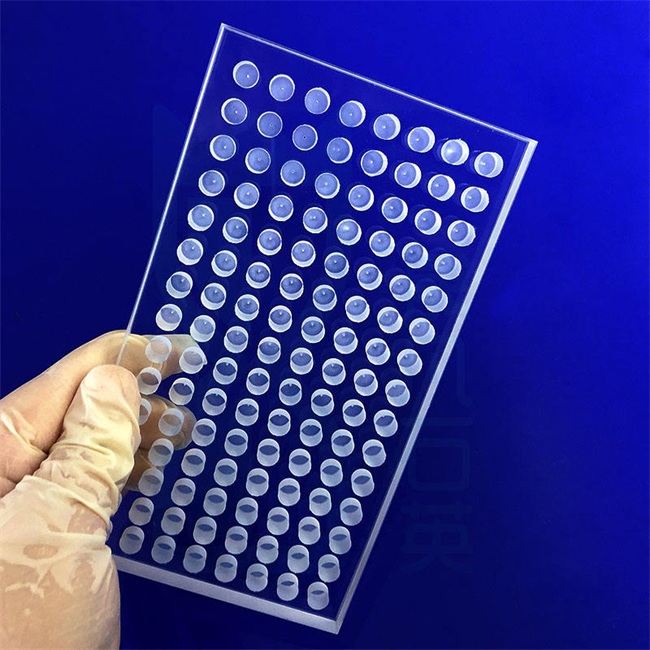

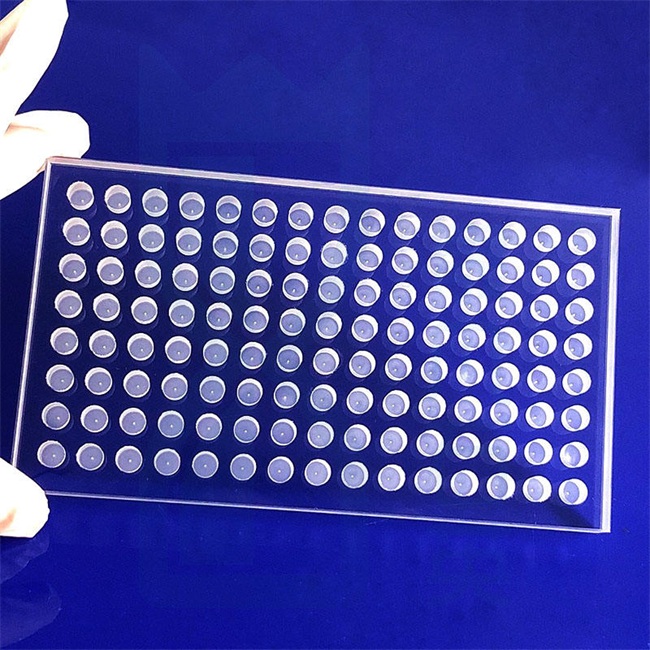

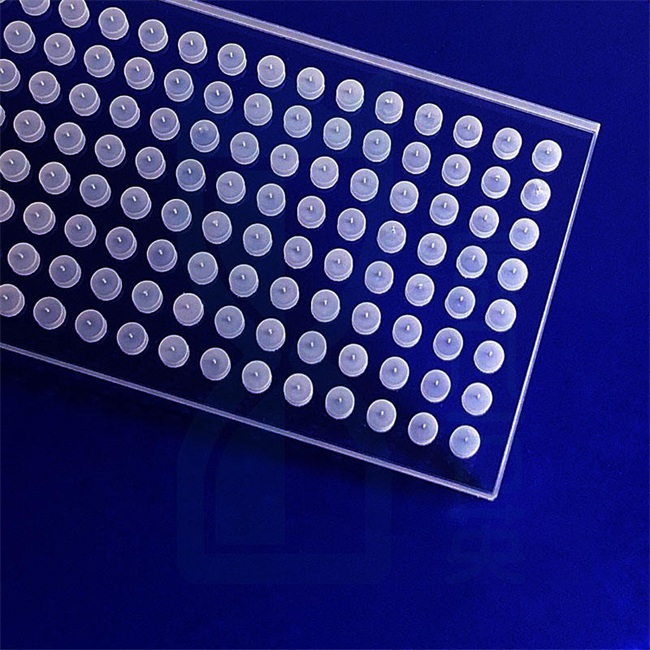

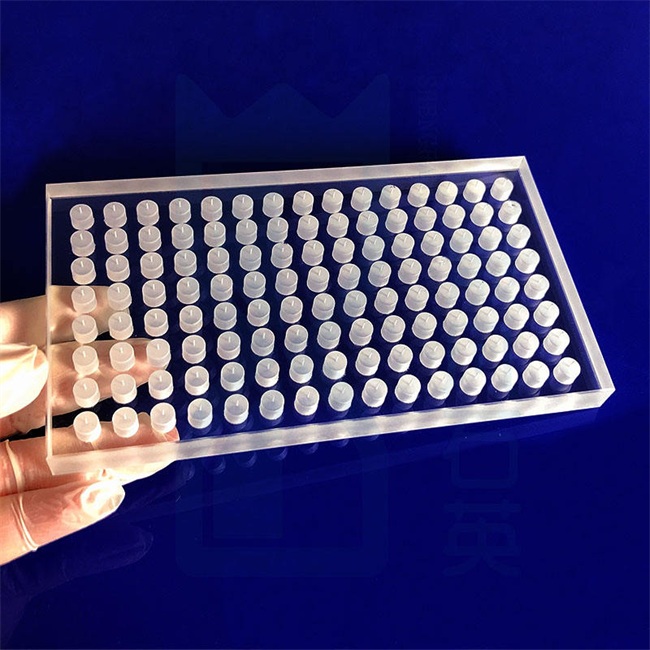

Laboratory 96-well fused silica plate
Laboratory 96-well Fused Silica plate is a microplate precisely manufactured using high-purity synthetic fused silica (Fused Silica).
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Laboratory 96-well fused silica plate
Laboratory 96-well Fused Silica plate is a microplate precisely manufactured using high-purity synthetic fused silica (Fused Silica). It adheres to the standard 96-well plate (8×12 matrix) specifications, ensuring perfect compatibility with automated liquid handling systems, microplate readers and stackers. Its core value lies in its unparalleled optical performance, making it the preferred consumable for high-end applications such as ultraviolet detection and high-precision fluorescence analysis.
Core features and advantages:
Excellent optical transmittance: It maintains an extremely high transmittance across a wide spectral range from deep ultraviolet (~170nm) to near-infrared (~2600nm), especially in the UV region >90%, which is unmatched by ordinary glass and plastic plates.
Extremely low autofluorescence: Made of high-purity quartz material, it has an extremely low autofluorescence background by itself, which can significantly improve the signal-to-noise ratio of fluorescence detection and obtain more sensitive and accurate detection results.
Excellent thermal stability and chemical inertness: With an extremely low coefficient of thermal expansion, it can withstand drastic temperature changes without deformation or cracking. It can withstand the erosion of strong acids, strong alkalis and organic solvents, ensuring the stability and reliability of the experimental process.
High surface flatness and parallelism: The bottom of the hole is precisely polished, featuring extremely high flatness and optical parallelism, minimizing light scattering and refraction, providing a consistent optical path for inspection and ensuring the comparability of data between holes.
High mechanical strength and durability: Compared with ordinary glass, fused quartz has a higher hardness, is more scratch-resistant, and has a longer service life.
What key problems can the product solve?
Traditional plastic or ordinary glass 96-well plates often encounter bottlenecks in demanding analytical experiments, while fused silica plates are precisely designed to address these issues:
1. Solve the problem that "ultraviolet detection cannot be carried out"
Problem: Plastic materials such as polystyrene (PS) have extremely high absorbance at ultraviolet wavelengths (especially <300nm) and are completely opaque, making it impossible to directly measure the concentration of proteins, nucleic acids, etc. in the ultraviolet region (such as A260/A280) or conduct enzyme kinetics studies.
Solution: Fused silica plates have an extremely high light transmittance in the ultraviolet region, enabling you to conduct accurate detection at wavelengths of 190nm and above, unlocking full-spectrum analysis capabilities.
2. Solve the problem of "high fluorescence background and poor signal-to-noise ratio" :
Problem: Many plastic materials and ordinary glass have autofluorescence, which can generate high background noise in high-sensitivity fluorescence detection (such as time-resolved fluorescence and fluorescence polarization), masking weak positive signals and resulting in an unsatisfactory detection limit (LOD).
Solution: The extremely low autofluorescence characteristic of fused silica plates can effectively reduce background interference, significantly enhance the signal-to-noise ratio, enabling you to detect target substances at lower concentrations and improve the sensitivity and reliability of experiments.
3. Solve the problem of "impaired sample activity or plate corrosion" :
When treating samples with strong organic solvents (such as DMSO, acetone) or strong acids/bases, the plastic plates may be dissolved or impurities may be released, contaminating the samples. Meanwhile, the chemical substances such as plasticizers dissolved may affect the activity of biological samples.
Solution: Fused quartz has outstanding chemical inertness and can withstand the erosion of the vast majority of chemical reagents, ensuring the purity of samples and protecting the activity of precious samples.
4. Solve the problem of "board deformation in high-temperature environments"
During thermal cycling processes such as PCR and high-temperature incubation, plastic plates may warp or deform due to their high coefficient of thermal expansion, which can affect the accuracy of automated operations and the sealing performance of the sealing caps.
Solution: The extremely low coefficient of thermal expansion of the fused silica plate ensures its dimensional stability at high temperatures, guaranteeing that it maintains its shape throughout the thermal cycle and fits perfectly with the instrument and the sealing cover.
Main application fields
With its outstanding performance, 96-well fused silica plates are widely used in the following high-tech fields:
Ultraviolet/Visible spectrophotometry: Quantitative analysis of proteins and nucleic acids, enzyme kinetics research.
High-sensitivity fluorescence detection
Time-resolved fluorescence (TRF
Fluorescence polarization (FP
Fluorescence Resonance Energy Transfer (FRET
Cell fluorescence detection
DNA sequencing and PCR product analysis: Indispensable in the steps that require ultraviolet detection.
Drug screening and discovery: In high-throughput screening (HTS), it is used to detect low-abundance target interactions.
Spectroscopy and optical Research: As a standard sample cell, it is used for various precision optical experiments.
Demanding chemical synthesis and reactions: Reaction platforms that can withstand highly corrosive chemicals are required.
Customized service
We are well aware that standard products may not meet the unique needs of all users. Therefore, we offer flexible and professional customized services to help you achieve your specific experimental goals.
Surface finishing and treatment
Hydrophilic treatment: Improves the wettability of the quartz surface, facilitating the uniform distribution of aqueous solutions and sample addition.
Hydrophobic treatment: Forming a hydrophobic surface, suitable for creating droplet arrays or preventing solutions from climbing walls.
Surface silanization: Introducing functional groups such as amino, epoxy, and carboxyl groups on the surface of quartz for covalently implanting biomolecules such as proteins, antibodies, and DNA.
Customized coating: Apply a coating with specific functions according to your requirements.
Specification and design customization
Hole shape and bottom design: Customizable flat bottom, round bottom or conical bottom to meet different sample recovery or optical requirements.
Plate size and thickness: The overall thickness or the thickness at the bottom of the hole can be adjusted according to the specific requirements of the instrument.
Number of holes and layout: Supports customization of non-standard hole numbers (such as 24 holes, 48 holes) or special matrix layouts.
Marking and coding: We offer laser marking, customizing letters, numbers, QR codes or barcodes for easy sample tracking and management.
The 96-well fused silica plate in the laboratory is not merely a simple sample container; it is a key tool for enhancing the quality of your experimental data and expanding the boundaries of your research. Whether you are facing barriers in ultraviolet detection, bottlenecks in fluorescence sensitivity, or harsh chemical and physical environments, it can provide reliable solutions. Choose us and you will get a high-performance and high-quality optical platform as well as all-round customized support.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused quartz lumps to fused quartz sand and then fused quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused quartz plates, tubes and high size precision fused quartz items.
