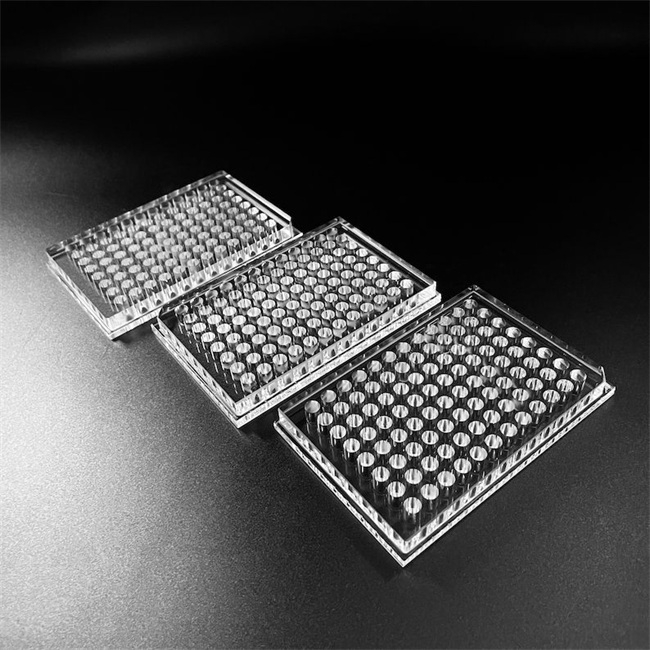

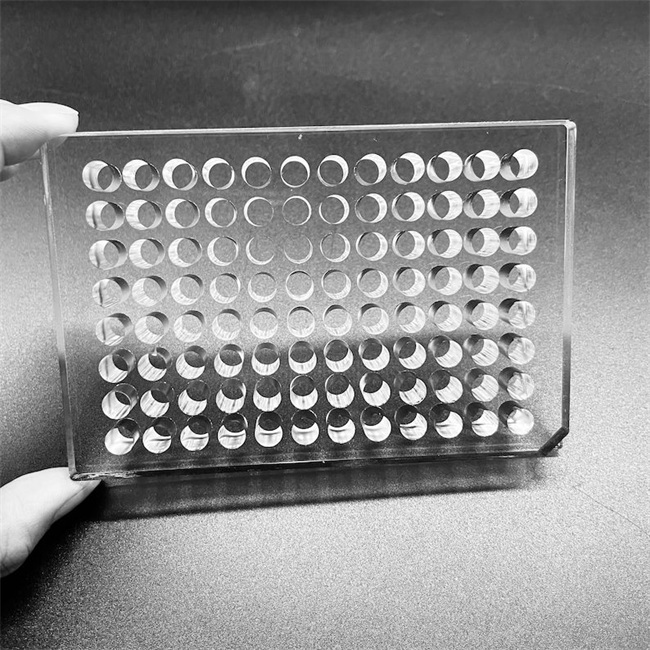

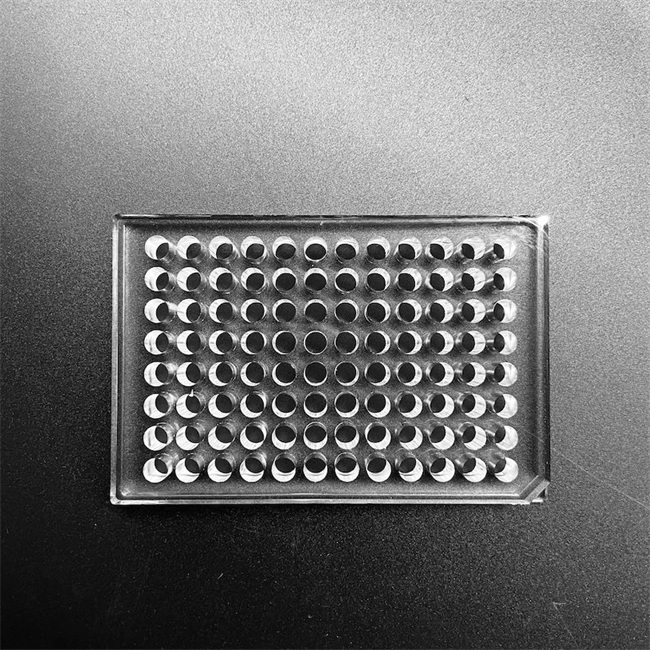

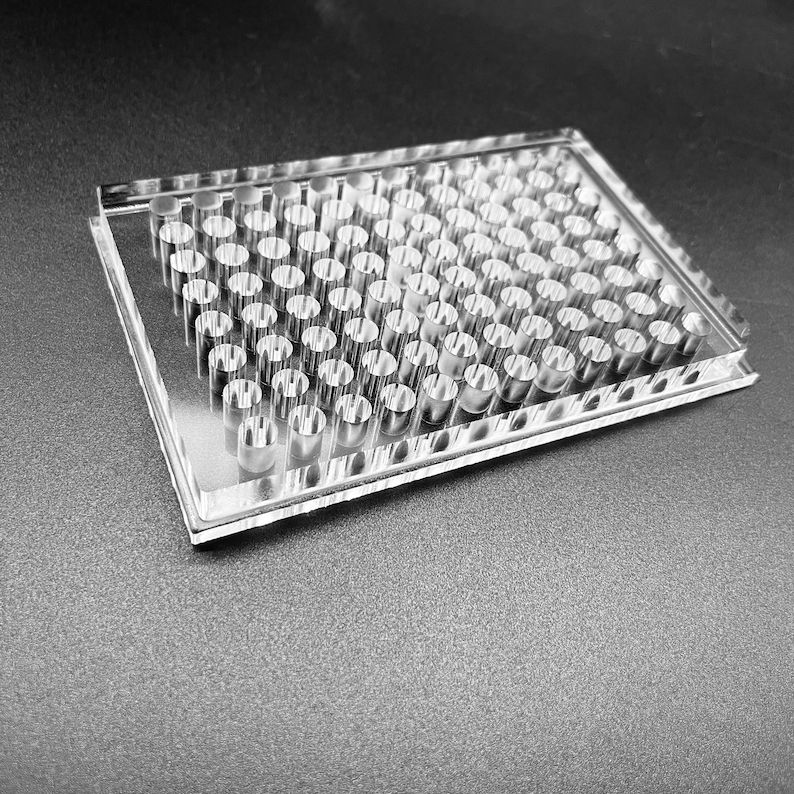

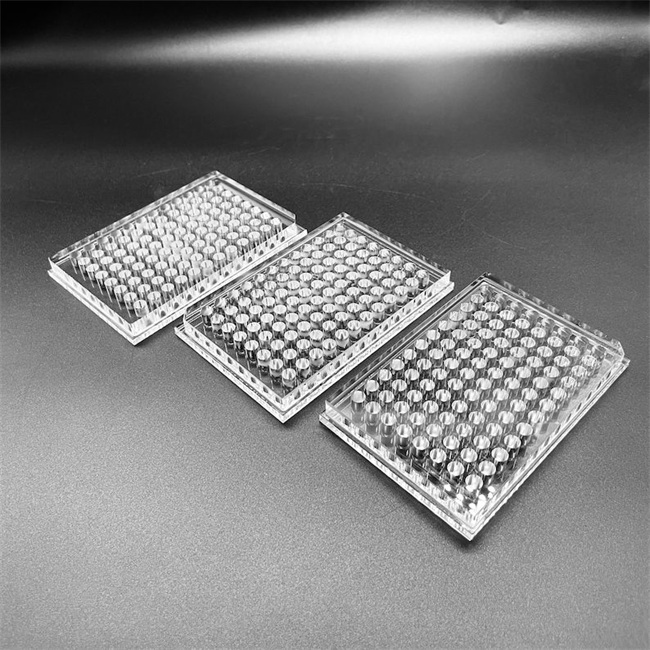

96-well transparent quartz plate
The 96-well transparent quartz plate is a high-precision and high-performance microplate
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
96-well transparent quartz plate
The 96-well transparent quartz plate is a high-precision and high-performance microplate specially designed for high-throughput detection requirements in the fields of life sciences, drug research and development, and materials science. It is precisely processed from high-purity synthetic quartz glass, perfectly replacing traditional polymer or ordinary glass microplates, providing an unparalleled solution for demanding optical experiments.
Core features
Outstanding optical performance: Utilizing JGS1 grade or equivalent high-purity synthetic quartz glass, it features extremely high light transmittance across a wide spectral range from deep ultraviolet to near-infrared (typically from 170nm to 2500nm), for instance, the light transmittance can still exceed 80% at 190nm, far surpassing that of ordinary glass and plastic.
Excellent chemical stability: Quartz material can resist the corrosion of strong acids, strong alkalis and organic solvents, ensuring long-term stable use in complex biochemical experimental environments without deterioration or sample contamination due to reagent erosion.
Extremely low autofluorescence: Compared with plastic and ordinary glass, the autofluorescence background of quartz material is extremely low, which can significantly improve the signal-to-noise ratio of fluorescence detection and obtain more sensitive and accurate detection results.
Extremely high thermal stability and mechanical strength: It can withstand high-temperature and high-pressure sterilization, with an extremely low coefficient of thermal expansion. It can maintain dimensional stability even under drastic temperature changes and is not prone to deformation or cracking.
Standard dimensions and precise structure: Strictly adhering to the SBS microplate standard (approximately 127.76mm x 85.48mm), it ensures perfect compatibility with mainstream automated liquid handling systems, microplate readers and imaging equipment on the market. The hole position processing accuracy is high and the consistency between holes is good.
What problems can the product solve for you?
The 96-well transparent quartz plate is not merely a container but a key tool for solving the problems in scientific research and quality inspection. It can effectively address the following pain points:
1. Solve the "bottleneck" problem of ultraviolet band detection
Pain point: Ordinary plastics and glass absorb severely in the ultraviolet region, especially in the deep ultraviolet region (<300nm), and are almost opaque, making it impossible to conduct detection based on ultraviolet absorption (such as protein/nucleic acid concentration measurement).
Solution: The ultra-high ultraviolet transmittance of quartz plates makes precise absorbance detection in the 190-300nm band possible, making it an essential tool for proteomics, nucleic acid quantification and other research.
2. Enhance the sensitivity and accuracy of fluorescence detection
Pain point: The autofluorescence of traditional microplates themselves can interfere with the detection signal, resulting in high background values, poor signal-to-noise ratio, and making it difficult to detect low-abundance targets or perform precise quantification.
Solution: The extremely low autofluorescence property of quartz material can effectively reduce background noise, making weak fluorescence signals stand out, thereby significantly enhancing the sensitivity of detection and the reliability of data.
3. Coping with harsh chemical and physical experimental environments:
Pain point: In experiments using strong organic solvents (such as DMSO, acetone) or strong acids and bases, plastic plates are prone to dissolution or corrosion, and ordinary glass may also be eroded, leading to damage of the well plate and cross-contamination of samples.
Solution: The outstanding chemical inertness and physical strength of quartz plates enable them to withstand the vast majority of harsh reagents and high-temperature and high-pressure sterilization processes, ensuring the safety and repeatability of experiments.
4. Ensure data consistency for high-throughput screening:
Pain point: Insufficient processing accuracy of the orifitate plate can lead to differences between holes, affecting the accuracy of automated operations, and ultimately causing large fluctuations in experimental data and poor repeatability.
Solution: The precise processing technology ensures that the geometric dimensions and optical paths of each hole are highly consistent, providing a reliable data foundation for high-throughput screening and automated analysis.
Main application fields
With its unique performance advantages, 96-well transparent quartz plates play an irreplaceable role in the following fields:
Life science research
Protein crystallography screening
Ultraviolet quantification and analysis of nucleic acids (DNA/RNA)
Enzyme kinetics research
Fluorescence imaging and detection at the cellular level
Drug Discovery and screening
High-throughput drug Screening (HTS
Identification of active compounds based on ultraviolet/fluorescence signals
Research on drug-target interactions
Analytical Chemistry and Spectroscopy
As a micro sample cell for a UV-Vis spectrophotometer
Sample carriers for Raman spectroscopy, fluorescence spectroscopy and other analytical tests
Materials Science
Characterization of optical properties of nanomaterials
Performance testing and screening of fluorescent materials
Customized service
We are well aware that standard products may not meet the special needs of all users. Therefore, we offer flexible and professional customization services, aiming to create exclusive products that best meet your experimental needs.
1. Customized hole type and plate structure:
Hole type: Different hole bottom shapes such as flat bottom, round bottom or conical bottom can be provided.
Hole depth and volume: We can customize non-standard hole depth and volume according to your sample volume and optical path requirements.
Plate structure: Customizable frameless plate (more suitable for microscopic observation) or thickened plate (enhanced mechanical strength).
2. Customized optical performance and surface treatment:
Light transmission band: The type of quartz material and processing technology can be optimized according to your specific spectral range.
Surface coating: Anti-reflection coating (to reduce reflection loss), reflective coating or other functional optical coatings are provided.
Surface hydrophilic and hydrophobic treatment: The inner surface of the well can be treated for hydrophilicity or hydrophobicity to improve liquid spreading or prevent sample adhesion to the wall.
3. Material and specification customization
Quartz grade: We offer fused quartz or UV-grade quartz of different purity grades to meet various budget and performance requirements.
Non-standard sizes: Customized orifice plates of non-SBS standard sizes are available to fit special models of equipment.
The 96-well transparent quartz plate serves as a bridge connecting precision optical instruments with high-quality experimental data. By addressing the inherent limitations of the material itself, it opens the door to more sensitive, reliable and extensive detection applications for researchers and industrial users. Whether it is standard ultraviolet absorption detection or customized high-end spectral analysis, we can provide matching solutions.
Welcome to contact us at any time to discuss your specific needs. Let us use our professional technology and products to lend a helping hand to your scientific research and development work!
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused quartz lumps to fused quartz sand and then fused quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused quartz plates, tubes and high size precision fused quartz items.
