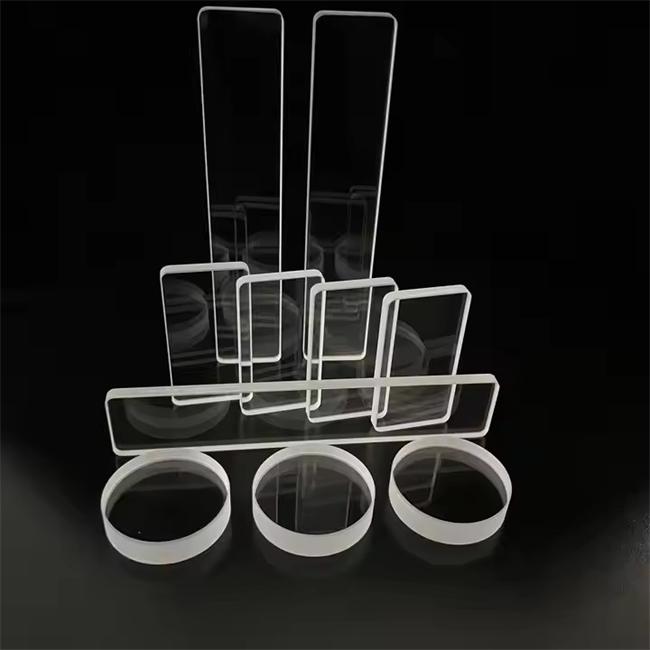

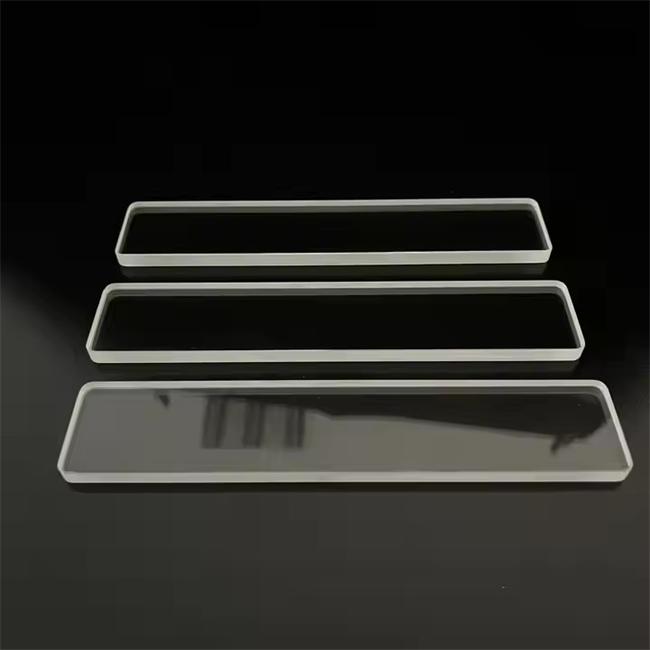

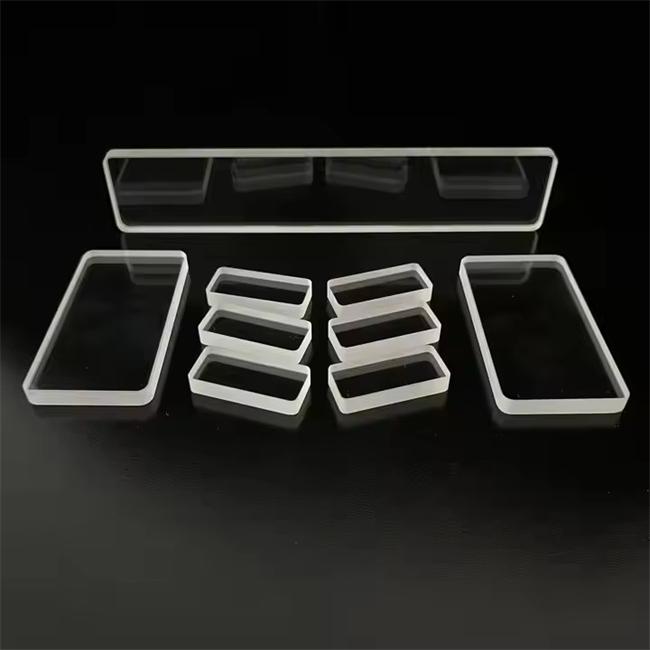

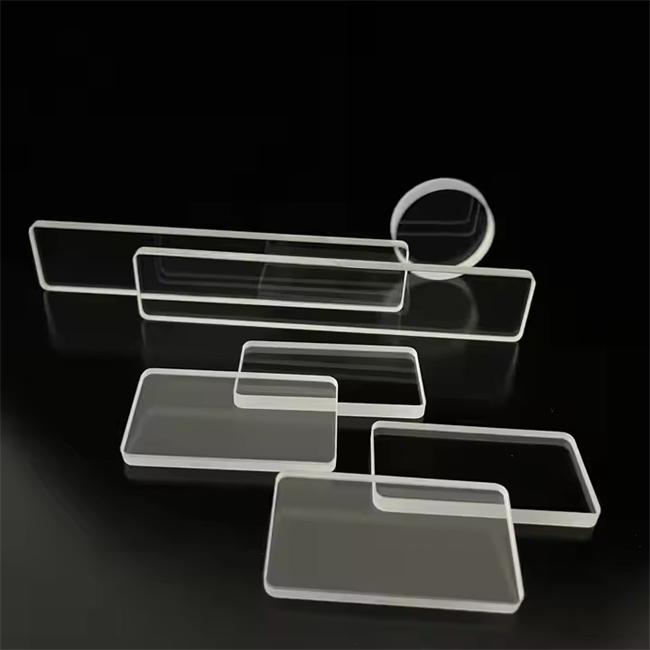

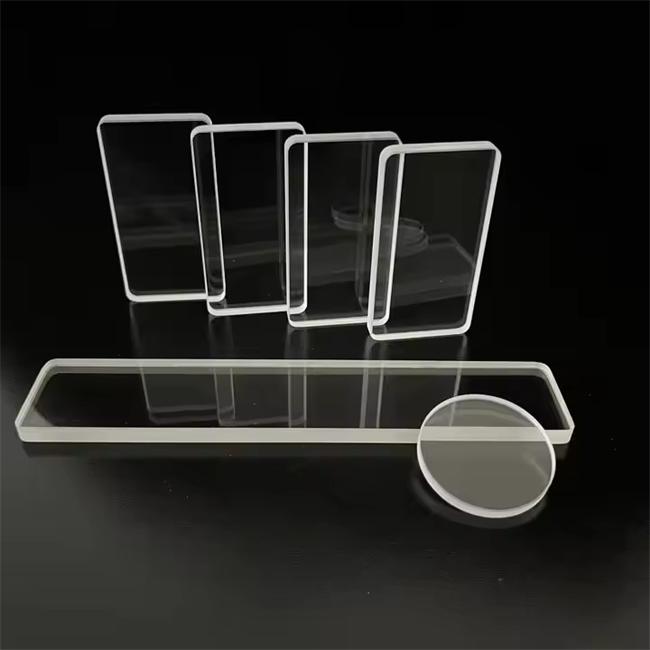

Large diameter transparent observation window optical quartz plate

Large diameter transparent observation window optical quartz plate is a high-end transparent component specially designed for industrial windows and optical systems in extreme high temperature, high pressure, and highly corrosive environments. We use top optical grade fused silica material, which has excellent characteristics of high temperature resistance, thermal shock resistance and full band high transmittance. No matter what special specifications you need, we can provide comprehensive precision customization services from diameter to thickness to ensure perfect compatibility with your equipment needs.

FAQ

Q: What is the maximum size that your large-diameter quartz observation window can achieve?

A: Relying on advanced hot bending and precision cold processing technology, we can provide ultra large transparent quartz windows with diameters exceeding 1000mm or even larger, while supporting irregular cutting, fully meeting the customized needs of large reaction vessels, boilers, and special optical instruments.

Q: What are the core advantages of optical quartz plates compared to ordinary glass observation windows?

A: The core advantage lies in its ultimate temperature resistance and optical performance. The thermal expansion coefficient of optical quartz is extremely low, and it can withstand sustained high temperatures above 1100 ℃ and severe thermal shocks without exploding; At the same time, its transmittance in the full spectral range from ultraviolet to infrared is over 90%, far superior to ordinary glass.

Q: What parameters are required to customize a quartz observation window?

A: To ensure precise matching, you only need to provide the required diameter/size, thickness, edge processing requirements (such as grinding and chamfering), surface smoothness requirements, and specific application scenarios (such as temperature, pressure, medium environment), and our engineers can provide you with professional processing drawings and solutions.

Requirement resolution and value

For users facing difficulties in monitoring high temperature, high pressure, or corrosive media, the core value of this product is to provide "absolute safety visibility". We have solved the problems of ordinary windows being prone to bursting under extreme working conditions, low light transmittance leading to blurry observations, and frequent replacement due to short service life. By providing customized optical quartz plates with high purity and no bubbles, we not only ensure the continuity and safety of the production process, but also enable researchers or operators to obtain clear, authentic, and distortion free experimental or production data through the window.

Application and core advantages

Our products are widely used in fields such as semiconductor manufacturing, aerospace, petrochemicals, laser optics, and high-end laboratory equipment.

Core advantages:

Excellent optical performance: extremely high transmittance and extremely low birefringence, ensuring distortion free observation images, suitable for precision optical instruments.

Ultimate physical stability: With a softening point of up to 1732 ℃, it can work in an environment of 1100 ℃ for a long time and resist the vast majority of acid-base corrosion (except hydrofluoric acid).

Flexible customization service: We offer a variety of customized specifications and sizes, including punching, slotting, special polishing, and coating treatment, perfectly meeting the installation needs of non-standard equipment.

Typical customer application cases

Case 1: A semiconductor equipment manufacturer

The customer requires a 600mm diameter observation window for real-time monitoring of the high-temperature plasma state inside the reaction chamber when developing a new generation of wafer etching equipment. Due to the extremely high temperature inside the cavity and the presence of highly corrosive gases, ordinary sapphire or glass windows are frequently damaged. We have customized a high-purity synthetic quartz observation window for it, which has undergone precision annealing and double-sided polishing treatment. Not only does it perfectly withstand the extreme environment inside the cavity, but its excellent UV transmittance also helps customers capture clearer spectral signals, greatly improving the process control accuracy of the equipment.

Case 2: A large petrochemical enterprise

The company has always had safety hazards in the monitoring of high-temperature and high-pressure reaction vessels, and the original observation window has frequently exploded due to thermal shock. We have tailored a thickened large-diameter quartz mirror with a flange edge for it, and carried out special tempering reinforcement treatment. After being put into use, the window remained intact even in a rapid cooling and heating environment of 800 ℃, completely eliminating safety hazards and providing a solid guarantee for the safety production of the enterprise.

Why choose us?

As a professional manufacturer specializing in the field of quartz products, we have the ability to control the entire industry chain from raw material selection to precision processing. We not only provide standard products, but also excel at addressing non-standard customization needs.

If you are looking for high reliability large-diameter transparent observation windows or have any special quartz product customization needs, please feel free to contact us at any time! Please tell us your specific size and application scenario, and our technical team will immediately provide you with selection suggestions and accurate quotations.

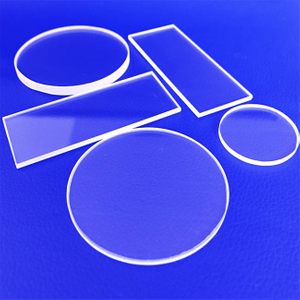

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
