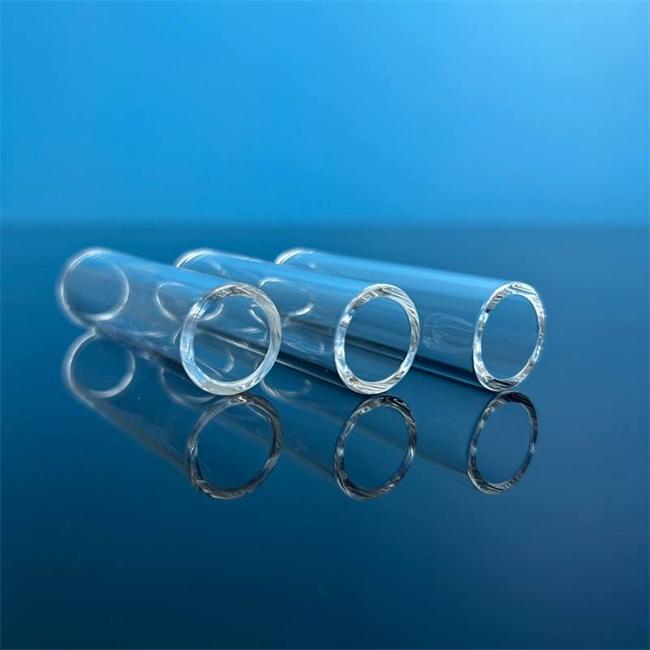

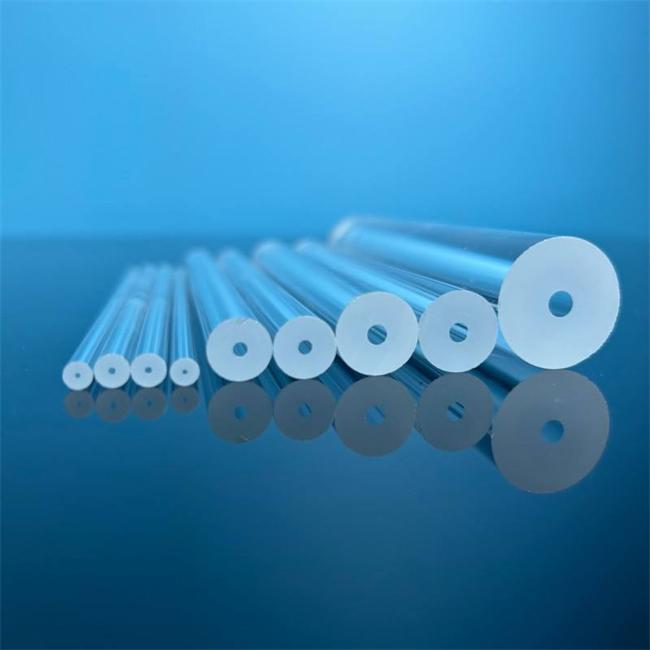

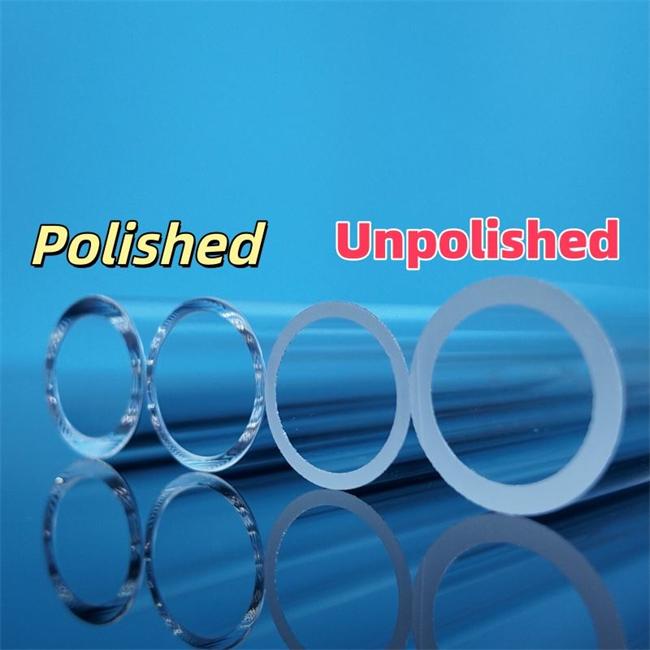

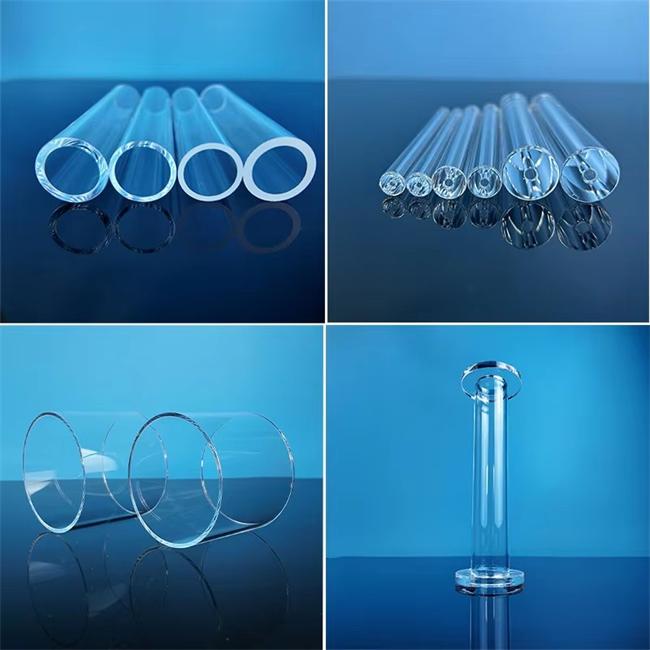

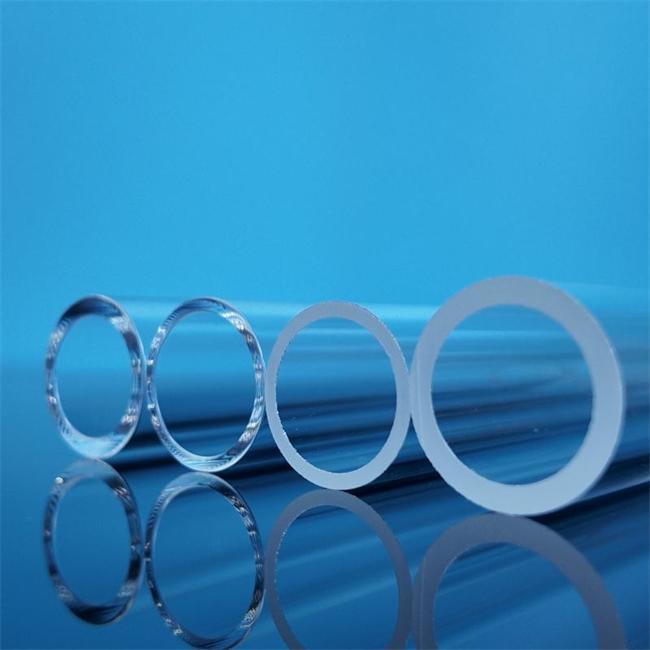

Polished and unpolished transparent quartz tubes

Polished and unpolished transparent quartz tubes are core foundational materials in the fields of semiconductor manufacturing, photovoltaic optoelectronics, and high-precision laboratories. Polishing tubes effectively eliminate particle residue and gas adsorption with their ultra-low surface roughness, while unpolished tubes meet conventional high-temperature conditions with high cost-effectiveness and excellent optical transmittance. Both inherit the ultimate physical and chemical properties of quartz glass, including extreme temperature resistance and corrosion resistance, making them ideal choices for ensuring process stability and improving product yield for users.

Frequently Asked Questions (FAQ)

Q1: My process requires extremely high cleanliness. Should I choose polished or unpolished quartz tubes?

A: If your process (such as semiconductor PFA tubing, high-purity gas delivery) has a "zero tolerance" requirement for inner wall particle detachment and metal ion precipitation, you must choose inner/outer polished transparent quartz tubes. Polishing treatment can reduce the surface roughness (Ra) to an extremely low level, significantly reducing the surface area and effectively preventing impurity adsorption and particle retention.

Q2: Will unpolished quartz tubes have a significant decrease in transmittance?

A: The inherent qualities of bubbles and gas lines in transparent quartz tubes determine the basic transmittance. For the far ultraviolet to near-infrared wavelength range, unpolished tubes still maintain extremely high transmittance. If used for external heating or ordinary light source penetration, unpolished tubes are fully capable; But if it is used in precision optical lenses, laser transmission and other scenarios that require extremely high light flux and are sensitive to light scattering, it is recommended to use optical grade polishing tubes.

Q3: What size customization can you provide? What is the minimum order quantity?

A: As the source manufacturer, we break through conventional limitations. The outer diameter can be customized from 2mm to 500mm, the wall thickness from 0.5mm to 20mm, and the maximum continuous length can reach 6000mm. Whether it is a few R&D samples or ton scale mass production, we provide flexible customization services without strict minimum order quantity thresholds.

What core needs can the product solve for users?

For end users, choosing our quartz tube is essentially to eliminate the "black box" effect under complex working conditions of high temperature and high pressure. It not only solves the problem that ordinary glass or metal materials cannot withstand severe thermal shock and are easily corroded by strong acids and alkalis, but also precisely solves the balance problem between "extreme cleanliness control" and "project cost control" for users through the "polished/unpolished" subdivision option, ensuring that each section of quartz tube can serve stably in harsh environments for a long time.

Product core advantages and comprehensive customization services

1. Guarantee of ultimate physical and chemical performance

Our transparent quartz tube is melted with high-purity silica sand, with a SiO2 content of ≥ 99.99% and an extremely low coefficient of thermal expansion (5.5 × 10 ^ -7/℃). It can withstand sustained high temperatures above 1100 ℃ and does not explode when immersed in cold water in a red hot state. Excellent corrosion resistance enables it to withstand all strong acids except hydrofluoric acid and hot phosphoric acid above 300 ℃.

2. High added value brought by differentiated surface treatment

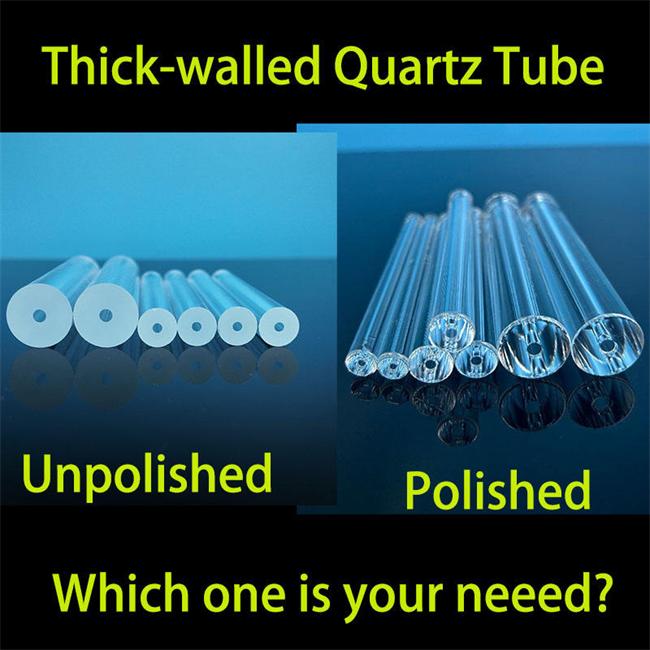

Unplished tube (standard grade): The surface is naturally cooled and formed, with excellent cost-effectiveness, perfectly matching conventional applications such as high-temperature heating element protection tubes and furnace observation windows.

Polishing tube (high-end): After multiple precision mechanical/fire polishing processes, the inner wall is as smooth as a mirror surface. Greatly reduces fluid resistance, eliminates pipe wall scaling and impurity retention, and provides a pure environment for high-end manufacturing.

3. Ability to customize specifications without blind spots

We are well aware that 'non-standard' is the norm in the quartz industry. We provide one-stop customization from drawings to finished products, whether it is specific outer diameter tolerances (controllable within ± 0.05mm), special taper pipes, irregular pull pipes, or different end cutting angles (flat head, rounded corner, ground edge).

Application scenarios and practical problems solved

Semiconductor and Microelectronics Industry: Applied to wafer diffusion furnace tubes and vertical furnace covers. Problem solving: Polishing treatment completely solves the problem of traditional unpolished tubes shedding particles and contaminating wafers at high temperatures, greatly improving chip yield.

In the field of photovoltaic solar energy, quartz crucibles are used for polycrystalline silicon ingots, and velvet diffusion tubes are made from silicon wafers. Problem solving: Solved the erosion problem of silicon vapor on the pipe wall under high temperature, extended the service life of consumables, and reduced the single watt manufacturing cost of photovoltaic enterprises.

Laboratory and chemical analysis: high-purity chemical reagent delivery pipes, high-temperature cracking reactors. Problem solving: Solved the interference of heavy metal ions introduced into metal pipes, the fragility and insufficient temperature resistance of ordinary glass, and ensured the absolute authenticity of experimental data.

Special light sources and medical applications: high-pressure mercury lamp tube shell, UV sterilization lamp outer sleeve. Problem solving: The extremely high ultraviolet transmittance ensures maximum output of light efficiency, and the cost advantage of unpolished tubes helps light source companies enhance their market competitiveness.

Why choose us?

Case background:

A well-known European semiconductor equipment component manufacturer encountered a bottleneck in developing a gas delivery module for the next-generation 7nm front-end process. The conventional unpolished quartz tubes they originally purchased were prone to tiny particle detachment and trace metal ion precipitation at the small concave convex areas on the inner wall under the high-speed flushing of high-purity nitrogen trifluoride (NF3) gas, resulting in fatal particle defects on downstream wafers. The yield rate plummeted from 95% to below 70%.

Our solution:

After understanding the difficulties, our engineering team took the initiative to coordinate and proposed a complete solution of "precision mechanical polishing of inner surfaces+ultrasonic cleaning with ultrapure water+vacuum packaging in clean rooms". Due to the special ratio of pipe diameter (OD 45mm) to wall thickness (2.5mm) requested by the customer, and the requirement for a length of 3200mm without joints, conventional inventory cannot meet it. We quickly adjusted the parameters of the pull down tube equipment and customized this batch of high-precision quartz tubes specifically for it, successfully controlling the inner wall roughness (Ra) below 0.2 μ m.

Customer feedback and results:

The customer assembled our customized polished quartz tube into a new module and conducted a 3-month limit test. The results showed that the amount of particles generated inside the tube decreased by more than 98%, and the amount of metal ion precipitation was completely below the detection limit of ASTM F571 standard. In the end, the customer successfully passed the verification of the terminal wafer factory and the new equipment was put into mass production. At present, the customer has transferred all orders for such high-purity quartz tubes to our factory, with an annual purchase volume of tens of thousands of units, and has established a joint research and development mechanism to jointly develop the next generation of extreme ultraviolet (EUV) grade quartz components.

Summary of Reasons for Choosing Us:

Not only selling a pipe, but also providing a closed-loop service of "material research and development+precision machining+problem solving". As the source factory, we have eliminated intermediate links and delivered standard customized products at highly competitive prices.

Whether you are looking for high-end polished quartz tubes to break through process bottlenecks or conventional unpolished quartz tubes to reduce costs and increase efficiency, simply send us your drawings, working conditions, or specification requirements, and our engineering team will provide you with free customized solutions and accurate quotes within 24 hours! Please feel free to contact us at any time to obtain samples for testing.
