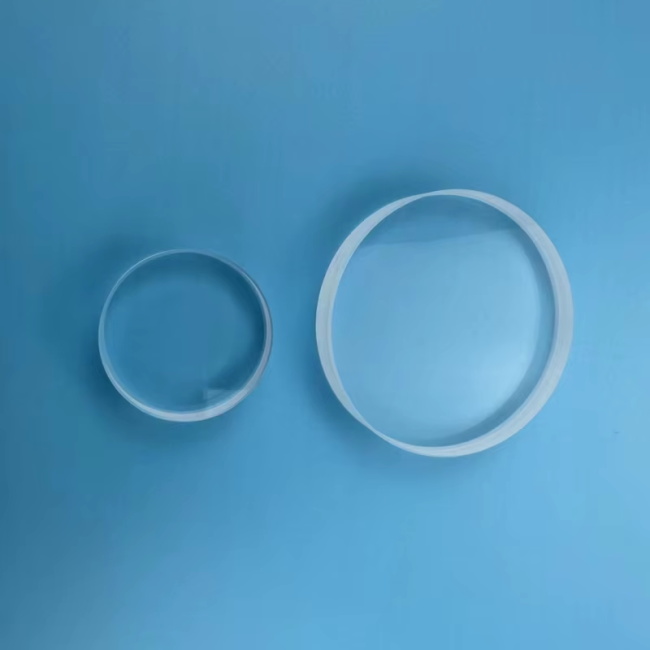

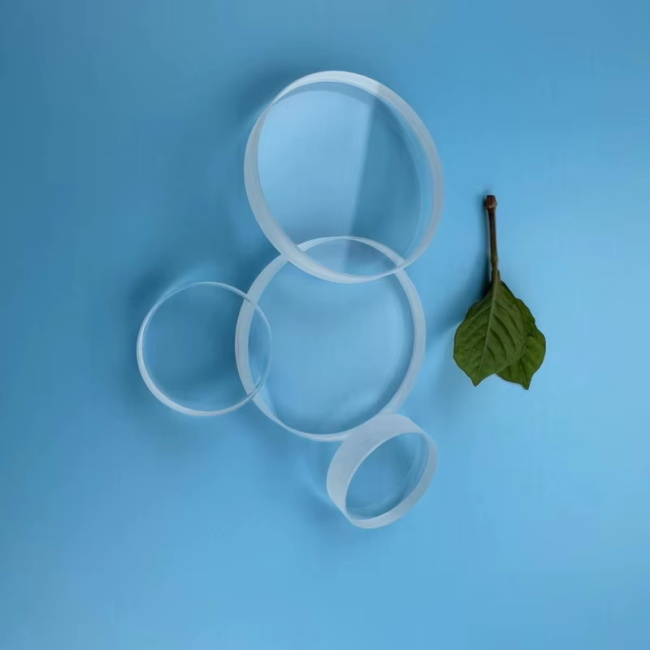

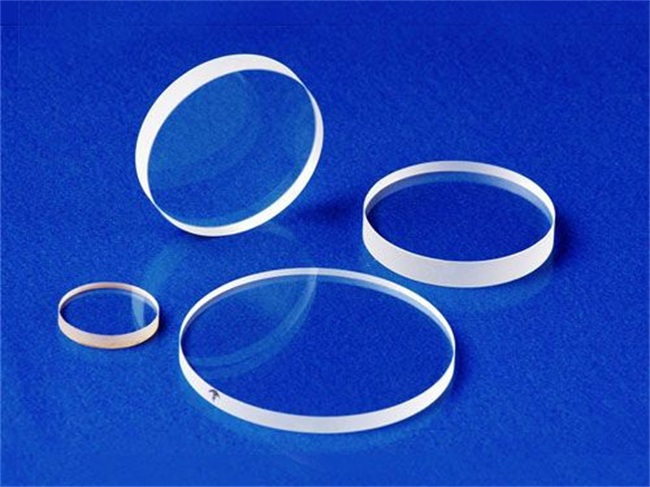

The round transparent quartz plate is made of high-purity fused silica (SiO ⊃2;), which has excellent optical properties, high temperature resistance and chemical stability. The product has a wide range of diameters (8-500mm) and thicknesses can be customized according to needs (0.1mm to 50mm), suitable for high-precision optics, semiconductors, laser technology and other fields.

Frequently Asked Questions (FAQ)

Q1: What sizes and thicknesses can you customize for your circular quartz plates?

A1: We offer circular quartz plates in a full range of diameters from 8 mm to 500 mm. In terms of thickness, we typically provide standard specifications ranging from 1 mm to 50 mm, and we fully support in-depth customization of non-standard sizes and special thicknesses based on customer drawings.

Q2: How does this quartz plate perform in terms of optical transmittance?

A2: Our transparent quartz plates have extremely high transmittance in the visible light spectrum, typically reaching over 93%. At the same time, they exhibit excellent light transmission across the entire spectrum from ultraviolet to infrared, meeting the requirements of various precision optical instruments.

Q3: Can the product withstand extreme temperature changes?

A3: Absolutely. Quartz plates have an extremely low coefficient of thermal expansion and excellent thermal stability. They can withstand extreme temperature changes; even after prolonged use at 1100°C or when transferred directly from high temperatures into room-temperature water, they will not shatter.

Quartz plate has the following core characteristics:

- High light transmittance: UV to IR band (170nm-2500nm) transmittance > 90%, suitable for wide spectral applications.

- High temperature resistance: softening point up to 1730 ° C, can work stably for a long time at 1000 ° C.

- Low coefficient of thermal expansion: 5.5 × 10 ° C/℃, excellent thermal shock resistance, suitable for environments with severe temperature changes.

- Chemical inertness: resistant to strong acids (except hydrofluoric acid), alkali and organic solvent corrosion, suitable for harsh chemical environments.

- High hardness: Mohs hardness level 7, scratch resistance, high mechanical strength.

Application

1. Optics and laser technology

- Laser windows & lenses: used in CO2 lasers, UV laser processing equipment, resistant to high-energy laser irradiation.

- Optical coating substrate: as a high flatness substrate, plating anti-reflection film, reflective film, etc.

- Spectrometer components: UV/IR spectrometer windows, prisms to ensure high light transmittance.

2. Semiconductor and photovoltaic industries

- Wafer processing vehicles: High-temperature resistant quartz wafers are used for semiconductor diffusion and etching processes.

- Optical components for lithography machines: high-purity quartz plates can reduce impurity contamination and improve chip manufacturing accuracy.

3. High temperature and vacuum equipment

-Observation window: used in furnaces and vacuum chambers, with high temperature resistance and no impact on internal observation.

- Solar cell coating equipment: as a high temperature isolator to ensure coating uniformity.

4. Chemical and medical

- Corrosion-resistant sight glasses: observation windows for chemical pipelines and reactors to resist acid and alkali corrosion.

- Medical sterilization equipment: the light-transmitting part of the UV disinfection lamp has excellent UV transmission performance.

Customized service

We offer flexible product customization solutions to meet diverse needs.

- Size customization: support non-standard diameter (8-500mm), thickness (0.1-50 mm) and edge treatment (chamfering, polishing).

Surface Accuracy: Can provide lambda/10 high flatness (< 0.1μm), Ra < 1nm ultra-smooth surface.

- Coating processing: anti-reflection film (AR), spectral film, metal reflective film, etc., to adapt to different wavelength requirements.

- Special treatment: secondary processing such as drilling, grooving, matte surface, etc., to meet specific installation or optical requirements.

Why choose our quartz plates?

1. High consistency: using electrofusion or vapor deposition processes to ensure that there are no bubbles or impurities.

2. Strict quality inspection: Each batch is tested for transmittance, refractive index uniformity, and surface defects.

3. Quick response: Support small batch pilot running and urgent orders to shorten the delivery cycle.

Applicable industries: optics, semiconductors, aerospace, laser processing, chemicals, medical equipment, etc.

Contact us: For samples or technical inquiries, please provide your specific requirements (diameter, thickness, quantity, application), and we will provide you with the best solution!

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
