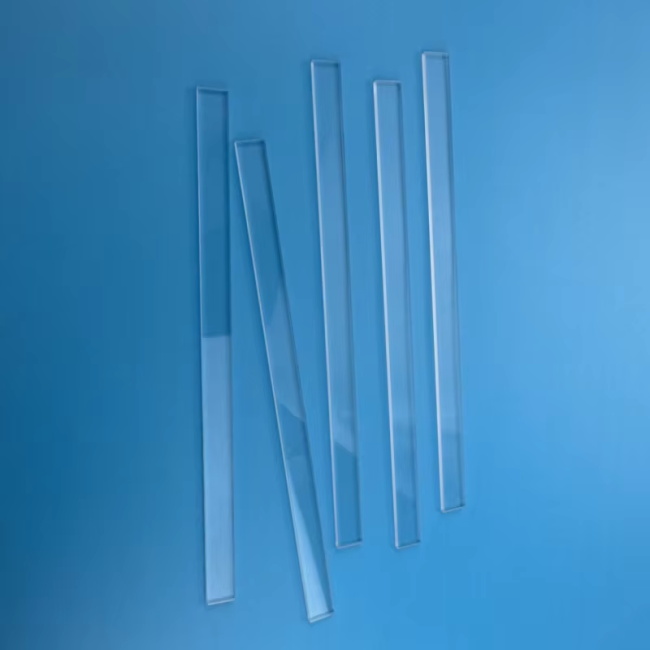

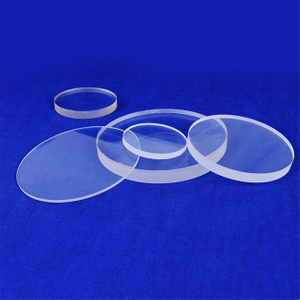

The 8-500mm quartz transparent plate in the optical laboratory is a kind of optical element with high purity and high transmittance. It is made of high-quality fused silica material, and has excellent high temperature resistance, low thermal expansion coefficient and excellent ultraviolet infrared transmittance. This product is suitable for various rigorous optical experiments and industrial applications, providing different size specifications from 8mm to 500mm to meet the needs of different scenarios.

Frequently Asked Questions (FAQ)

Q1: What materials and spectral bands does this quartz transparent plate support?

A: We offer three main materials: JGS1 (ultraviolet grade), JGS2 (general transparency grade), and JGS3 (infrared grade). JGS1 is suitable for the deep ultraviolet to near-infrared spectrum (185 nm–2100 nm), JGS2 is suitable for the standard visible light spectrum, and JGS3 offers excellent light transmission in the infrared spectrum, comprehensively meeting all types of spectral analysis needs.

Q2: In addition to standard sizes, do you support custom non-standard shapes?

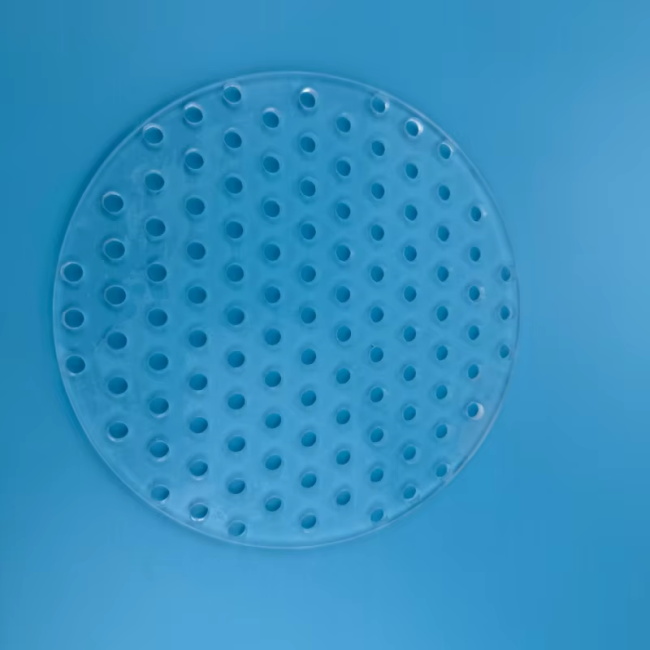

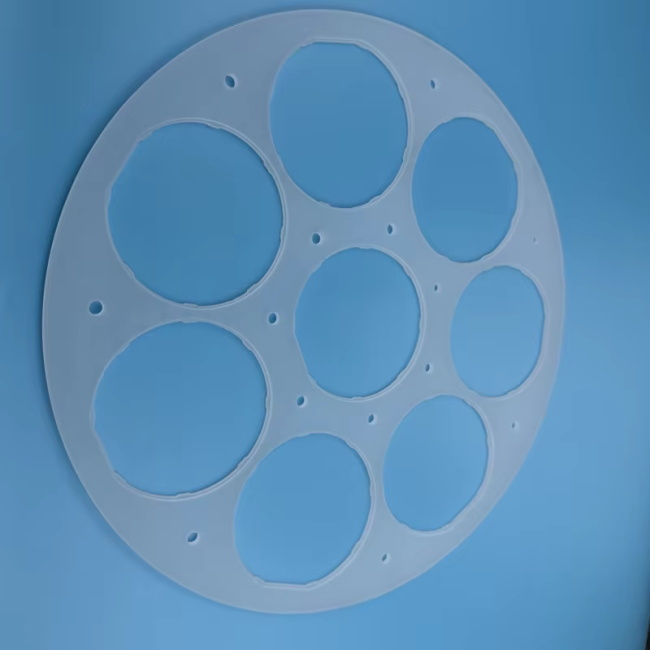

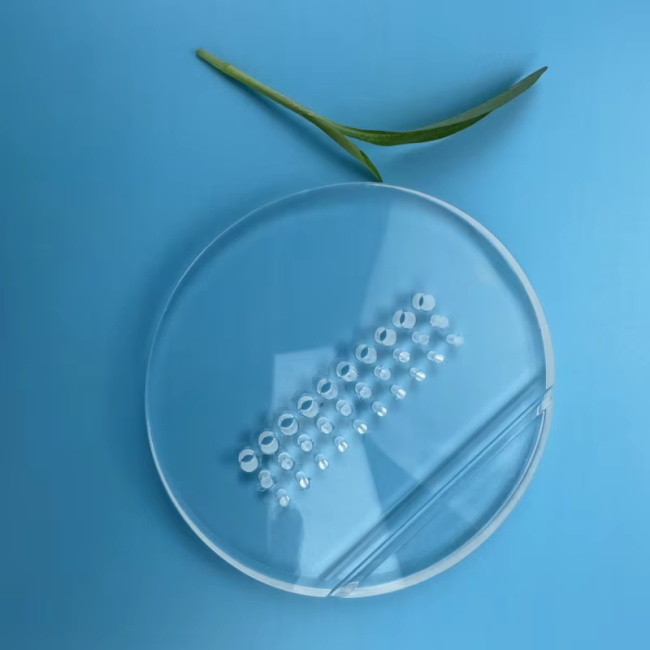

A: Absolutely. We have flexible secondary processing capabilities. In addition to standard circular and square sizes ranging from 8 to 500 mm, we can also perform custom cutting, precision drilling, slotting, edge grinding, and chamfering according to drawings. Thicknesses range from 0.1 mm to 50 mm to meet various special assembly requirements.

Q3: What standards can the product’s surface precision and finish meet?

A: We offer a variety of surface quality options ranging from standard to high-precision grades. Standard-grade finishes can reach 60/40, while high-precision grades can reach 20/10 or even better; surface profile accuracy (PV value) can be customized to λ/10 or λ/20 as required, and parallelism can be controlled within 1 arcminute to ensure the imaging quality of optical systems.

Q4: Can quartz plates be coated?

A: Yes. We offer a variety of optical coating services, including single- or double-sided anti-reflective (AR) coatings, wavelength-specific anti-reflective coatings (e.g., 1064 nm, 532 nm), broadband anti-reflective coatings, and hydrophobic and water-repellent coatings, to minimize reflection loss and maximize light transmittance.

Core features

-High transmittance: It has excellent transmittance performance in the ultraviolet (UV), visible light (VIS), and infrared (IR) bands (>90% @ 200nm-2500nm).

-High temperature resistance: can withstand high temperatures up to 1200 ℃, with an extremely low coefficient of thermal expansion, ensuring stability in high-temperature environments.

-High chemical stability: resistant to acid and alkali corrosion, suitable for harsh chemical environments.

-Low birefringence: Good optical uniformity, reduces polarization effects, suitable for precision optical systems.

-Multiple sizes available: thickness range from 8mm to 500mm, supporting customized processing (diameter, thickness, surface accuracy, etc.).

Application Fields

Quartz transparent plates are widely used in the following fields due to their excellent optical and physical properties:

1. Laser and Optical Systems

-Laser window plate: used as a protective window for high-power lasers, resistant to high temperatures and laser damage.

-Optical lenses and prisms: suitable for precision optical equipment such as ultraviolet laser systems and spectrometers.

2. Semiconductor and Lithography Technology

-Lithography mask plate: High purity quartz ensures high transmittance of ultraviolet light and improves lithography accuracy.

-Wafer processing: used for high-temperature processes in semiconductor manufacturing, such as CVD (chemical vapor deposition) and etching.

3. Research and Laboratory

-Spectral analysis: As a sample window or optical component, suitable for ultraviolet infrared spectrometers.

-High energy physics experiments: used for particle detectors, synchrotron radiation devices, etc.

4. Aerospace and Military Industry

-Spacecraft window: resistant to high temperatures and radiation, suitable for optical observation systems of satellites and missiles.

-Infrared thermal imaging: As an infrared window material, it provides clear infrared transmission effect.

5. Medical and Biotechnology

-UV disinfection equipment: Highly transparent ultraviolet light, suitable for medical sterilization lamps.

-Microscope slide: high transmittance, suitable for high-resolution microscopic observation.

Customized service

We provide comprehensive customized services to ensure that quartz transparent plates meet your special needs:

1. Size customization

-The diameter that can be processed ranges from a few millimeters to 500mm, and the thickness varies from 0.5mm to 500mm.

-Support irregular cutting (circular, square, polygonal, etc.).

2. Surface treatment

-Polishing grade: Conventional polishing (Ra<1nm), ultra precision polishing (Ra<0.5nm).

-Coating options: anti reflective film (AR), reflective film, spectral film, etc., optimize the transmittance of specific bands.

3. Special needs

-High temperature resistant coating: suitable for extreme high temperature environments (such as aircraft engine observation windows).

-Anti reflection treatment: reduces light loss and improves optical system efficiency.

-Anti laser damage coating: suitable for high-power laser applications.

Why choose our quartz transparent plate?

1. High precision manufacturing: Advanced CNC machining and precision polishing technology are adopted to ensure the optical surface accuracy (λ/10).

2. Strict quality inspection: Each product undergoes spectral analysis, stress testing, and surface defect inspection.

3. Quick response: Supports small batch trial production and large-scale orders, with short delivery cycles.

4. Professional technical support: Provide optical design suggestions to help optimize product performance.

The 8-500mm quartz transparent plate in the optical laboratory is an ideal choice for scientific research, industry, and high-end technology fields. With its excellent transparency, high temperature resistance, and chemical stability, it can be widely used in industries such as laser, semiconductor, aerospace, and medical. We provide flexible customization services to ensure that our products perfectly meet your needs.

If you need further information or obtain samples, please contact our technical team!

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
