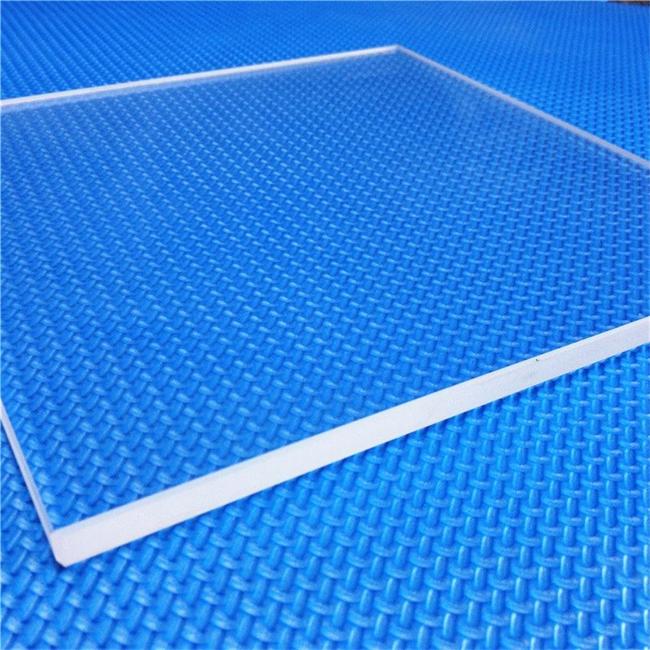

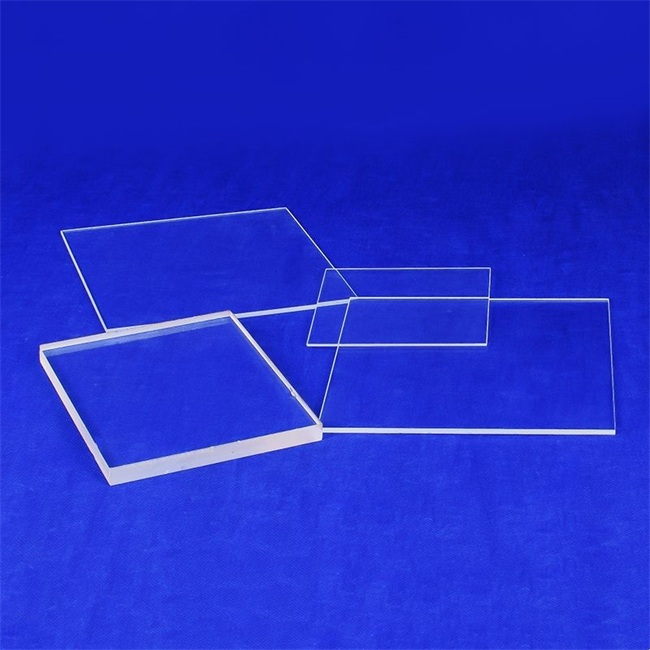

The 5-500mm transparent polished quartz plate is a high-purity, high-light-transmittance optical grade quartz glass plate that has been precision polished for excellent surface flatness and optical properties. The product is made of high-purity fused silica (SiO ⊃2;), with an extremely low coefficient of thermal expansion, excellent high temperature resistance (up to 1200 ° C), and excellent ultraviolet-infrared light transmission (light transmittance > 90%), suitable for harsh optical, semiconductor, laser and scientific research experimental environments.

FAQ

Q1: What is the light transmission range of this transparent polished quartz plate?

A1: Our quartz plate has excellent transmittance in the ultraviolet to near-infrared band (usually 190nm-2500nm), especially without obvious absorption peaks in the ultraviolet region, making it very suitable for precision optical detection and spectral analysis applications.

Q2: What sizes and thicknesses does the product support customization?

A2: Fully supported. We provide customized services for diameters or side lengths ranging from 5mm to 500mm, and the thickness can also be processed according to the drawings. Both standard sized window panels and special specification optical components can be produced on demand.

Q3: What level of polishing accuracy can be achieved on the surface of quartz plates?

A3: We offer multiple polishing grades, with surface roughness (Ra) controllable at extremely low levels (such as Ra<0.1 μ m), ensuring compliance with the stringent requirements of high-precision laser systems, semiconductor lithography, and precision optical instruments.

Q4: Is this material resistant to high temperatures and corrosion?

A4: Yes. Quartz plates have an extremely low coefficient of thermal expansion and can withstand drastic temperature changes without breaking. At the same time, it has strong corrosion resistance to almost all acids and chemical solvents except hydrofluoric acid and hot phosphoric acid.

Key Features

- High purity material: SiO 2O content ≥ 99.99%, reducing impurity interference

- Excellent light transmittance: high light transmittance in the ultraviolet (UV) to infrared (IR) band, suitable for wide-spectrum applications

- High temperature resistance: can withstand high temperatures above 1000 ° C for a long time, and can reach 1200 ° C in the short term

- Low thermal expansion coefficient: 5.5 × 10/℃, strong thermal shock resistance

- Precision polishing: surface roughness up to Ra ≤ 5nm, optical level flatness

- A variety of thicknesses are available: 5mm to 500mm to meet different application requirements

Typical application

1. Optics and laser technology

- Laser window & optical lens: high temperature resistance, laser damage resistance, suitable for high power lasers

- UV optical system: high UV transmittance, used in lithography machines, UV curing equipment

Beam splitter and prism substrate: low absorption, ensuring high accuracy of the optical system

2. Semiconductor and photovoltaic industries

- Wafer processing carrier plate: high temperature resistance, corrosion resistance, suitable for semiconductor manufacturing

- Photovoltaic module protective layer: high light transmission, anti-aging, and improved solar cell efficiency

- Etching & CVD equipment observation window: plasma corrosion resistance to ensure process stability

3. Scientific research and laboratory equipment

- Vacuum chamber window: high airtightness, suitable for vacuum or high pressure environments

Spectrometer components: wide spectrum light transmission, reducing signal interference

- High temperature observation window: used for real-time monitoring of furnaces and reactors

4. Industry and special environments

- High temperature furnace observation port: heat shock resistance, long-term stable operation

- Chemical equipment protective window: acid and alkali corrosion resistance, safe and reliable

- Aerospace optics: lightweight, temperature-resistant

Customized service

We provide flexible customized production to meet the specific needs of different industries.

1. Size and shape customization

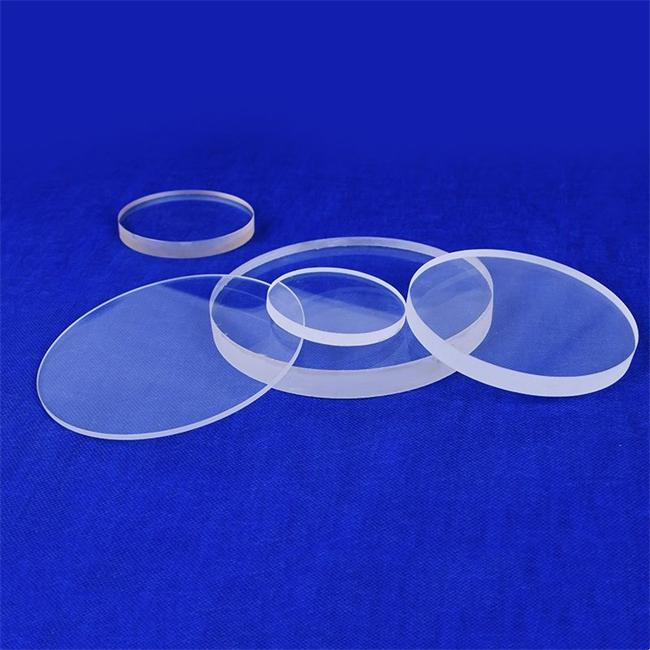

- Can provide round, square, special-shaped cutting

- Thickness range 5-500mm, maximum size up to 2000mm × 3000mm (consultation required)

2. Surface treatment options

- Single/double-sided polishing: optical grade (Ra ≤ 5nm) or standard grade (Ra ≤ 20nm)

- Coating enhancements: anti-reflection coatings (AR), reflective coatings, corrosion resistant coatings, etc

- Chamfering & drilling: precision machining to reduce edge stress

3. Special performance optimization

- Quartz with low OH content (suitable for UV laser applications)

- Radiation-resistant quartz (for use in the nuclear industry or in space environments)

- High uniformity quartz (reduced optical distortion)

4. Small batch & fast proofing

- Support sample trial production and shorten the research and development cycle

- Provide professional technical support to optimize the design plan

Why choose our quartz plate?

1. Solve the problem of high temperature environment: traditional glass is fragile or softened, while quartz plates can operate stably above 1000 ° C.

2. Enhance the performance of the optical system: high light transmission, low absorption, reduce energy loss, and improve equipment efficiency.

3. Corrosion resistance & long life: suitable for harsh environments such as acid, alkali, plasma, etc., reducing the replacement frequency.

4. Customized support: from material purity to size and shape, all-round to meet special needs.

Contact Us

For more technical parameters or to obtain samples, please contact our sales team. We will provide you with professional selection advice and customized solutions!

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
