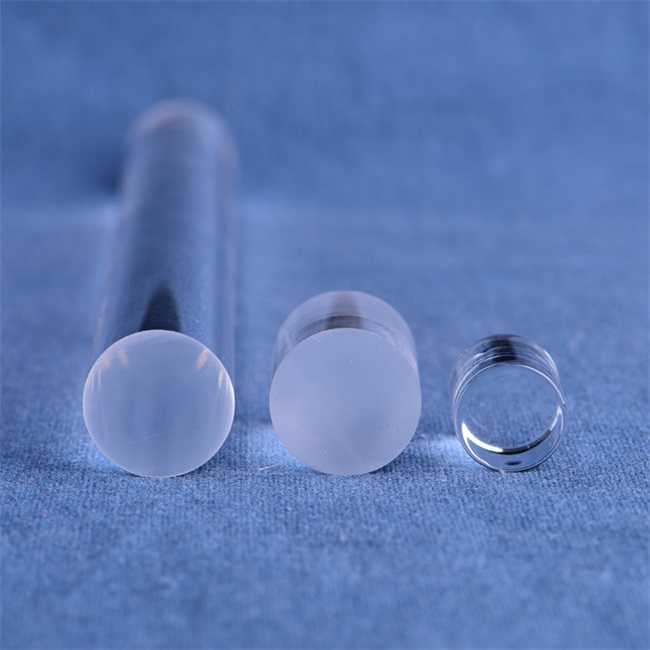

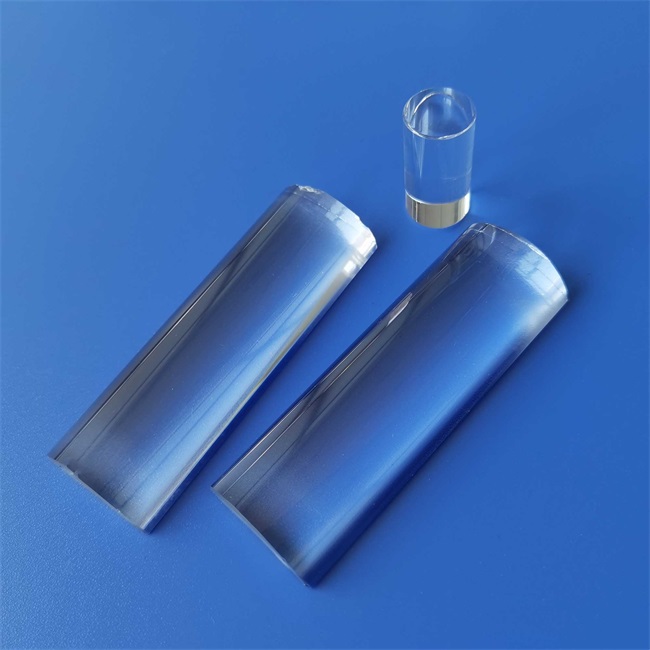

Thermal stability transparent quartz rod
Transparent quartz rod is a kind of high-purity silicon dioxide (SiO _ 2) as the main component of the precision material, because of its excellent thermal stability and optical properties, has been widely used in many fields.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Thermal stability transparent quartz rod
Transparent quartz rod is a kind of high-purity silicon dioxide (SiO _ 2) as the main component of the precision material, because of its excellent thermal stability and optical properties, has been widely used in many fields.
Thermally stable transparent quartz rods have the following core characteristics:
High purity: The silica content is usually as high as 99.99% or more, ensuring high transparency and low impurities in the material.
High light transmittance: It has excellent light transmittance in the range of ultraviolet to near-infrared light, with a transmittance of over 92%.
High temperature resistance: Can be used for a long time at 1100 ° C, with a short-term maximum operating temperature of 1450 ° C, suitable for high temperature environments.
Chemical stability: Except for hydrofluoric acid and hot phosphoric acid, it hardly reacts chemically with other acids, providing excellent corrosion resistance.
Low coefficient of thermal expansion: The coefficient of thermal expansion is extremely low, about 1/10 to 1/20 that of ordinary glass, and it has excellent thermal shock resistance.
High mechanical strength: Mohs hardness of 7, wear-resistant and not easy to break, suitable for precision instruments.
These characteristics make thermally stable transparent quartz rods ideal for applications in optics, semiconductors, laboratory instrumentation, and more.
Application field
Due to its excellent performance, thermally stable transparent quartz rods are widely used in the following fields:
Optical instrument:
Used as an optical component in spectrometers, lasers, lenses, prisms, etc., it can significantly enhance the performance of the instrument due to its high light transmittance and chemical stability.
Semiconductor Manufacturing:
In the semiconductor industry, it is used to fabricate lithographic masks, reaction chamber components, etc., to ensure the accuracy and consistency of semiconductor devices.
Laboratory equipment:
In the field of scientific research, quartz rods are often used as a substitute for experimental vessels such as test tubes and beakers, especially in high-temperature or corrosive experiments.
Optical fiber communication:
For the manufacture of optical fiber preforms, it is a key material for information transmission, especially in the construction of 5G networks.
Photovoltaic industry:
In the production of solar panels, quartz rods can be used in high-temperature stoves or as components of other high-temperature equipment, contributing to the production of green energy.
Electronics industry:
Due to its excellent electrical insulation and stability, it is often used to fabricate electronic component bases, insulators, and other components.
Custom description
Thermal stability transparent quartz rods can be flexibly customized according to user requests to meet the requirements of different application scenarios:
Specification customization:
Available in a wide range of diameters from 1mm to 60mm, and lengths can be customized according to requirements.
Support square, oval, polygon and other special-shaped processing.
Processing technology:
Laser drilling: It can achieve high-precision machining of micron-sized holes, with uniform aperture and no burrs.
Surface treatment: support polishing, backing, threading and other processes to meet optical or mechanical requirements.
Coating treatment: After double-sided anti-reflection coating (AR), the transmittance can be increased to 98%.
Application scenario customization:
According to the specific application (e.g. optical instruments, semiconductor equipment, photovoltaic modules, etc.), adjust the material characteristics and processing accuracy.
We provide high-purity quartz materials (e.g. JGS1, JGS2, JGS3) to meet different spectral requirements.
Technical support:
We provide professional design advice and processing services to ensure that our products meet the specific needs of our users.
Provide sample testing and batch capacity.
With its high purity, high light transmittance, high temperature resistance, chemical stability, low thermal expansion coefficient and high mechanical strength, transparent quartz rods perform well in the fields of optical instrumentation, semiconductor manufacturing, laboratory research, optical fiber communication, photovoltaic industry and electronics industry. Its flexible customization capabilities (including specifications, processing techniques and application scenarios) further expand its application range.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
