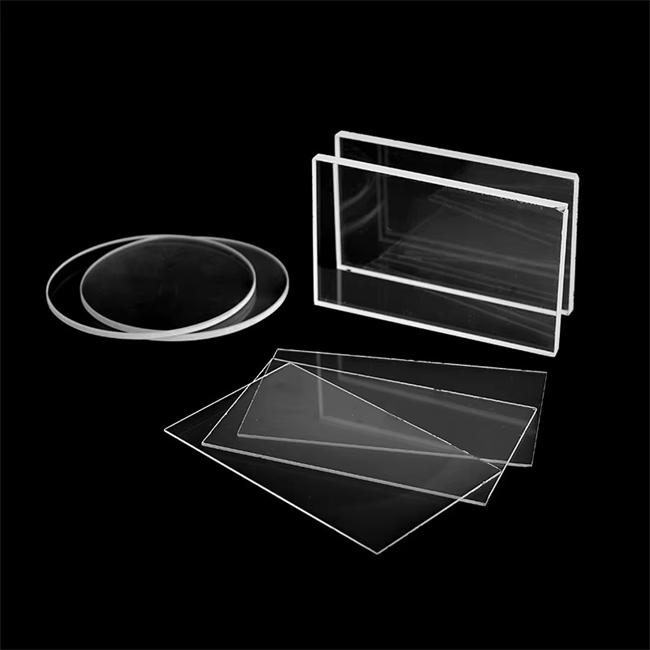

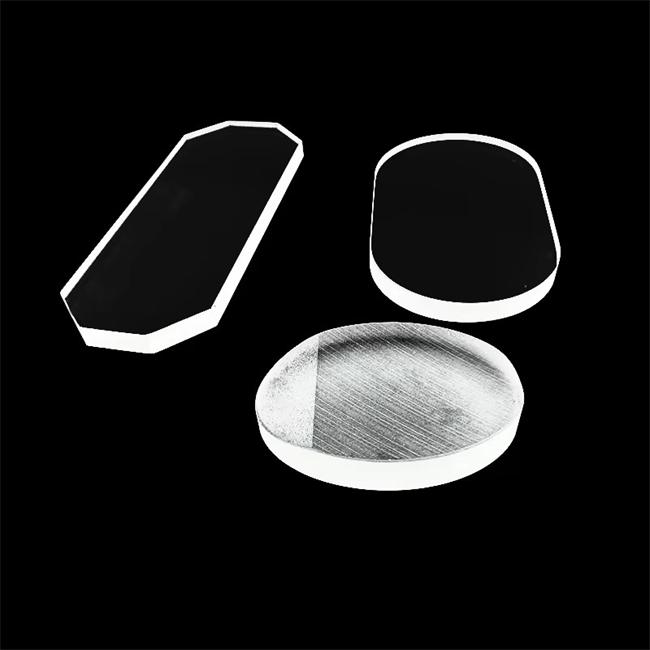

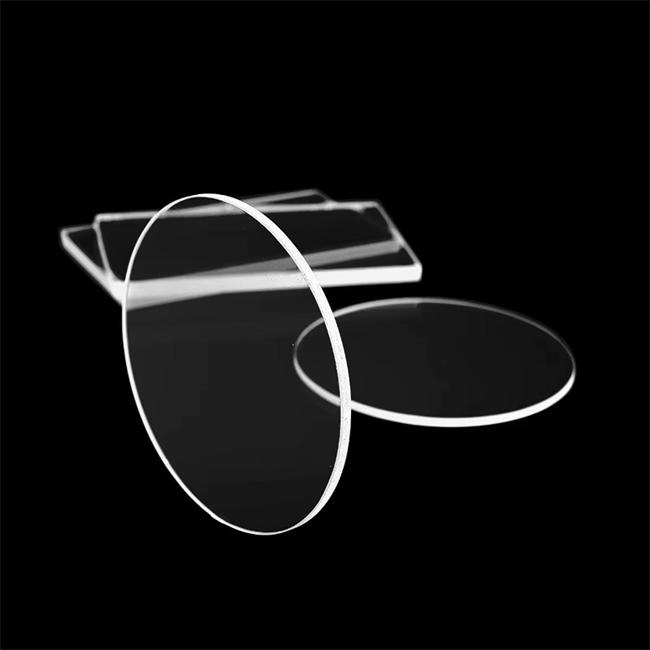

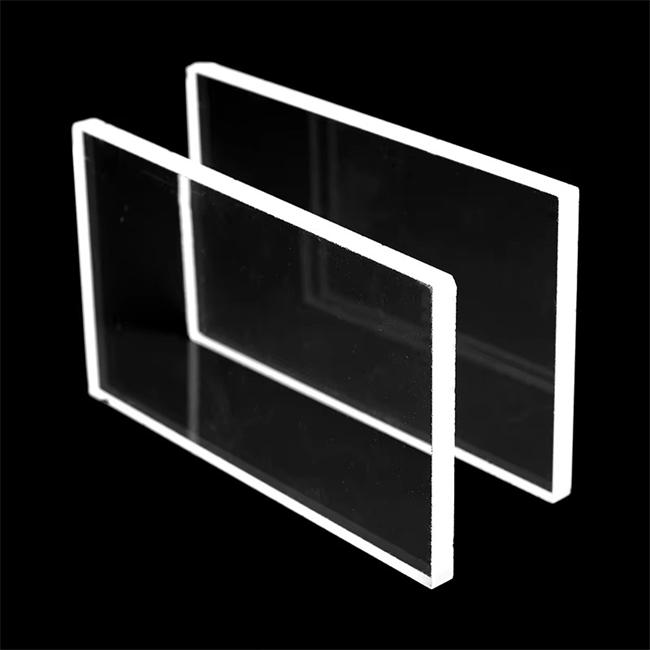

The transparent quartz sight glass observation window is a high-performance optical window designed specifically for extreme industrial environments. It is made of high-purity quartz glass and has excellent high temperature resistance, high pressure resistance, and full spectrum high transmittance characteristics. As a "transparent eye" for vacuum systems, high-temperature furnaces, and precision instruments, it can ensure distortion free and high-definition internal observation views under high temperature or ultra-high vacuum conditions above 1000 ℃. It is a core component for ensuring safe and precise operation of scientific research and industrial production.

Frequently Asked Questions (FAQ)

Q1: What is the difference between a transparent quartz sight glass observation window and a regular glass sight glass?

A: Ordinary glass is prone to softening or light transmittance attenuation in high temperature or strong ultraviolet environments. Our transparent quartz mirror is made of high-purity silicon dioxide, with a softening point of up to 1730 ℃, and can be used stably for a long time at 1100 ℃. At the same time, it has excellent transmission performance in the ultraviolet, visible, and infrared bands, and has an extremely low coefficient of thermal expansion, which can withstand drastic temperature changes without breaking.

Q2: Can your company provide customized services for non-standard sizes and special interfaces?

A: Absolutely possible. We have mature deep processing capabilities for quartz products, not only providing standard flange specifications such as CF25, CF35, CF50, CF63, CF80 for windows, but also supporting customized production of irregular cutting, drilling, polishing, and special sealing structures based on customer provided drawings, samples, or special working conditions.

Q3: How to ensure the optical performance of quartz windows?

A: Our quartz mirror has undergone strict precision polishing treatment, with a smooth and flawless surface and extremely low scattering rate. We provide a variety of optical grade quartz materials from ultraviolet to infrared to meet different spectral requirements, ensuring no absorption band in the 200-250nm wavelength range and significantly better infrared transmittance than ordinary silicate glass, meeting high-precision optical detection requirements.

User needs and application value

For industrial and scientific research users, the transparent quartz sight glass observation window perfectly solves the core problem of "unclear visibility, inability to withstand, and inaccurate measurement" under extreme working conditions. It not only provides a safe and reliable physical barrier for high temperature, high pressure, strong corrosion, and ultra-high vacuum environments, but also ensures real-time monitoring and data feedback in precision processes such as thin film deposition, ion beam processing, and vacuum heat treatment through excellent optical performance, greatly improving production yield and accuracy of scientific research data.

Advantages and application areas

1. Ultimate physical and chemical stability

Transparent quartz mirror has excellent high temperature resistance, with a short-term use temperature of up to 1450 ℃, and strong chemical corrosion resistance. In industries such as petroleum, chemical, power plants, metallurgy, and steel, boilers, pressure vessels, and pipeline accessories can withstand long-term corrosion from high temperature, high pressure, and corrosive media, ensuring the safe operation of equipment.

2. Excellent full spectrum optical performance

Thanks to high-purity materials and exquisite polishing techniques, quartz windows exhibit high transmittance in the ultraviolet, visible, and infrared regions. In semiconductor manufacturing, optoelectronic enterprises, and university laboratories, it is an indispensable optical window for thin film deposition equipment and ion beam processing instruments, ensuring stable light radiation and no stray light interference.

3. Ultra high vacuum sealing adaptability

For ultra-high vacuum environments, our mirrors can be perfectly adapted to the CF standard interface (Conflat Flange) and used with metal gaskets, with an air tightness of up to 10 ^ -9 mbar · L/s. Compact structure and excellent pressure bearing capacity make it an ideal choice for vacuum chambers and vacuum heat treatment equipment.

4. Flexible specification customization services

We are well aware of the interface differences between different devices, so we provide comprehensive customized services. Whether it is conventional sized quartz plates, quartz tubes, or complex optical windows and prisms, they can be customized according to needs. The flange thickness is moderate, and the edges are chamfered for easy installation without hurting hands, greatly improving the user's assembly experience.

Solving application challenges and customer cases

In practical applications, many precision manufacturing enterprises often face challenges such as high temperature observation window explosion, vacuum chamber leakage, or optical detection distortion. The transparent quartz sight glass observation window effectively overcomes these technical bottlenecks with its low thermal expansion coefficient and ultra-high vacuum sealing technology.

Customer application case (anonymous):

A large fine chemical enterprise - high temperature and high pressure reactor window

Challenge: A key reaction vessel of the enterprise, with a strong acidic mixture as the internal medium, a working pressure of 5MPa, and temperature fluctuations between 300-400 ℃. Due to insufficient corrosion resistance and thermal shock resistance of the original window material, frequent leakage and explosion occur, which not only leads to unplanned shutdowns but also poses a major safety hazard.

Solution: We have jointly designed a high-pressure resistant double-layer composite structure quartz sight glass with the customer, and provided high-precision metal flange sealing surface processing services to ensure installation accuracy.

Effect: Since the replacement of our product, the reactor window has been running stably for more than 2 years without any failure incidents. The maintenance team highly praised the thorough elimination of safety hazards and the long-term continuous operation of the production line.

Why choose us

As a professional manufacturer of quartz products, we integrate research and development, production, and sales, with a sound quality management system and rich experience in deep processing. We not only have short production cycles and timely delivery, but also provide one-stop services from material selection, drawing design to finished product processing. All conventional varieties are available in stock and support sample testing, providing reliable quartz window solutions to global customers at highly competitive prices and excellent quality.

If you are looking for high stability and high transmittance transparent quartz sight glass observation windows, or have any non-standard customization needs, please feel free to contact us at any time for exclusive quotations and technical solutions. We will wholeheartedly provide you with high-quality quartz product procurement services!
