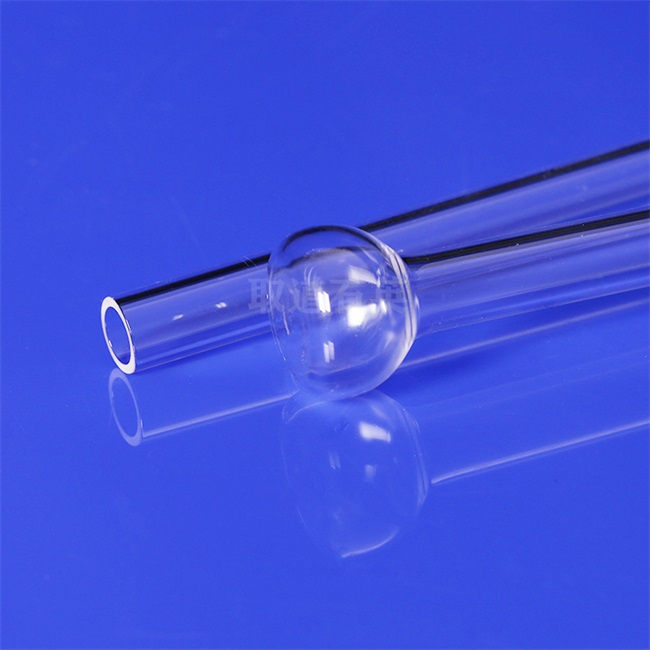

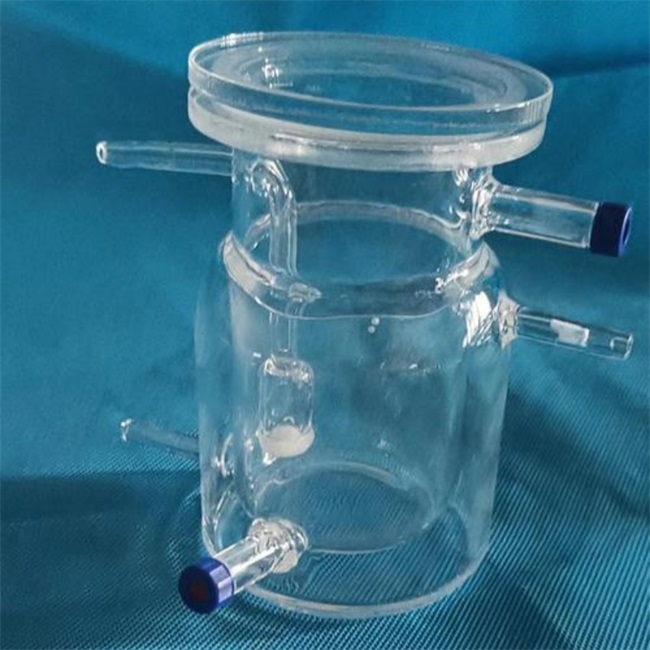

Transparent quartz glass instrument
Transparent quartz glass is made by high-temperature melting natural colorless and transparent crystals.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Transparent quartz glass instrument
Transparent quartz glass is made by high-temperature melting natural colorless and transparent crystals. Its chemical composition is silicon dioxide, with high purity and a silicon dioxide content of over 99.95%.
Main features:
-Thermal performance: The coefficient of linear expansion is very small (5.5 × 10 ⁻⁷), only one-fifth of that of extra hard glass. It is resistant to rapid cooling and heating, with a softening temperature of 1650 ℃. It can be used at 1100 ℃ and can be used up to 1400 ℃ in a short time.
-Chemical properties: The acid resistance is very good. Except for hydrofluoric acid and phosphoric acid, any concentration of organic and inorganic acids rarely interact with quartz glass, even at high temperatures. In addition, it also has good radiation resistance.
-Optical performance: It has excellent transparency and can transmit ultraviolet light, making it one of the best UV transparent materials. It can also transmit visible light and near-infrared spectra.
-Mechanical properties: The compressive strength of transparent quartz glass is generally 490-1960 MPa, the tensile strength is 50-70 MPa, the bending strength is 66-108 MPa, the torsional strength is about 30 MPa, and the Mohs hardness is between 5.5-6.5.
-Electrical performance: It is an excellent electrical insulation material with a resistivity of up to 1.8 × 10 ⊃1;⁹Ω∙ cm at room temperature, high breakdown voltage, and low dielectric loss.
Application
Transparent quartz glass instruments have a wide range of applications in various fields due to their excellent performance:
-Laboratory field: used for manufacturing various laboratory glassware, such as test tubes, crucibles, beakers, evaporating dishes, quartz boats, quartz tubes, quartz distilled water dispensers, etc. These instruments are commonly used for laboratory analysis, such as evaporating concentrated acid, producing high-purity water, and decomposing samples by combustion method. In addition, in environmental analysis, quartz containers are often used to prevent trace ions from entering the solution in glass.
-In the field of optics, due to its excellent optical performance, it is widely used in optical equipment such as lenses, quartz reactors in photochemical reactors, double-layer cold traps, lamp sources, etc. It can transmit both far ultraviolet spectra and visible and near-infrared spectra, making it a good material for optical systems with high stability that work in various harsh environments.
-Semiconductor field: Quartz glass has high dielectric strength and can maintain high resistivity even at high temperatures, making it suitable for electronic device components and semiconductors.
-Medical field: It can be used to manufacture certain components in medical equipment, such as quartz glass test tubes that can be used for medical testing.
-Other fields: also used in industries such as metal manufacturing.
Customized service
Due to the special performance and wide application of transparent quartz glass instruments, many manufacturers provide customized services to meet the needs of different customers:
-Customization content: Quartz glass instruments of different shapes, sizes, and specifications can be customized according to the specific needs of customers. For example, quartz reaction vessels, quartz boats, quartz tubes, etc. can be customized.
-Customization process: Customers need to provide detailed drawings and requirements, and the manufacturer will design and produce according to these requirements. Some manufacturers also provide professional technical consultation to help customers choose suitable materials and design solutions.
-Customization advantage: Customized services can meet the special requirements for instruments in some special experiments or production processes, improving the efficiency and accuracy of experiments or production.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
