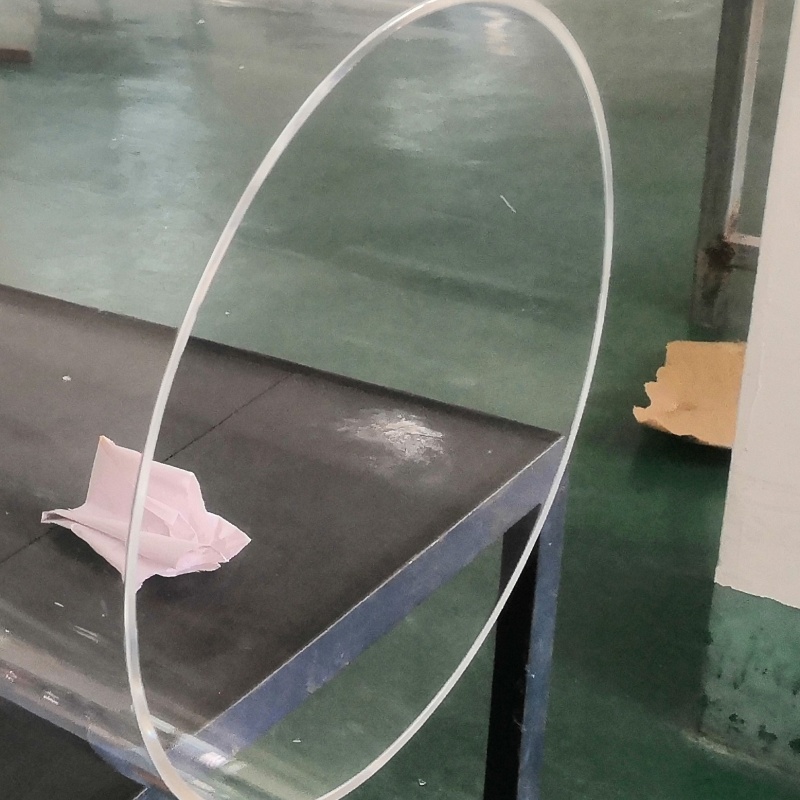

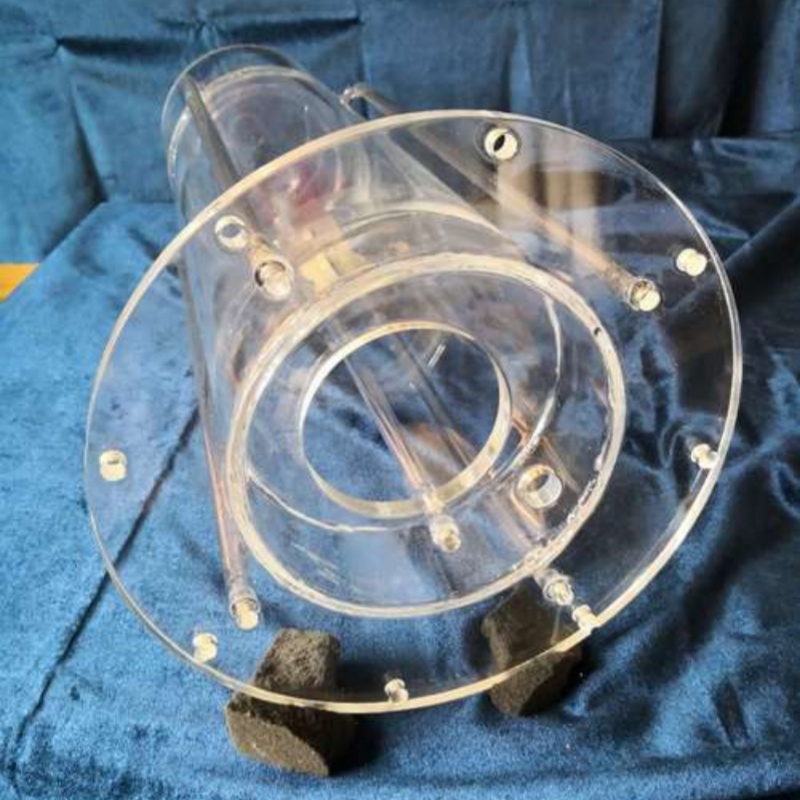

Waste gas incineration device quartz tube
The quartz tube of the waste gas incineration device is a key component used in waste gas treatment equipment, usually made of high-purity quartz glass.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Waste gas incineration device quartz tube
The quartz tube of the waste gas incineration device is a key component used in waste gas treatment equipment, usually made of high-purity quartz glass. Quartz tubes are widely used in high-temperature and corrosive environments, especially in waste gas incineration devices, due to their unique physical and chemical properties.
Main features:
-High temperature resistance: The softening point temperature of quartz glass is about 1730 ℃, which can be used for a long time at 1150 ℃, and the highest temperature in a short time can reach 1450 ℃.
-Corrosion resistance: Except for hydrofluoric acid, quartz glass hardly reacts chemically with other acidic substances and has excellent chemical stability.
-Good thermal stability: Quartz tubes have an extremely small coefficient of thermal expansion and can withstand intense temperature changes.
-Good transparency: It has good transparency throughout the entire spectral range from ultraviolet to infrared.
-Good electrical insulation performance: It has good electrical insulation performance even at high temperatures.
Application
The quartz tube of the waste gas incineration device has various applications in the field of waste gas treatment, mainly including:
-Direct fired incinerator (TO): used for high-temperature incineration of waste gas containing organic compounds, with temperatures typically ranging from 650 ℃ to 1000 ℃. Quartz tubes can be used to protect key components inside the combustion chamber and prevent high-temperature corrosion.
-Catalytic oxidation furnace (CO): During the catalytic oxidation process, quartz tubes can be used to protect the catalyst bed and prevent damage to the equipment from high temperatures and corrosive gases.
-Regenerative Thermal Oxidizer (RTO) and Regenerative Catalytic Oxidizer (RCO): Quartz tubes can be used for transporting and preheating high-temperature gases, ensuring that the exhaust gas reaches the appropriate temperature before entering the combustion chamber.
-Heat exchanger: Quartz tubes can be used for the heat exchange process of high-temperature gases, helping to recover waste heat and improve energy utilization efficiency.
Customized description
The quartz tube of the waste gas incineration device can be customized according to the specific needs of users. The following are some common customization options:
-Size and shape:
-Inner and outer diameters: Quartz tubes with different inner and outer diameters can be customized according to the size requirements of the exhaust gas treatment equipment.
-Length: Quartz tubes of different lengths can be customized according to the process flow of the equipment.
-Shape: In addition to standard cylindrical tubes, special shaped quartz tubes can also be customized, such as conical tubes or multi-stage variable diameter tubes.
-High temperature resistance and corrosion resistance:
-High temperature performance optimization: Quartz tubes can be used for a long time at 1150 ℃, with a maximum temperature of 1450 ℃ in a short period of time, making them suitable for high-temperature incineration environments.
-Corrosion resistance: Quartz tubes have excellent corrosion resistance and can resist the erosion of most chemical substances.
-Purity and impurity control:
-High purity quartz glass: Provides high-purity quartz glass tubes with extremely low impurity content, ensuring stability in high temperature and corrosive environments.
-Special requirements:
-Customized packaging: Provide customized packaging and transportation solutions according to user needs to ensure the safety of quartz tubes during transportation.
By customizing the quartz tube of the waste gas incineration device, it can better meet the needs of different waste gas treatment processes, improve the stability and service life of the equipment, and ensure the safety and efficiency of the waste gas treatment process.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
