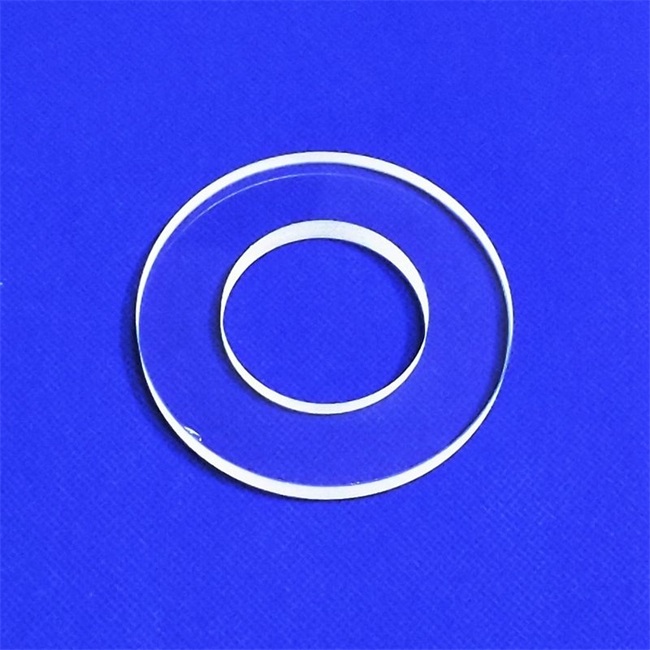

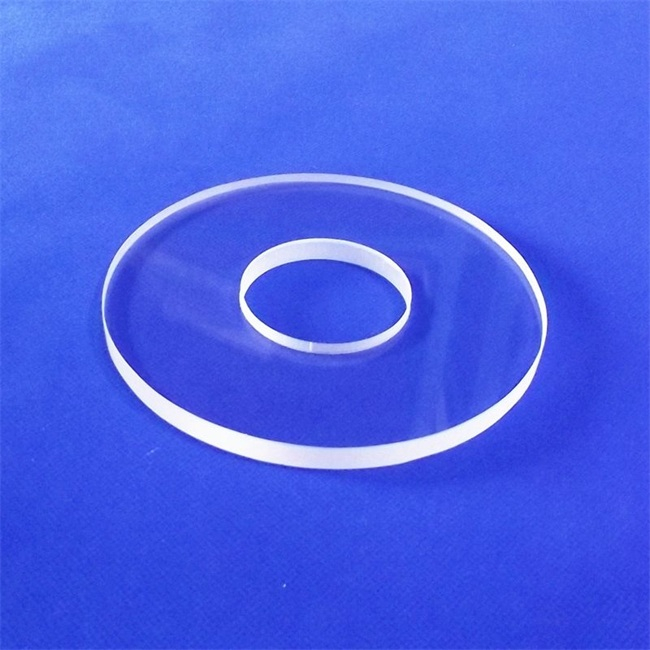

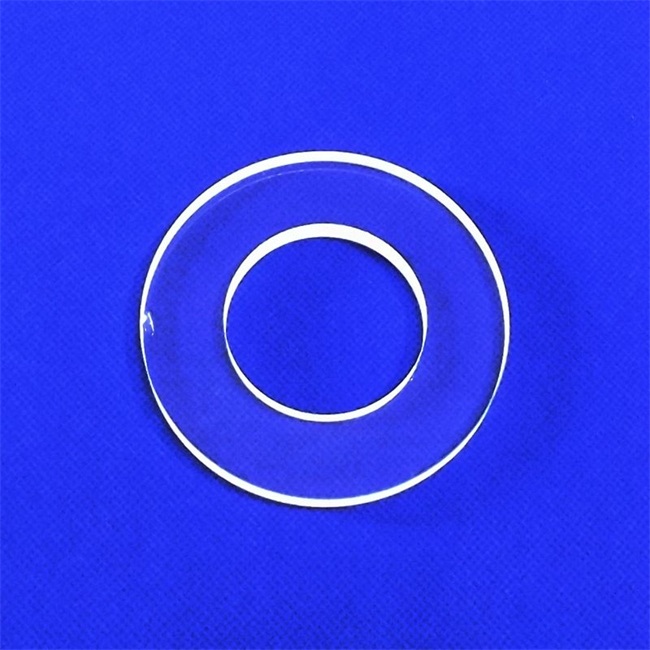

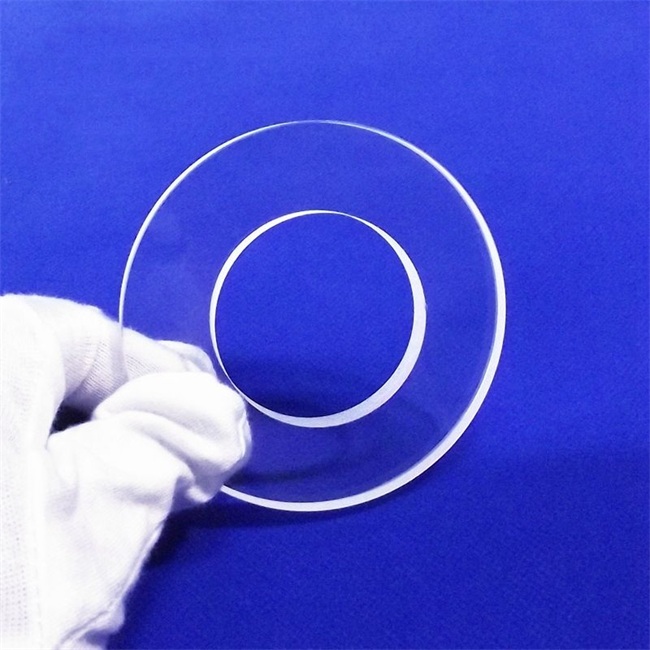

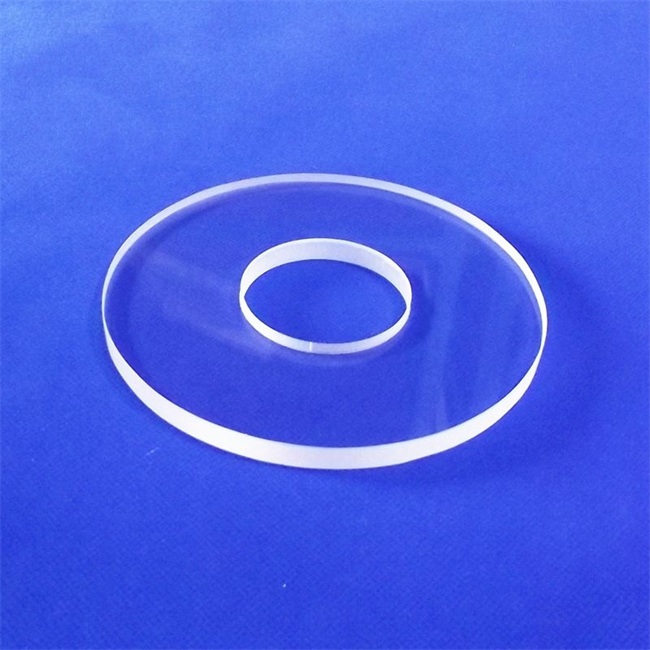

Wear-resistant transparent quartz ring
Wear resistant transparent quartz ring is a ring-shaped high-performance glass component made from high-purity natural quartz sand through high-temperature melting and precision processing technology.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Wear resistant transparent quartz ring
Wear resistant transparent quartz ring is a ring-shaped high-performance glass component made from high-purity natural quartz sand through high-temperature melting and precision processing technology. It is not an ordinary glass ring, but an engineering grade product that combines the inherent excellent characteristics of quartz material and special surface strengthening technology, aiming to solve the problem of material failure under harsh working conditions.
Its core value lies in achieving high transparency, excellent wear resistance, outstanding thermal stability, and chemical purity simultaneously. It is a key component that can maintain long-term stability and reliability even in extreme environments.
Core features:
High transparency: With a transmittance of over 90% in the ultraviolet to infrared wavelength range (200-3500nm), it is suitable for full spectrum optical systems.
Excellent wear resistance: The surface hardness reaches Mohs 7, and the scratch resistance is significantly improved through ion beam enhancement or coating processes, extending the service life.
High temperature resistance and chemical stability: Can work in an environment of 1100 ℃ for a long time, resistant to acid and alkali corrosion, suitable for extreme industrial environments.
Low thermal expansion coefficient: The thermal expansion coefficient is only 5.5 × 10 ⁻⁷/℃, ensuring dimensional stability at high temperatures and reducing deformation errors.
Product advantages:
Solve the problems of traditional glass rings being prone to wear and rapid attenuation of light transmittance, and reduce equipment maintenance frequency.
Replace some sapphire components to achieve a balance between cost and performance.
Support complex structural design to meet the stringent requirements of precision instruments for optical paths.
Core application areas
Wear resistant transparent quartz rings have become the preferred choice for key components in multiple industries due to their comprehensive performance
1. Semiconductor manufacturing
Application scenarios: lithography exposure system, plasma etching equipment, wafer inspection optical module.
solve the problem:
Resist plasma bombardment and avoid optical path deviation caused by surface damage to components.
Maintain light transmittance in high temperature environments to ensure chip manufacturing yield.
2. Laser technology and optical instruments
Application scenarios: high-power laser resonators, spectrometers, astronomical telescopes.
solve the problem:
Tolerate the high thermal load generated by laser focusing and prevent thermal lens effect.
Reduce light scattering caused by component wear and improve signal acquisition accuracy.
3. Chemical and medical equipment
Application scenarios: Reactor observation window, endoscope optical lens, UV curing system.
solve the problem:
Resistant to strong acid and alkali corrosion, ensuring chemical production safety monitoring.
Medical grade translucency supports high-definition imaging for minimally invasive surgery.
4. Aerospace
Application scenarios: Satellite attitude control system, aircraft sensor window.
solve the problem:
Resist space radiation and micro meteorite impact, and maintain long-term optical stability.
Lightweight design reduces the payload of spacecraft.
Customized service
To meet the personalized needs of different customers, we provide customized solutions throughout the entire process:
1. Customization of size and shape
Support range: outer diameter of 5mm-500mm, thickness of 0.5mm-50mm, capable of processing irregular rings (such as stepped rings and tapered rings).
Accuracy guarantee: Diameter tolerance ± 0.01mm, flatness ≤ λ/10 (632.8nm).
2. Surface treatment and coating
Optional processes:
Ultra precision polishing: Surface roughness Ra<0.5nm, eliminating scattering sources.
Anti reflective film (AR): Single point or broadband coating to increase the transmittance of specific wavelength bands to 99.8%.
Wear resistant hard film: diamond-like carbon (DLC) coating, with a hardness of up to 20GPa and a 10 fold increase in scratch resistance.
3. Material and performance optimization
Doping modification: By doping elements such as titanium and germanium, the refractive index is adjusted to match special optical designs.
Non standard testing: Provide specialized testing reports such as high temperature weather resistance and laser damage threshold.
Wear resistant transparent quartz rings are widely used in high-end fields such as semiconductors, lasers, and healthcare, with "high transparency, strong wear resistance, and extreme environmental resistance" as their core competitiveness. Through customized services, we help customers overcome technological bottlenecks and achieve dual improvements in equipment performance and reliability.
If you need to learn more information or obtain customized quotes, please feel free to contact us at any time!
Luverre Quartz manufactures and sells a wide range of high quality fused silica glass, including fused silica tubes, fused silica plates, fused silica rods, fused silica windows, fused silica crucibles, fused silica boats, fused silica flanges, fused silica beakers, fused silica glass instruments, and more. We can meet all kinds of customized requirements for fused silica glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused silica items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused silica lumps to fused silica sand and then fused silica products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused silica products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused silica plates, tubes and high size precision fused silica items.
