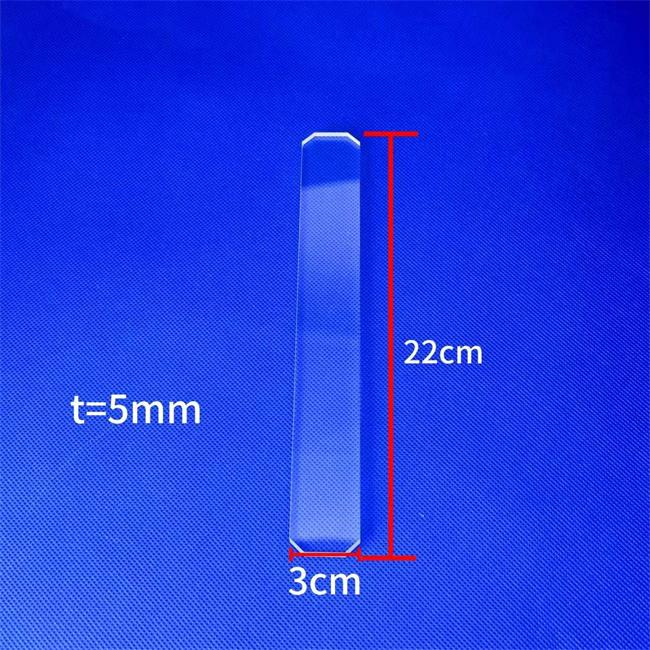

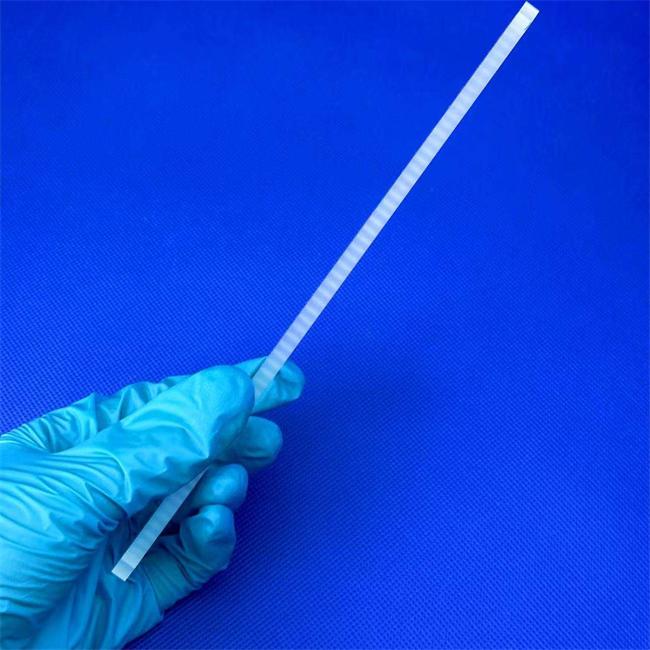

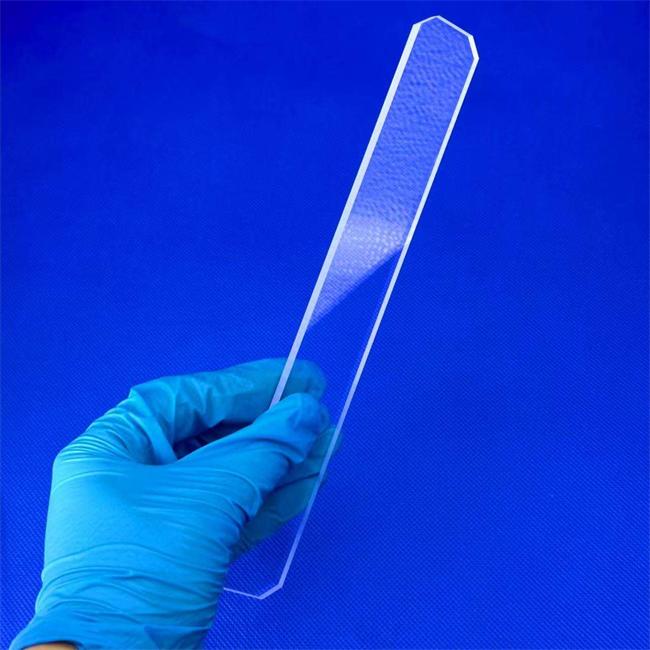

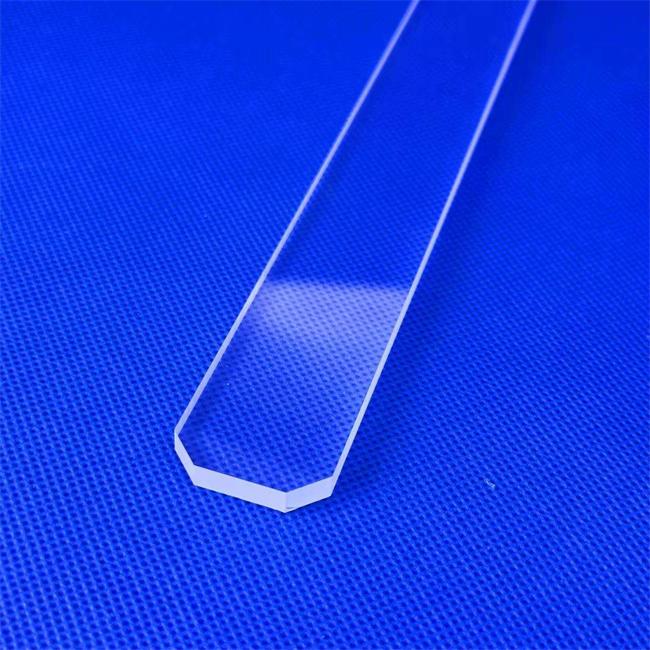

22-3cm quartz light guide strip
Quartz light guide strip with a length of 22cm and a width of 3cm (usually 3cm in diameter/thickness) is used as a high-purity quartz glass product.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
22-3cm quartz light guide strip
Quartz light guide strip with a length of 22cm and a width of 3cm (usually 3cm in diameter/thickness) is used as a high-purity quartz glass product. This product utilizes the excellent optical properties of quartz to efficiently convert point light sources into line light sources, and is widely used in industrial UV curing, medical equipment lighting, solar simulation, and high-end decorative lighting scenarios. We support size customization and provide a full process solution from raw materials to precision machining.
Frequently Asked Questions about Quartz Light Guide Strips (FAQ)
Q: Ordinary glass or acrylic light guide strips are prone to yellowing, aging, and a rapid decrease in light transmittance after a period of use. Can this product solve this problem?
Answer: Absolutely possible. Quartz glass has extremely high thermal and chemical stability, with a temperature resistance of over 1000 ℃ and resistance to ultraviolet radiation. Compared to acrylic (PMMA) or ordinary glass, our quartz light guide strip can maintain a light transmittance of over 90% under long-term UV irradiation or high temperature environments, without aging or yellowing, significantly extending the service life of the equipment.
Q: What I need is a light guide rod of a specific length or with angle cutting. Can you provide customized processing?
Answer: No problem. We provide "customized according to pictures" service. In addition to the standard length of 22-3cm, we support customization of length, diameter, slotting, end face grinding (spherical/inclined), and polishing accuracy. We can meet both small-scale sampling for precision instruments and large-scale matching for industrial equipment.
Q: What is the uniformity of light in the actual use of this size of light guide strip?
Answer: Our light guide strips are finely polished or frosted on the side (according to your needs) to ensure even scattering of light during the transmission process. Especially for a length of 22cm, we can effectively avoid the problem of "near bright, far dark" by optimizing the processing technology of the incoming light end face, ensuring the brightness uniformity of the entire light strip.
Excellent optical performance
High transmittance: Made of imported raw materials, it has excellent UV and visible light transmission performance (especially in the 185nm-2500nm wavelength range).
Uniform light guide: Whether used as a side light fiber or a straight light rod, it can achieve low loss transmission.
Strict physical characteristics
Temperature resistant and explosion-proof: The softening point temperature is about 1730 ℃, and it can be used in environments with severe temperature differences without bursting.
Corrosion resistance: Except for hydrofluoric acid, it hardly reacts with other acidic substances and is suitable for use in chemical plants or laboratory environments.
Flexible customized services
Size customization: The length is not limited to 22cm, and can be made from 5mm to 2000mm; the diameter/thickness is not limited to 3cm, and can be made from 1mm to 50mm.
Appearance treatment: Transparent polished bright surface (for linear transmission) or frosted/rolled surface (for uniform scattered luminescence) can be selected according to the purpose.
Actual problems solved
Problem: UV curing equipment has high heat from the light source, and plastic light guides are prone to deformation.
Solution: Replace with quartz light guide strips, which are heat-resistant and deformation resistant, ensuring effective focusing of UV light.
Problem: High end analytical instruments require pure light source conduction without clutter interference.
Solution: High purity quartz material eliminates fluorescence effect to ensure the accuracy of spectral analysis.
Customer Application Case (Anonymous)
Case 1: A German medical equipment manufacturer
Requirement: The customer requires a quartz light guide rod with a length of 22cm and a width of 3cm for the optical transmission of the new dental light curing lamp. The light guide rod must be able to withstand high-pressure steam sterilization (high temperature and high pressure), and have extremely high requirements for the transmittance of specific wavelengths of blue light.
Solution: We provide our customers with high-purity far ultraviolet quartz material (JGS1) and perform precision polishing on both ends, coating with anti reflective film to reduce light loss.
Final effect: In actual testing, the light attenuation rate of the light guide strip is less than 3%, and there is no change in optical performance after 50 high-temperature sterilization cycles. The customer has included it in the standard accessory list and implemented bulk procurement.
Case 2: A solar simulator manufacturer in South Korea
Requirement: The customer needs to customize a batch of special sized rectangular quartz light guide strips to evenly guide the light emitted by the xenon lamp onto the solar cell test panel.
Solution: For the specific installation size of the customer's "22cm long", we have carried out fine sanding treatment on the side of the light guide strip to ensure the uniformity of the light output.
Final effect: After installation, the unevenness of lighting on the customer's test panel was reduced from ± 15% to ± 5%, significantly improving the reliability of test data.
If you are looking for quartz light guide strips with a length of 22-3cm, or have any customized requirements for non-standard sizes or special purposes, please feel free to contact us by email or online message. Please provide your drawings or specific parameters, and we will provide you with the best solution and quotation within 24 hours!
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
