Spiral liquid separation quartz tube

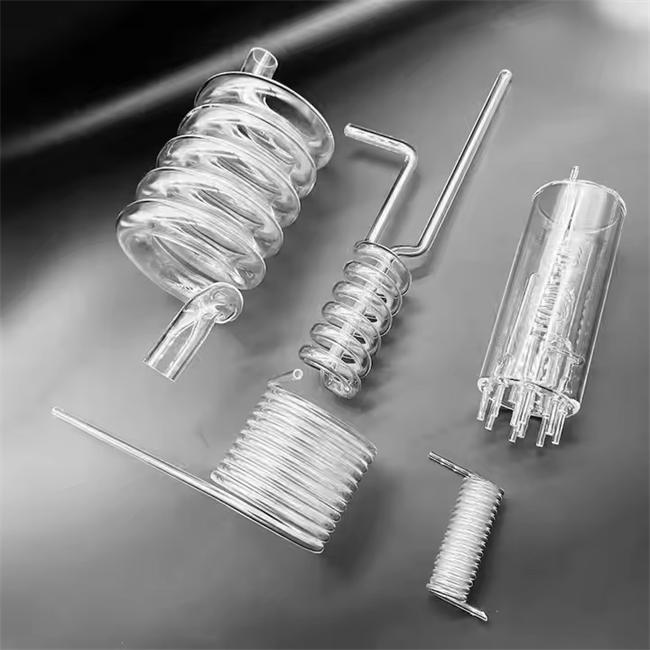

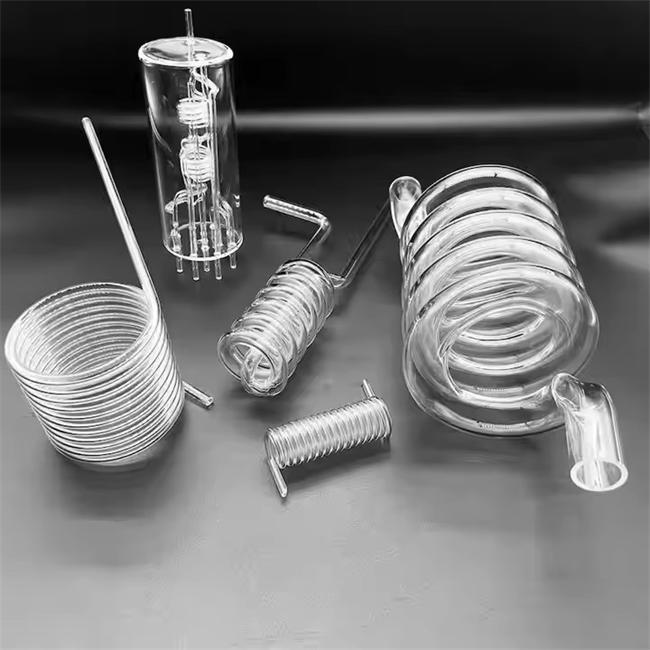

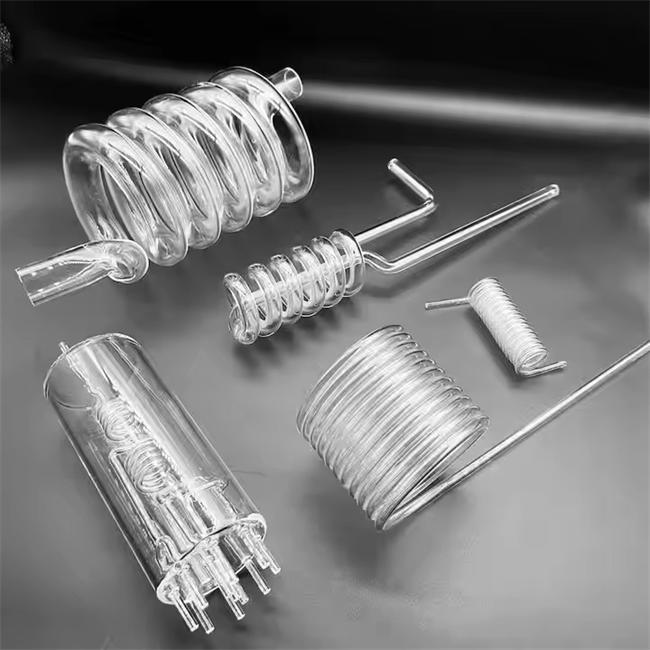

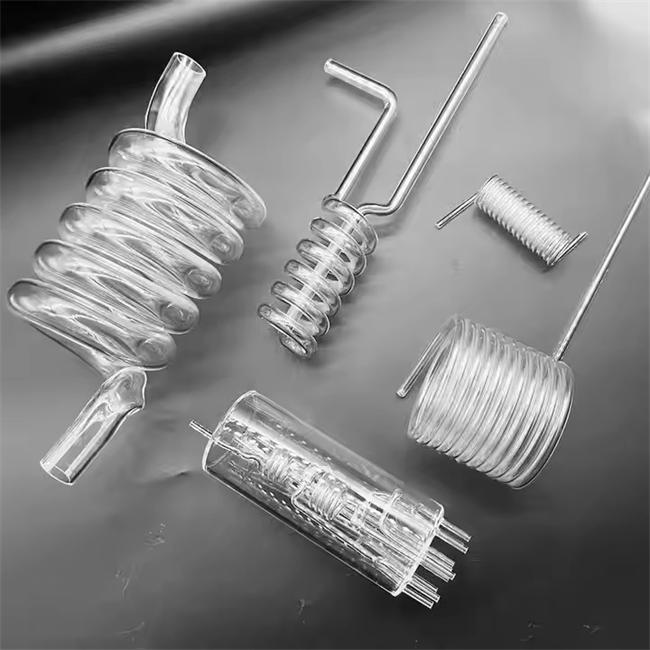

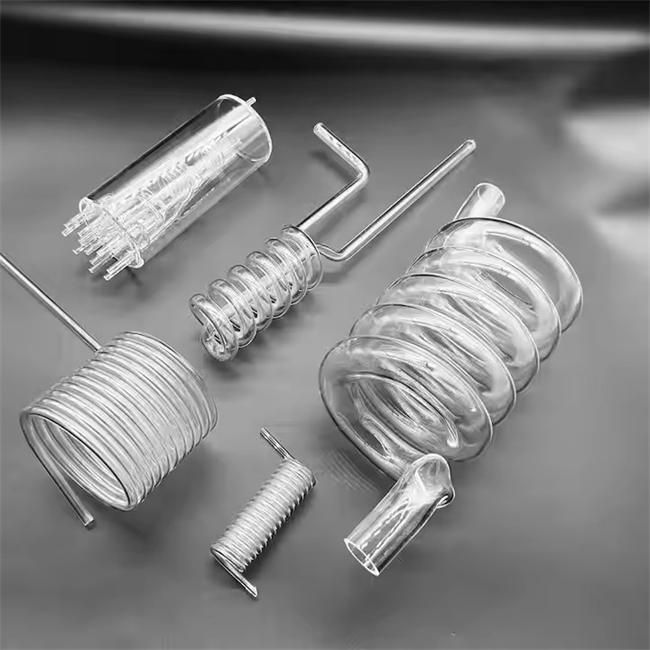

Spiral liquid separation quartz tube is a key component specially designed for high-precision fluid processing.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Spiral liquid separation quartz tube
Spiral liquid separation quartz tube is a key component specially designed for high-precision fluid processing. With the excellent chemical corrosion resistance, high temperature resistance and excellent optical transmittance of high-purity fused silica, the unique spiral structure design can significantly increase the residence time and path of fluid in the tube, so as to achieve efficient separation, mixing or reaction of gas, liquid and liquid. This product is widely used in semiconductor wet process technology, high-end chemical analysis, and precision laboratory equipment, and is an ideal choice to ensure process purity and efficiency.
Why do you need a spiral liquid separation quartz tube?
Q: Can this product solve the problem of difficult removal of bubbles in my production process, which affects product yield?
A: Yes, it is. The centrifugal force generated by the spiral structure can effectively separate and aggregate tiny bubbles from the liquid, significantly reducing the gas content in the fluid and improving the density and consistency of the final product.
Q: When dealing with strong acids, alkalis, or high-temperature solvents, ordinary glass tubes are prone to corrosion or breakage. How does quartz tube perform?
A: Our quartz tube is made of 99.99% high-purity fused silica. Except hydrofluoric acid and hot phosphoric acid, it can withstand almost all strong acid and alkali corrosion, and can work stably at 1100 ℃ -1200 ℃ for a long time, completely solving the corrosion resistance and heat resistance pain points.
Q: Our equipment space is limited and requires special sizes or shapes. Can you provide customized services?
A: Absolutely possible. We specialize in foreign trade customization services and can provide comprehensive size customization from pipe diameter, number of spiral turns, total length to interface form (such as expansion, contraction, flange connection) based on your equipment drawings, ensuring perfect compatibility with your system.
Q: How to ensure that the fluid is not contaminated again during the separation process?
A: High purity quartz material itself has an extremely low metal impurity precipitation rate (<10ppm), combined with precision polishing technology on the inner wall, ensuring smooth and clean fluid contact surfaces, avoiding particle residue, and meeting the requirements of semiconductor grade ultra pure fluid transmission.
Core advantages and technical specifications of the product
Excellent material performance
Ultra high purity: using high-quality natural crystals or high-purity synthetic quartz sand, with SiO ₂ content ≥ 99.99%, and total metal impurities controlled at ppm level.
Temperature resistance limit: The softening point can reach up to 1730 ℃, the long-term use temperature can reach 1100 ℃ -1200 ℃, and the instantaneous temperature resistance can reach 1450 ℃. It has excellent thermal shock resistance and does not explode during rapid cooling and heating.
Chemical inertness: It exhibits extremely high stability for the vast majority of chemical reagents and is an ideal container for the transport and reaction of highly corrosive media.
Optical characteristics: The transmittance in the ultraviolet to infrared band (180nm-2500nm) exceeds 90%, making it suitable for separation processes that require online optical detection.
Unique spiral structure design
Efficient Separation: Utilizing the centrifugal settling principle generated by spiral flow channels, it accelerates the stratification and separation of different density media (such as gas-liquid, liquid-liquid), with an efficiency increase of over 30% compared to straight pipes.
Enhanced mixing/reaction: If used in mixed scenarios, the spiral structure can induce secondary flow in the fluid, enhance turbulence effects, and make the reaction more thorough and uniform.
Compact layout: Within a limited installation space, the effective pipe length is significantly increased through spiral winding, extending the fluid residence time and optimizing the process effect.
Global customization service capability
As a global foreign trade manufacturer, we provide flexible OEM/ODM customization services:
Size customization: outer diameter range of Φ 2mm - Φ 300mm, wall thickness of 0.5mm -20mm, length and spiral diameter can be processed according to requirements.
Form customization: supports multiple forms such as single helix, double helix, conical helix, etc; The interface can be processed into flat mouth, horn mouth, frosted mouth, threaded mouth or welded metal flange.
Special processes: We can provide special processes such as dehydroxylation treatment (low hydroxyl), UV filtering treatment, surface sanding or opaque milky white treatment to meet the needs of different application scenarios.
Precision machining: Equipped with fully automatic pipe drawing machines, CNC pipe bending machines, and professional welding equipment, ensuring dimensional tolerances are controlled within ± 0.1mm and high concentricity.
Customer application case sharing
Case 1: A European semiconductor equipment manufacturer - Wet Etching Cleaning Tank Bubble Removal Project
Customer Requirement: In the wet etching process of 12 inch wafers, the customer found that small bubbles in the cleaning solution pipeline adhered to the surface of the wafer, resulting in uneven etching and a decrease of about 5% in yield. The original straight tube degassing device occupies a large space and has low efficiency, and there is an urgent need for a compact and highly efficient degassing component that is resistant to strong acids (except hydrofluoric acid).
Solution: We have customized a transparent quartz spiral separation tube with an outer diameter of 25mm, a spiral diameter of 150mm, and a total length of 3 meters. Using high-purity low hydroxyl quartz material, the inner wall undergoes electrolytic polishing treatment, and the inlet and outlet are designed with fast clamp interfaces. Use spiral centrifugal force to quickly separate microbubbles and discharge them from the exhaust port above the pipe wall.
Final effect: After installation, the bubble content in the cleaning solution decreased by 98%, the defect rate on the wafer surface significantly decreased, and the etching uniformity improved to over 99%. Meanwhile, the compact spiral design saves 40% of the installation space inside the equipment. The customer has repurchased it continuously for three years and listed it as a standard configuration.
Case 2: A North American biopharmaceutical research and development institution - High temperature and high pressure reactor online monitoring module
Customer requirement: When conducting experiments on the synthesis of new drugs, customers need to perform real-time spectral analysis of the reaction solution under high temperature (300 ℃), high pressure, and strong organic solvent environment. Ordinary stainless steel pipes are opaque, and ordinary glass pipes cannot withstand high temperature and high pressure. There is an urgent need for a fluid observation pipeline that can withstand extreme environments while also being transparent.
Solution: We offer customized double-layer spiral quartz sleeves. The inner tube is used to transport the reaction solution, while the outer tube serves as a protective and temperature control jacket. The material is made of high-purity synthetic quartz, which has undergone rigorous testing for temperature and pressure resistance. Special metalized flanges are welded at both ends to achieve a sealed connection with the reaction vessel.
Final effect: The component successfully operated stably at 350 ℃ and 10MPa, with a transmittance of over 92%, perfectly supporting the customer's online infrared spectroscopy monitoring needs and helping them shorten the new drug development cycle. Its excellent corrosion resistance also avoids the maintenance cost of frequent pipeline replacement.
Are you looking for a high-performance, customizable spiral liquid separation quartz tube solution?
Please feel free to contact us anytime and send us your drawings or specific requirements. Our technical experts will provide you with selection suggestions and accurate quotations within 24 hours. Let's join hands and use high-quality quartz products to help your global business succeed!
Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.
Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.
5. About 20 years of professional experience
-Focusing on the manufacturing of quartz products for a quarter century
-The average working experience of the technical team exceeds 15 years
6.Global Service Network
-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East
-Multi language technical support (English, German, French, Spanish, Russian, Japanese)
7. Flexible cooperation mode
Support small batch trial orders, medium - and long-term cooperation, and urgent production for urgent orders, providing OEM/ODM services.
