Why do laboratories need specialized quartz beakers and measuring cups?

Q: Why are ordinary glassware prone to failure when processing high-temperature and strong acid samples in the laboratory?

Answer: Ordinary glass has limited temperature resistance (usually ≤ 500 ℃), poor thermal shock resistance, and is prone to corrosion when exposed to acid and alkali, resulting in data errors and short vessel life.

Q: What core experimental problems can quartz beakers solve?

Answer: 1) Tolerate sudden cold and heat to reduce the risk of rupture; 2) High purity materials to avoid sample contamination; 3) Accurate calibration ensures data reliability; 4) Long term corrosion resistance, reducing consumable costs.

Q: Which key application scenarios are suitable?

Answer: High temperature sample processing, trace element analysis, semiconductor processes, pharmaceutical purification, university research and other fields that require strict cleanliness and stability.

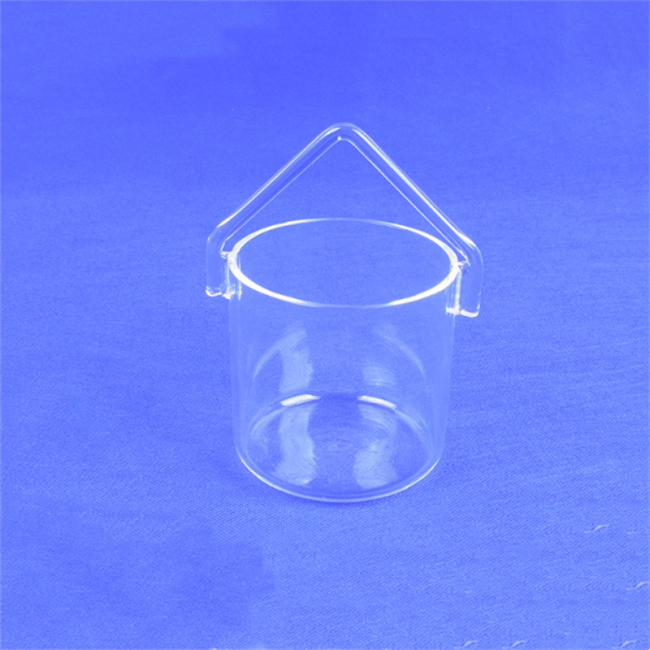

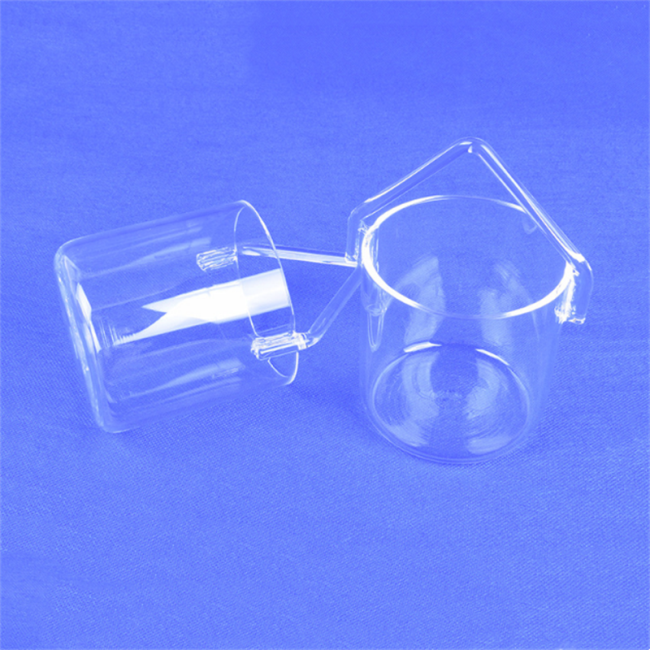

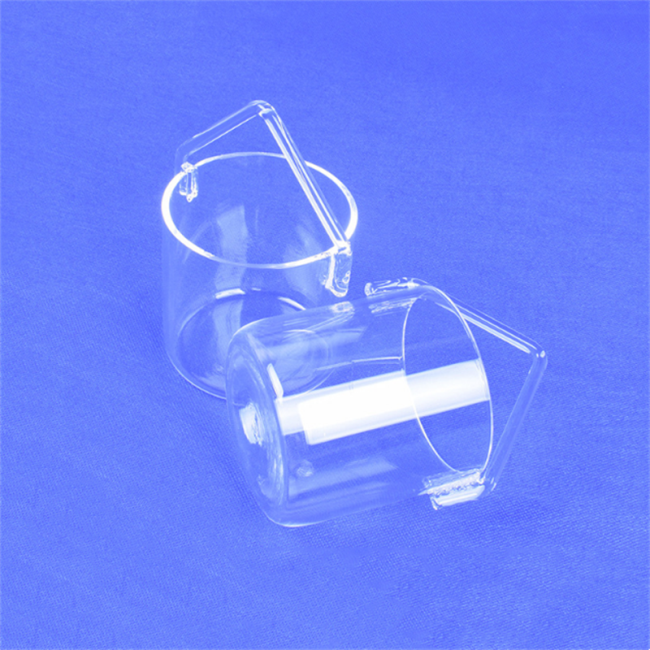

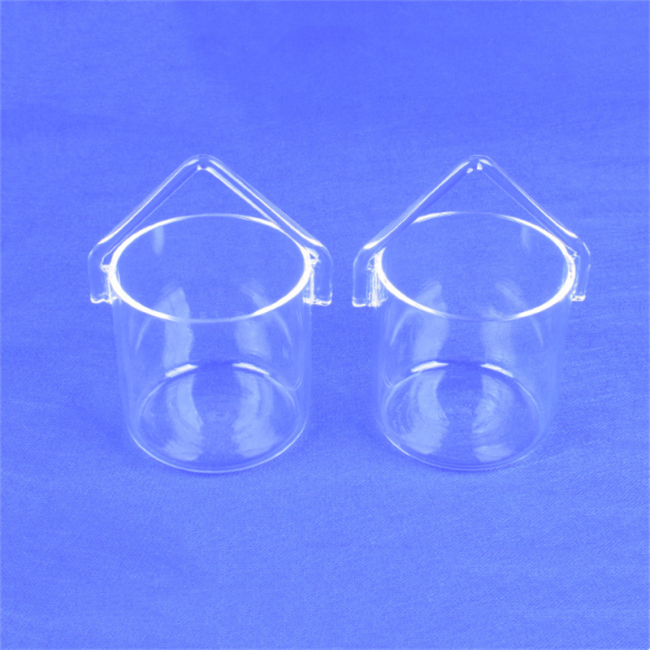

The laboratory quartz beaker measuring cup is made of high-purity quartz glass, which has excellent high temperature resistance (up to 1200 ℃) and extremely low thermal expansion coefficient. It has high transparency, acid and alkali corrosion resistance, and excellent chemical stability. Suitable for high-temperature heating, chemical analysis, and precision measurement, it is an ideal high-quality heat-resistant container for laboratories.

As a professional manufacturer of quartz products, our laboratory quartz beakers and measuring cups are made of high-purity quartz sand (SiO ₂ content ≥ 99.99%), suitable for high temperature, corrosive, and precision experimental environments. The product line includes various specifications such as conventional, high, and conical (from 10ml to 5000ml), meeting the strict requirements of laboratories, research institutions, and industrial users worldwide.

Core product advantages

1. Excellent temperature resistance performance

-Long term use temperature: 1200 ℃; Short term temperature resistance can reach 1450 ℃

-Extremely low coefficient of thermal expansion (5.5 × 10 ⁻⁷/℃), strong thermal shock resistance, able to withstand rapid temperature changes

2. High chemical stability

-Resistant to all acids, organic solvents, and strong corrosive media except hydrofluoric acid

-Smooth and pore free surface, not easily contaminated, easy to clean

3. Optical and physical properties

-Transmittance>90% (UV to IR band)

-Hardness reaches Mohs 7, wear-resistant and scratch resistant

4. Precision manufacturing process

-Numerical control hot forming technology, with dimensional tolerances controlled within ± 0.5%

-Flame polishing treatment, smooth edges without micro cracks

Main application areas

-Research Laboratory: High temperature synthesis, sample digestion, spectral analysis

-Semiconductor industry: wafer cleaning, etching process, high-purity material processing

-Pharmaceutical and Biotechnology: Aseptic Cultivation, Drug Development, Biological Sample Processing

-Environmental monitoring: heavy metal detection, water quality analysis, soil degradation

-Higher education institutions: Chemistry teaching, graduate student project experiments

Customized service capability

We provide comprehensive customized solutions:

-Size customization: non-standard capacity, special aspect ratio, irregular design

-Functional modification:

-Increase the accuracy of the scale line (minimum scale 0.1ml)

-Thickened bottom design (for electromagnetic stirring)

-Special interfaces (threaded and ground fit)

-Surface treatment: sandblasting treatment (anti slip), shading coating (stored away from light)

-Customized identification: laser engraved logo, scale, corrosion-resistant label

-Packaging plan: shockproof independent packaging, sterile vacuum packaging

Key issues to be addressed

1. Replace traditional glassware: solve the problem of ordinary silicone glass being prone to breakage and not resistant to high temperatures

2. Improve experimental accuracy: Low thermal expansion coefficient ensures volume measurement accuracy and does not deform at high temperatures

3. Reduce long-term costs: The service life is 8-10 times longer than ordinary laboratory glass

4. Special environmental adaptation: Meet the requirements of industries such as semiconductors and photovoltaics for ultra clean environments

5. Reduce pollution risk: High chemical purity avoids sample contamination and ensures data reliability

Customer Application Cases

-German Materials Research Institute: Customized 500ml thick bottom quartz beaker for 1300 ℃ high-temperature molten salt corrosion experiments, replacing the original alumina crucible and increasing its service life by three times

-American biotechnology company: bulk purchase of 100-1000ml series graduated beakers for high-temperature sterilization of cell culture media, achieving zero breakage rate

-Korean semiconductor company: Customized 250ml quartz measuring cup with PP dust cover for wafer cleaning line, effectively reducing particle pollution

-Australian environmental testing agency: Procurement of 2000ml high-capacity quartz beakers for acid digestion of soil samples, reducing annual loss rate by 70%

Are you ready to optimize your laboratory workflow?

Please provide your specific application requirements, and we will recommend the most suitable quartz beaker/measuring cup solution for you, or customize an exclusive solution for you. Click to consult for free samples and technical parameter table!

Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
