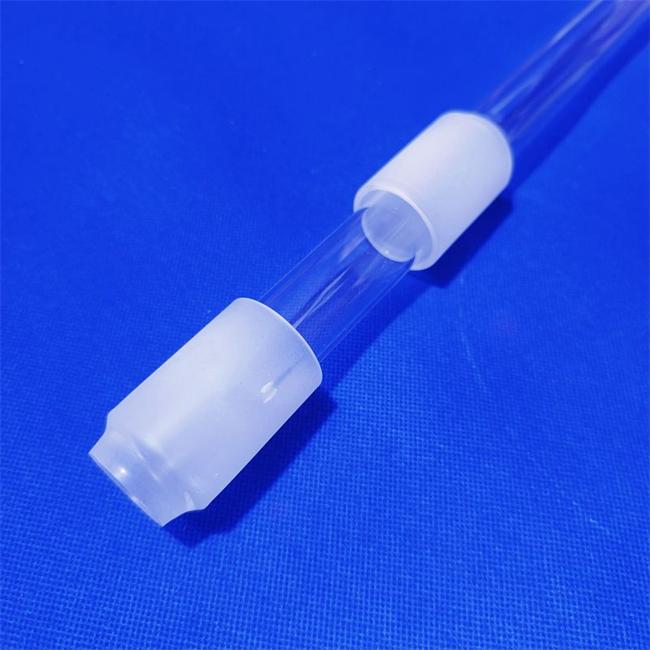

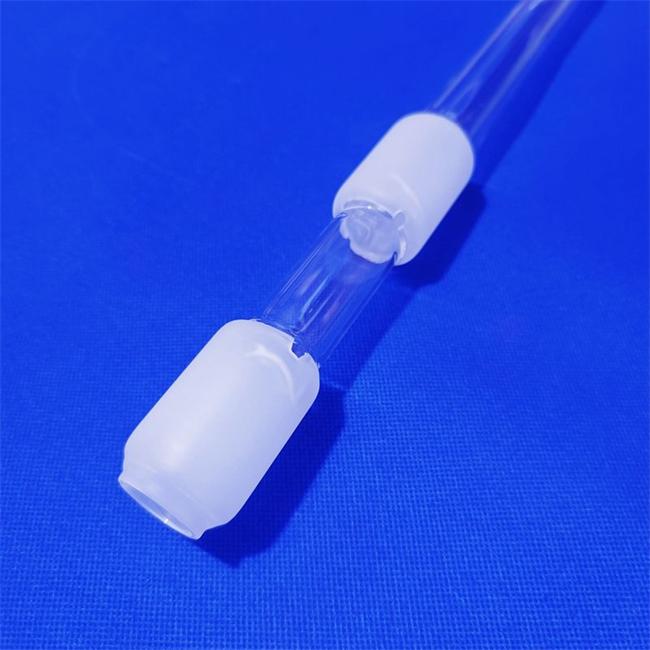

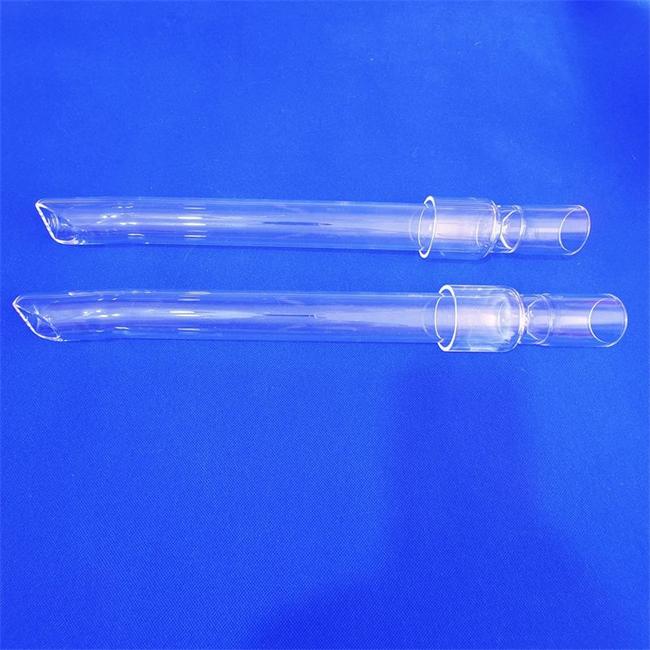

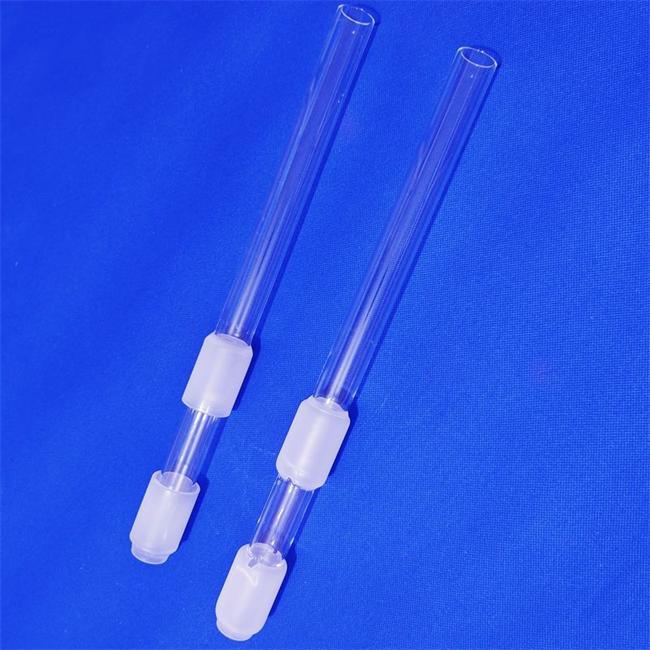

Frosted transparent quartz glass tube
Frosted transparent quartz glass tube
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Frosted transparent quartz glass tube
Q: Why do we need frosted transparent quartz glass tubes?
Answer: When your application requires a balance between uniform light scattering and high transparency, as well as high temperature resistance, corrosion resistance, and mechanical stability, frosted quartz glass tubes are the ideal choice.
Q: What specific problems can it solve?
Answer: 1) Solve the problem of excessive direct light - the frosted surface achieves soft and uniform light diffusion, suitable for precision optics and lighting equipment.
2) Enhance high temperature resistance and corrosion resistance - maintain stability in high-temperature environments of semiconductors, photovoltaics, or chemicals.
3) Enhance structural adaptability - meet special equipment integration requirements by customizing dimensions and sanding precision.
4) Optimize cleaning and anti pollution capabilities - surface treatment reduces fingerprint and impurity adhesion, suitable for high cleanliness environments.
Product features and advantages
-Excellent optical performance: with a transmittance of over 93%, the frosted surface achieves uniform light diffusion and avoids glare.
-Resistant to extreme environments: able to withstand temperatures up to 1200 ℃, with a low coefficient of thermal expansion and strong resistance to thermal shock.
-High chemical stability: except for hydrofluoric acid, it is resistant to acid and alkali corrosion and suitable for corrosive media environments.
-Excellent mechanical strength: high surface hardness, wear resistance, and long service life.
-High purity material: SiO ₂ content ≥ 99.99%, low impurities, suitable for high-purity scenarios such as semiconductors and photovoltaics.
Application field
-Semiconductors and photovoltaics: diffusion furnace tubes, CVD reactors, solar cell production equipment.
-Optics and Lighting: Uniform Light Source Tube, Optical Instrument Cover, LED Diffuser Components.
-Chemical and laboratory: corrosion-resistant reaction pipelines, observation windows, high-temperature experimental equipment.
-Medical and scientific research: UV sterilization equipment, analytical instrument components, and high-purity environmental containers.
Specifications and Customization Services
-Flexible size: inner diameter of 2mm~300mm, length of 10mm~3000mm, wall thickness of 0.5mm~20mm.
-Grinding accuracy options: fine grinding (Ra 0.8-1.6 μ m), standard grinding (Ra 1.6-3.2 μ m), coarse grinding (Ra 3.2-6.4 μ m).
-Customized support: We can provide secondary processing such as irregular cutting, sealing, drilling, flange connection, etc.
-Batch supply capability: supports small-scale sample trial production to large-scale order production
Customer Application Case (Anonymous)
-Case 1: A German photovoltaic company used our Φ 200mm × 2000mm frosted quartz tube as a diffusion furnace carrier, which improved the uniformity of light scattering by 40% at high temperatures and increased product yield by 12%.
-Case 2: A US laboratory equipment supplier customized a batch of fine frosted quartz tubes with flange connections for use in corrosive fluid observation systems. Customers reported that the equipment's lifespan was extended by three times.
-Case 3: Japanese LED manufacturers use our custom shaped frosted tubes as high-end lighting diffusion components, achieving industry-leading uniformity in light efficiency.
Whether it's semiconductor manufacturing, high-end lighting, or specialty chemicals, frosted transparent quartz glass tubes can empower your equipment with excellent performance. We focus on providing professional customized, high-precision, and highly reliable quartz solutions for global customers.
If you need samples, technical parameters, or customized quotes, please feel free to contact us - we will provide you with one-on-one solution design and quick response services, allowing high-quality quartz products to help your project succeed!
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.
5. About 20 years of professional experience
-Focusing on the manufacturing of quartz products for a quarter century
-The average working experience of the technical team exceeds 15 years
6.Global Service Network
-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East
-Multi language technical support (English, German, French, Spanish, Russian, Japanese)
7. Flexible cooperation mode
Support small batch trial orders, medium - and long-term cooperation, and urgent production for urgent orders, providing OEM/ODM services.
