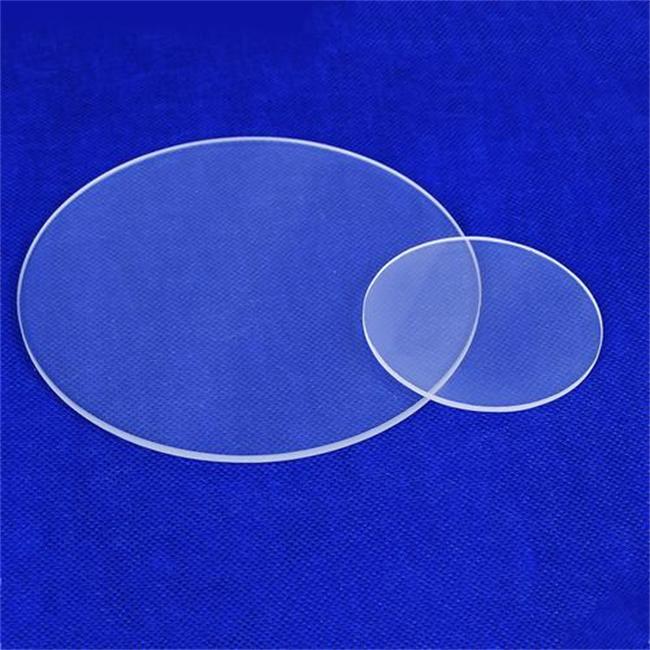

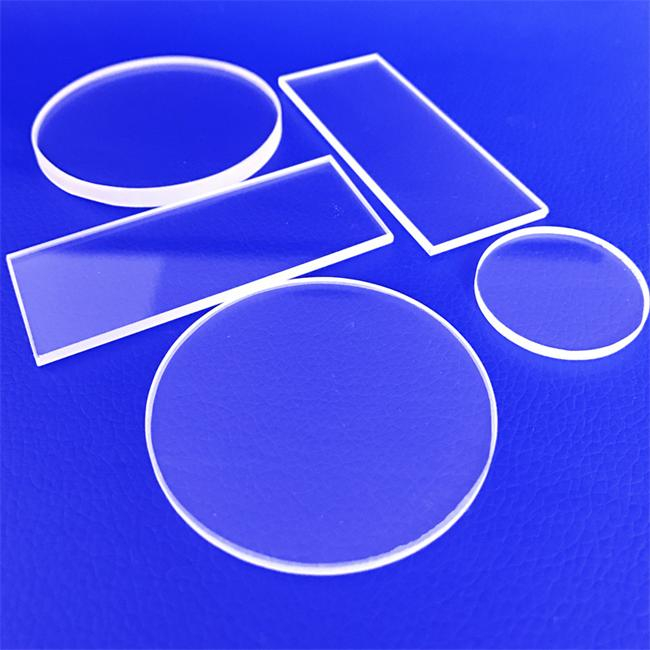

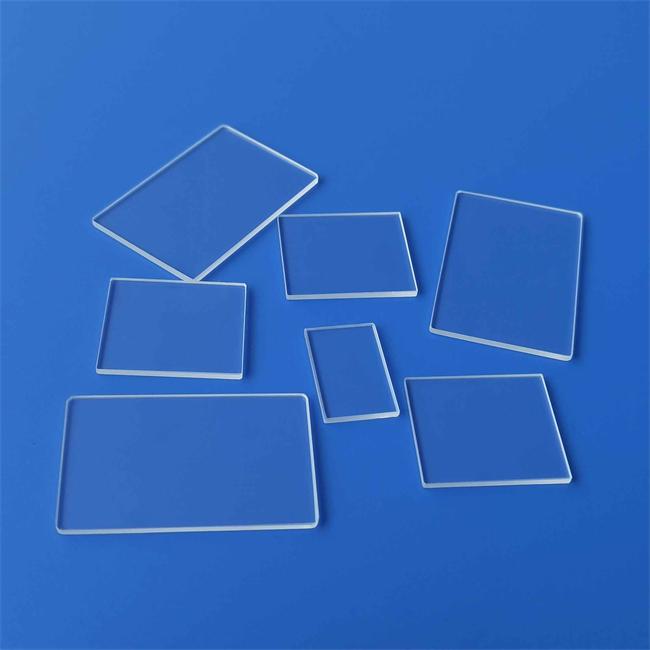

Our transparent quartz plate is made of high-purity fused silica (SiO ₂ ≥ 99.99%), which has excellent high temperature resistance, low coefficient of thermal expansion, high transmittance and excellent chemical stability. The product diameter range covers 5mm to 1800mm, and the thickness can be customized according to needs (0.1mm to 50mm), suitable for precision optics, semiconductors, photovoltaics, laser technology, and high-temperature industries.

FAQ: Frequently Asked Questions

Q: What are the maximum processing dimensions for transparent quartz plates? Can you produce non-standard shapes?

A: Our transparent quartz plates can be custom-made with diameters ranging from 5 mm to 1,800 mm, and thicknesses can be flexibly adjusted from 0.1 mm to 500 mm. In addition to standard circular and rectangular shapes, we support customization based on your drawings or samples. We can process complex shapes such as stepped plates, irregularly shaped plates, slotted plates, and drilled plates, providing fully personalized production tailored to your specific application.

Q: Will the product shatter or deform under high-temperature and high-pressure conditions?

A: Quartz glass has an extremely low coefficient of thermal expansion (approximately 5.5×10⁻⁷/°C) and excellent thermal stability. For example, even if a quartz plate is heated to 1100°C and then immediately immersed in cold water, it will not shatter. This allows it to maintain structural integrity and dimensional accuracy in environments with extreme temperature fluctuations.

Q: What levels of light transmittance and purity can the material achieve?

A: We use Donghai Grade 1 crystal material with a SiO₂ purity of over 99.99%. In terms of optical performance, visible light transmittance exceeds 93%, and transmittance in the ultraviolet range (200–250 nm) can reach over 80%, meeting the requirements for a wide spectrum of applications ranging from deep ultraviolet to near-infrared.

Q: How does the product perform in terms of weather resistance in corrosive environments?

A: With the exception of hydrofluoric acid and hot phosphoric acid, quartz glass reacts very little with acids, alkalis, or salts. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel, making it an ideal window material for highly corrosive environments such as chemical processing and metallurgy.

Core features

-High purity material: SiO ₂ content ≥ 99.99%, ensuring low impurities, low bubble rate, reducing light scattering and energy loss.

-Excellent temperature resistance: It can withstand high temperatures of 1200 ℃ for a long time and up to 1450 ℃ for a short time, suitable for extreme hot environments.

-Extremely low thermal expansion coefficient (5.5 × 10 ⁻⁷/℃), strong thermal shock resistance, and not easily ruptured during sudden cooling and heating.

-High transmittance: The transmittance in the ultraviolet to infrared band (170nm-2500nm) is>90%, suitable for precision optical systems.

-Chemical inertness: Acid resistant (except hydrofluoric acid), alkali resistant, corrosion-resistant, suitable for high-purity chemical environments.

-Precision machining: We can provide customized services such as polishing, coating, drilling, cutting, etc. to meet the needs of different industries.

Typical applications

Transparent quartz plates are widely used in the following fields due to their unique properties:

1. Semiconductor and Photovoltaic Industry

-Wafer processing: used for photolithography mask plates and etching processes to carry substrates, ensuring high-precision pattern transfer.

-Photovoltaic module: As a diffusion furnace tube observation window for solar cells, it is resistant to high temperatures and does not affect light transmittance.

2. Optics and laser technology

-Laser optical window: used for CO ₂ lasers and ultraviolet laser systems, with low absorption to avoid energy loss.

-Precision lenses and prisms: High uniformity quartz plates can be processed into optical components, suitable for aerospace and astronomical telescopes.

3. High temperature industrial equipment

-Observation window: used for furnaces and vacuum coating equipment, resistant to high temperatures and maintaining clear visibility.

-Semiconductor diffusion furnace tube: As a lining plate for the furnace tube, it prevents pollution and extends the service life of the equipment.

4. Chemical and laboratory equipment

-Corrosion resistant reactor window: works stably in strong acid and alkali environments to prevent ordinary glass from being corroded.

-UV sterilization lampshade: high UV transmittance, suitable for water treatment and medical disinfection equipment.

5. Research and Special Applications

-Spacecraft heat-resistant components: used as insulation observation windows for satellites and rockets to resist extreme temperature changes.

-High energy physics experiment: As a particle detector component, the low radioactive background ensures experimental accuracy.

Customized services

We provide comprehensive customized solutions for quartz plates to meet the special needs of different industries

1. Customization of size and shape

-Diameter range: 5mm-1800mm (extra large sizes can be spliced in sections).

-Thickness range: 0.1mm-50mm (ultra-thin or thickened options available).

-Alien cutting: supports processing of circular, square, fan-shaped, and other complex geometric shapes.

2. Surface treatment

-Optical grade polishing: Ra ≤ 5nm, suitable for laser optical systems.

-AR Coatings: Reduce reflection loss and increase transmittance to over 99%.

-Anti reflective and anti fouling coating: prolongs service life and reduces maintenance requirements.

3. Special performance optimization

-Low hydroxyl (OH) quartz plate (<5ppm): reduces infrared absorption and is suitable for high-power laser applications.

-UV grade quartz plate: optimized transmittance in the 170nm-400nm wavelength range, used for deep UV lithography and sterilization equipment.

-Radiation resistant quartz plate: suitable for nuclear industry and X-ray equipment, reducing radiation damage.

4. Supporting processing services

-Precision drilling, slotting, chamfering.

-UV bonding, metalized packaging (such as combined with aluminum or stainless steel frames).

-Vacuum adsorption, high pressure resistant design (applicable to semiconductor equipment).

Why choose our transparent quartz plate?

1. Strict quality control: Each batch of products undergoes spectral analysis, stress testing, and transmittance testing to ensure stable performance.

2. Quick response customization: supports small-scale trial production to large-scale supply, with flexible delivery times.

3. Technical support: Provide material selection, application scenario optimization suggestions, and solve industry problems such as high temperature, corrosion, and optical loss.

Contact us for free samples or customized solutions, and let our transparent quartz plates help you with cutting-edge technology applications!

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
