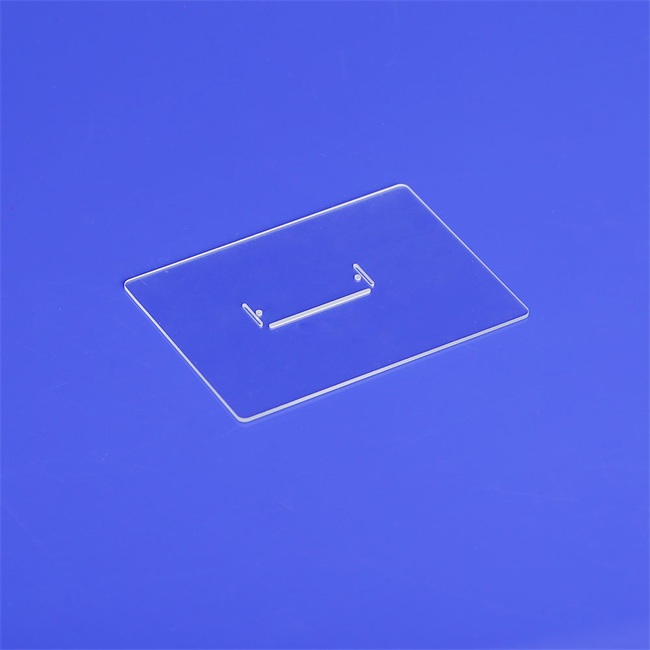

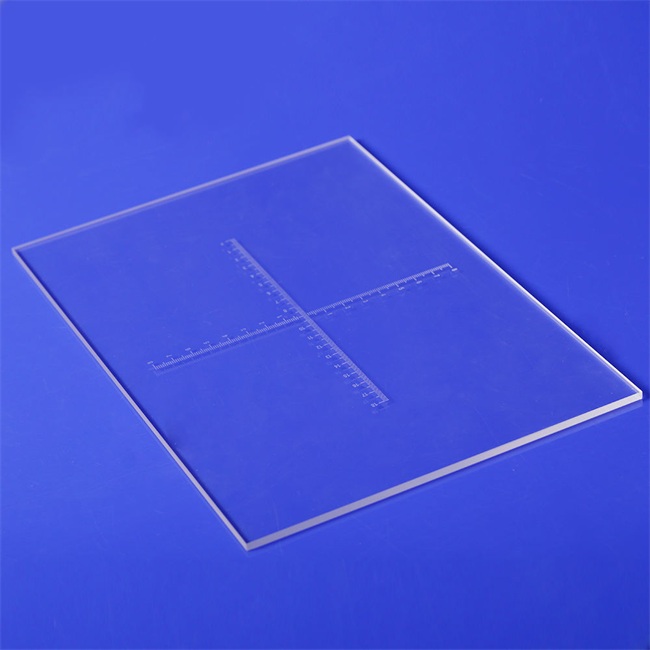

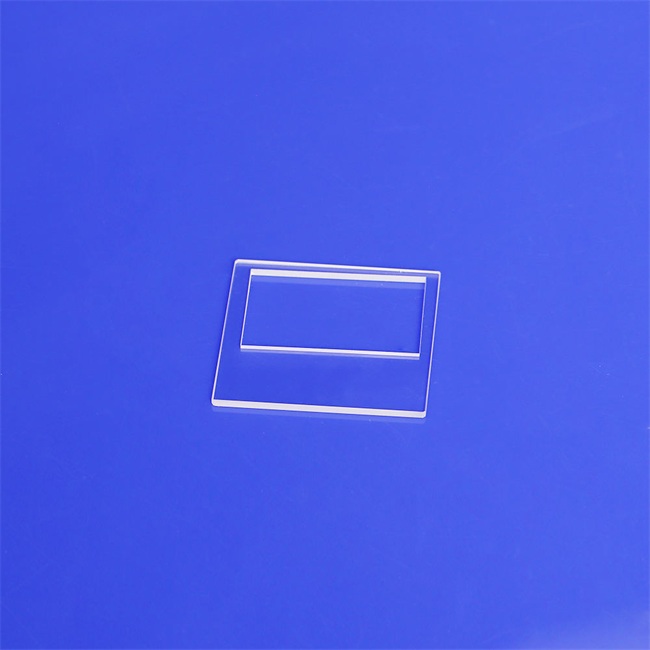

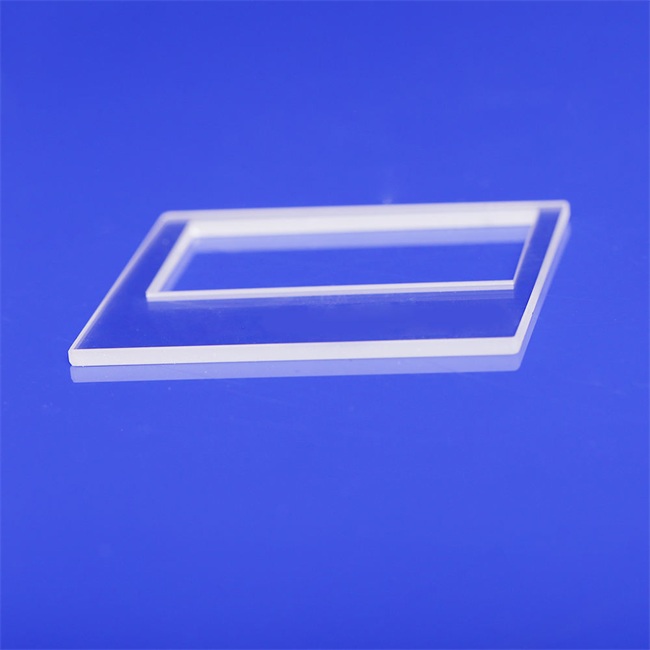

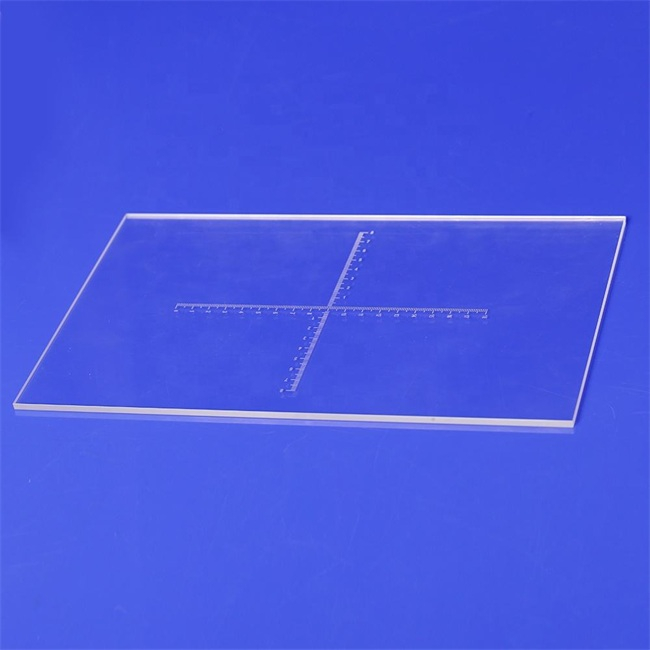

JGS1 UV Optical Transparent Quartz Plate
JGS1 UV optical transparent quartz plate, also known as fused silica plate or synthetic quartz plate
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
JGS1 UV Optical Transparent Quartz Plate
JGS1 UV optical transparent quartz plate, also known as fused silica plate or synthetic quartz plate, is a high-performance optical material made of high-purity synthetic silicon dioxide (SiO ₂) raw material, which is melted at high temperature and then precision processed. It is known for its excellent UV transmittance, thermal stability, chemical purity, and high laser damage threshold, making it an ideal choice for demanding applications in the wide spectral range of deep ultraviolet (UV) to near-infrared (NIR).
Core Features and Values:
Excellent UV transmittance: JGS1 quartz plate has unparalleled transmittance performance in the deep UV band (especially 180nm-250nm), far superior to ordinary optical glass and other types of quartz glass (such as JGS2). This makes it the core material of ultraviolet optical systems.
Excellent thermal stability: With an extremely low coefficient of thermal expansion, it can withstand drastic temperature changes without cracking or deformation, ensuring dimensional stability and optical performance in high temperature or thermal shock environments.
High laser damage threshold: The internal impurities and hydroxyl (OH ⁻) content of the material are extremely low, and it can withstand long-term irradiation of high-power ultraviolet laser without easily producing color centers or damage, which prolongs the device life.
Excellent chemical purity and corrosion resistance: Made by synthetic processes, almost free of metal impurities, with excellent corrosion resistance to most acids and chemicals (except hydrofluoric acid and hot phosphoric acid), suitable for clean and corrosive environments.
High hardness and mechanical strength: The surface has high Mohs hardness, is wear-resistant and scratch resistant, ensuring durability under complex working conditions.
What problems can the product solve?
In many high-end applications, ordinary optical materials can lead to system performance degradation, shortened lifespan, or even failure due to their own limitations. JGS1 quartz plate is designed to address these pain points:
1. Solve the problem of "ineffective transmission of ultraviolet light":
Pain point: Ordinary glass and optical materials absorb ultraviolet light, especially deep ultraviolet light below 200nm, severely, resulting in a significant loss of light source energy and extremely low system efficiency.
Solution: JGS1 quartz plate has extremely high transmittance in the ultraviolet band (especially important spectral lines such as 185nm and 254nm), ensuring efficient and lossless transmission of ultraviolet light, maximizing the utilization of light source energy.
2. Solve the problem of "performance failure under high temperature environment":
Pain point: Many optical materials will soften, deform, or crack under high temperature or alternating cold and hot environments, leading to changes in the focal length of optical components, decreased imaging quality, and even physical damage.
Solution: The excellent thermal stability of JGS1 quartz plate enables it to operate at a constant temperature of up to 1000 ℃ for a long time and withstand severe thermal shock, ensuring the stable operation of the optical system in harsh environments such as high-temperature furnaces and semiconductor diffusion processes.
3. Solve the problem of component damage caused by high-energy lasers:
Pain point: In applications such as ultraviolet laser processing and photolithography, ordinary optical components have a low laser damage threshold and are easily damaged by high-energy density laser pulses, forming dark spots or cracks that require frequent replacement.
Solution: The pure material and high laser damage threshold of JGS1 quartz plate make it the preferred component for windows, prisms, beam expanders, and other components in high-power ultraviolet laser optical systems (such as excimer lasers), significantly improving equipment reliability and service life.
4. Solve the problem of "material pollution process environment":
Pain point: Metal impurity contamination is fatal in semiconductor and integrated circuit manufacturing. Ordinary optical materials may precipitate trace metal ions, contaminating the wafer.
Solution: JGS1 synthetic quartz plate has extremely high chemical purity and does not contain impurities such as alkali metals. It is a "clean" material for key components such as photomask substrates and CVD cavity observation windows in semiconductor processes, ensuring the yield rate of chip manufacturing.
Main application areas
With the unique performance mentioned above, JGS1 quartz plate is widely used in the following high-tech fields:
UV lithography and semiconductor manufacturing:
Used as a lens, prism, and photomask substrate in DUV lithography machines.
A furnace tube observation window used in semiconductor diffusion and oxidation processes.
Analytical instruments and spectroscopy:
As a sample cell, colorimetric dish, and optical window in instruments such as UV spectrophotometers, fluorescence spectrometers, ICP-MS.
Used to create output windows and optical components for ultraviolet lasers.
Medical and Life Sciences:
Observation window for UV sterilization equipment, ensuring efficient transmission of sterilization UV-C light.
As an optical component in biological instruments such as DNA sequencers and flow cytometers.
High energy laser system:
As a reflector, beam expander, and protective window in systems such as excimer lasers (such as KrF, ArF) and femtosecond lasers.
Industrial processing and scientific research:
Used for UV curing, exposure machines, and laser processing equipment.
As an observation window for high-temperature furnaces and vacuum chambers.
Customized service
We are well aware that standard products cannot meet the unique needs of all customers. Therefore, we provide comprehensive and high-precision customized services to transform your design concepts into reality.
Customization of size and shape:
We can provide boards with circular, square, rectangular, and other irregular contours.
The size range ranges from millimeters to hundreds of millimeters, allowing for precise cutting according to your device space.
Thickness customization:
We offer a variety of thickness options from 0.5mm thin sheets to thick plates over 50mm to meet different mechanical strength and optical design requirements.
Customization of surface accuracy and smoothness:
Surface profile: can be processed to a high flatness of λ/10.
Surface smoothness: Different grades can be provided according to application requirements, ranging from polished surfaces (such as 20/10 Scratch/Dig) to frosted surfaces.
Parallelism: Can be precisely controlled to meet high-precision beam deflection applications.
Coating service:
We provide professional customized coating services such as UV anti reflective film (AR), reflective film, and spectral film to achieve optimal transmission or reflection performance at specific wavelengths (such as 193nm, 248nm, 355nm), further reducing system light energy loss.
Chamfering and Drilling:
Provide safe chamfering treatment to prevent edge cracking.
Precision drilling can be carried out according to the drawing requirements for easy installation and integration.
If you are looking for a reliable and high-performance deep ultraviolet optical material, JGS1 UV transparent quartz plate will be your best choice. Our technical team is always ready to provide you with product selection, technical consultation, and customized solution support.
Please contact us immediately and let us provide professional optical solutions to help your project succeed!
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of fused quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from fused quartz lumps to fused quartz sand and then fused quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult fused quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of fused quartz plates, tubes and high size precision fused quartz items.
