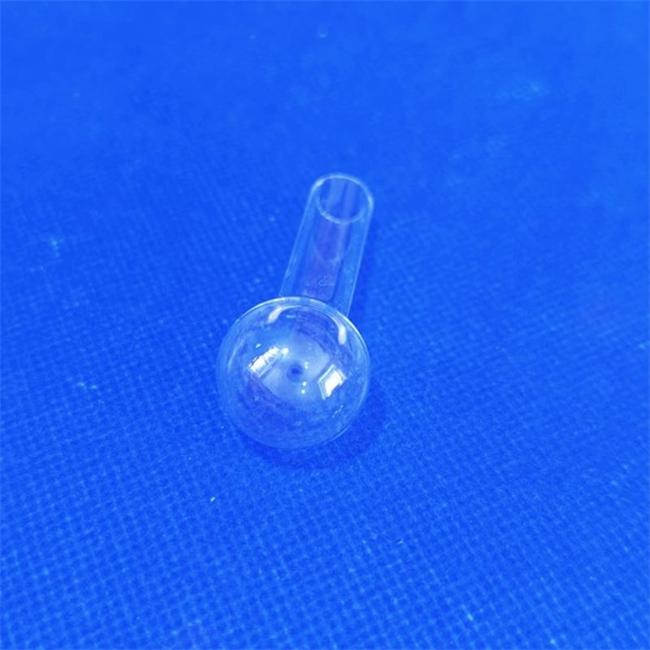

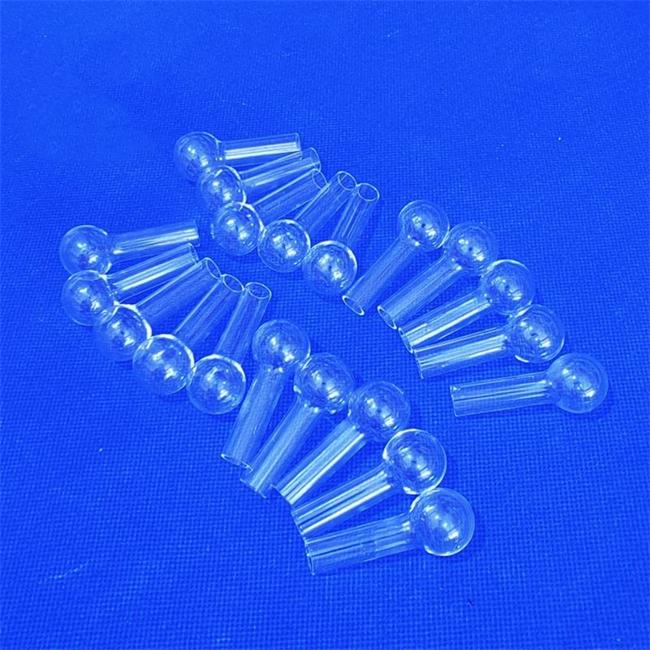

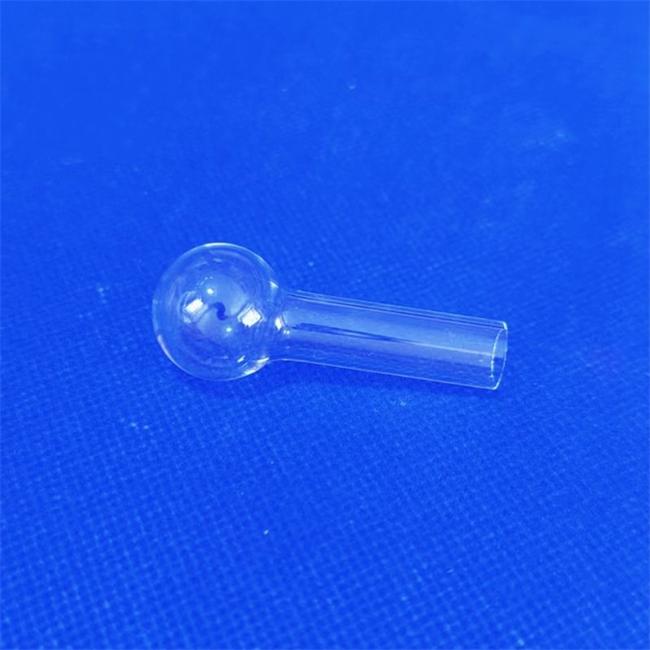

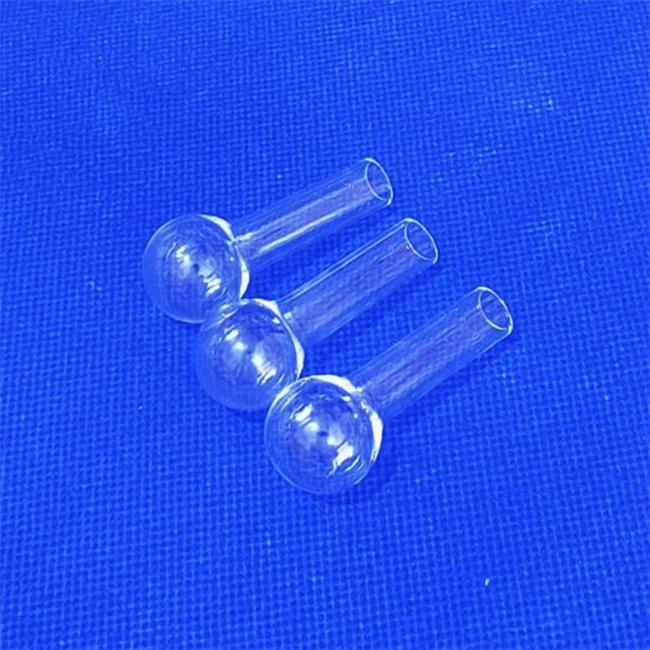

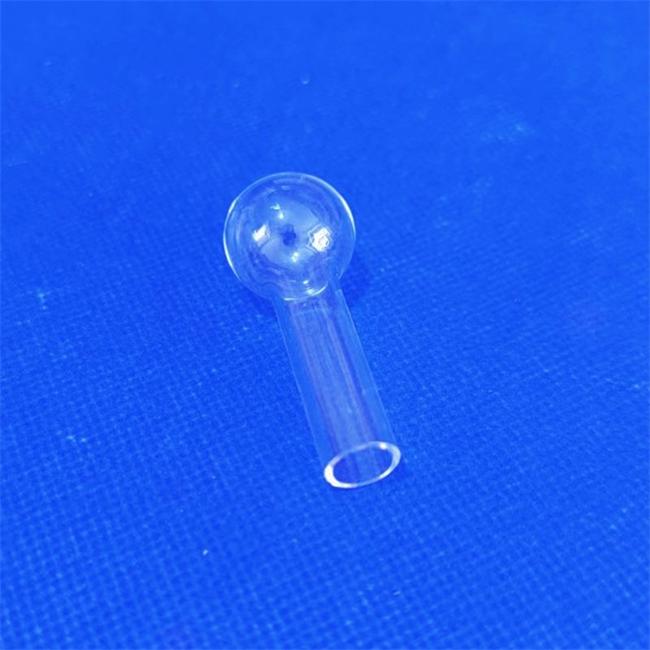

Blow molded spherical head quartz tube
Blow molded spherical head quartz tube is a special quartz product made of high-purity quartz material (SiO ₂ content ≥ 99.99%) and formed through high-temperature blowing process.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Blow molded spherical quartz tube: high-precision customized quartz solution
What can this product solve for you?
Q: Our laboratory needs a quartz tube that can withstand extreme temperature changes while maintaining high transparency and dimensional stability for precision optical experiments. Ordinary quartz tubes on the market always cannot meet the requirements. What should we do?
Answer: Our blown spherical head quartz tube is designed specifically for high demand scenarios, using high-purity quartz material and precision blowing technology to ensure stable performance in the temperature range of -100 ℃ to 1200 ℃, with a transmittance of over 95%, fully meeting the demanding requirements of optical and high-temperature experiments.
Q: Our semiconductor production equipment requires customized quartz pipe fittings with special shapes, but the supplier always cannot guarantee the consistency of batch sizes, which affects the yield rate. How can we solve this problem?
Answer: We provide fully customized blown spherical head quartz tube services, from diameter, wall thickness to curvature radius of the spherical head, which can be produced according to demand. With advanced testing equipment, we ensure that the dimensional tolerance of each batch of products is controlled within ± 0.1mm, ensuring the stability of your production process.
Q: We are overseas and are concerned that quartz products may be damaged during international transportation, and suppliers may respond slowly, which may affect project progress. What are the solutions?
Answer: As a quartz product manufacturer specializing in foreign trade, we adopt professional shock resistant packaging and provide door-to-door logistics services to global customers. At the same time, we support small batch trial orders, fast delivery within 14-28 days, and 24-hour multilingual technical support to ensure that your project is not affected by geography.
Product Overview
Blow molded spherical head quartz tube is a special quartz product made of high-purity quartz material (SiO ₂ content ≥ 99.99%) and formed through high-temperature blowing process. Its unique spherical head design not only enhances structural strength, but also optimizes fluid dynamics and optical performance, widely used in fields such as semiconductors, photovoltaics, optics, laboratories, and high-end lighting.
Key technologies and specifications
-Material grade: Natural quartz sand or synthetic quartz is selected to meet different requirements for light transmittance, temperature resistance, and chemical stability
-Molding process: Using high temperature manual/mechanical blowing above 1800 ℃ to ensure uniform and stress free spherical head
-Size range:
-Pipe diameter: Φ 2mm - Φ 200mm (larger sizes can be customized)
-Wall thickness: 0.5mm-8.0mm
-Spherical head radius: customized according to customer drawings or samples
-Length: 10mm -3000mm
-Temperature performance: Short term temperature resistance up to 1200 ℃, long-term use temperature ≤ 1050 ℃, extremely low coefficient of thermal expansion (5.5 × 10 ⁻⁷/℃)
-Transmittance performance: Excellent transmittance in both ultraviolet and infrared bands (UV level transmittance>90%, IR level transmittance>95%)
Core strengths
1. Excellent thermal stability and thermal shock resistance
The spherical head design disperses thermal stress and can withstand rapid temperature changes without cracking, which is superior to flat quartz tubes.
2. High purity and chemical inertness
It hardly reacts with any acid other than hydrofluoric acid and hot phosphoric acid, making it an ideal choice for corrosive environments.
3. Precise dimensional control
Using CNC assisted inspection, the critical dimension tolerance reaches ± 0.05mm (according to specifications) to ensure perfect matching with the equipment.
4. Customization flexibility
Support customized complex structures such as non-standard sizes, special wall thicknesses, multiple spherical heads, side arms, flange connections, etc.
Typical application scenarios
-Semiconductor industry: diffusion furnace tubes, CVD reaction chambers, wafer carriers
-Photovoltaic field: Polycrystalline silicon ingot furnace quartz components, solar cell processing
-Optics and Research: High Power Laser Tubes, Spectrometer Sample Cells, Customized Experimental Devices
-Lighting industry: special light source housings, UV sterilization lamps, projection lamp components
-Chemical and Medical: Corrosion resistant observation windows, pharmaceutical process containers, analytical instrument flow paths
Customer Application Case (Anonymous)
1. A semiconductor equipment manufacturer in Germany
Requirement: The irregular quartz tube used for the new generation of etching equipment needs to withstand high-frequency plasma erosion.
Solution: We have customized a Φ 150mm spherical quartz tube with a special coating added to the inner wall, which increases its lifespan by three times.
Result: The customer's equipment yield rate has increased by 12%, and they have been purchasing continuously for 5 years.
2. California Institute of Photovoltaics, USA
Requirement: Observation window for polycrystalline silicon growth furnace, requiring high transparency and resistance to 1400 ℃ high temperature cycling.
Solution: Provide a spherical window tube made of UV grade synthetic quartz, with a light transmittance of over 92%, and can withstand 1500 thermal cycles without any performance degradation.
Result: Became the designated supplier of the institution and expanded to multiple experimental projects.
3. Japanese high-end lighting manufacturer
Requirement: Curved quartz shell for the new generation UV-C sterilization lamp, requiring batch consistency and optical uniformity.
Solution: Develop a specialized mold blowing process with a monthly production capacity of 5000 units and an optical uniformity deviation of less than 2%.
Result: The competitiveness of customer products has significantly improved, with a 15% increase in market share.
We are well aware of the uniqueness of each application scenario. Whether it's standard specifications or complex customization, our engineering team will work closely with you to provide one-stop solutions from material selection, structural design to performance optimization.
Welcome to send your requirement drawings, specifications, or application scenario descriptions to our business email. You will receive professional technical feedback and quotation solutions within 24 hours. Let us use precision quartz products to safeguard your innovation and production.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.
5. About 20 years of professional experience
-Focusing on the manufacturing of quartz products for a quarter century
-The average working experience of the technical team exceeds 15 years
6.Global Service Network
-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East
-Multi language technical support (English, German, French, Spanish, Russian, Japanese)
