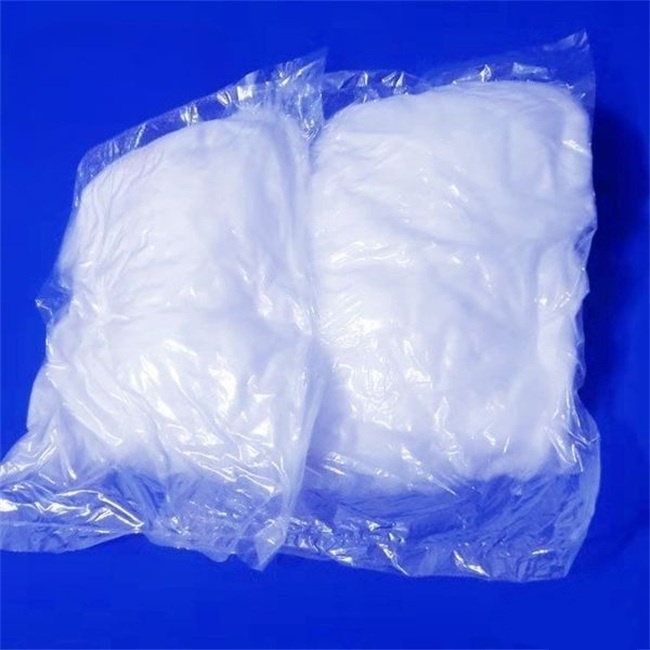

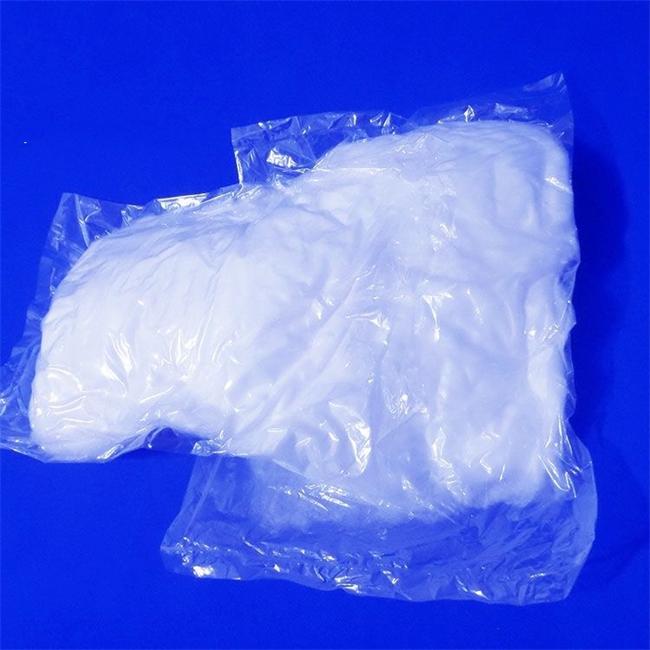

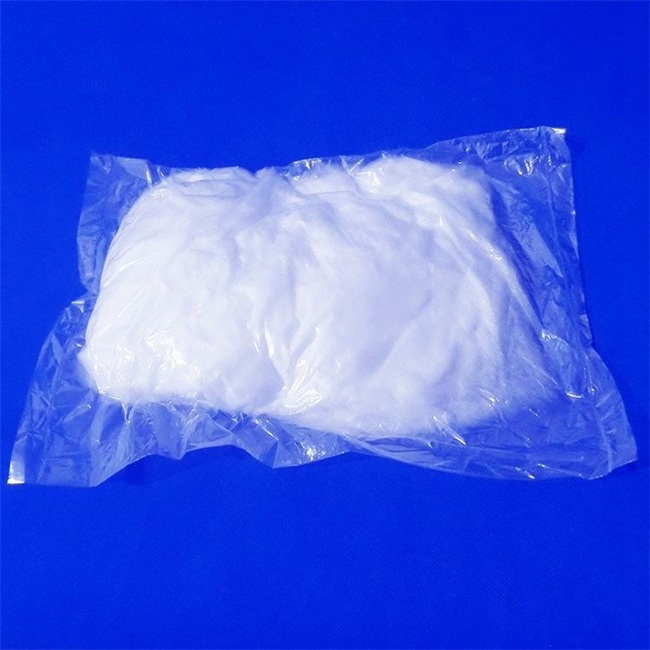

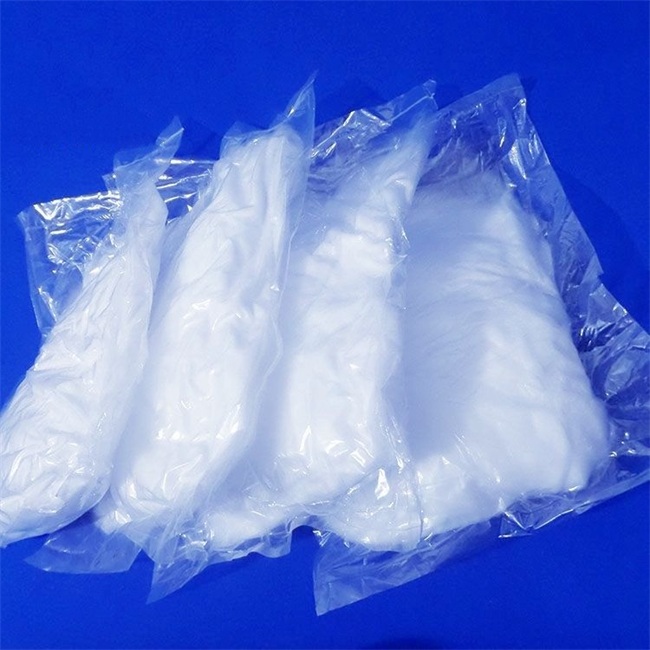

High purity quartz wool
High purity quartz wool is an inorganic fiber material made from high-purity natural quartz (SiO ₂ content ≥ 99.95%) through high-temperature melting and fibrosis.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
High purity quartz wool: excellent insulation and high temperature resistance solution
Are you facing these challenges?
Q: Are you looking for an insulation material that can maintain stable performance in extreme high temperature environments?
Answer: High purity quartz wool can be used for a long time at a high temperature of 1650 ℃, with a short-term temperature resistance of up to 1750 ℃, providing you with reliable high-temperature protection.
Q: Are you concerned about impurities in insulation materials contaminating your production environment or products?
Answer: We use high-purity quartz raw materials with a purity of over 99.95% to ensure that the material is free of alkali metals and has low boron content, avoiding secondary pollution.
Q: Do you need a lightweight and efficient insulation solution?
Answer: The density range of quartz wool is 80-200kg/m ⊃3;, which combines excellent insulation performance and lightweight characteristics to reduce equipment load.
Q: Are you troubled by customizing irregular insulation components for complex equipment?
Answer: We provide full-size customization services, which can be processed into various forms such as boards, felt, pipes, and shaped parts to accurately match your needs.
Product Overview
High purity quartz wool is an inorganic fiber material made from high-purity natural quartz (SiO ₂ content ≥ 99.95%) through high-temperature melting and fibrosis. Its unique amorphous structure and chemical stability make it an irreplaceable insulation, filtration, and filling material in the high-temperature field.
Key performance parameters
-Maximum operating temperature: long-term 1650 ℃, short-term 1750 ℃
-Fiber diameter: 3-8 μ m (customizable)
-Density range: 80-200kg/m ⊃3;
-Thermal conductivity: 0.035-0.055 W/(m · K) @ 500 ℃
-Chemical composition: SiO ₂ ≥ 99.95%, Fe ₂ O3 ≤ 0.005%, Al ₂ O3 ≤ 0.05%, alkali metals ≤ 0.01%
-PH value: neutral (6.5-7.5)
-Moisture content: ≤ 0.5%
Product Advantage Analysis
Excellent temperature resistance performance
Quartz fibers manufactured using special processes have higher softening points and lower high-temperature shrinkage rates. In a continuous working environment at 1650 ℃, the linear shrinkage rate is less than 1%.
Ultra high purity guarantee
The raw materials undergo three purification processes, and the content of key impurities is controlled at the ppm level:
-Alkali metals (Na, K, Li): ≤ 100ppm
-Transition metals (Fe, Ti, Cr): ≤ 50ppm
-Boron (B): ≤ 10ppm
Excellent thermal stability
The coefficient of thermal expansion is only 0.54 × 10 ⁻⁶/℃, much lower than that of ordinary glass fiber (5-8 × 10 ⁻⁶/℃), and it is not easy to crack under rapid cooling and heating conditions.
chemical inertness
Except for hydrofluoric acid and hot phosphoric acid, it is resistant to acid, alkali, and most chemical media corrosion, and can remain stable in both reducing and oxidizing atmospheres.
Low heat capacity and low thermal conductivity
The porous fiber structure stores over 85% of air, significantly reducing heat storage and conduction, and improving energy efficiency.
Detailed explanation of application areas
High temperature industrial furnaces and kilns
-Application areas: furnace lining, insulation layer, expansion joint filling
-Problem solved:
-Reduce furnace heat loss by 30-50%
-Improve heating rate and reduce energy consumption
-Extend the service life of furnace lining by 2-3 times
Semiconductor and Photovoltaic Manufacturing
-Application scenarios: diffusion furnace, CVD reactor, crystal growth furnace
-Key advantages:
-Ultra low precipitation to avoid wafer contamination
-Thermal stability ensures uniformity of process temperature
-Customized shape matching device internal structure
Aerospace and Defense
-Typical applications: Rocket engine insulation, high-temperature testing equipment, aircraft thermal protection
-Performance requirements:
-Extremely low heat conduction and diffusion
-Low volatility under vacuum environment
-Excellent thermal shock resistance
Laboratory and research equipment
-Application equipment: High temperature muffle furnace, tube furnace, thermal analysis instrument
-Customized features:
-Flexible supply of small batches and multiple specifications
-Quickly respond to research and development needs
-Accurate and controllable technical parameters
Customized service capability
Customization of size specifications
-Standard size:
-Board: 1200 × 600 × (10-50) mm
-Roll material: width ≤ 1200mm, length ≤ 30m
-Pipe material: inner diameter 10-500mm, wall thickness 10-100mm
-Special size: All parameters can be adjusted according to requirements
Form customization
-Hard board/soft felt
-Single or double-sided veneer (ceramic fiber cloth, aluminum foil, etc.)
-Pre cut irregular parts
-Vacuum formed parts
performance customization
-Density gradient design (multi-layer composite structure)
-Doping modification (enhancing specific properties)
-Surface treatment (hydrophobicity, reinforcement, etc.)
Customer Application Case (Anonymous)
Case 1: European Photovoltaic Equipment Manufacturer
-Challenge: The new PERC cell production line requires diffusion furnace insulation materials that can work for a long time at 850 ℃, with high thermal stability and no metal pollution
-Solution: Customized curved quartz wool board with a density of 160kg/m ⊃3; and a thickness of 25mm, reinforced with ceramic fiber cloth on the surface
-Effect: The uniformity of furnace temperature has been improved to ± 3 ℃, and energy consumption has been reduced by 18%. The customer has promoted the solution to the entire range of products
Case 2: North American Aerospace Laboratory
-Requirement: Thermal testing equipment for simulating re-entry into the atmosphere, requiring a thermal protection layer that can withstand 1700 ℃ and a pressure difference of 10 ⁵ Pa
-Customized product: Three layer density gradient structure quartz wool (80/120/180kg/m ⊃3;), vacuum pre pressed forming
-Result: After 100 hours of continuous extreme testing, the material structure is complete and the performance fully meets the design requirements
Case 3: Asia's leading semiconductor enterprise
-Problem: In the manufacturing of 12 inch wafers, there is particle precipitation in the insulation components inside the CVD reactor, which affects the yield
-Improvement plan: Adopt our ultra-high purity (99.998%) quartz wool and optimize the binder system
-Effect: Particle pollution reduced by 95%, maintenance cycle extended from 3 months to 8 months, and annual cost savings of approximately 1.2 million US dollars.
High purity quartz wool is not only a material, but also a guarantee for your high-temperature process stability and efficiency. From raw material purity to final molding, we focus on every detail to ensure that our products perform excellently under extreme conditions.
If you need sample testing, technical consultation, or customized pricing, please feel free to contact us at any time. Our engineering team will provide you with targeted advice within 24 hours and can arrange free sample testing according to your specific needs.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
5. About 20 years of professional experience
-Focusing on the manufacturing of quartz products for a quarter century
-The average working experience of the technical team exceeds 10 years
6.Global Service Network
-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East
-Multi language technical support (English, German, French, Spanish, Russian, Japanese)
