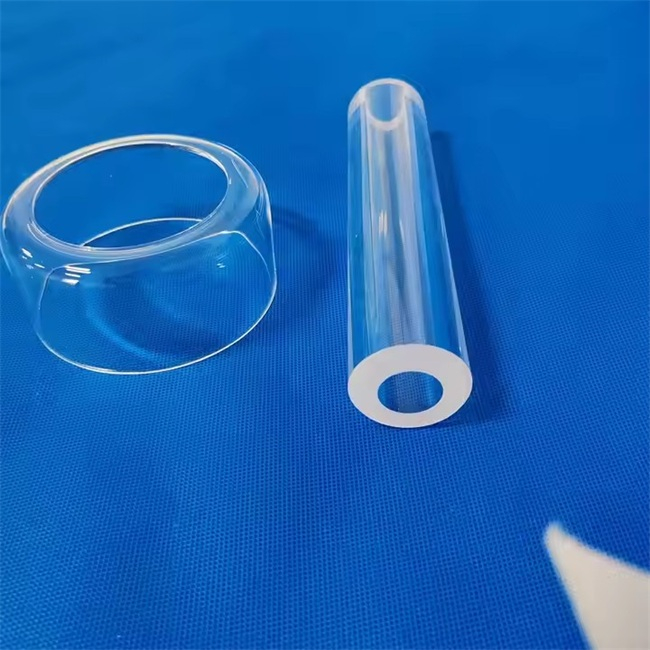

Wall thickness 0.5-5mm quartz tube
The quartz tube with a wall thickness of 0.5-5mm is made of high-purity fused silica by continuous melting or electric melting process.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
User core needs and solutions
Q: Are you looking for a material that can withstand high temperatures and has excellent chemical stability?
A: Our customized quartz tube has a wall thickness coverage of 0.5-5mm and is made of high-purity quartz sand. It can work for a long time at a high temperature of 1200 ℃ and can withstand temperatures up to 1450 ℃ in a short time. It also has strong corrosion resistance and is suitable for extreme chemical environments.
Q: Have you experienced any impact on product performance due to uneven wall thickness or insufficient purity of the pipes?
A: We achieve a wall thickness tolerance of ± 0.05mm and a purity of over 99.99% through precise control processes, ensuring consistent thermal stability and transparency, and reducing performance fluctuations in production.
Q: Do you need flexible customization of sizes to match specific devices or applications?
A: We support comprehensive customization with an outer diameter of 2-300mm and a length of 500-3000mm, and can provide secondary processing such as sealing, bending, polishing, etc. to meet the special needs of industries such as semiconductors, photovoltaics, and optics.
The quartz tube with a wall thickness of 0.5-5mm is made of high-purity fused silica by continuous melting or electric melting process. It has low thermal expansion coefficient, high ultraviolet transmittance, excellent electrical insulation and thermal shock resistance. The product is suitable for industrial and scientific research fields that require strict requirements for material purity, thermal stability, and dimensional accuracy.
Key parameters and specifications
-Wall thickness range: 0.5mm, 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm (supports customization of intermediate thickness)
-Outer diameter range: 2mm to 300mm
-Length customization: up to 3000mm in length (can be connected in sections)
-Purity grade: 99.99% or above (SiO ₂ content)
-Thermal performance: softening point of about 1730 ℃, long-term use temperature of 1200 ℃
-Transmittance performance: Excellent transmittance in both ultraviolet and infrared bands (especially in the ultraviolet region)
Product advantages
-High precision control: Wall thickness tolerance ± 0.05mm, concentricity>95%, avoiding stress rupture caused by uneven thickness
-Chemical inertness: resistant to most acids and solvents except hydrofluoric acid and hot phosphoric acid, with extremely low metal ion precipitation rate
-Strong thermal stability: The coefficient of thermal expansion is only 5.5 × 10 ⁻⁷/℃, and it can withstand rapid temperature changes (from 1000 ℃ to room temperature without cracking)
-Flexible customization: supports OD/ID/wall non-standard design, and can perform flame polishing, CNC cutting, metallization coating and other treatments
Application field
-Semiconductor industry: diffusion tubes, oxidation tubes, CVD reactor liners
-Photovoltaic industry: protective sleeves for polycrystalline silicon ingot furnaces, photovoltaic glass processing furnace tubes
-Optics and Lighting: UV tube, halogen lamp housing, laser cavity
-Laboratory equipment: High temperature tube furnace liner, analytical instrument sample tube, distillation purification device
-Chemical environmental protection: corrosion-resistant observation window, exhaust gas treatment system components
Customized service process
1. Requirement analysis: The customer provides usage temperature, pressure, medium environment, dimensional drawings, etc
2. Scheme design: Engineer recommends wall thickness and material combination (optional transparent/opaque quartz)
3. Sample confirmation: Provide small batch trial samples for performance verification
4. Batch production: using automatic control tube pulling equipment to ensure batch consistency
5. Testing and delivery: Each batch of products is accompanied by a testing report (size, purity, bubble degree, etc.)
Why choose us?
-20 years of foreign trade experience: products exported to 35 countries including Germany, the United States, Japan, South Korea, etc
-Technical Support Team: Provide application matching suggestions and installation and usage guidance
-Flexible production capacity: capable of handling both large orders (with a monthly production capacity of 50 tons) and small-scale research and development needs
Customer Application Case (Anonymous)
-Case A: The quartz tube originally used by a German photovoltaic equipment manufacturer had a rupture rate of up to 12% during rapid heating. We have customized a quartz tube with a wall thickness of 3.5mm and gradient annealing treatment, reducing the rupture rate to below 0.5% and saving approximately 80000 euros in replacement costs annually.
-Case B: A semiconductor laboratory in the United States requires quartz tubes for MOCVD reactions, which require ultra smooth inner walls (Ra<0.2 μ m) to reduce sediment adhesion. We achieved an inner wall Ra of 0.15 μ m through a special polishing process, which improved its deposition uniformity by 23%.
-Case C: A Japanese optical company requires UV transparent quartz tubes for sterilization lamps, but requires a 254nm UV transmittance of>90%. We provide UV grade quartz tubes with OH content<5ppm, with a 254nm transmittance of 92.5%, exceeding the customer's expected standard.
Whether it's special specification requirements during the R&D phase or stable supply during mass production, our 0.5-5mm thick quartz tubes can provide you with material solutions. If you need a customized quotation or technical consultation, please feel free to provide your parameter requirements, and our engineers will match you with the best solution within 24 hours. Global shipping support, looking forward to becoming your reliable quartz material partner.
Luverre Quartz is a manufacturer specializing in quartz tubes and other quartz items.We have over 18 years experience with the production of quartz tubes, we will be your reliable partner on quartz tubes and other quartz items.
Luverre Quartz can manufacture customized quartz tubes in various shapes, such as spiral, square, round, with processing including cutting, bending, welding, etc., and available in different colors, such as transparent quartz tubes, opaque quartz tubes, milky white quartz tubes, red quartz tubes, and so on.
