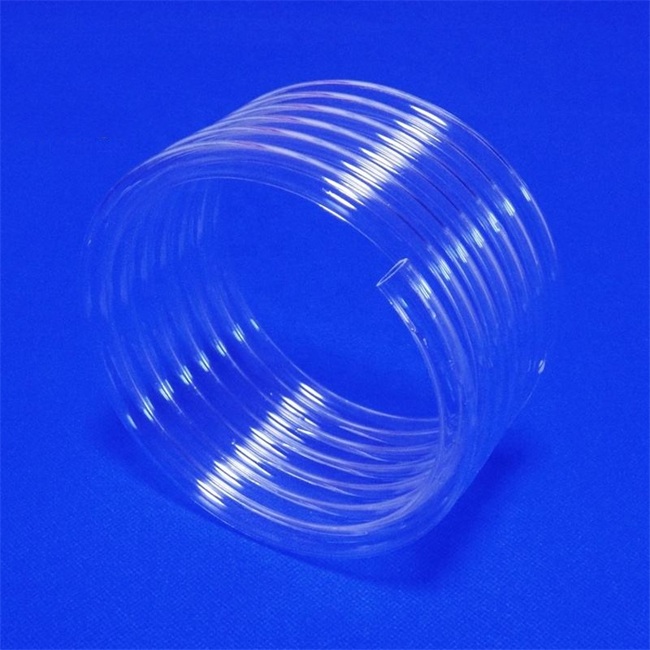

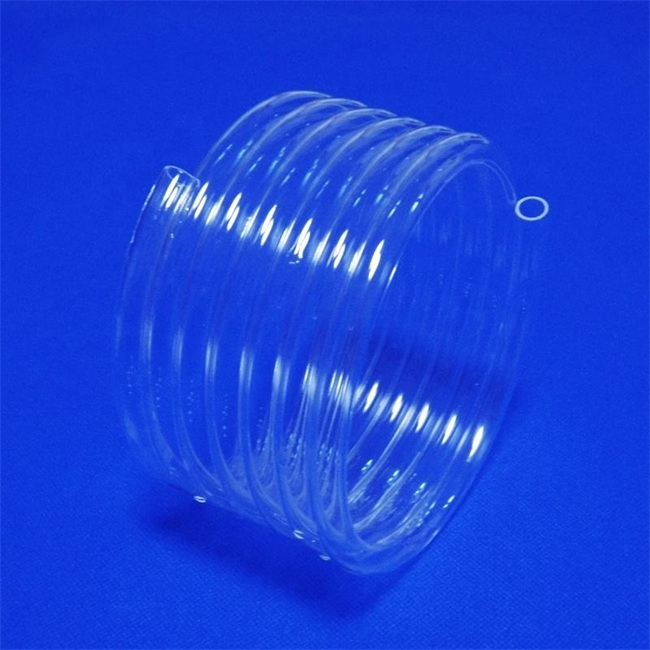

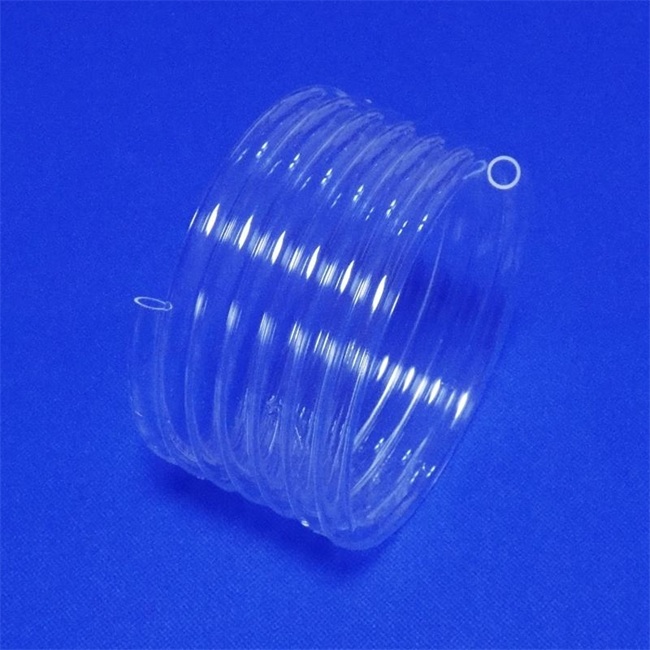

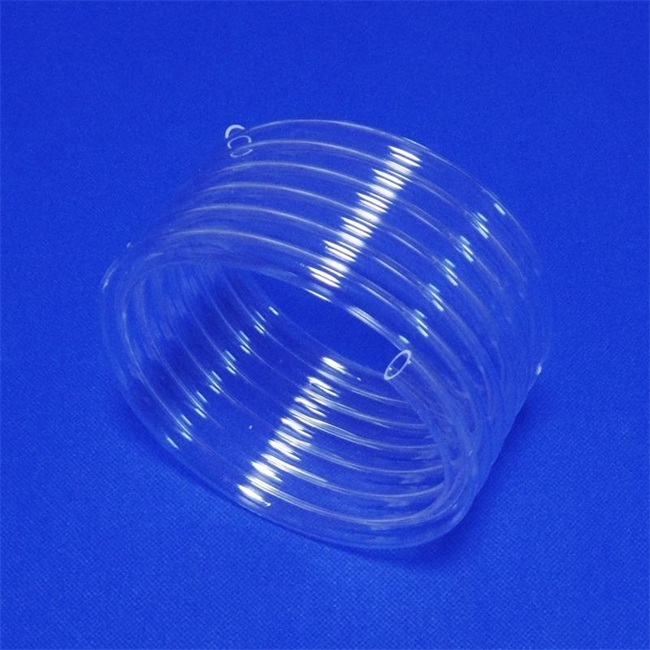

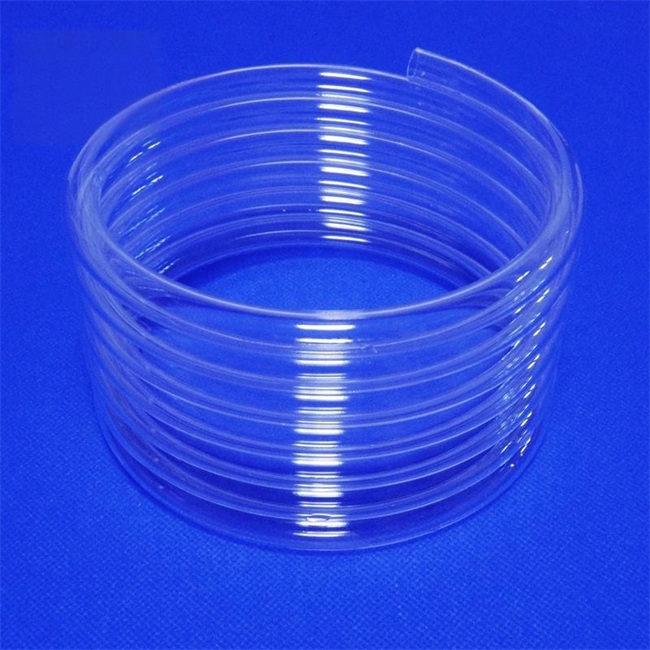

200mm transparent quartz spiral tube
The 200mm transparent quartz spiral tube is a special pipeline made from high-purity natural quartz sand, using high-temperature melting and precision molding processes.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
200mm transparent quartz spiral tube
What can quartz spiral tube solve for your project?
Q: In high temperature or corrosive environments, ordinary glass tubes are prone to breakage or deformation. How can we find more reliable alternative materials?
Answer: The 200mm transparent quartz spiral tube is made of high-purity quartz material and can withstand high temperatures above 1200 ℃ and sudden cooling and heating impacts, fundamentally solving the problem of insufficient thermal stability.
Q: Which material is most suitable for observing or conducting light through tubes with high optical transparency while maintaining chemical inertness?
Answer: This quartz spiral tube has a light transmittance of over 93% and excellent corrosion resistance to most acids and alkalis, perfectly meeting the dual requirements of visualization and corrosion resistance in industries such as chemical and semiconductor.
Q: It is difficult to purchase tubes with non-standard sizes or special shapes. How can we quickly obtain customized solutions?
Answer: We provide comprehensive customized services from diameter, wall thickness, spiral angle to connection method, supporting small batch trial production to large-scale production, shortening your R&D and procurement cycle.
Product Overview
The 200mm transparent quartz spiral tube is a special tubeline made from high-purity natural quartz sand, using high-temperature melting and precision molding processes. Its unique spiral structure design maximizes the expansion of heat exchange area in a limited space while maintaining the inherent excellent performance of quartz material.
Key performance parameters
-Purity grade: SiO ₂ content ≥ 99.99%
-Working temperature: Long term use ≤ 1150 ℃, short-term tolerance ≥ 1200 ℃
-Thermal expansion coefficient: 5.5 × 10 ⁻⁷/℃ (20-1000 ℃), about 1/15 of ordinary glass
-Transmittance characteristics: Excellent transmittance in the ultraviolet to infrared wavelength range (170nm-2500nm)
-Mechanical strength: compressive strength ≥ 800 MPa, flexural strength ≥ 70 MPa
-Chemical stability: resistant to almost all acid corrosion except hydrofluoric acid and hot phosphoric acid
Advantages of Spiral Structure Design
1. Space efficiency: Under the same projected area, the effective heat/mass transfer area increases by 40-70%
2. Stress distribution: The spiral shape naturally disperses thermal stress, reducing the common end stress concentration in straight tubes
3. Fluid dynamics: promoting the transition of laminar flow to turbulence, enhancing mixing and heat transfer efficiency
4. Easy installation: reduces connection points, lowers leakage risks, and facilitates system integration
Main application areas
Semiconductor manufacturing industry: heat treatment tubelines for diffusion furnaces, CVD reaction chambers, and gas transportation with high purity requirements
Photovoltaic industry: observation windows and connecting components for polycrystalline silicon production and crystal growth furnaces
Chemical and Pharmaceutical: Reaction, Distillation, and Condensation Processes of Highly Corrosive Media, Visual Monitoring of tubelines
Research instruments: customized components for spectral analysis equipment and high-temperature reaction devices
Lighting industry: protective covers for special lighting fixtures, heat dissipation structures for high-power lighting equipment
New Energy Research: Experimental and Production Systems for Fuel Cells and High Temperature Electrolytic Cells
Customized service scope
We provide comprehensive customized solutions:
-Size customization: diameter range of 80-500mm, length can be cut as needed, spiral angle adjustable from 15-60 °
-Wall thickness selection: Standard wall thickness of 1.5-6.0mm, can be increased to 10mm for special applications
-Connection methods: various sealing schemes such as flange connection, grinding joint docking, expansion joint connection, etc
-Surface treatment: flame polishing, matte treatment, specific area sanding, etc
-Attachment integration: Integrated design of temperature sensor mounting base, observation window, sampling port, etc
Our core strengths
Material control: Our own raw material purification production line ensures consistency between batches, with heavy metal impurity content<5ppm
Process expertise: Mastering core processes such as continuous melting and vacuum forming, with industry-leading yield rates
Testing system: Each batch of products undergoes spectral analysis, high-temperature fatigue testing, and pressure cycling testing
Technical cooperation: Provide application consulting and design optimization, and jointly develop solutions with clients
Global Logistics: Supporting DDP/DAP delivery to major ports worldwide through professional shock-absorbing packaging
Typical customer application cases
1. European semiconductor equipment manufacturer: Preheating tubes for new atomic layer deposition (ALD) equipment. After replacing the original stainless steel tubes, particle contamination is reduced by 90% and maintenance cycles are extended by three times
2. Japanese chemical company: Upgrade and renovation of hydrochloric acid recovery system, quartz spiral tube can withstand hot hydrochloric acid environment with a concentration of 30%, and the continuous operation time of the system has been increased from 6 months to 3 years without replacement
3. American research laboratory: The core component of the concentrated solar thermal chemical cycle experimental device, which runs stably for more than 5000 hours at a cycling temperature of 1100 ℃ without significant performance degradation
4. China's leading photovoltaic enterprise: Single crystal furnace argon gas delivery system renovation project, which reduces installation time by 60% and leakage rate to 10 ⁻⁹ Pa · m ⊃3;/s level through customized flange connection design
Whether you are looking for an alternative to the standard 200mm quartz spiral tube or require fully customized special quartz components, our engineering team is ready to provide you with full process support from material selection, structural design to installation guidance.
Please inform us of your application requirements, operating parameters, and budget range. Within 24 hours, you will receive a preliminary technical proposal and sample supply plan. We believe that the correct material selection is the first line of defense for equipment reliability, and we will be your professional partner on this line of defense.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.
5. About 20 years of professional experience
-Focusing on the manufacturing of quartz products for a quarter century
-The average working experience of the technical team exceeds 15 years
6.Global Service Network
-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East
-Multi language technical support (English, German, French, Spanish, Russian, Japanese)
