Boiler liquid level monitoring quartz tube
Boiler liquid level monitoring quartz tube is a specialized equipment used to monitor boiler liquid level.
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.

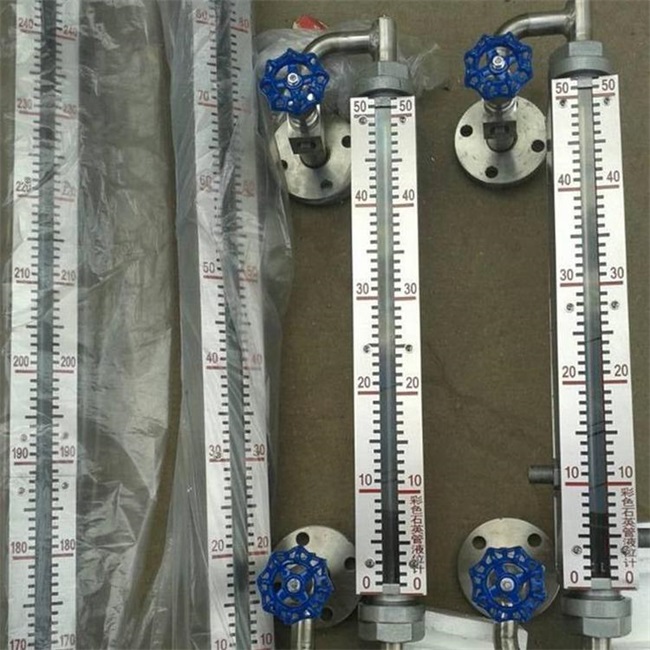

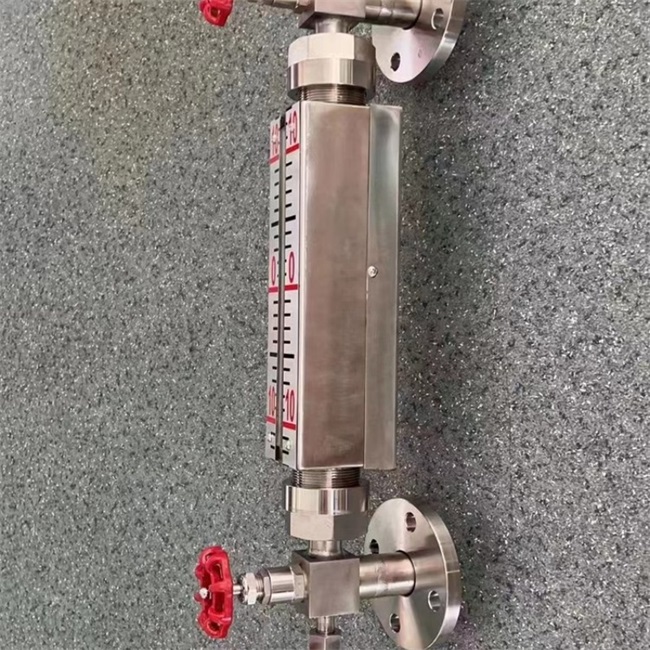

Boiler liquid level monitoring quartz tube
Boiler liquid level monitoring quartz tube is a specialized equipment used to monitor boiler liquid level. It mainly utilizes the high transparency, high temperature resistance, corrosion resistance and other characteristics of quartz glass tube to achieve intuitive display of liquid level through optical principles. Quartz tube level gauges typically consist of high-purity quartz glass tubes (99.99% SiO ₂), color filters, upper and lower valves, and safety protection devices. Its working principle is to use the refraction and reflection of natural light in liquid, making the liquid phase area appear green and the gas phase area appear red. The red green boundary at the interface is clear and easy to observe.
Characteristics of quartz tube level gauge:
-High temperature and high pressure resistance: The working temperature can reach -50 ℃ to 450 ℃, and the maximum working pressure can reach 10.0 MPa.
-Clear display: Red green dual color display, clear liquid level indication, even in strong light or long distance, can be clearly recognized.
-High safety: Equipped with an automatic locking device, when the quartz tube ruptures, the safety ball can automatically close the channel under pressure to prevent medium leakage.
-Easy maintenance: simple structure, easy installation and maintenance.
Application
Quartz tubes for boiler liquid level monitoring are widely used in the following fields:
-Industrial steam boiler: used to monitor the water level of the steam drum and prevent dry burning or full water accidents.
-Petrochemical industry: suitable for various transparent liquid containers, such as gasoline, liquefied gas, liquid ammonia, aromatic hydrocarbons, etc.
-Electric power industry: used to monitor the liquid level of high-pressure vessels and boilers.
-Metallurgical industry: used for liquid level monitoring in high temperature and high pressure environments.
-Special medium measurement: can measure the interface of two different media (requires customized three color interface type).
Customized description
Quartz tube level gauges can be customized according to specific user needs, including but not limited to the following aspects:
-Measurement range: The measurement range can be customized according to user needs, with a center distance ranging from 300mm to 2000mm.
-Temperature and pressure: Customizable liquid level gauges suitable for different working temperatures and pressures, with a maximum working temperature of 450 ℃ and a working pressure of 10.0 MPa.
-Flange standards: Different flange standards can be adopted according to user requirements, such as HG/T20592-2009, ANSI, DIN, etc.
-Heat tracing steam jacket: Customizable heat tracing steam jacket with a working pressure of 0.6 MPa and a pipe size of G1/2 "external thread.
-Special Material: Different liquid receiving materials can be selected according to user needs, such as 20, 304, 316 stainless steel, etc.
The quartz tube for boiler liquid level monitoring has become an important tool in industrial liquid level monitoring due to its excellent performance and flexible customization ability.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
