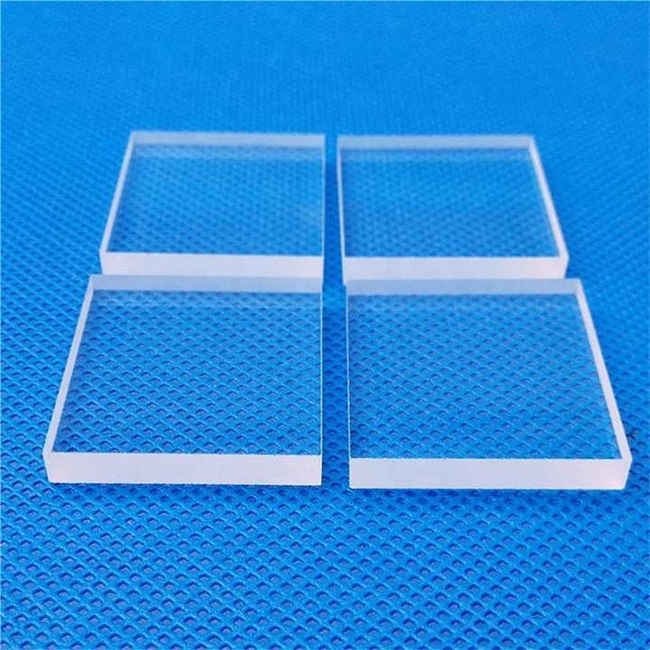

Chemical equipment lined with quartz glass panels
Quartz glass plate is a special industrial glass made of high-purity silicon dioxide (SiO ₂).
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Chemical equipment lined with quartz glass panels
Quartz glass plate is a special industrial glass made of high-purity silicon dioxide (SiO ₂).
Main features:
High temperature resistance: The softening point is as high as 1730 ℃, and it can be used for a long time at 1100 ℃~1200 ℃. The maximum temperature for short-term use can reach 1450 ℃.
Corrosion resistance: Except for hydrofluoric acid, it hardly reacts chemically with other acidic substances. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel, making it very suitable for handling highly corrosive chemicals.
Thermal stability: The coefficient of thermal expansion is extremely low (about 5.5 × 10 ⁻⁷/° C), which can withstand drastic temperature changes and is not easily broken due to thermal shock.
Transparency performance: It has excellent transparency in the entire spectral range from ultraviolet to infrared, with a visible light transmittance of over 93%.
Electrical insulation: With high resistance, it is an excellent electrical insulation material suitable for equipment that requires high insulation performance.
These characteristics make quartz glass panels an ideal material for lining chemical equipment.
Application scenarios
Quartz glass panels have been widely used in various fields due to their excellent physical and chemical properties, especially in the chemical industry where they have shown outstanding performance
Chemical equipment: used for lining equipment such as reaction vessels, storage tanks, pipelines, etc., to prevent corrosive substances from corroding the equipment and ensure long-term stable operation of the equipment.
Laboratory equipment: commonly used for manufacturing reaction vessels, test tubes, etc. in laboratories to ensure the accuracy and safety of experiments.
Environmental protection industry: In equipment for treating pollutants such as wastewater and exhaust gas, quartz glass plates can effectively resist corrosion and extend equipment life.
In the field of optics, due to its high transmittance, it is used to manufacture optical instruments (such as spectrometers, prisms) and photomask substrates.
Photovoltaic industry: used as lining material for high-purity reaction chambers or transport pipelines in equipment such as solar diffusion furnaces and PECVD tube furnaces.
Customized description
Quartz glass panels can be customized according to customer needs to adapt to different application scenarios and equipment requirements:

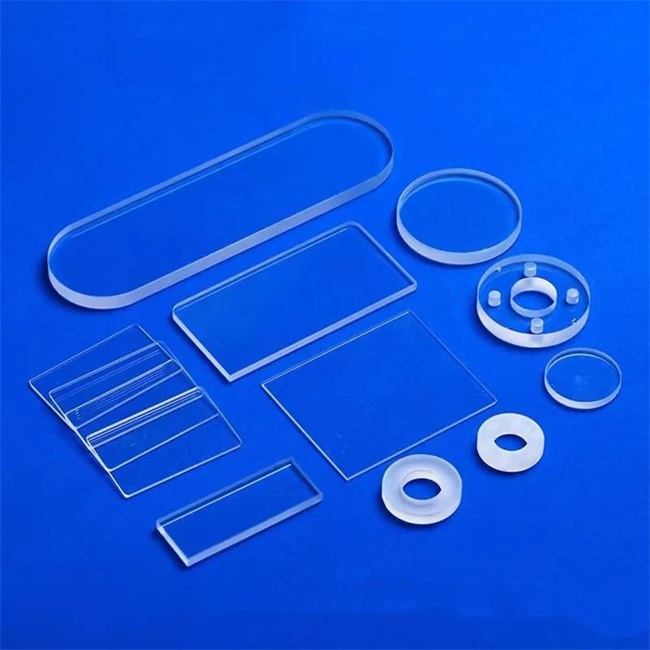

Shape and Size: Supports customization of various shapes such as circular, square, elliptical, triangular, etc. The length range is usually 1-2000mm, the outer diameter is 0.2-6mm, the inner diameter is 0.06-5mm, and the tolerance can be accurate to ± 0.03mm.
Material selection: In addition to quartz glass, other materials such as high borosilicate glass can also be selected according to demand.
Processing technology: Using processes such as wire drawing, polishing, and grinding to ensure a smooth and even surface without bubbles, meeting high-precision requirements.
Application scenario adaptation: Customize quartz glass plates with different thicknesses, apertures, and wall thicknesses according to specific applications (such as chemical, optical, photovoltaic, etc.) to adapt to high temperature, high pressure, or strong corrosive environments.
Quartz glass panels have become an important material for chemical equipment lining due to their high temperature resistance, corrosion resistance, and strong thermal stability. It has a wide range of applications, covering multiple fields such as chemical engineering, laboratory, environmental protection, optics, and photovoltaics. Meanwhile, flexible customized services can meet the personalized needs of different customers, providing more possibilities for their application in high-end industrial fields.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
