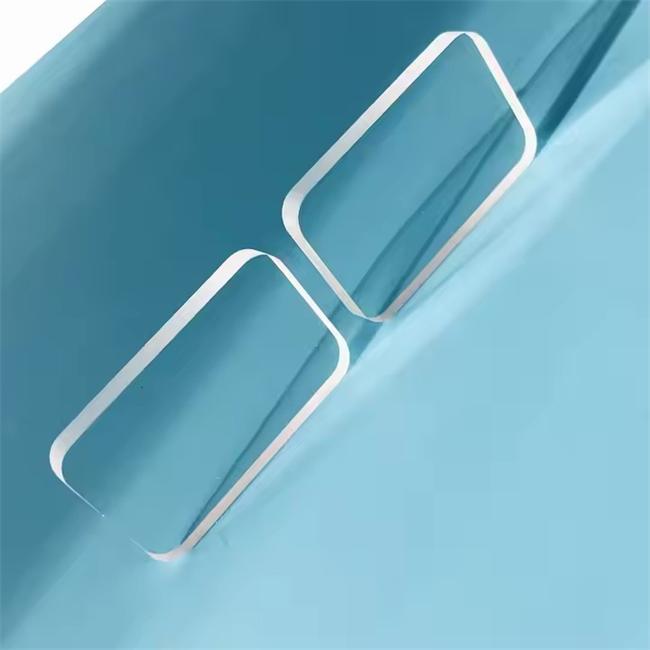

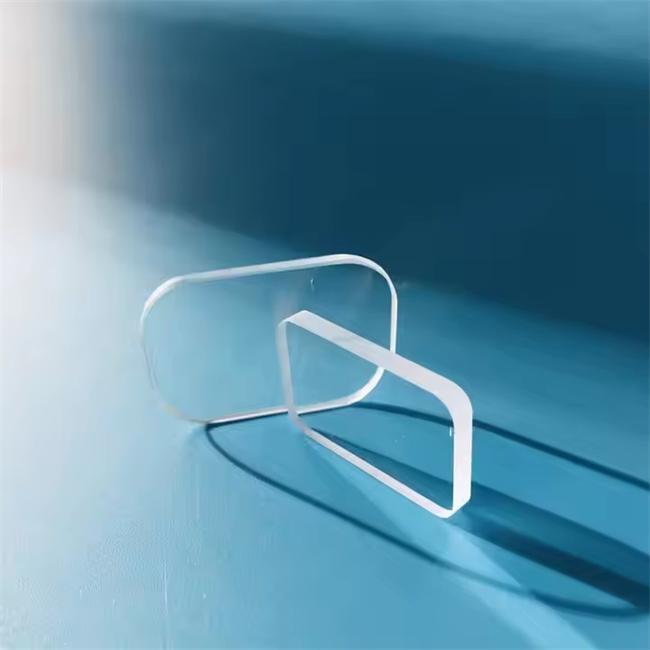

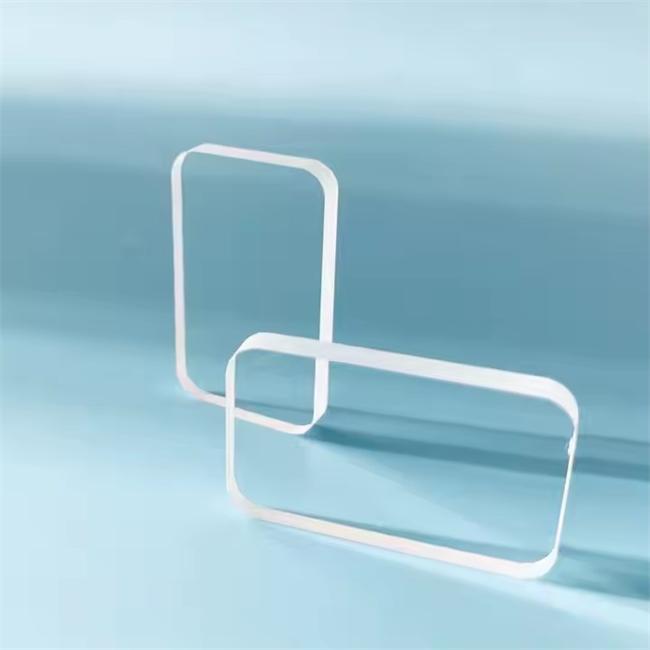

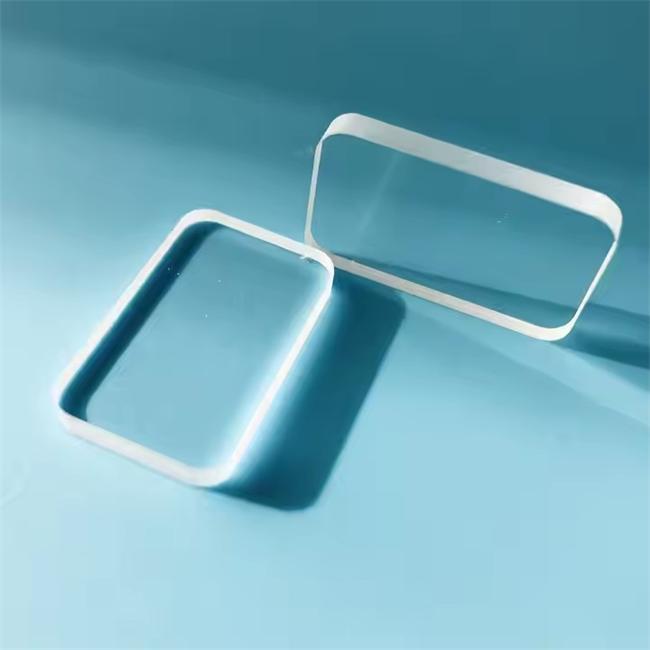

JGS2 high transmittance quartz glass is a UV grade optical glass made by high-temperature melting high-quality quartz raw materials with a hydrogen oxygen flame. It has excellent high transmittance in the ultraviolet to near-infrared (220-2500nm) band, as well as extremely low thermal expansion coefficient and excellent high temperature and corrosion resistance. As an ideal material in the field of general ultraviolet optics, JGS2 quartz sheet perfectly combines excellent optical performance with high cost-effectiveness, making it the preferred substrate for various precision optical instruments.

FAQ

Q1: What are the main differences between JGS2 quartz sheet and JGS1, JGS3?

A: The main difference lies in the transmission band and impurity content. JGS1 is suitable for deep ultraviolet (185-2500nm) with extremely high purity; JGS2 is suitable for general ultraviolet to near-infrared (220-2500nm), with high cost-effectiveness; JGS3 is specifically designed for the infrared band (260-3500nm). JGS2 is an ideal choice for most conventional ultraviolet and visible light optical applications.

Q2: What size and precision customization services can you provide?

A: We support highly flexible customized services. The diameter/size range can be from 5mm to 300mm, and the thickness supports 0.5mm to 50mm. The surface accuracy can reach λ/4 to λ/10, and the surface quality can reach 60/40 or higher. Simultaneously supporting coating requirements such as anti reflective film (AR) and reflective film, as well as deep processing such as irregular cutting, punching, and chamfering.

Q3: What is the high temperature resistance and corrosion resistance of JGS2 quartz sheet?

A: The softening point of JGS2 quartz sheet is as high as 1730 ℃, which can work stably in an environment of 1100 ℃ for a long time and has extremely strong thermal shock resistance (no explosion during rapid cooling and heating). In terms of chemical stability, except for hydrofluoric acid and hot concentrated phosphoric acid, it can withstand the corrosion of most strong acids, strong bases, and organic solvents.

Requirements and Problem Solving

For users who are looking for high stability optical substrates, JGS2 quartz sheets can perfectly solve the core problems of ordinary optical glass, such as high absorption rate in the ultraviolet band, easy deformation or explosion in high temperature environments, and lack of chemical corrosion resistance. Whether used for harsh industrial environment observation windows or precision detection equipment with extremely high requirements for optical path stability, it can provide you with excellent optical transparency and physicochemical stability, ensuring the long-term reliable operation of your equipment.

Advantages and Application Value

Excellent optical and physical performance

Wide spectrum and high transmittance: It has extremely high transmittance in the 220-2500nm wavelength range, meeting a wide range of needs from UV sterilization, spectral detection to conventional visible light imaging.

Extremely low thermal expansion coefficient: The linear expansion coefficient is only 5.5 × 10 ⁻⁷/℃ (about 1/15 of ordinary glass), ensuring that optical components maintain extremely high dimensional stability and surface accuracy even under drastic temperature changes.

High hardness and insulation: Mohs hardness up to level 7, wear-resistant; At the same time, it has extremely low dielectric loss at high frequencies and is an excellent electrical insulation material.

Wide range of application scenarios

Optical instruments and lasers: spectrometer windows, microscope slides, UV lenses, protective lenses for high-power lasers, and resonant cavity windows.

Semiconductor and Optical Communication: Wafer Inspection Window, Optical Path Alignment Substrate, Fiber Optic Connectors, Optical Communication Device Packaging.

Special light sources and medical applications: high-pressure mercury lamps, xenon lamp housings, as well as optical components for medical endoscopes and ultraviolet sterilization lamps.

Industry and Chemical Industry: High temperature reactor observation window, corrosion-resistant level gauge, aerospace sensor protective cover.

Comprehensive customized processing services

We are well aware that different application scenarios have vastly different requirements for quartz products. Therefore, we not only provide standard products, but also strive to provide customers with one-stop customized solutions:

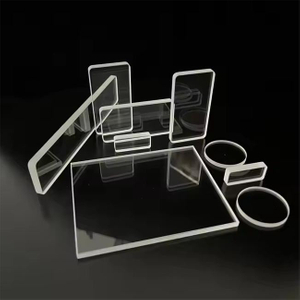

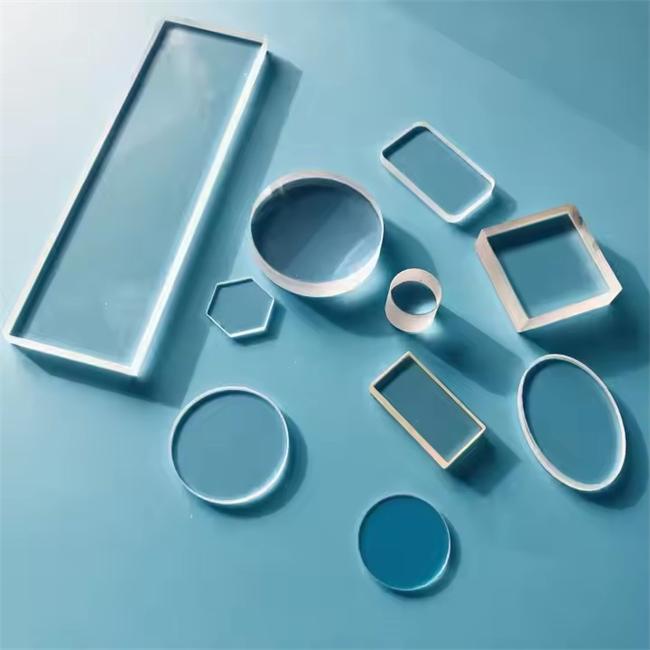

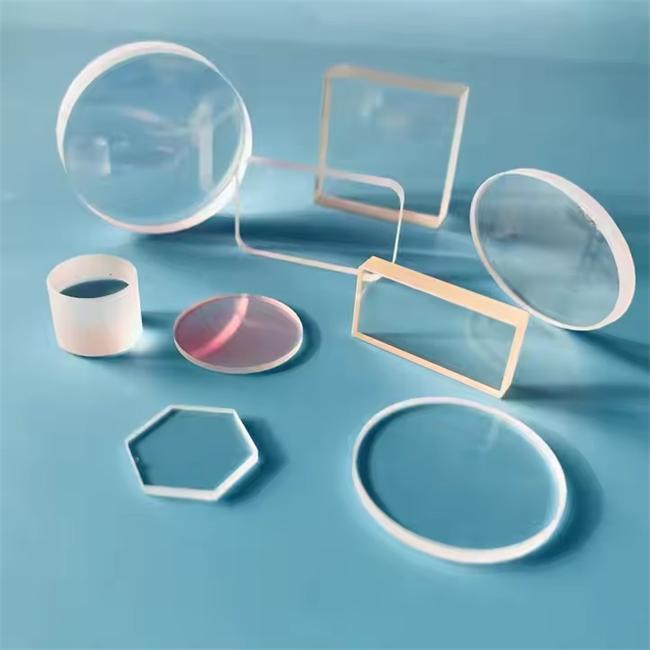

Form customization: can be processed into circular, square, rectangular window pieces, plano convex/biconvex lenses, prisms, step pieces, quartz tubes, and various shaped parts.

Process customization: Provide precision polishing, ultrasonic cleaning, laser cutting, CNC drilling, edge chamfering (straight, round, duckbill edges) and other fine processing.

Optical coating: Based on the wavelength requirements specified by the customer, we provide coating services such as anti reflective film, spectral film, reflective film, etc. to further improve the efficiency of the optical system.

Why choose us?

Source factory, controllable quality: As a professional manufacturer with over 20 years of industry experience, we have advanced imported production equipment and a professional technical team. From raw material selection to finished product delivery, every link undergoes strict quality control.

Experienced and skilled: We are familiar with the various characteristics of JGS2 materials and can provide optimal material selection and processing technology recommendations for customers' special application environments, such as ultra-high temperature, strong corrosion, and high-precision optical paths.

Global supply, efficient service: We provide stable supply to global customers, support customized drawings and samples, and have a professional customer service team that responds 24/7 to ensure that your procurement needs are quickly and accurately implemented.

Customer application case sharing

Case 1: Customized Window sheets from a Renowned Spectral Analysis Instrument Manufacturer

Customer challenge: The new portable spectrometer developed by the customer needs to work in complex outdoor temperature difference environments. The original ordinary glass window is prone to micro cracks when quickly switching from low to high temperature, and it absorbs ultraviolet light below 300nm severely, resulting in a significant decrease in detection accuracy.

Solution: We recommended a quartz window sheet made of JGS2 material and customized a circular thin sheet with a diameter of 50mm and a thickness of 2mm based on the internal structure of the instrument. By double-sided precision polishing (with a surface accuracy of λ/4), and coating with an anti reflective film in the 200-400nm wavelength range.

Application effect: After replacing the JGS2 quartz window, the instrument showed extremely stable performance in severe temperature difference tests between -20 ℃ and 60 ℃, without any risk of explosion. At the same time, the signal transmittance in the ultraviolet band has increased by more than 15%, greatly improving the detection accuracy of the equipment and its adaptability to outdoor environments.

Case 2: Align the optical path of a semiconductor equipment company with the substrate

Customer challenge: In the packaging process of optical communication devices, customers require a substrate with extremely high flatness and excellent thermal stability to secure micro lenses and optical fibers. Although the original ceramic substrate is heat-resistant, its processing accuracy is difficult to reach the micrometer level, and it is not conducive to real-time alignment observation of the optical path.

Solution: We have utilized the excellent processing performance and low expansion characteristics of JGS2 quartz glass to process a batch of optical substrates (step sheets) with micrometer level steps and positioning grooves for our customers. The surface has undergone ultra precision polishing, ensuring extremely high flatness and cleanliness.

Application effectiveness: JGS2 quartz substrate perfectly solves the problem of multi optical path coupling alignment for customers. Its high transparency allows engineers to directly observe the bottom light path through the substrate, and the micrometer level processing accuracy ensures assembly consistency, greatly improving the integration efficiency and product yield of customer production lines.

If you have customized needs for JGS2 high transparency quartz sheets or other quartz products, please feel free to contact us at any time! Whether it's purchasing standard specifications or processing complex shaped parts based on drawings, we will wholeheartedly provide you with the most professional solutions and quotations.

Luverre Quartz is a manufacturer focusing on producing various quartz plates, we can produce customized quartz plates in different sizes and shapes, such as square, round, oval and other special shaped designs according to customer's requirements. The processing includes cutting, bending, welding, etc., and there are different colors available, such as transparent quartz plates, opaque quartz plates, milky quartz plates and so on.
