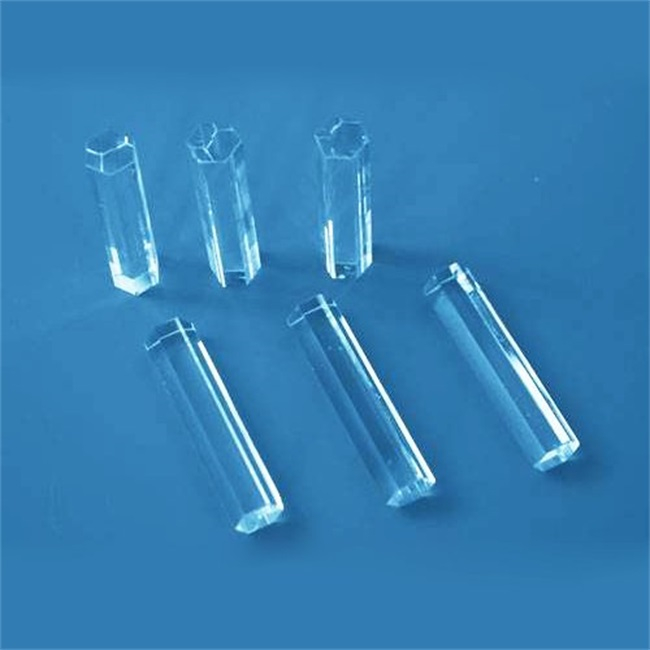

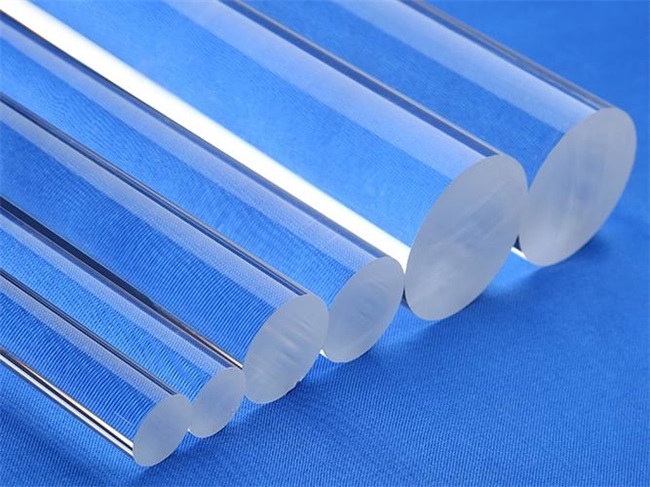

High temperature furnace support quartz rod
High temperature furnace support quartz rod is a precision component made of high-purity quartz material, which is widely used in multiple fields due to its excellent physical and chemical properties.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
High temperature furnace support quartz rod
High temperature furnace support quartz rod is a precision component made of high-purity quartz material, which is widely used in multiple fields due to its excellent physical and chemical properties.
High temperature furnace support quartz rod is a material made of high-purity quartz sand processed by special technology.
Main features
High temperature resistance: Its softening point temperature is about 1730 ℃, and it can be used for a long time at 1100 ℃, with a short-term use temperature of up to 1450 ℃.
Chemical stability: Except for hydrofluoric acid, it hardly reacts chemically with other acidic substances and has extremely strong corrosion resistance.
Thermal stability: With an extremely low coefficient of thermal expansion, it can withstand drastic temperature changes and will not rupture even when rapidly cooled from high temperature to room temperature.
Electrical insulation: With high resistance, it is an excellent electrical insulation material that can maintain good insulation performance even at high temperatures.
Transparency: Excellent transparency in the spectral range from ultraviolet to infrared, with a visible light transmittance of over 93%.
These characteristics make quartz rods an ideal material for high-temperature furnace supports.
Application
High temperature furnace support quartz rods are widely used in multiple fields, including:
Industrial manufacturing:
Semiconductor manufacturing: As a supporting structure for reaction chambers, it can withstand chemical reactions at high temperatures.
Fiber optic communication: used to manufacture fiber optic preforms, further pulled into quartz optical fibers, and is a key material for information transmission.
Production of solar panels: as components of high-temperature furnaces or other high-temperature equipment.
Laboratory research:
Container substitutes for high temperature or corrosive experiments, such as test tubes, beakers, etc.
As an optical component in spectral analysis and optical experiments.
Electronic industry:
Produce bases and insulators for electronic components, as well as electronic devices such as sensors and oscillators.
Other fields:
Manufacturing of precision instruments such as high-performance optical fibers, gratings, high-temperature furnace tubes, and electrode rods.
Customized description
High temperature furnace support quartz rods can be customized according to customer needs to meet specific requirements for different application scenarios. The following are the main aspects of customization:
Material selection:
Using high-purity quartz sand as raw material ensures that the product has excellent physical and chemical properties.
You can choose between fused quartz glass rods or air refined quartz glass rods, and adjust the purity and properties of the material according to its purpose.
Size and shape:
The diameter can be customized to 50mm, and the length can be adjusted according to the requirements to meet the specifications of different high-temperature furnaces.
The shape can be designed according to the purpose of the support, such as cylindrical, hollow rod, etc.
Processing technology:
Adopting advanced melting, injection molding, and sintering processes to ensure the surface smoothness and dimensional accuracy of the quartz rod.
Strictly control stress during the processing to avoid cracking and deformation.
Performance testing:
Conduct performance tests on customized products, including high temperature resistance, chemical stability, and electrical resistivity, to ensure that they meet the requirements for use in high-temperature furnaces.
High temperature furnace support quartz rods play an important role in various fields such as industrial manufacturing, laboratory research, and the electronics industry due to their excellent high temperature resistance, chemical stability, thermal stability, and electrical insulation. Its customized services can provide diversified specifications and performance choices according to customer needs, thus meeting the strict requirements of different application scenarios.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
