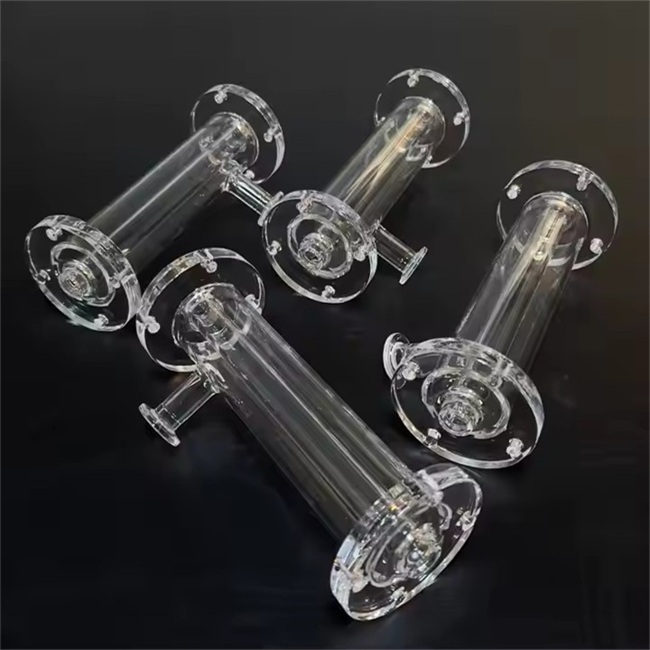

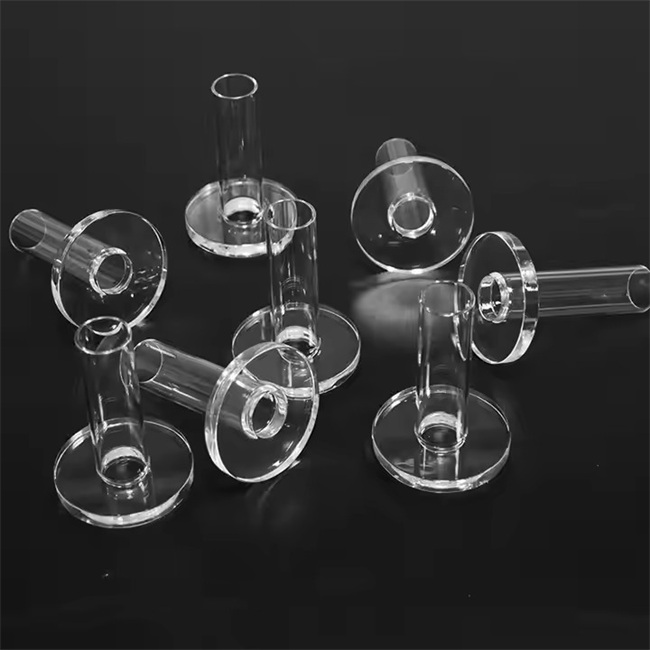

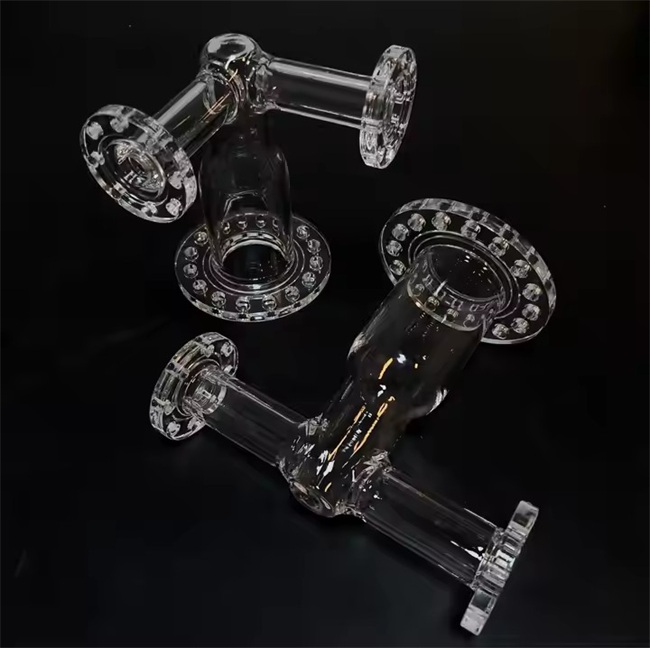

High-temperature resistant transparent flange quartz tube
High temperature resistant transparent flange quartz tube is a high-performance material designed specifically for extreme environments, widely used in semiconductor, chemical, medical, and scientific research fields.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
High temperature resistant transparent flange quartz tube is a high-performance material designed specifically for extreme environments, widely used in semiconductor, chemical, medical, and scientific research fields. This product is known for its excellent high temperature resistance, excellent optical transparency, and strong chemical stability. This introduction will delve into its characteristics, application areas, manufacturing processes, and its importance in modern industry.
Main characteristics
1. High temperature resistance: Quartz glass has a very high softening point (about 1730 ° C), which can maintain structural stability and dimensional accuracy at extremely high temperatures.
2. High transmittance: Transparent quartz tubes provide excellent optical transmittance, especially in the ultraviolet to near-infrared wavelength range, making them an ideal choice for optical equipment.
3. Chemical stability: Quartz materials have excellent resistance to most acids and bases, and are almost unaffected by other chemical substances except hydrofluoric acid and hot phosphoric acid.
4. Mechanical strength: Although quartz is relatively brittle, it has good tensile strength and elastic modulus, ensuring durability during use.
5. Customization options: Parameters such as length, diameter, wall thickness, and flange type can be adjusted according to specific customer needs to meet the requirements of different application scenarios.
Technical Parameter
Material purity: ≥ 99.99% SiO ₂
Long term temperature resistance: ≤ 1200 ℃
Short term peak temperature resistance: ≤ 1450 ℃ (within 30 minutes)
Transmittance: ≥ 92% (visible light band)
Thermal expansion coefficient: 5.5 × 10 ⁻⁷/℃ (20-1000 ℃)
Flange standards: ISO, DIN, ANSI, etc. (can be customized non-standard)
Size range: diameter: 10-500mm; Length: 50-3000mm
Pressure rating: Vacuum to 10MPa (depending on wall thickness and flange design)
Surface roughness: Ra ≤ 0.4 μ m (optical grade polishing optional)
Application area
-Semiconductor manufacturing: used in key equipment such as crystal growth furnaces and diffusion furnaces as gas or liquid transport pipelines.
-The chemical industry plays an important role in reactors, coolers, and heating devices that require corrosion resistance and high temperature conditions.
-Medical technology: Suitable for various medical instruments such as endoscopes, laser therapy equipment, etc., it is favored for its biocompatibility and transparency.
-Scientific research: It is an indispensable tool for laboratory research on high-temperature physical and chemical processes, especially suitable for spectral analysis and heat treatment experiments.
High temperature resistant transparent flange quartz tubes have demonstrated irreplaceable value in numerous high-tech fields due to their unique physical and chemical properties. If needed, please feel free to contact us at any time.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
