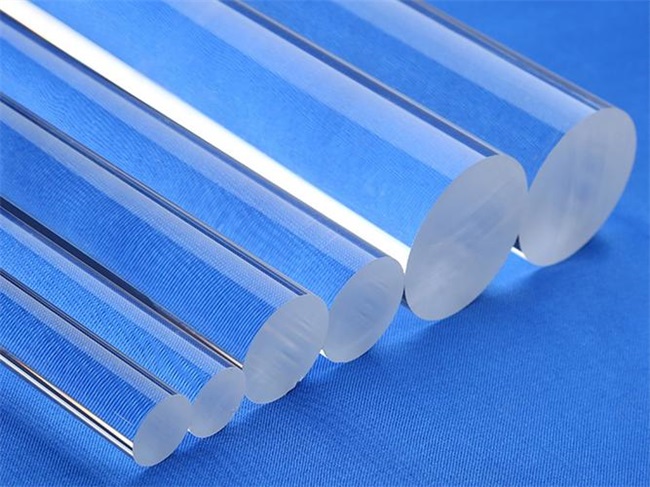

Optical fiber brushed support quartz rod
Optical fiber brushed support quartz rod is a key support material used in the fiber drawing process.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement

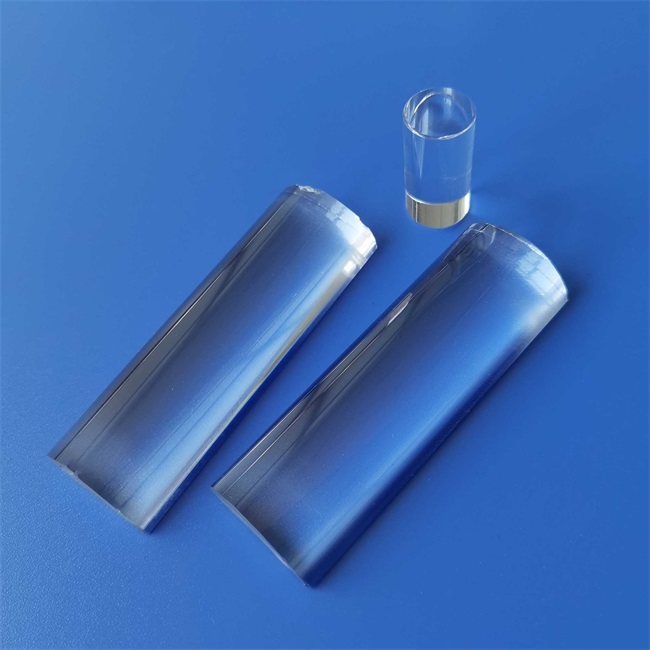

Optical fiber brushed support quartz rod
Optical fiber brushed support quartz rod is a key support material used in the fiber drawing process. It plays an important role in the fiber manufacturing process due to its high purity, high temperature resistance and chemical stability.
Optical fiber brushed support quartz rod is a kind of material made of high purity quartz sand.
Main features
High temperature resistance: The softening point temperature is about 1730 ° C, which can be used for a long time at 1100 ° C, and the short-term use temperature can reach 1450 ° C.
Chemical stability: Except for hydrofluoric acid, it hardly reacts chemically with other acids, and has excellent corrosion resistance.
Thermal stability: The coefficient of thermal expansion is extremely low, capable of withstanding severe temperature changes, even if it is rapidly cooled from high temperature to normal temperature without cracking.
Electrical insulation: with a high resistance value, it is an excellent electrical insulating material and can still maintain good insulation properties at high temperatures.
Transmittance: Excellent light transmission in the ultraviolet to infrared spectral range, with a visible light transmittance of over 93%.
These characteristics make quartz rods an indispensable support material in the fiber drawing process.
Application
Optical fiber drawing support quartz rods are mainly used for support and positioning in the optical fiber drawing process. Specific applications include:
Optical fiber preform wire drawing:
As a support in the fiber drawing tower, it is used to fix and Aligned Bundle preforms to ensure that they remain stable during high temperature drawing.
In a wire drawing furnace, quartz rods can withstand high temperatures and maintain a stable shape, providing support for uniform drawing of optical fibers.
Auxiliary materials in optical fiber manufacturing:
It is used for the head pipe, tail pipe, gripping rod and other supporting parts in the deposition process of optical fiber preform.
During the fiber drawing process, as a part of the clamping device, the heating uniformity of the fiber preform is ensured.
Other industrial fields:
In optical fiber communication, light sensing, and laser technology, it serves as a key support material to ensure the stability and reliability of equipment.
Custom description
Fiber drawing support quartz rods can be customized according to customer needs to meet the requirements of different fiber drawing processes. Customization content includes:
1. Material selection
You can choose continuous fused quartz glass rod or gas-smelted quartz glass rod to adjust the purity and performance of the material according to the application.
Materials need to be of high purity (over 99% silica content) to ensure stability in high temperatures and chemical environments.
2. Size and shape
Diameter: can be customized to 50mm, according to the specifications of the drawing tower to choose the appropriate size.
Length: Adjust according to the length requirements of the optical fiber preform to ensure the compatibility of the support.
Shape: Can be designed as cylindrical, hollow rod or other special shapes to adapt to different support requirements.
3. Processing technology
Using advanced melting, grouting and sintering processes to ensure the surface finish and dimensional accuracy of quartz rods.
During the machining process, stress is strictly controlled to avoid cracking and deformation.
4. Performance testing
Customized products are tested for high temperature resistance, chemical stability, resistivity, and other properties to ensure that they meet the requirements of fiber drawing processes.
Test items include mechanical strength at high temperatures, corrosion resistance, and stability of optical properties.
Optical fiber brushed support quartz rods play an important role in the fiber drawing process due to their excellent high temperature resistance, chemical stability, thermal stability and electrical insulation. Its customized service can provide a variety of specifications and performance options according to customer needs, so as to meet the strict requirements of different application scenarios.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
