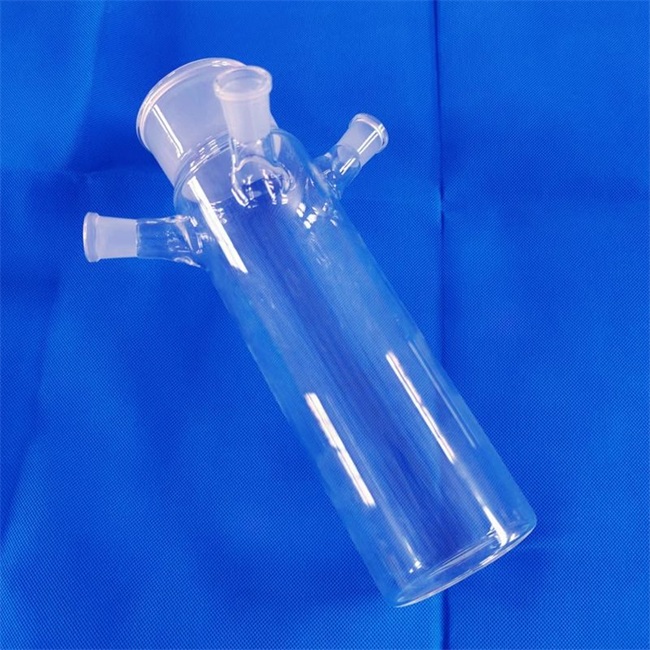

Three necked quartz flask

What does it solve for you?

Q: I need an experimental container that can perform multiple operations simultaneously and withstand high temperatures. What are the recommendations?

Answer: The three necked quartz flask provides three standard interfaces and supports simultaneous connection of thermometers, stirrers, drip funnels, and other devices to achieve synchronous multi-step reactions, significantly improving experimental efficiency.

Q: My experiment involves strong acid, high temperature, or precision synthesis, with extremely high requirements for material purity and stability. How should I choose?

Answer: High purity quartz material (SiO ₂ ≥ 99.99%) has excellent corrosion resistance, low thermal expansion coefficient, and excellent thermal stability, and can withstand extreme environments from -100 ℃ to 1250 ℃, ensuring accurate and reliable experimental data.

Q: We have different production scales and need to flexibly customize flasks with different specifications and interfaces. Do you have a professional supplier?

Answer: We support full-size customization (50ml to 50L), with adjustable interface types (grinding specifications, angles), bottle thickness, and special functional designs (such as scale lines and reinforcement ribs), fully matching your process requirements.

Product Overview

The three necked quartz flask is a core container in the fields of chemical synthesis, material preparation, drug research and development, and high-end analysis. Its unique three neck design allows users to integrate multiple operations in the same closed system, reducing transfer steps and pollution risks, making it particularly suitable for reaction processes that require precise temperature control, continuous stirring, or inert atmosphere protection.

Key features and advantages

-Excellent material performance

Using the arc method to melt high-purity quartz sand, it has:

-High thermal stability: softening point up to 1730 ℃, long-term use temperature up to 1100 ℃.

-Corrosion resistance: resistant to all common acids and organic solvents except hydrofluoric acid.

-Low precipitation risk: Extremely low metal ion precipitation (total impurity content<50ppm), ensuring sample purity.

-Transparent and Visible: High transparency in the ultraviolet to infrared wavelength range, making it easy to observe the reaction process.

-Precise structural design

-Standard grinding interface (ISO/KF or customized specifications): ensures airtightness and reduces the risk of leakage.

-Uniform wall thickness (± 0.2mm tolerance): Avoid rupture caused by local stress.

-Smooth transition design with round bottom: Optimize fluid dynamics and enhance stirring efficiency.

Specifications and Customization Services

We provide comprehensive customized production to ensure that our products are fully compatible with your equipment and processes

Capacity: 50ml, 100ml, 250ml, 500ml, 1L, 2L, 5L, 10L, 20L, 50L (supports non-standard sizes)

Interface specifications: Grinding standards: 10/19, 14/23, 19/26, 24/29, etc; Customizable thread and flange interfaces

Interface angle: Vertical, tilt 15 °/30 °/45 ° (to meet special assembly requirements)

Special treatment: inner wall polishing, outer wall sanding, scale etching, welding of side pipes or windows

Typical application scenarios

-Pharmaceutical industry: intermediate synthesis, crystallization process monitoring, high-pressure reaction system.

-New material research and development: hydrothermal synthesis of nanomaterials, preparation of semiconductor precursors, deposition of photovoltaic materials.

-Universities and research institutions: catalytic reaction research, high-temperature gas phase analysis, precision analysis sample pretreatment.

-Chemical production: pilot and large-scale production of small batches of high value-added chemicals.

Customer Application Case (Anonymous)

-A certain photocatalytic laboratory in Europe: customized 5L three necked flask with special inner coating for visible light driven water splitting experiments. The product's UV resistance is improved by three times, helping customers publish papers in ACS core journals.

-American specialty chemical company: Bulk purchase of 2L graduated flasks for high-temperature fluorination reaction production, with an annual purchase volume of over 800 pieces and a product damage rate of less than 0.1%.

-Japanese electronic materials company: Cooperate to develop a 10L ultra large capacity flask to meet the synthesis needs of high-purity silicon precursors, with a purity index of 99.99% (5N level).

Whether it's cutting-edge research and development or large-scale production, the reliability and flexibility of the three necked quartz flask will be the key support for your process upgrade. Contact us immediately for samples or customized solutions - let us provide solid support for your innovation journey with professional quartz technology.

Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.

For more information, please feel free to contact us.

Why choose us?

1.We are more experienced.

We have over 19 years production experience of quartz items.

2.We are more efficient.

We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.

3.Our quality is more guaranteed.

We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.

4.We are able to produce more difficult quartz products.

We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.

5. About 20 years of professional experience

-Focusing on the manufacturing of quartz products for a quarter century

-The average working experience of the technical team exceeds 15 years

6.Global Service Network

-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East

-Multi language technical support (English, German, French, Spanish, Russian, Japanese)
