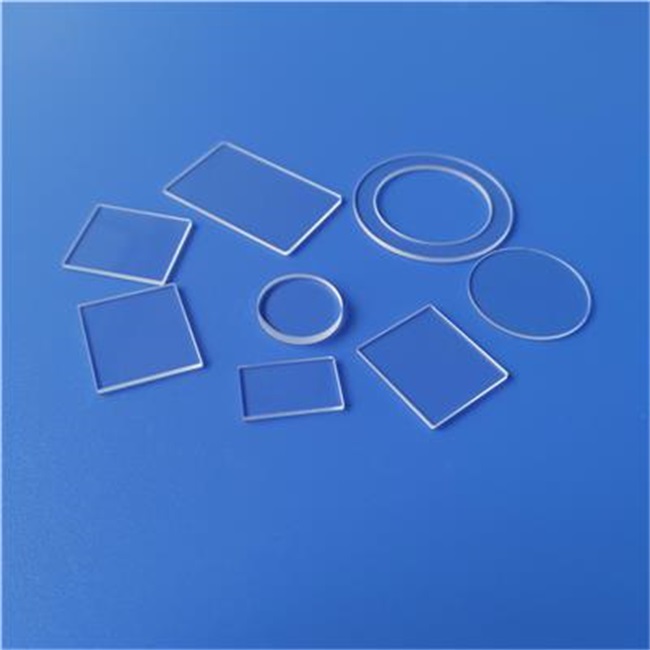

Transparent square quartz sheet with diameter of 50-70mm
The transparent square quartz sheet with a diameter of 50-70mm is a special industrial material composed of high-purity silicon dioxide (SiO _ 2), which is made by fine processing such as melting, cutting and polishing.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement

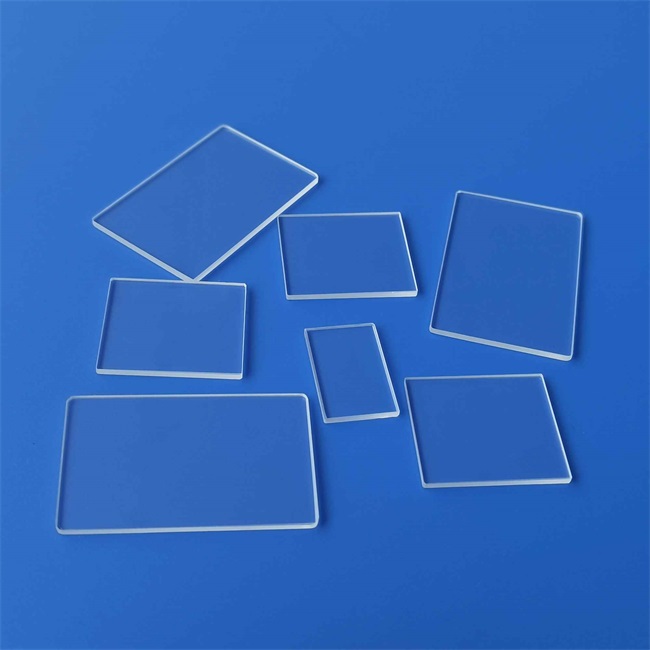

Transparent square quartz sheet with diameter of 50-70mm
The transparent square quartz sheet with a diameter of 50-70mm is a special industrial material composed of high-purity silicon dioxide (SiO _ 2), which is made by fine processing such as melting, cutting and polishing.
Main features:
High light transmittance:
Quartz sheets have excellent light transmission properties in the ultraviolet, visible and infrared wavelengths, with a visible light transmittance of over 85%, making them suitable for use in optical instruments and optical communication equipment.
High temperature resistance:
The softening point temperature of quartz glass is about 1730 degrees Celsius, which can be used for a long time at 1100 degrees Celsius, and the short-term use temperature can reach 1400 degrees Celsius.
Chemical stability:
Except for hydrofluoric acid, quartz flakes hardly react with other acids, and their acid resistance is 30 times that of ceramics and 150 times that of stainless steel. They are suitable for use in highly corrosive environments.
Thermal stability and mechanical strength:
The thermal expansion coefficient of quartz sheet is extremely small, only 1/10 to 1/20 of that of ordinary glass, and it has excellent thermal shock resistance. At the same time, the Mohs hardness is 7, and the mechanical strength is high.
Electrical insulation:
Quartz sheets have good electrical insulation properties and are suitable for scenarios that require high insulation.
Application
Due to its excellent performance, transparent square quartz sheets with a diameter of 50-70mm are widely used in the following fields:
Optical field:
The high light transmittance of quartz sheet makes it an ideal material for manufacturing optical components such as optical lenses, prisms, and beam splitters, and is widely used in spectral analyzers and optical inspection equipment.
Semiconductor industry:
In the semiconductor manufacturing process, quartz wafers can be used as wafer carrier, reticle, etc., to meet the requirements of high temperature and high purity production environment.
Laser technology:
Quartz sheets can be used in optical cavities of lasers, laser mirrors, etc., because of their excellent high temperature resistance and light transmittance in laser equipment.
Scientific research:
In the laboratory, quartz sheets are often used as substrates or window materials for high-temperature experiments, spectral analysis, and optical detection.
Chemical and electronic equipment:
Quartz sheets are used as high-temperature and corrosion-resistant windows or reaction vessels in chemical equipment, and are also used in the manufacture of displays and sensors in electronic equipment.
Aerospace field:
Quartz sheets are used in the manufacture of high-temperature windows and optical instruments due to their high temperature resistance, corrosion resistance, and lightweight properties.
Custom description
Transparent square quartz sheets with a diameter of 50-70mm usually need to be customized according to specific needs. The following are the key points to pay attention to during the customization process:
Size and shape:
Diameter range: 50-70mm.
Shape: Square or other custom shapes.
Thickness: can be adjusted according to user request, generally ranging from a few millimeters to tens of millimeters.
Surface treatment:
Polishing: According to optical or mechanical requirements, single-sided or double-sided polishing can be performed to ensure surface flatness and light transmittance.
Punching or grooving: If you need to open holes or process special grooves on quartz sheets, specify the aperture, location and quantity in advance.
Performance requirements:
Maximum operating temperature: Determine whether it needs to work below 1200 ° C for a long time, or withstand higher temperatures for a short time.
Pressure/vacuum requirements: If used in a pressure or vacuum environment, specify the specific pressure range.
Thermal shock resistance: whether it needs to be used in an environment with severe temperature changes.
Other special requirements:
Scale or marking: Whether it is necessary to engrave a scale or mark on the surface of the quartz sheet for observation or measurement.
Special coating: Whether it is necessary to add special functional coatings such as corrosion resistance and anti-reflection.
Transparent square quartz sheets with a diameter of 50-70mm are widely used in optics, semiconductors, laser technology, scientific research and other fields due to their excellent properties such as high light transmittance, high temperature resistance, chemical stability and thermal stability. Customized services further meet the individual needs of different scenarios.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
