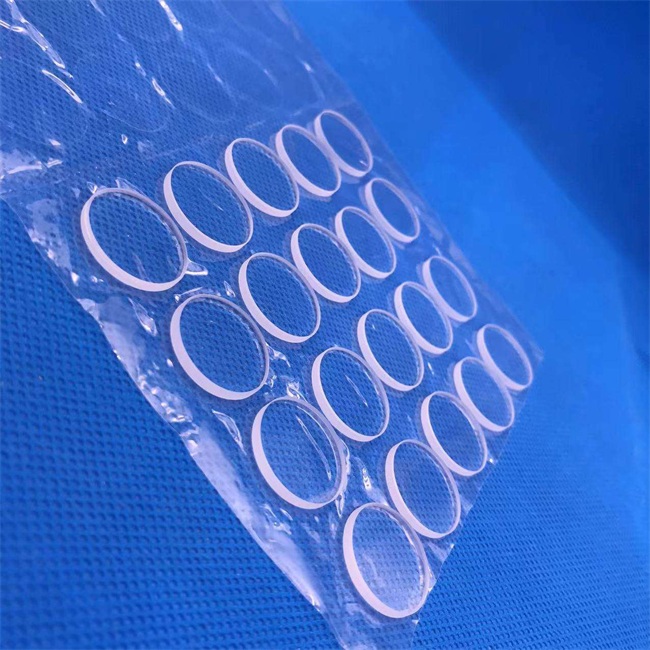

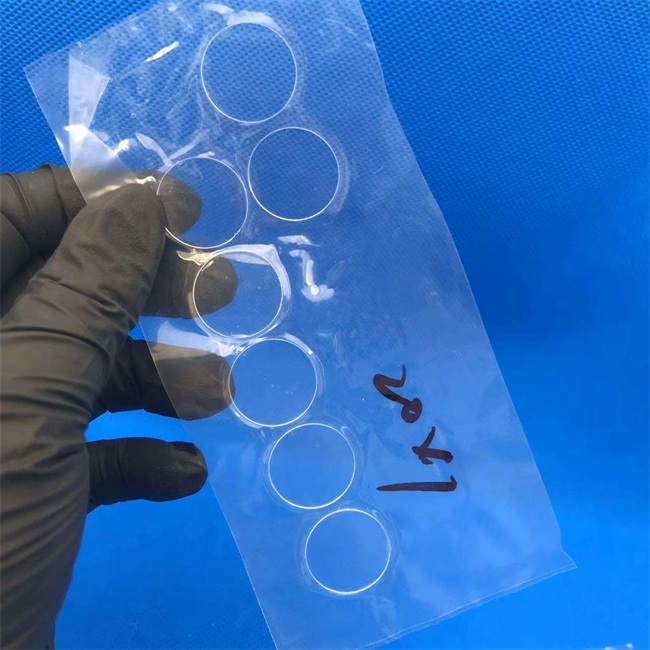

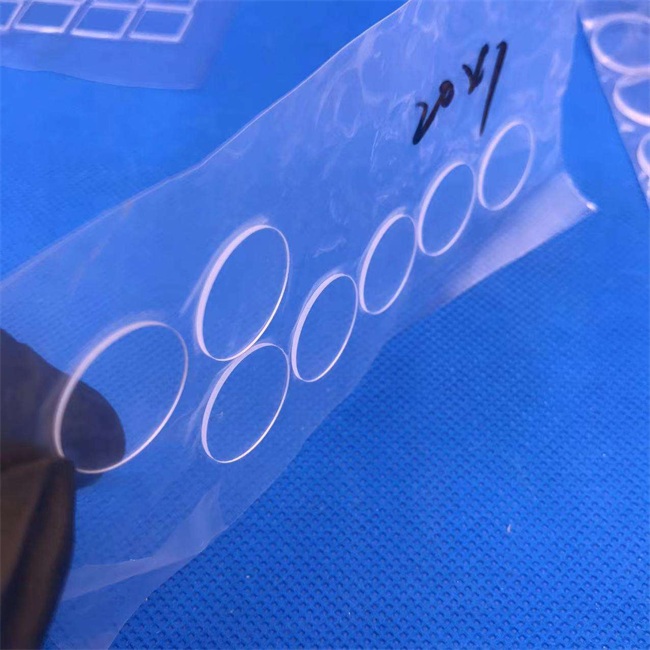

1-100mm diameter quartz plate
1-100mm diameter quartz plate is a high-purity optical and electronic material, mainly characterized by high temperature resistance, corrosion resistance, low thermal expansion coefficient, and excellent light transmittance.
LUVERRE quartz
99.99%

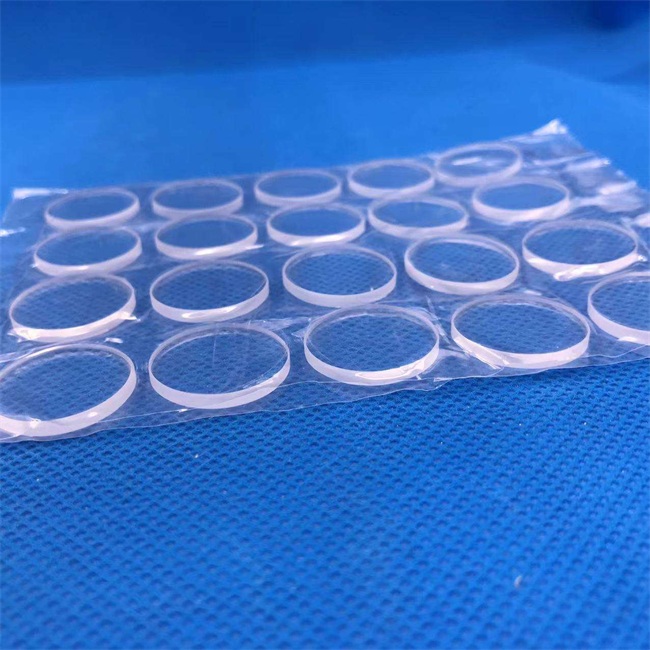

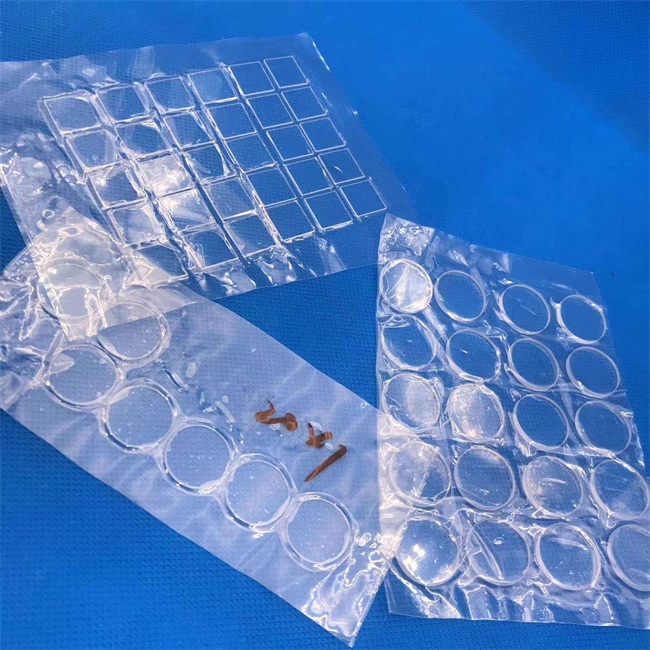

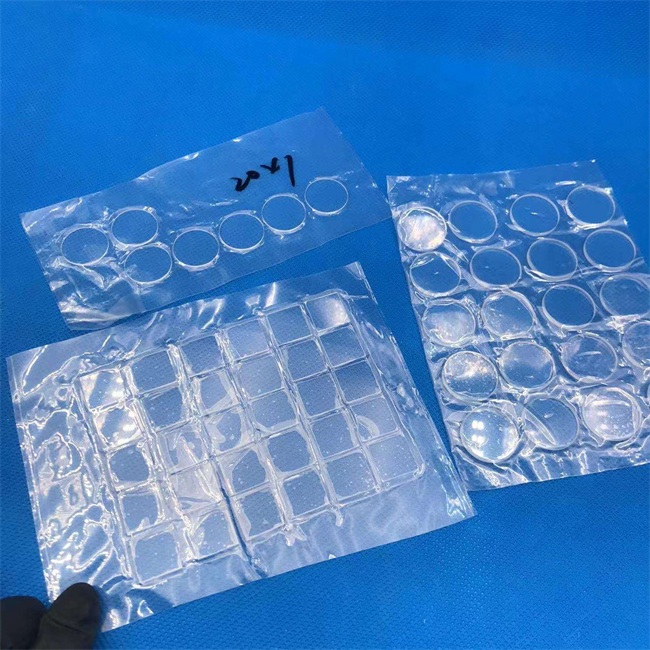

Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
1-100mm diameter quartz plate
1-100mm diameter quartz plate is a high-purity optical and electronic material, mainly characterized by high temperature resistance, corrosion resistance, low thermal expansion coefficient, and excellent light transmittance. It is widely used in the fields of semiconductor technology, precision optical instruments, and laser technology, with stable quality and high processing accuracy.
Why do you need to customize fossil English films?
Q: My project requires materials with high temperature resistance, excellent transparency, and stable chemical properties. Can quartz sheets meet these requirements?
Answer: Of course. Our quartz plates can work stably at a high temperature of 1200 ℃, with a transmittance of over 93%, and have excellent corrosion resistance to the vast majority of acids and bases, making them particularly suitable for semiconductor, optical, and high-temperature observation scenarios.
Q: Can laboratory equipment be customized with precision quartz components of specific sizes?
Answer: We provide comprehensive customization services for diameters ranging from 1-100mm, with a thickness accuracy of ± 0.01mm. We support circular, square, and irregular cutting, and can perform secondary processing such as coating, polishing, and drilling on the surface.
Q: Optical systems require extremely high material uniformity. How can we ensure this?
Answer: We use high-purity synthetic quartz raw materials (with a purity of 99.99%), combined with CNC precision machining technology, to ensure that the refractive index uniformity of each quartz plate is less than 5 × 10 ⁻⁶, and the wavefront distortion is less than λ/10.
Q: Can small-scale R&D procurement be supported?
Answer: We have set up a dedicated R&D support channel, where even a single piece can be customized, and we provide technical parameter consultation, sample testing support, and application solution optimization services.
Core technical parameters of the product
Material Properties
-Material options: synthetic quartz (JGS1/JGS2), fused silica, ultraviolet quartz
-Thermal expansion coefficient: 5.5 × 10 ⁻⁷/℃ (0-1000 ℃)
-Thermal stability: working temperature -200 ℃ to 1200 ℃
-Chemical resistance: resistant to all acids except hydrofluoric acid, and resistant to most chemical solvents
Specification range
-Diameter range: 1.0mm-100.0mm (supports customization in increments of 0.1mm)
-Thickness range: 0.1mm-20.0mm
-Accuracy level:
-Standard grade: Diameter tolerance ± 0.05mm, thickness tolerance ± 0.02mm
-Precision grade: diameter tolerance ± 0.01mm, thickness tolerance ± 0.005mm
-High precision grade: diameter tolerance ± 0.005mm, thickness tolerance ± 0.002mm
Surface treatment options
-Polishing grade: 80/50, 60/40, 40/20, 20/10, 10/5
-Coating services: anti reflective film (AR), reflective film, spectral film, corrosion-resistant film
-Edge processing: precision cutting, flame polishing, grinding and chamfering
Core application scenarios
Semiconductor and Microelectronics Manufacturing
-Lithography machine mask substrate: high flatness quartz plate (flatness<0.5 μ m) used for deep ultraviolet lithography
-Wafer processing carrier: High temperature resistant quartz tray for carrying silicon wafers in CVD and diffusion processes
-Process observation window: High temperature furnace tube observation window, real-time monitoring of sedimentation process
Optics and Photonics
-Laser system optical window: high damage threshold (>10J/cm ⊃2;) protective lens
-Core components of spectrometer: UV infrared broadband transmittance>92%
-Precision optical substrates: used in the manufacturing of interferometers, spectrometers, and prisms
Industrial and scientific instruments
-High temperature window: observation port for reaction kettle and vacuum furnace
-Analytical instrument components: mass spectrometer, chromatograph quartz liner tube
-Sensor protection window: Optical sensor protection in harsh environments
New Energy and New Materials
-Photovoltaic equipment components: Masks for deposition of thin film solar cells
-Fuel Cell Components: Observation Window for High Temperature Proton Exchange Membrane Testing
Five core advantages
1. Material performance advantages
-Ultra high purity: OH content<5ppm, total amount of metal impurities<10ppm
-Excellent thermal stability: able to withstand rapid cycling from 1000 ℃ to room temperature without breaking
-Optical consistency: The refractive index deviation of the entire batch of products is less than 0.0001%
2. Advantages of Processing Technology
-Precision CNC machining: using machining centers imported from Japan and Germany, with a contour accuracy of 0.003mm
-Intelligent detection system: Each product undergoes full parameter detection using Zygo interferometers, spectrophotometers, and other instruments
-Clean production environment: Key processes are completed in a Class 100 clean room to avoid particle pollution
3. Advantages of customized services
-Quick response mechanism: Provide technical solutions within 48 hours and deliver samples within 7-15 days
-Full technical support: technical support throughout the entire process from drawing review to application testing
-Flexible minimum order quantity: supports a minimum order quantity of one piece, meeting the needs of research and development as well as trial production
4. Cost benefit advantages
-Scale procurement advantage: Strategic cooperation with the world's three major quartz raw material factories to reduce raw material costs
-Process optimization experience: 15 years of experience in foreign trade processing, resulting in a 40% increase in process efficiency
-Comprehensive solution: Provide one-stop service from material selection to post-processing, reducing customer management costs
Successful application cases
Case 1: European semiconductor equipment manufacturer
Requirement: Quartz mask substrate for extreme ultraviolet lithography machine, with a diameter of 85mm, thickness of 6.35mm, surface roughness<0.5nm, and transmittance>99.5% (@ 13.5nm wavelength)
Solution: Using ultra-high purity synthetic quartz, special annealing treatment to reduce internal stress, surface ultra smooth polishing+multi-layer film plating
Result: The product has passed 2800 hours of continuous testing by the customer, with wavefront distortion controlled within λ/20, and has been stably supplied for 3 years
Case 2: American Laser Research Institute
Requirement: Protective window for high-power femtosecond laser system, diameter 50mm, damage threshold>15J/cm ⊃2;, and microstructure array needs to be machined on the surface
Solution: Select low defect density quartz material and combine precision lithography+reactive ion etching technology to fabricate surface microstructures
Result: The window damage threshold reaches 18J/cm ⊃2;, and the microstructure size accuracy is ± 0.1 μ m, supporting customers to complete multiple cutting-edge studies
Case 3: Japanese New Energy Enterprises
Requirement: High temperature observation window for testing solid oxide fuel cells, required to work continuously for 5000 hours in a hydrogen environment at 800 ℃
Solution: Develop hydrogen induced color suppression coating technology, combined with special sealing structure design
Result: The observation window operated stably for over 6000 hours in a hydrogen atmosphere at 850 ℃, with a transparency decrease of less than 3%
Get your customized solution now
Whether you need standard specification quartz wafers or customized requirements facing special application challenges, we can provide professional technical support and reliable manufacturing assurance. Click to contact us for free sample application eligibility and 1-on-1 technical consultation - let us use our 20 years of quartz processing experience to solve your most difficult material problems.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
5. About 20 years of professional experience
-Focusing on the manufacturing of quartz products for a quarter century
-The average working experience of the technical team exceeds 10 years
6.Global Service Network
-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East
-Multi language technical support (English, German, French, Spanish, Russian, Japanese)
