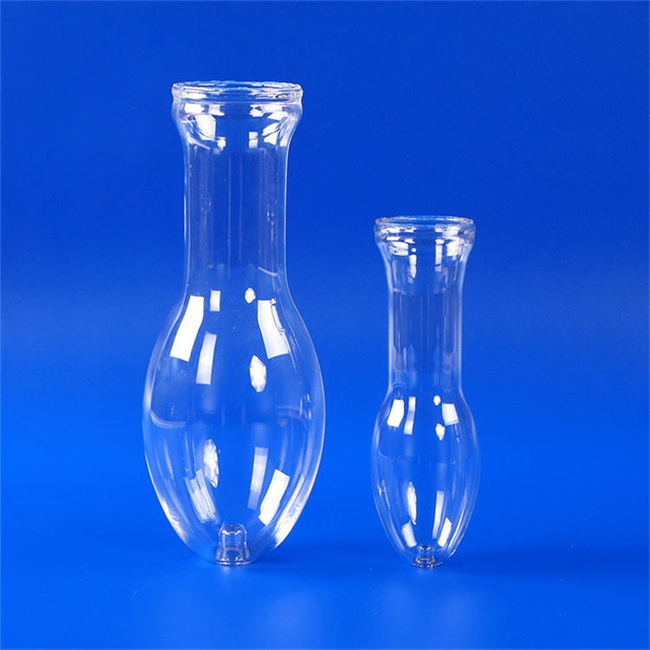

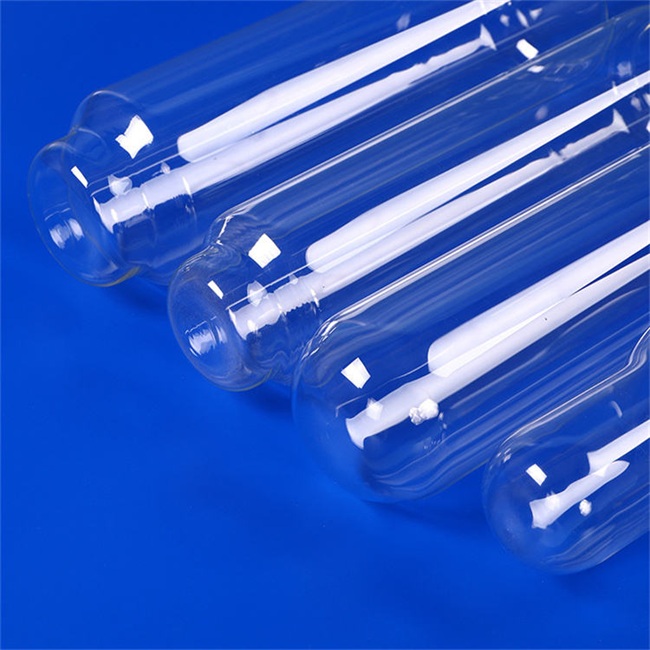

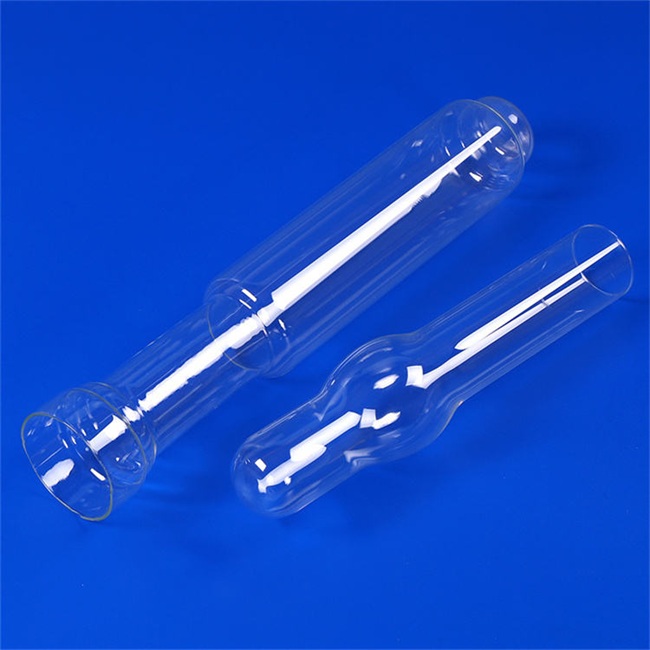

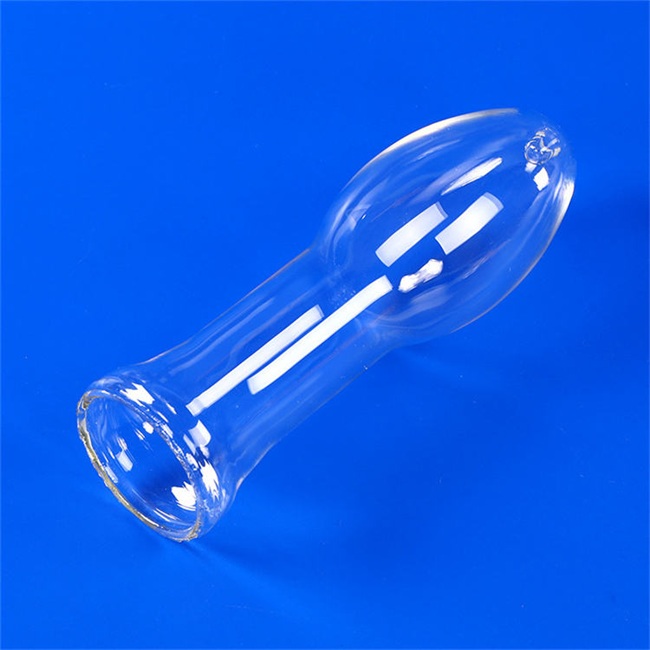

Halide lamp quartz heating tube
The quartz heating tube of halide lamp is a high-performance heating element made of high-purity fused silica, which is specially designed for industrial and commercial applications requiring high temperature and stable radiation heating.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
The quartz heating tube of halide lamp is a high-performance heating element made of high-purity fused silica, which is specially designed for industrial and commercial applications requiring high temperature and stable radiation heating. Our products are processed through precision technology and have excellent thermal stability, chemical inertness, and transparency, which can meet the professional needs of global customers in specific spectral heating, high-temperature environment operation, and harsh working conditions.
Core technological advantages
1. Excellent material performance
-High purity quartz material: fused silica of 99.99% or more purity is selected to ensure structural stability under high temperature (up to 1200 ° C)
-Excellent thermal shock stability: With an extremely low coefficient of thermal expansion (5.5 × 10 ⁻⁷/° C), it can withstand rapid temperature rise and fall without breaking
-Chemical inertness: resistant to acid and alkali corrosion, does not react with active substances such as halides, extends service life
2. Optimized spectral characteristics
-Accurate spectral output: Optimize the transmittance performance of quartz tubes based on the working characteristics of halide lamps, ensuring high transmittance at specific wavelengths (especially in the visible and near-infrared regions)
-Uniform thermal field distribution: Specially designed tube wall thickness and geometric structure ensure uniform temperature distribution in the heating area (temperature difference<± 15 ° C)
3. Enhanced durability design
-Anti crystallization treatment: Special surface treatment delays quartz crystallization at high temperatures and maintains long-term transparency
-Enhanced sealing technology: Metal quartz or quartz quartz sealing joints adopt multi-layer gradient sealing technology, with a pressure resistance of>0.5MPa
Product specifications and customization capabilities
Standard specification range
-Outer diameter size: 8mm -80mm (customizable in increments of 0.5mm)
-tube wall thickness: 1.0mm-6.0mm (conventional recommended 1.5mm-3.0mm)
-Length range: 100mm -2500mm (longer segmented design available)
-Shape options: straight tube, U-shaped, circular, irregular curved
-Sealing types: flat mouth, round head, flange connection, threaded interface
Special customization capability
-Spectral Characteristics Customization: Adjust the doping composition of the quartz tube according to the specific halide lamp formula of the customer, and optimize the specific wavelength transmittance
-Structural reinforcement design: providing reinforcement structures or wall thickness gradient design for vibration environments
-Interface compatibility: can adapt to various electrode interface standards such as European, American, Japanese, etc
-Certification support: Provide material reports required for international certifications such as RoHS, REACH, UL, etc
Key industry issues addressed
1. Short lifespan of traditional heating tubes
-Solution: Our anti crystallization quartz material increases its lifespan by 40-60% at continuous high temperatures, reducing equipment downtime
2. Low heating efficiency leads to high energy consumption
-Solution: Optimized spectral matching design increases radiation efficiency by 20-35% and significantly reduces operating costs
3. Reliability issues in harsh environments
-Solution: Enhanced chemical stability ensures stable operation in corrosive gas or halide vapor environments
4. Difficulty in matching special sizes
-Solution: Full size customization capability supports customer equipment upgrade and transformation, without the need to redesign the entire heating system
Main application areas
industrial manufacturing
-Semiconductor Manufacturing: Heating Sources for Wafer Processing and Thin Film Deposition Equipment
-Glass processing: special glass forming and annealing process
-Metal processing: vacuum heat treatment furnace, brazing equipment
Analytical Instrument
-Spectral Instruments: Light Source Components for Atomic Absorption Spectroscopy and Fluorescence Spectrometer
-Environmental monitoring: Heating reaction chamber for flue gas analyzer and water quality monitoring equipment
special lighting
-Film and television lighting: high-power film shooting lighting fixtures
-Plant growth: professional light source for greenhouse supplementary lighting system
research equipment
-Material research: High temperature reaction kettle, crystal growth equipment
-Laboratory instruments: thermal analyzer, high-temperature microscope
Why choose us
20 years of professional focus
We have been focusing on the manufacturing of quartz products since 2003 and have provided customized quartz solutions to over 45 countries worldwide. We have accumulated more than 800 successful cases in the field of halide lamp heating tubes.
Whole process quality control
From raw material screening (spectral analysis of each batch of raw materials) to finished product testing (including 12 processes such as transmittance testing, pressure resistance testing, and high-temperature aging testing), ensure that each product meets customer technical requirements.
Quickly respond to customized needs
Relying on independent mold workshops and digital design systems, regular size samples can be delivered within 7-15 days, and complex customized projects can be completed within 25-35 days, providing full technical support throughout the process.
Global Service Network
The products are sold to countries such as Europe, America, Japan, and South Korea.
Application case (anonymous)
Case 1: European semiconductor equipment manufacturer
-Challenge: The original heating tube had an average lifespan of only 6 months in a continuous working environment at 650 ° C, resulting in high equipment maintenance costs
-Solution: We provide anti crystallization quartz tubes doped with titanium elements, optimizing the transmittance in the 5-8 μ m infrared band
-Result: The service life of the heating tube has been extended to 14 months, and the comprehensive maintenance cost of the equipment has been reduced by 32%. The procurement has been stable for 3 years
Case 2: Japan Precision Instrument Company
-Challenge: The new spectral analyzer requires a special U-shaped quartz tube with an inner diameter tolerance requirement of ± 0.05mm, and there are no standard products in the market
-Solution: We have developed a dedicated hot bending process to achieve high-precision control of complex geometric shapes
-Result: The product fully meets the design specifications, with a yield rate of 99.7%, making it the exclusive supplier of this model of instrument
Case 3: American greenhouse lighting system integrator
-Challenge: Large plant factories require halide lamp heating components that are moisture resistant and temperature shock resistant
-Solution: We provide customized solutions for surface hydrophobic coating treatment and wall thickness gradient design
-Result: The service life of the product is 2.3 times longer than that of ordinary products in an 85% humidity environment, and the customer has expanded its application to 12 planting bases
Whether you need to replace the heating components of existing equipment or develop a new generation of thermal equipment, our engineering team is ready to provide you with technical consultation and customized solutions. We believe that suitable quartz heating tubes can not only improve equipment performance, but also create long-term value for you.
Please send us your technical specifications or application requirements, and you will receive a preliminary technical solution and reference quotation within 24 hours.
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
