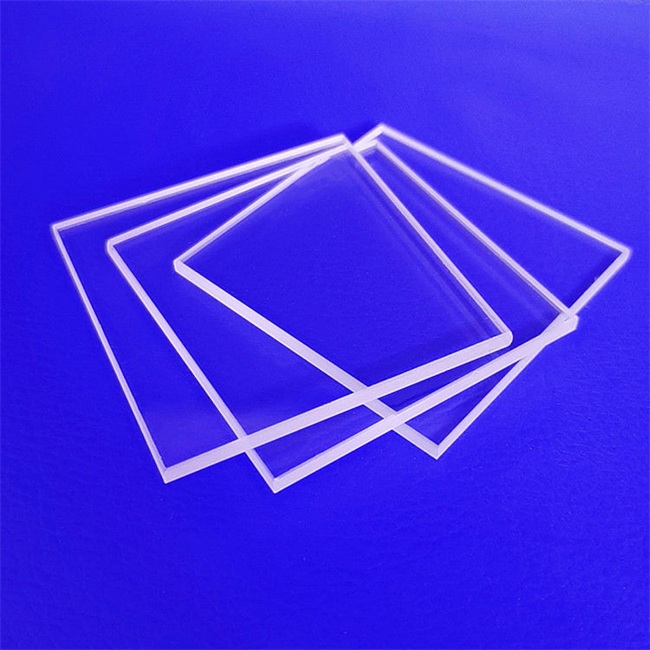

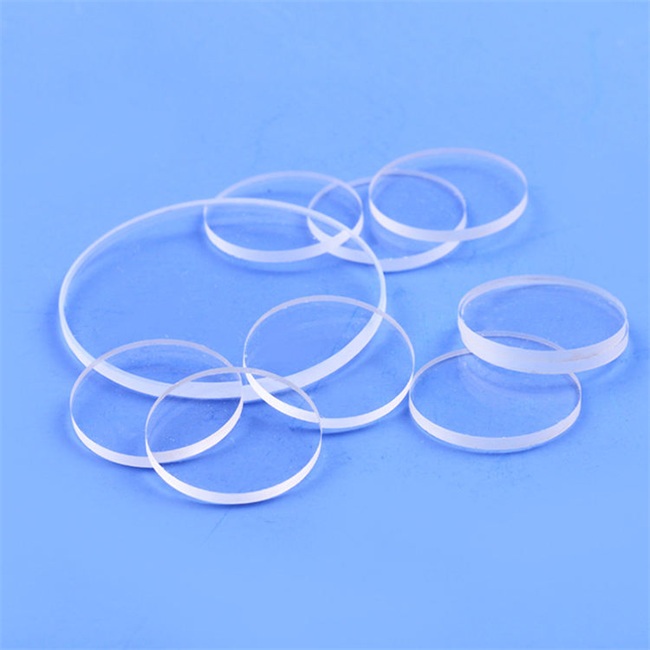

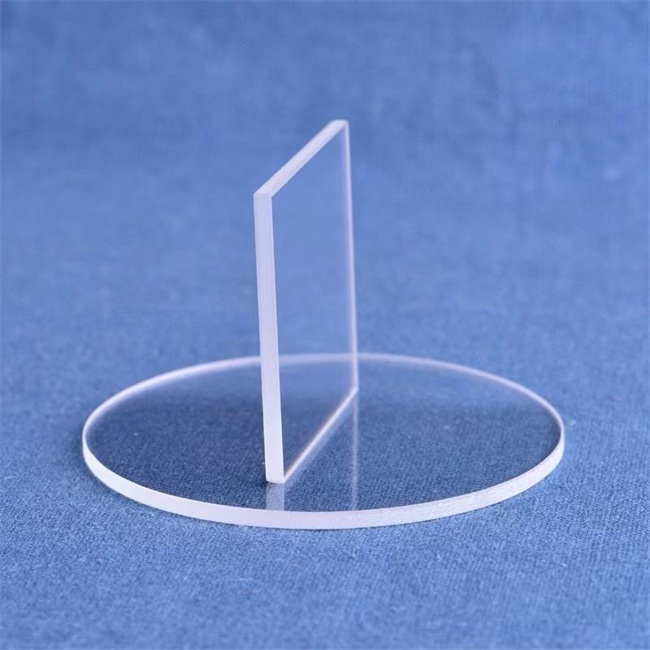

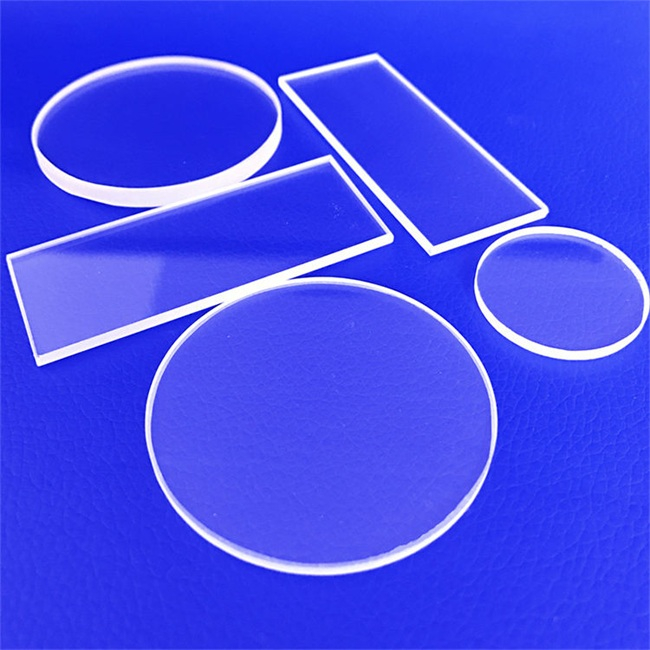

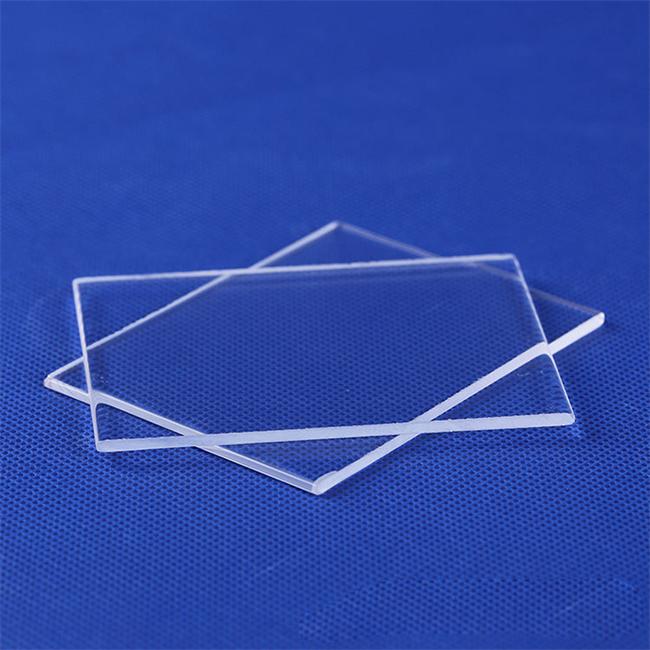

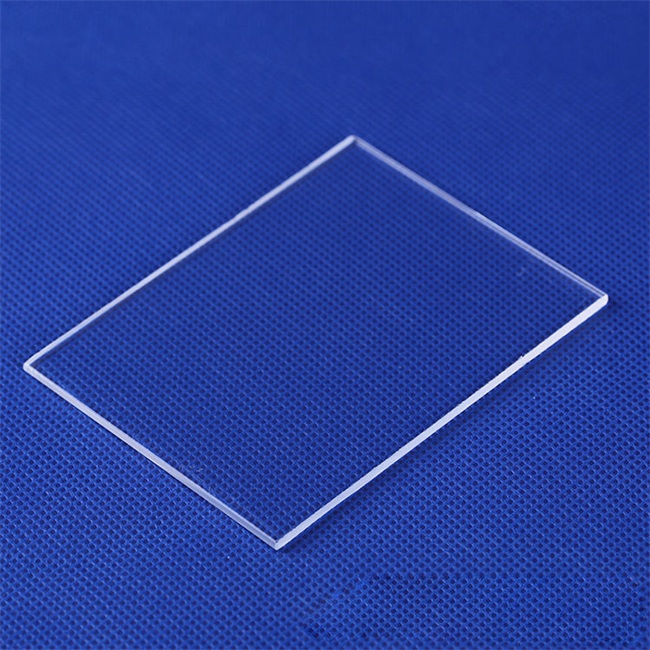

30-100mm UV quartz glass
30-100mm UV quartz glasss are made of high-purity synthetic quartz material (SiO ₂ purity ≥ 99.99%), which is processed through precision melting, annealing, and polishing techniques.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
30-100mm UV quartz glass
Q: "I need an optical material that can maintain high transparency in the ultraviolet band. What characteristics does it need to have
Answer: 30-100mm UV quartz glasss are designed specifically for UV transmission requirements, with high UV transmittance (especially in the 185nm-2500nm wavelength range), excellent thermal stability, and chemical inertness, which can solve the problems of transmission attenuation, thermal deformation, and corrosion resistance in UV optical systems.
Q: "My application environment is harsh, can the material withstand high temperatures and drastic temperature changes
Answer: Our quartz glass has an extremely low coefficient of thermal expansion (about 5.5 × 10 ⁻⁷/℃), which can withstand high temperatures of 1200 ℃ and rapid thermal shock, making it suitable for harsh environments such as high-temperature UV processing and semiconductor lithography.
Q: "I need non-standard size and shape, can I customize it
Answer: We offer full-size customization within the diameter range of 30-100mm, supporting circular, square, and irregular cutting, as well as secondary processing such as chamfering, drilling, and coating to meet your personalized integration needs.
30-100mm UV quartz glasss are made of high-purity synthetic quartz material (SiO ₂ purity ≥ 99.99%), which is processed through precision melting, annealing, and polishing techniques. The product has excellent transmittance performance (transmittance ≥ 90%) in the ultraviolet spectral region (especially 185-350nm), while maintaining low fluorescence background and excellent optical uniformity (refractive index deviation<5 × 10 ⁻⁶).
key parameters
-Size range: diameter 30-100mm (thickness 0.5-20mm can be customized)
-Transmittance band: 185nm-2500nm
-UV transmittance: ≥ 85% at 185nm, ≥ 90% at 254nm
-Thermal stability: maximum working temperature of 1200 ℃, thermal shock resistance temperature difference>1000 ℃
-Surface quality: 60/40 scratch dig standard, upgradable to 20/10
-Parallelism:<1 arc minute, flatness can reach λ/ 10@633nm
Product advantages
1. Excellent optical performance
Using low hydroxyl synthesized quartz (OH content<5ppm) to reduce UV absorption and ensure efficient transmission in the deep UV band.
2. Strong physical and chemical stability
Acid and alkali resistance (except hydrofluoric acid and hot phosphoric acid), high hardness (Mohs 7), scratch resistance, suitable for long-term use in harsh environments.
3. High customization flexibility
Supports multiple coating options (anti reflective film, reflective film, spectral film), edge treatment (precision grinding, polishing), and marking and coding.
4. Batch consistency assurance
Each batch of products is provided with spectral transmission curves, interference detection reports, and material certifications to ensure traceable performance.
Application scenarios
-Semiconductor manufacturing: photolithography mask, UV exposure system window plate
-Analytical instruments: UV Vis spectrophotometer colorimetric dish, fluorescence detector window
-Medical equipment: UV disinfection lampshade, skin treatment device transmission
-Research experiment: Synchrotron radiation optical components, laser ultraviolet window
-Industrial processing: UV curing system, PCB exposure table protective cover plate
Customer Application Case (Anonymous)
1. German optical instrument manufacturer
Requirement: A 254nm UV spectrometer with a 50mm window plate is required, with a transmittance of over 92% below 280nm and a surface cleanliness of 10/5.
Solution: Provide quartz wafers coated with enhanced UV anti reflective film, with argon packaging for pollution prevention, and batch delivery with CPK>1.33.
2. American Semiconductor Equipment Company
Requirement: A protective mirror with a diameter of 85mm is required for KrF laser lithography machines to withstand 10 ⁷ pulse laser impacts without damage.
Solution: Using low defect density quartz blanks combined with laser grade polishing technology, the product has passed NIST standard durability testing.
3. Japanese medical equipment manufacturers
Requirement: Rectangular quartz plates (80 × 60mm) for UV disinfection equipment, required to withstand repeated steam sterilization at 150 ℃.
Solution: Provide chemically strengthened B-grade surface quartz wafers with edge enhanced packaging guidance, increasing their service life by three times.
Whether you are developing new UV devices or optimizing existing optical systems, our 30-100mm UV quartz glasss can provide you with reliable material solutions. Welcome to send us your specification drawings or application requirements. We will customize an exclusive quartz optical component solution for you and provide free sample testing. Click to contact us for instant quotes and professional technical support!
Luverre Quartz manufactures and sells a wide range of high quality fused quartz glass, including fused quartz tubes, fused quartz plates, fused quartz rods, fused quartz windows, fused quartz crucibles, fused quartz boats, fused quartz flanges, fused quartz beakers, fused quartz glass instruments, and more. We can meet all kinds of customized requirements for fused quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 19 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more.
5. About 20 years of professional experience
-Focusing on the manufacturing of quartz products for a quarter century
-The average working experience of the technical team exceeds 15 years
6.Global Service Network
-Our products are exported to over 40 countries and regions including Europe, America, Japan, South Korea, and the Middle East
-Multi language technical support (English, German, French, Spanish, Russian, Japanese)
7. Flexible cooperation mode
Support small batch trial orders, medium - and long-term cooperation, and urgent production for urgent orders, providing OEM/ODM services.
