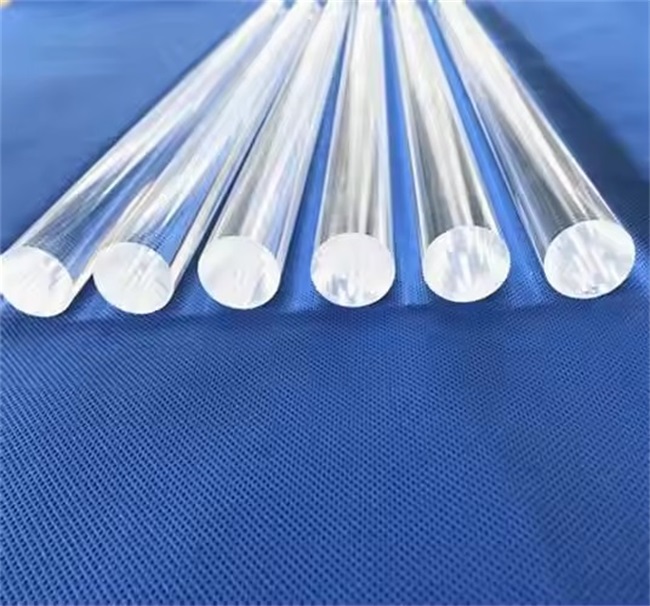

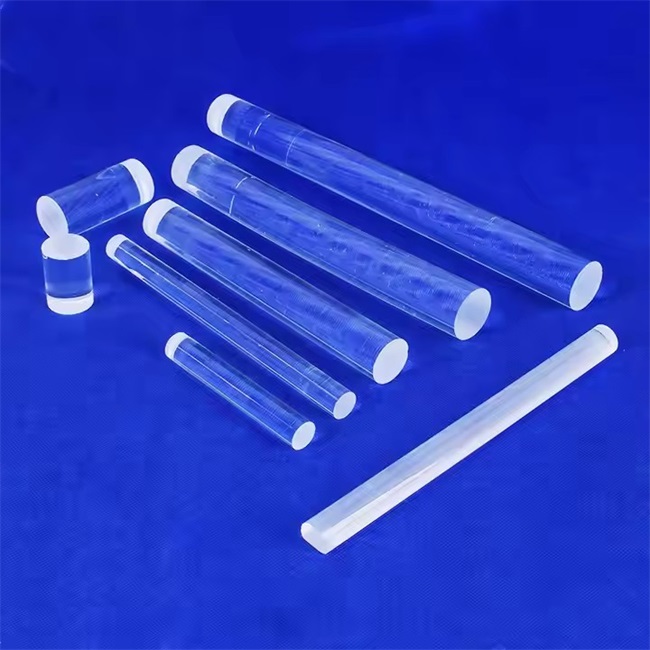

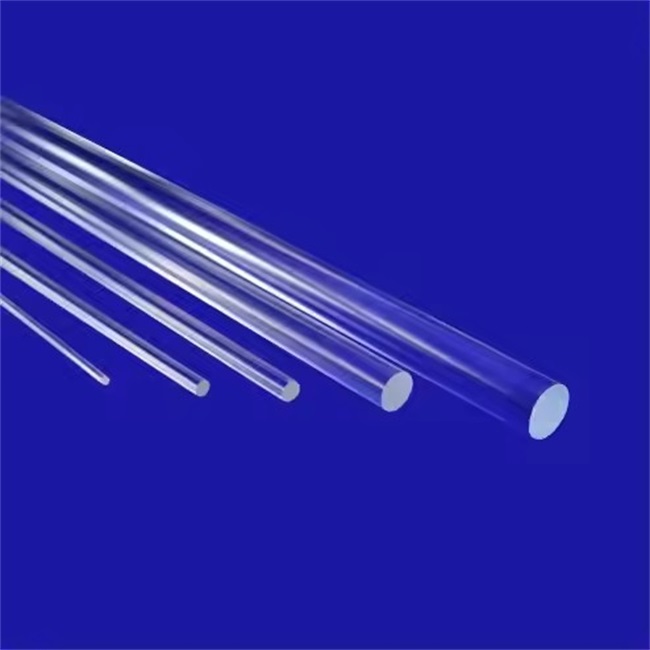

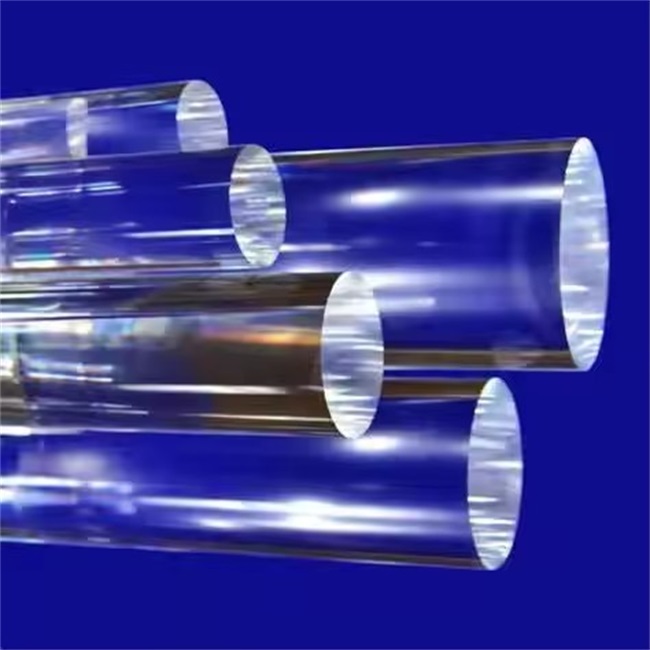

5-200mm transparent optical fused silica glass rod
5-200mm transparent optical fused silica glass rod is a kind of optical material with high performance and purity, which is made of fused silica (SiO2) by special process.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
5-200mm transparent optical fused silica glass rod is a kind of optical material with high performance and purity, which is made of fused silica (SiO2) by special process. This product has excellent transparency, chemical stability, and thermal stability, and is widely used in various fields such as optical instruments, laboratory equipment, fiber optic communication, laser equipment, etc.
Product Features
High purity: 5-200mm transparent optical fused silica glass rod contains more than 99.99% SiO2, ensuring its excellent chemical stability and thermal stability.
Excellent transparency: In the visible light, ultraviolet, and infrared spectral ranges, this product has extremely high transparency, reaching over 93%, making it irreplaceable in optical instrument manufacturing.
Good thermal stability: the softening point of fused silica glass rod is up to 1730 ℃, the working temperature can reach more than 1100 ℃, and the thermal expansion coefficient is extremely low, so that it can still maintain stable physical and chemical properties under high temperature environment.
Corrosion resistance: This product has good corrosion resistance to various acids, alkalis, and organic solvents, and is suitable for various harsh chemical environments.
High precision machining: Cutting, grinding, polishing and other high-precision machining can be carried out according to customer needs to meet the requirements of various complex shapes and sizes.
Product specifications
Outer diameter range: 5-200mm
Length: Customizable according to customer needs
SiO2 content: ≥ 99.99%
Visible light transmittance: ≥ 93%
Density: 2.2g/cm ⊃3;
Working temperature: up to 1100 ℃ (some products can reach 1250 ℃)
Softening point: 1730 ℃
Ellipticity: ≤ 1%
Application area
Optical instrument manufacturing: used to manufacture optical components such as lenses and prisms for spectrometers, microscopes, telescopes, and other optical instruments.
Fiber optic communication: As the raw material of optical fibers, it is used to transmit optical signals and achieve high-speed and high-capacity communication.
Laser equipment: used to manufacture optical components such as windows and mirrors for lasers, ensuring stable transmission and focusing of the laser.
Laboratory equipment: used as chemical reaction vessels, transmission pipelines, etc., for high temperature, high pressure, and highly corrosive experimental environments.
Art production: With its unique transparency and glossiness, it can be used to create sculptures, vases, and other art pieces.
Product advantages
High quality: Made from high-purity quartz raw materials, melted and cooled through special processes to ensure the high quality of the product.
Diversification: Different specifications, sizes, and shapes of products can be provided according to customer needs to meet the needs of various application scenarios.
Customized services: Provide customized processing services such as cutting, grinding, polishing, etc. to ensure that the products meet the specific requirements of customers.
Environmental safety: The product is non-toxic and harmless, meets environmental requirements, and will not cause harm to human health and the environment during use.
Quality Control
Each 5-200mm transparent optical fused silica glass rod has undergone strict quality inspection process, including but not limited to:
Dimensional tolerance inspection
Surface quality inspection
Optical performance testing
Chemical composition analysis
5-200mm transparent optical fused silica glass rod shows a wide range of application prospects in many fields due to its high purity, excellent light transmittance, good thermal stability and corrosion resistance. We are committed to providing customers with high-quality products and services to meet their various needs. Welcome customers to consult and make purchases!
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
