Transparent quartz observation window for high-pressure vessels
Transparent quartz observation window for high-pressure vessels is a specialized equipment used for monitoring internal processes of high-pressure vessel
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Transparent quartz observation window for high-pressure vessels
Transparent quartz observation window for high-pressure vessels is a specialized equipment used for monitoring internal processes of high-pressure vessels, mainly for observing physical or chemical reaction processes in high-pressure environments. Its core component is high-purity quartz glass, which has excellent optical transparency, high temperature resistance, corrosion resistance, and high pressure resistance, making it an ideal material for high-pressure vessel observation windows.
Product Features
-Optical performance: Quartz glass has extremely high optical transparency, with a transmittance of over 90%, allowing for clear observation of the interior of the container.
-High temperature resistance: The softening point temperature of quartz glass is about 1730 ℃, which can be used for a long time at 1100 ℃, and the highest temperature for short-term use can reach 1450 ℃.
-Corrosion resistance: Quartz glass has extremely high chemical stability and hardly reacts with other acids except hydrofluoric acid. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel.
-High pressure resistance: Quartz glass has high mechanical strength and can withstand high-pressure environments, making it suitable for various high-pressure containers.
-Safety: Observation windows are usually equipped with safety protection devices, such as explosion-proof design and sealed structure, to ensure safety in high-pressure environments.
Application
Transparent quartz observation windows for high-pressure vessels are widely used in the following fields:
-Chemical industry: used to observe the chemical reaction process inside high-pressure reactors, ensuring the smooth progress and safety of the reaction.
-Pharmaceutical industry: used to observe the mixing, reaction, crystallization and other operations during the pharmaceutical process to ensure the quality and production safety of drugs.
-Food processing: used to observe high-temperature and high-pressure operations during food processing, such as the sterilization process of canned food.
-Research experiment: Used as a high-pressure experimental device in the laboratory to observe physical or chemical changes during the experimental process.
-Energy industry: used to observe the internal status of high-pressure steam boilers, high-pressure gas storage tanks and other equipment to ensure the safe operation of the equipment.
Customized description
The transparent quartz observation window of high-pressure vessels can be customized according to the specific needs of users to meet different application scenarios and operating conditions.
Customized Content
1. Size and shape:

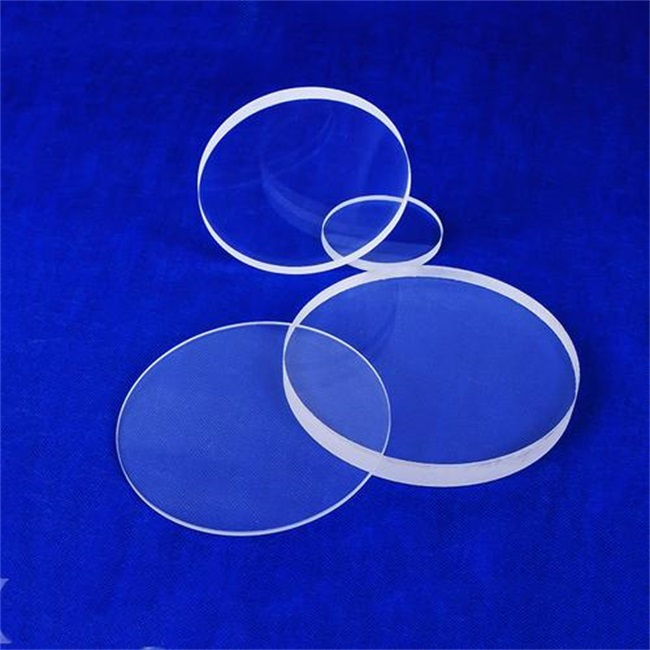

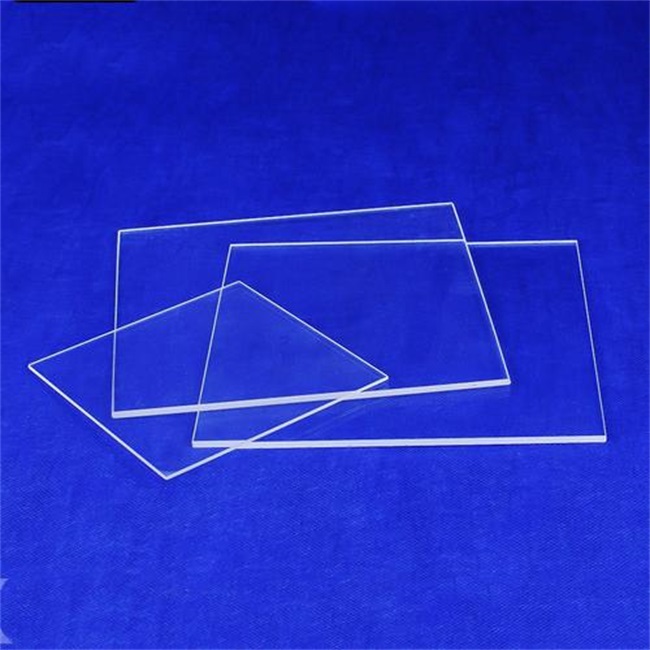

-Diameter or side length: Different sizes of circular or square observation windows can be customized according to user needs.
-Thickness: Choose the appropriate thickness of quartz glass based on the pressure level and usage environment.
2. Pressure and temperature:
-Work pressure: Observation windows suitable for different work pressures can be customized according to user needs, with a maximum of 10MPa or even higher.
-Working temperature: Observation windows suitable for different working temperatures can be customized according to user needs, with a maximum temperature of 500 ℃ or even higher.
3. Installation method:
-Flange connection: We provide standard flange connection methods and can choose different flange standards (such as HG, ANSI, DIN, etc.) according to user requirements.
-Threaded connection: Provides a threaded connection method, suitable for small high-pressure vessels.
-Welding connection: Provide welding connection methods to ensure a secure connection between the observation window and the container.
4. Sealing material:
-Sealing gasket: Different materials of sealing gaskets can be selected according to user needs, such as graphite, polytetrafluoroethylene, etc.
-Sealing level: Provide observation windows with different sealing levels to meet the sealing requirements in high-pressure environments.
5. Additional features:
-Lighting fixtures: Built in lighting fixtures can be customized according to user needs for easy observation in low light environments.
-Protective devices: Provide explosion-proof design and safety protection devices to ensure safety in high-pressure environments.
-Special coating: Special coatings on the surface of quartz glass can be customized according to user needs, such as anti reflective coatings, corrosion-resistant coatings, etc.
The transparent quartz observation window of high-pressure vessels has become an indispensable monitoring device in high-pressure vessels due to its excellent optical performance, high temperature resistance, corrosion resistance, and high pressure resistance. Through customized services, users can choose suitable products according to their specific needs, ensuring the safe operation of the equipment and the convenience of operation.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
