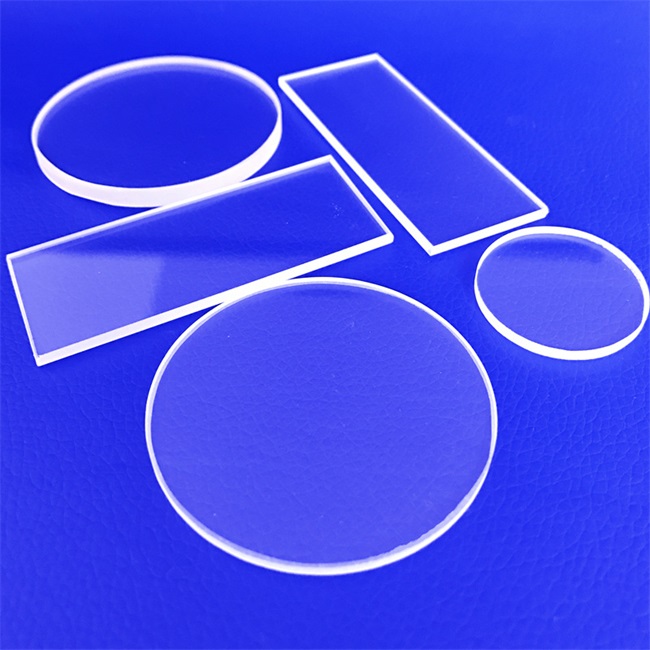

JGS series ultra-thin quartz glass sheet
JGS series ultra-thin quartz glass sheets are high-performance optical materials that have been widely used in various fields due to their excellent physical, chemical, and optical properties.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
JGS series ultra-thin quartz glass sheet
JGS series ultra-thin quartz glass sheets are high-performance optical materials that have been widely used in various fields due to their excellent physical, chemical, and optical properties.
JGS series ultra-thin quartz glass is a classification of optical quartz glass, known for its high purity and excellent optical properties. According to its optical characteristics and application fields, the JGS series can be divided into the following three categories:
JGS1: Far ultraviolet optical quartz glass, suitable for the spectral range of 0.185-2.5 μ m, with high transmittance and excellent far ultraviolet transmission performance.
JGS2: UV optical quartz glass, suitable for the spectral range of 0.220-2.5 μ m, with good UV transmittance performance.
JGS3: Infrared optical quartz glass, suitable for the spectral range of 0.260~3.5 μ m, with high infrared transmittance.
In addition, JGS series glass sheets also have the following core characteristics:
High temperature resistance: The softening point temperature is about 1730 ℃, and it can be used for a long time at 1100 ℃. The short-term use temperature can reach 1450 ℃.
Thermal stability: The coefficient of thermal expansion is extremely small, and it can withstand drastic temperature changes. For example, it will not explode even when heated to 1100 ℃ and placed in room temperature water.
Chemical stability: Except for hydrofluoric acid, it hardly reacts chemically with other acidic substances, and its acid resistance is 30 times that of ceramics and 150 times that of stainless steel.
Optical performance: It has high transmittance in the ultraviolet to infrared spectral range, with a visible light transmittance of over 93% and a maximum transmittance of 80% in the ultraviolet band.
Application
JGS series ultra-thin quartz glass sheets are widely used in the following fields due to their excellent performance:
1. Semiconductor industry
Monocrystalline silicon manufacturing: used as a crucible or other container to carry silicon melt, ensuring high purity and stability.
Wafer manufacturing: used for cleaning, oxidation, photolithography, etching, diffusion and other processes to manufacture components such as quartz wafers, quartz rings, quartz boats, etc., which directly affect the yield and production efficiency of integrated circuits.
2. Aerospace field
High temperature resistant materials: used for observation windows, insulation shells, and other components of rockets, spacecraft, and other aerospace vehicles due to their high temperature resistance, erosion resistance, high transparency, and electrical insulation properties.
Transparent enhancement materials: such as airborne radar covers, missile radar covers, interference electromagnetic launch windows, etc.
3. Optical field
Optical instruments: used for manufacturing spectrometers, infrared cameras, prisms, lenses, etc., due to their high transmittance in the ultraviolet and infrared bands.
Photomask substrate: In flat panel display technology, as the main substrate of the photomask substrate, it is one of the key components for manufacturing integrated circuits.
4. Optical communication field
Fiber preform: used as a supporting material in fiber optic production, for fiber drawing and other processes, with over 95% of its components being high-purity quartz products.
5. Electric light source field
Special electric light sources, such as halogen lamps, metal halide lamps, discharge lamps, sterilization lamps, and infrared heating equipment, have a low coefficient of thermal expansion and can withstand large temperature changes without easily breaking.
6. Photovoltaic industry
In solar cell manufacturing, it is used for processing and treating high-purity silicon materials to enhance the performance of photovoltaic modules.
Customized service
JGS series ultra-thin quartz glass sheets can be customized according to customer needs to meet the complex requirements of different application scenarios.
Customized features
Size and shape: Glass sheets can be processed into different thicknesses, sizes, and shapes according to customer needs, such as circular, square, irregular, etc.
Surface treatment: Provides surface treatment services such as polishing and coating to meet high-precision optical requirements.
Special performance: Glass sheets with high UV transmittance, high infrared transmittance, or high temperature resistance can be customized according to the application environment.
The JGS series ultra-thin quartz glass sheets are widely used in fields such as semiconductors, aerospace, optical instruments, and optical communications due to their high purity, excellent optical properties, high temperature resistance, and chemical stability. Its customized services further meet the needs of complex processes and demonstrate the enormous potential of this material in the high-tech field.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
Why choose us?
1.We are more experienced.
We have over 18 years production experience of quartz items.
2.We are more efficient.
We reply customers’ requests within 24 hours and we have high efficient production, engineers and sales team.
3.Our quality is more guaranteed.
We control the quality from quartz lumps to quartz sand and then quartz products, we have better and stricter quality control than other manufactures.
4.We are able to produce more difficult quartz products.
We have large grinding platforms and precision etching machines which enable us to produce large sizes of quartz plates, tubes and high size precision quartz items.
