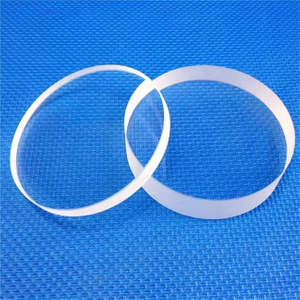

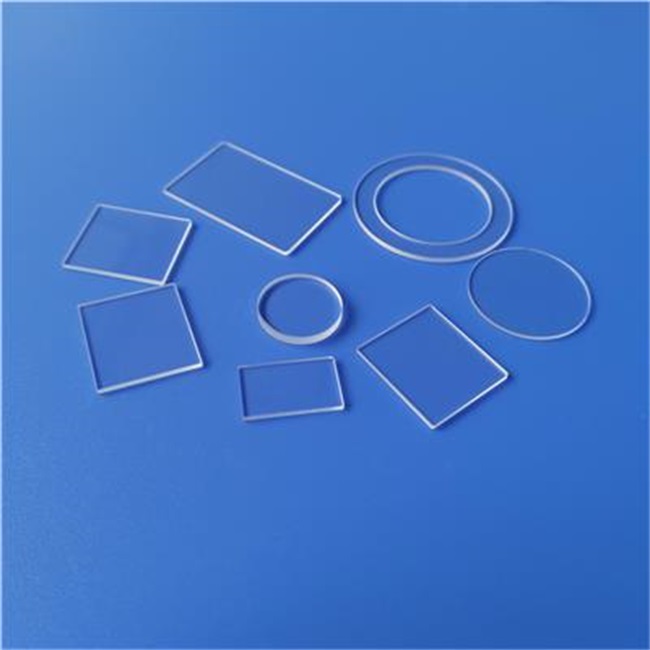

Optical quartz sheet with diameter of 50-70mm
Optical quartz sheets are an optical material made of high-purity silicon dioxide (SiO _ 2) with excellent optical and mechanical properties.
LUVERRE quartz
99.99%
Inner with Vacuum PVC bag and then wrapped with air bubble film, outer with wooden box.
as per customer's requirement
Optical quartz sheet with diameter of 50-70mm
Optical quartz sheets are an optical material made of high-purity silicon dioxide (SiO _ 2) with excellent optical and mechanical properties. Their diameter of 50-70mm is often used in applications where precise optical properties and high temperature resistance are required. Optical quartz sheets are widely used in a variety of high-tech fields due to their optical properties including high light transmittance, low refractive index, and ability to pass through ultraviolet, visible, and infrared light.
Application field
Due to its unique properties, optical quartz sheets are widely used in the following fields:
Optical field: used to manufacture optical components such as optical lenses, prisms, and beam splitters, which are crucial in experiments such as spectral analysis and optical inspection.
Semiconductor industry: as a wafer carrier, reticle and other materials, it plays an important role in the semiconductor manufacturing process.
Laser technology: can be used in the optical cavity of the laser, laser mirrors, etc., to ensure the stability and efficiency of the laser.
Scientific research: used as a substrate or window material for spectroscopic analysis, optical detection, and other experiments.
Electronic equipment: used in displays, sensors, etc., to provide optical transmission or reflection functions.
Communication field: Manufacturing optical fiber connectors, optical filters, and other components for optical communication.
Custom description
The customized production of optical quartz sheets can meet the needs of different application scenarios. Here are a few key points of the custom description:
Dimensions: Optical quartz sheets can be customized in a variety of sizes, with a diameter of 50-70mm suitable for applications that require a large surface area and maintain high optical performance.
Thickness range: Thickness is usually between 0.1mm and 2mm, which can be adjusted according to demand to ensure both optical performance and sufficient mechanical strength in the application.
Optical grades: According to the requirements of optical performance, different grades of optical quartz sheets can be selected, such as JGS1 (suitable for far ultraviolet band), JGS2 (suitable for ultraviolet and visible light band) and JGS3 (suitable for infrared band).
Surface treatment: Polishing, coating, and other surface treatments can be customized as needed to improve optical performance or anti-reflection ability.
Other features: During the customization process, the thermal expansion coefficient, high temperature resistance, etc. can also be adjusted according to requirements to adapt to special environments.
Performance characteristics
Optical quartz sheets have the following outstanding properties:
High light transmittance: excellent transmission in ultraviolet, visible and infrared wavelengths.
High temperature resistance: softening point up to 1730 ° C, can be used for a long time at 1100 ° C, and the maximum temperature for short-term use can reach 1450 ° C.
Low thermal expansion coefficient: The thermal expansion coefficient is only 1/10 to 1/20 of that of ordinary glass, providing excellent thermal shock resistance.
Chemical stability: It has good corrosion resistance to most chemicals, except hydrofluoric acid and hot phosphoric acid.
Electrical insulation: high resistance value at room temperature, suitable for manufacturing high-frequency high-voltage insulators with high temperature resistance.
Optical quartz sheets with a diameter of 50-70mm are widely used in optics, semiconductors, laser technology and other fields due to their excellent optical properties, high temperature resistance and chemical stability. Its customized production can meet the needs of different application scenarios, including size, thickness, optical grade and surface treatment, etc., making it an indispensable and important material in the high-tech field. If you have specific application needs, you can contact us for customization to ensure the performance and quality of the product.
Luverre Quartz manufactures and sells a wide range of high quality quartz glass, including quartz tubes, quartz plates, quartz rods, quartz windows, quartz crucibles, quartz boats, quartz flanges, quartz beakers, quartz glass instruments, and more. We can meet all kinds of customized requirements for quartz glass products.
For more information, please feel free to contact us.
